New product

Need a handsfree kit in your car? Want to listen to hours (days) of uninterrupted music? Have a smartphone and want to use it in the car? iPod integration? We have it all. The Gateway 500S BT is the perfect match for MOST™ fibre optic systems.

- Talk to your loved ones without holding the phone while driving!
- Listen to hours (days) of uninterrupted music!
- Manage your smartphone's functions with your car's factory controls!
- Full iPhone integration.
You can talk via telephone just as you talk to someone sitting next to you. Perfect sound quality from the car's audio system and with the automotive grade external microphone you can be heard as well even in higher riding noise thanks to Gateway'S special sound-filter algorithm.

Manage your phone calls with your car's familiar factory controls. You can browse the phonebook on the head unit's display, you can start, accept or decline phone call's with the steering wheel,- or the radio buttons.

Music streaming is a flawless experience on the car hi-fi. Fast and easy access to your favourite songs stored on your smartphone with menu-based browsing via USB or radio button controls via Bluetooth.

If your car is already equipped with Bluetooth, the Gateway 500S BT also has a version without Bluetooth, The Gateway 500S.

*************************************************************************************************
Product safety information:
Brand: Dension
Manufacturer: Dension Elektronikai Kft, H-1116 Budapest, Sztregova u. 1., info@dension.com
*************************************************************************************************

The reliable companion for your leisure time, for lighting and TV, as a backup for off-grid operation, for self-sufficient camping, or for your caravan mover. These batteries are more than 50% lighter compared to lead-acid batteries of the same capacity, a huge advantage, especially when carrying extra weight. Data communication is possible via a CAN bus interface or with the specially developed FLYBAT app. Unpredictable weather is no problem; your battery operates flawlessly from -20°C to +60°C.

- Short charging times: Thanks to fast charging capability, our batteries are ready for use in no time, ideal for efficient operation without long waiting periods.
- Extremely long lifespan: Our batteries offer exceptional durability and reliability, even under intensive use and demanding conditions.
- Heat-resistant: Our batteries are specially designed to function reliably even at high temperatures and deliver maximum performance without loss of power.
- Cold-resistant: Our batteries are engineered to function reliably even at extremely low temperatures and provide optimal starting power and functionality even in cold weather.
- Battery health monitoring: To optimize performance and lifespan, our batteries offer precise health monitoring.
- Cycle-resistant: The exceptionally cycle-resistant technology ensures reliable operation even with frequent charge and discharge cycles.
- Low self-discharge: Our batteries experience minimal charge loss over time, allowing them to remain ready for use for longer and deliver immediate power.
ELECTRICAL SPECIFICATIONS
Nominal voltage 12.8 V
Nominal capacity 320 Ah
Capacity @6A 300 min
Efficiency 99%
Self-discharge <3% per month
Max. modules in series 4

MECHANICAL SPECIFICATIONS
Length 367 mm
Width 194 mm
Height 247.5 mm
Weight 25.06 kg
Terminal type M8
Housing material ABS
Protection class IP65
Chemistry LiFePO4

DISCHANGE SPECIFICATIONS
Max. continuous discharge current 200 A
Peak discharge current 300 A
Recommended cutoff voltage 11 V
Cutoff voltage 10 V
Reconnect voltage 10.8 V
Short circuit protection YES

CHARGING SPECIFICATIONS
Recommended Charging Current 64 A
Max. Charging Current 200 A
Recommended Charging Voltage 14.2–14.6 V
Overvoltage Cutoff 15.0 V
Restart Voltage 14.4 V
Balancing Voltage 13.6 V
Balancing Current 0.1–3 A

TEMPERATURE SPECIFICATIONS
Temperature Range (Discharge) -20–60°C
Temperature Range (Charge) -20–55°C
Temperature Range (Storage) -10–45°C
Overheating Protection Temperature 75°C

BATTERY FUNCTIONS
Bluetooth Yes
Active Cell Balancing Yes
Heating Yes
CAN Bus Yes

Advantages of Lithium Iron Phosphate (LiFePO4) Batteries:
- 5-year manufacturer's warranty
- LiFePO4 - The safest lithium technology, with no risk of fire or explosion
- Integrated BMS for effective battery control and monitoring
- Long lifespan
- Continuously improved technology for high storage capacity
- 99% efficiency
- High stability, even under extreme loads
- No memory effect - no need for complete charge and discharge cycles
- High performance, even under extreme conditions
- Excellent, consistent discharge and charge efficiency
- Smaller, lighter, and significantly higher energy content

For winter operation, please refer to the information sheet
"FLYBAT Winter Operation.pdf".

*************************************************************************************************
Angaben zur Produktsicherheit:
Marke: Flybat
Hersteller: BVD GmbH, Riedacker 5, 74889 Sinsheim , bvd@bvd-batterien.de
*************************************************************************************************

Electrical specifications:
- Nominal voltage: 12.8V
- Nominal capacity: 75 Ah
- Capacity 25A: 180min
- Energy: 960Wh
- Resistance: 30 mOhm
- Efficiency: 99%
- Self-discharge: <3% per month
- Maximum modules in series/parallel 4/4

Mechanical specifications:
Dimensions (LxWxH): 279mm x 175mm x 189mm
Weight: 10.8kg
Terminal Typess: T1
Terminal torque: 9-11 N-m
Case material: ABS
Enclosure protection: IP66
Chemistry: LiFePO4

Temperature specifications:
Discharge temperature: -20 to 60 °C
Charging temperature: 0 to 55 °C
Storage temperature: -20 to 60°C
PCM high temperature cut-off: 80°C

Charging specifications:
Recommended charging current: 50A
Maximum charge current: 80A
Recommended charging voltage: 14.2V-14.6V
PCM charge voltage cut-off: 15.6V
Balancing voltage: 14.4V

Discharge specifications:
Maximum continuous discharge current: 100 A
Peak discharge current: 200 A
PCM discharge current cut-off: 280 A (±50 A)
Recommended low voltage cut-off: 11 V
PCM discharge voltage cut-off: 8 V
Reconnect voltage: 9.2 V
Short circuit protection: Yes

Advantages of FLYBAT lithium iron phosphate (LiFePO4) batteries:
- 5 years manufacturer's warranty
- Safe technology without risk of fire or explosion
- Integrated BMS
- Long service life
- 99% efficiency
- High stability even under extreme load
- No memory effect- no need for full charge and discharge cycles
- High performance even under extreme conditions
- Deep and steady discharge and charging efficiency
- Small size and light weight

For winter operation, please see the information sheet:
"FLYBAT Winter Operation.pdf". *************************************************************************************************
Product safety information:
Brand: Flybat
Manufacturer: BVD GmbH, Riedacker 5, 74889 Sinsheim , bvd@bvd-batterien.de
*************************************************************************************************

PRODUCTINFORMATION:

- Verbindung zum 5G Mobilfunknetz (bis 3,4 Gbps) oder 4G LTE (Cat 19 bis 1,6 Gbps)
- Verbindung zu Campingplatz-WLANs mit und ohne Anmeldeseite (Captive Portal)
- Verbindung zu Starlink bei Anschluss einer Starlink Antenne
- Besonders einfache Einrichtung und Bedienung
- GPS-Ortung des Wohnmobils oder Wohnwagens möglich
- VPN-fähig, z. B. zum Streamen im Ausland

In a camper van or caravan, a stable internet connection for a smartphone, tablet, laptop, smart TV, or game console is often a challenge. SELFSAT offers various solutions for Wi-Fi coverage on the go. This model is particularly convenient thanks to its eSIM feature, which allows the use of up to six eSIM profiles, for example, when abroad, in addition to the use of physical SIM cards. SELFSAT routers can be operated via the 12/24 volt vehicle electrical system and receive Wi-Fi or mobile network signals from outside, broadcasting them as a private, protected Wi-Fi network within the vehicle. An external antenna ensures good reception and bypasses the shielding of the vehicle's outer shell. Installation is simple, and the antenna is dust and waterproof. Connection to the router is established via QR codes or Wi-Fi name and password. Operation is user-friendly, taking place via the internet browser and therefore requiring no separate app. The router supports logging into campsite Wi-Fi networks with a login page (captive portal), GPS tracking of the motorhome, installing VPNs for streaming abroad, and is Starlink compatible.

Router Technical Specifications:
• Supported mobile network generations: 5G (up to 3.4 Gbps), 4G LTE (Cat 19 up to 1.6 Gbps), 3G (up to 42 Mbps)
• Supported WiFi frequencies (input): 2.4 GHz, 5 GHz
• Supported WiFi frequencies (output): 2.4 GHz, 5 GHz
• Supports GPS for location tracking and time synchronization
• 2 SIM card slots: Mini SIM (2FF)
• Ethernet interfaces: 1 x WAN, 4 x LAN RJ45
• Power supply: 9–50 V DC
• Dimensions: 130.4 x 42.6 x 103.4 mm
• Weight: 452 g
• Operating temperature: -40°C 75°C
• Protection class: IP30

Antenna specifications:
• 4G / LTE / 5G
• MIMO frequency range: 698 - 960 MHz, 1710 - 2800 MHz, 3300 - 3800 MHz
• Signal gain: 698 - 960 MHz up to +5 dBi 1710 - 2800 MHz up to +9 dBi, 3300 - 3800 MHz up to +10 dBi
• Cable: 4 x RG174, length 1 m (1.5 m or 3 m cable extension available as an option)
• Connectors: SMA male / male
• WLAN 2.4 GHz / 5 GHz
• Signal gain: 2.4 - 2.5 GHz up to +3 dBi, 5.15 - 5.85 GHz up to +13 dBi
• Cable: 2 x RG174, length 1 m (1.5 m or 3 m cable extension available as an option)
• Connector: RP-SMA male
• GPS
• Frequency range: 1562 - 1612 MHz
• Signal gain: +28 ±2 dBi
• Cable: 1 x RG174, 1 m length (1.5 m or 3 m cable extension available as an option) • Connector: SMA male • DAB+ / DVB-T • VHF signal gain: 14 dBi, UHF signal gain: 10 dBi • Operating temperature: -40°C to 80°C • Protection class: IP69K (except cable output) • Dimensions: 185 x 60 x 55 mm • Weight: 330 g Scope of delivery: • MWR 6550 router • 4-pin power cable (230 V power adapter or 12 V cigarette lighter cable available as an option) • Mounting kit • 2 SIM card adapters for Micro SIM or Nano SIM to Mini SIM • SATCO roof antenna including threaded extension • WiFi Indoor Antenna • Hook and loop adhesive dots for WiFi indoor antenna • Installation and operating instructions Also available in black: "SE-6550-SharkB"

*************************************************************************************************
Angaben zur Produktsicherheit/GPSR:
Marke/Trademark: SELFSAT
Hersteller/Manufacturer: Satco Europe GmbH, Waidhauser Str. 3, 92648 Vohenstrauß, info@satco-europe.de
*************************************************************************************************

PRODUCT DESCRIPTION

- Connection to the 5G mobile network (up to 3.4 Gbps) or 4G LTE (Cat 19 up to 1.6 Gbps)
- Connection to campsite Wi-Fi networks with and without a login page (captive portal)
- Connection to Starlink when a Starlink antenna is connected
- Particularly easy setup and operation
- GPS tracking of the motorhome or caravan is possible
- VPN-enabled, e.g., for streaming abroad

A reliable internet connection in a motorhome or caravan is often a challenge – whether for smartphones, tablets, laptops, smart TVs, or game consoles. SELFSAT offers innovative solutions for stable and secure Wi-Fi coverage on the go.

SELFSAT routers operate via the vehicle's 12/24-volt electrical system and receive both Wi-Fi and cellular signals to provide a private, secure Wi-Fi network within the vehicle. The powerful external antenna ensures optimal reception and overcomes the shielding effect of the vehicle's exterior. Thanks to Wi-Fi 6, users benefit from higher speeds, improved response times, and maximum efficiency.

Installation is straightforward, and the antenna is dustproof and waterproof. Connecting to the router is effortless via QR code scan or by manually entering the Wi-Fi name and password. The intuitive user interface allows for easy control directly through your web browser, without the need for an additional app.

In addition, the router supports connecting to campsite Wi-Fi networks, enables VPN setup for unlimited streaming, and is compatible with Starlink – for even more flexible internet access on the go.

Router Specifications:
• Supported mobile network generations: 5G (up to 3.4 Gbps), 4G LTE (Cat 19 up to 1.6 Gbps), 3G (up to 42 Mbps)
• Supported Wi-Fi frequencies (input): 2.4 GHz, 5 GHz
• Supported Wi-Fi frequencies (output): 2.4 GHz, 5 GHz
• Supports GPS for location tracking and time synchronization
• 2 SIM card slots: Mini SIM (2FF)
• Ethernet ports: 1 1 x WAN, 4 x LAN RJ45
• Power supply: 9 - 50 V DC
• Dimensions: 130.4 x 42.6 x 103.4 mm
• Weight: 452 g
• Operating temperature: -40°C - 75°C
• Protection class: IP30

Antenna specifications:
• 4G / LTE / 5G
• MIMO frequency range: 698–960 MHz, 1710–2800 MHz, 3300–3800 MHz
• Signal gain: 698–960 MHz up to +5 dBi 1710 - 2800 MHz up to +9 dBi, 3300 - 3800 MHz up to +10 dBi
• Cable: 4 x RG174, length 1 m (1.5 m or 3 m cable extension available as an option)
• Connectors: SMA male / male
• WLAN 2.4 GHz / 5 GHz
• Signal gain: 2.4 - 2.5 GHz up to +3 dBi, 5.15 - 5.85 GHz up to +13 dBi
• Cable: 2 x RG174, length 1 m (1.5 m or 3 m cable extension available as an option)
• Connector: RP-SMA male
• GPS
• Frequency range: 1562 - 1612 MHz
• Signal gain: +28 ±2 dBi
• Cable: 1 x RG174, length 1 m (1.5 m or 3 m cable extension available as an option)
• Connector: SMA male
• DAB+ / DVB-T
• VHF signal gain: 14 dBi, UHF signal gain: 10 dBi
• Operating temperature: -40°C to 80°C
• Protection class: IP69K (except cable output)
• Dimensions: 185 x 60 x 55 mm
• Weight: 330 g



Scope of delivery:
• MWR 6550 Router
• 4-pin power cable (230-volt power adapter or 12-volt cigarette lighter cable available separately)
• Mounting kit
• 2 SIM card adapters for Micro SIM or Nano SIM to Mini SIM
• SATCO roof antenna including threaded extension
• WiFi indoor antenna
• Hook and loop adhesive dots for WiFi indoor antenna
• Assembly and operating instructions

Also available in white: "SE-6550-SharkW"

*************************************************************************************************
Angaben zur Produktsicherheit/GPSR:
Marke/Trademark: SELFSAT
Hersteller/Manufacturer: Satco Europe GmbH, Waidhauser Str. 3, 92648 Vohenstrauß, info@satco-europe.de
*************************************************************************************************

PRODUCTINFORMATION:

- Verbindung zum 5G Mobilfunknetz (bis 3,4 Gbps) oder 4G LTE (Cat 19 bis 1,6 Gbps)
- Verbindung zu Campingplatz-WLANs mit und ohne Anmeldeseite (Captive Portal)
- Verbindung zu Starlink bei Anschluss einer Starlink Antenne
- Besonders einfache Einrichtung und Bedienung
- GPS-Ortung des Wohnmobils oder Wohnwagens möglich
- VPN-fähig, z. B. zum Streamen im Ausland

In a camper van or caravan, a stable internet connection for a smartphone, tablet, laptop, smart TV, or game console is often a challenge. SELFSAT offers various solutions for Wi-Fi coverage on the go. This model is particularly convenient thanks to its eSIM feature, which allows the use of up to six eSIM profiles, for example, when abroad, in addition to the use of physical SIM cards. SELFSAT routers can be operated via the 12/24 volt vehicle electrical system and receive Wi-Fi or mobile network signals from outside, broadcasting them as a private, protected Wi-Fi network within the vehicle. An external antenna ensures good reception and bypasses the shielding of the vehicle's outer shell. Installation is simple, and the antenna is dust and waterproof. Connection to the router is established via QR codes or Wi-Fi name and password. Operation is user-friendly, taking place via the internet browser and therefore requiring no separate app. The router supports logging into campsite Wi-Fi networks with a login page (captive portal), GPS tracking of the motorhome, installing VPNs for streaming abroad, and is Starlink compatible.

Router Technical Specifications:
• Supported mobile network generations: 5G (up to 3.4 Gbps), 4G LTE (Cat 19 up to 1.6 Gbps), 3G (up to 42 Mbps)
• Supported WiFi frequencies (input): 2.4 GHz, 5 GHz
• Supported WiFi frequencies (output): 2.4 GHz, 5 GHz
• Supports GPS for location tracking and time synchronization
• 2 SIM card slots: Mini SIM (2FF)
• Ethernet interfaces: 1 x WAN, 4 x LAN RJ45
• Power supply: 9-50 V DC
• Dimensions: 130.4 x 42.6 x 103.4 mm
• Weight: 452 g
• Operating temperature: -40°C 75°C
• Protection class: IP30

Antenna specifications:
• 4G / LTE / 5G
• MIMO frequency range: 617 - 960 MHz, 1710 - 2800 MHz, 3300 - 6000 MHz
• Signal gain: 617 - 960 MHz +6 dBi 1710 - 2800 MHz +10 dBi, 3300 - 6000 MHz +11 dBi
• Cable: 4 x TFC-302, 2 m length (1 m or 2 m cable extension with 1 WLAN antenna cable available as an option)
• Connectors: SMA male
• WLAN 2.4 GHz / 5 GHz
• Signal gain: +13 dBi
• Cable: 2 x TFC-302, 2 m length (1.5 m or 3 m cable extension with 1 WLAN antenna cable available as an option)
• Connector: RP-SMA male
• GPS
• Frequency range: 1575.42 MHz
• Signal gain: +28 ±2 dBi
• Cable: 1 x TFC-302, 2 m length (1.5 m or 3 m cable extension with 1 WLAN antenna cable available as an option)
• Connector: SMA male
• Operating temperature: -40°C to 80°C
• Protection class: IP69K (except cable outlet)
• Dimensions: 181.5 x 181.5 x 75 mm

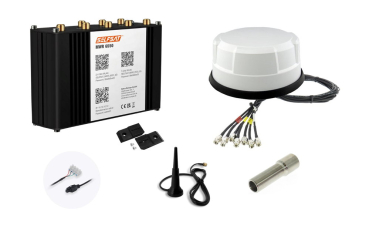

Scope of delivery:
• MWR 6550 router
• 4-pin power cable (230 V power adapter or 12 V cigarette lighter cable available as an option)
• Mounting kit
• 2 SIM card adapters for Micro SIM or Nano SIM to Mini SIM
• SATCO roof antenna including threaded extension
• WiFi indoor antenna
• Hook and loop adhesive dots for WiFi indoor antenna
• Installation and operating instructions



Antenna is also available in black:
"SE-6550-SAB"


*************************************************************************************************
Angaben zur Produktsicherheit/GPSR:
Marke/Trademark: SELFSAT
Hersteller/Manufacturer: Satco Europe GmbH, Waidhauser Str. 3, 92648 Vohenstrauß, info@satco-europe.de
*************************************************************************************************

PRODUCTINFORMATION:

- Verbindung zum 5G Mobilfunknetz (bis 3,4 Gbps) oder 4G LTE (Cat 19 bis 1,6 Gbps)
- Verbindung zu Campingplatz-WLANs mit und ohne Anmeldeseite (Captive Portal)
- Verbindung zu Starlink bei Anschluss einer Starlink Antenne
- Besonders einfache Einrichtung und Bedienung
- GPS-Ortung des Wohnmobils oder Wohnwagens möglich
- VPN-fähig, z. B. zum Streamen im Ausland

In a camper van or caravan, a stable internet connection for a smartphone, tablet, laptop, smart TV, or game console is often a challenge. SELFSAT offers various solutions for Wi-Fi coverage on the go. This model is particularly convenient thanks to its eSIM feature, which allows the use of up to six eSIM profiles, for example, when abroad, in addition to the use of physical SIM cards. SELFSAT routers can be operated via the 12/24 volt vehicle electrical system and receive Wi-Fi or mobile network signals from outside, broadcasting them as a private, protected Wi-Fi network within the vehicle. An external antenna ensures good reception and bypasses the shielding of the vehicle's outer shell. Installation is simple, and the antenna is dust and waterproof. Connection to the router is established via QR codes or Wi-Fi name and password. Operation is user-friendly, taking place via the internet browser and therefore requiring no separate app. The router supports logging into campsite Wi-Fi networks with a login page (captive portal), GPS tracking of the motorhome, installing VPNs for streaming abroad, and is Starlink compatible.

Router Technical Specifications:
• Supported mobile network generations: 5G (up to 3.4 Gbps), 4G LTE (Cat 19 up to 1.6 Gbps), 3G (up to 42 Mbps)
• Supported WiFi frequencies (input): 2.4 GHz, 5 GHz
• Supported WiFi frequencies (output): 2.4 GHz, 5 GHz
• Supports GPS for location tracking and time synchronization
• 2 SIM card slots: Mini SIM (2FF)
• Ethernet interfaces: 1 x WAN, 4 x LAN RJ45
• Power supply: 9–50 V DC
• Dimensions: 130.4 x 42.6 x 103.4 mm
• Weight: 452 g
• Operating temperature: -40°C 75°C
• Protection class: IP30

Antenna specifications:
• 4G / LTE / 5G
• MIMO frequency range: 617 - 960 MHz, 1710 - 2800 MHz, 3300 - 6000 MHz
• Signal gain: 617 - 960 MHz +6 dBi 1710 - 2800 MHz +10 dBi, 3300 - 6000 MHz +11 dBi
• Cable: 4 x TFC-302, 2 m length (1 m or 2 m cable extension with 1 WLAN antenna cable available as an option)
• Connectors: SMA male
• WLAN 2.4 GHz / 5 GHz
• Signal gain: +13 dBi
• Cable: 2 x TFC-302, 2 m length (1.5 m or 3 m cable extension with 1 WLAN antenna cable available as an option)
• Connector: RP-SMA male
• GPS
• Frequency range: 1575.42 MHz
• Signal gain: +28 ±2 dBi
• Cable: 1 x TFC-302, 2 m length (1.5 m or 3 m cable extension with 1 WLAN antenna cable available as an option)
• Connector: SMA male
• Operating temperature: -40°C to 80°C
• Protection class: IP69K (except cable outlet)
• Dimensions: 181.5 x 181.5 x 75 mm

Scope of delivery:
• MWR 6550 router
• 4-pin power cable (230 V power adapter or 12 V cigarette lighter cable available as an option)
• Mounting kit
• 2 SIM card adapters for Micro SIM or Nano SIM to Mini SIM
• SATCO roof antenna including threaded extension
• WiFi indoor antenna
• Hook and loop adhesive dots for WiFi indoor antenna
• Installation and operating instructions

Antenna is also available in white:
"SE-6550-SAW"


*************************************************************************************************
Angaben zur Produktsicherheit/GPSR:
Marke/Trademark: SELFSAT
Hersteller/Manufacturer: Satco Europe GmbH, Waidhauser Str. 3, 92648 Vohenstrauß, info@satco-europe.de
*************************************************************************************************

PRODUCT DESCRIPTION

- Connection to the 5G mobile network (up to 3.4 Gbps) or 4G LTE (Cat 19 up to 1.6 Gbps)
- Connection to campsite Wi-Fi networks with and without a login page (captive portal)
- Connection to Starlink when a Starlink antenna is connected
- Particularly easy setup and operation
- GPS tracking of the motorhome or caravan is possible
- VPN-enabled, e.g., for streaming abroad

A reliable internet connection in a motorhome or caravan is often a challenge – whether for smartphones, tablets, laptops, smart TVs, or game consoles. SELFSAT offers innovative solutions for stable and secure Wi-Fi coverage on the go.

SELFSAT routers operate via the vehicle's 12/24-volt electrical system and receive both Wi-Fi and cellular signals to provide a private, secure Wi-Fi network within the vehicle. The powerful external antenna ensures optimal reception and overcomes the shielding effect of the vehicle's exterior. Thanks to Wi-Fi 6, users benefit from higher speeds, improved response times, and maximum efficiency.

Installation is straightforward, and the antenna is dustproof and waterproof. Connecting to the router is effortless via QR code scan or by manually entering the Wi-Fi name and password. The intuitive user interface allows for easy control directly through your web browser, without the need for an additional app.

Furthermore, the router supports connecting to campsite Wi-Fi networks, enables VPN setup for unlimited streaming, and is compatible with Starlink for even more flexible internet access on the go.

Router Specifications:
• Supported mobile network generations: 5G (up to 3.4 Gbps), 4G LTE (Cat 19 up to 1.6 Gbps), 3G (up to 42 Mbps)
• Supported Wi-Fi frequencies (input): 2.4 GHz, 5 GHz
• Supported Wi-Fi frequencies (output): 2.4 GHz, 5 GHz
• Supports GPS for location tracking and time synchronization
• 2 SIM card slots: Mini SIM (2FF)
• Ethernet interfaces: 1 x WAN, 4 x LAN RJ45
• Power supply: 9 - 50 volts DC
• Dimensions: 132 x 44.2 x 95 mm
• Weight: 530 g
• Operating temperature: -40°C - 75°C
• Protection class: IP30

The antenna features 4 receiving elements for LTE/5G, 2 elements for WLAN, and 1 element for GPS. Especially because it enables the highest achievable antenna gain of up to 9 dBi.

Technical Specifications:

Color: White

Frequencies: GPRS/UMTS/LTE/5G
Element 1: 617-960 MHz, 1710-6000 MHz
Element 2: 617-960 MHz, 1710-6000 MHz
Element 3: 617-960 MHz, 1710-6000 MHz
Element 4: 617-960 MHz, 1710-6000 MHz
Element 5: 2400/4900-6000 MHz
Element 6: 2400/4900-6000 MHz
Element 7: 1562-1612 MHz (GPS;GNSS)

Gain:
Element 1&4 @617-960MHz 4dBi
Element 1&4 @1710-3800MHz 8dBi
Element 1&4 @4900-6000MHz 9dBi
Element 5-6 @2400MHz 9dBi
Element 5-6 @4900-6000MHz 9dBi
Element 7 @1562-1612MHz (GPS;GNSS) 26dB LNA

Typical Efficiency:
Element 1&2: 70%
Element 3-5: 80%
Isolation: LTE >10dB, Wi-Fi >12dB
Resistance: 50 Ohms

Dimensions: Height 81 mm / Diameter 180 mm
Mounting: 1-hole mounting 19 mm
Thread: M18 x 1
Cable length to antenna: 1.0 m

Connectors:
4 x SMA male connectors [4G/5G]
2 x SMA RP male connectors [WIFI]
1 x SMA male connector [GPS]

For longer cable lengths, we recommend the following cable sets:

- 7-piece extension cable set: 1.5 m: UNI-510L150
- 7-piece extension cable set: 3.0 m: UNI-510L300
- 7-piece extension cable set: 5.0 m: UNI-510L500
- 7-piece Extension cable set: 6.0 m: UNI-510L600
- 7-piece extension cable set: 7.5 m: UNI-510L750

Note:
All panoramic antennas are supplied with a waterproof adhesive pad for mounting. Additionally, the antenna is secured with an M18 nut, for example, on metal supports. For insulated roofs, we recommend using a threaded extension, which is included in the delivery.

Scope of delivery:
• MWR 6550 Router
• Panoramic antenna PAN-ANT510 with 1m cable
• TEL-12V: Connection cable for permanent installation
• TEL-MON2: Mounting bracket for permanent installation
• 2 SIM card adapters for Micro SIM or Nano SIM to Mini SIM
• 1 WiFi magnetic antenna
• Thread extension PAN-SAM-100
• User manual

Also available in black:
"SE-6550-PAB"

*************************************************************************************************
Angaben zur Produktsicherheit/GPSR:
Marke/Trademark: SELFSAT
Hersteller/Manufacturer: Satco Europe GmbH, Waidhauser Str. 3, 92648 Vohenstrauß, info@satco-europe.de
Marke/Trademark: Panorama Antennas (Antenne)
Hersteller/Manufacturer:
Panorama Antennas Ltd, 61 Frogmore London SW18 1HF, United Kingdom, sales@panorama-antennas.com
Einführer/Importer:
PUC antennas&equipment GmbH, Isaac-Newton-Straße 3, 59423 Unna, info@puc.de
*************************************************************************************************
