PRODUCTINFORMATION:
- Verbindung zum 5G Mobilfunknetz (bis 3,4 Gbps) oder 4G LTE (Cat 19 bis 1,6 Gbps)
- Verbindung zu Campingplatz-WLANs mit und ohne Anmeldeseite (Captive Portal)
- Verbindung zu Starlink bei Anschluss einer Starlink Antenne
- Besonders einfache Einrichtung und Bedienung
- GPS-Ortung des Wohnmobils oder Wohnwagens möglich
- VPN-fähig, z. B. zum Streamen im Ausland
In a camper van or caravan, a stable internet connection for a smartphone, tablet, laptop, smart TV, or game console is often a challenge. SELFSAT offers various solutions for Wi-Fi coverage on the go. This model is particularly convenient thanks to its eSIM feature, which allows the use of up to six eSIM profiles, for example, when abroad, in addition to the use of physical SIM cards. SELFSAT routers can be operated via the 12/24 volt vehicle electrical system and receive Wi-Fi or mobile network signals from outside, broadcasting them as a private, protected Wi-Fi network within the vehicle. An external antenna ensures good reception and bypasses the shielding of the vehicle's outer shell. Installation is simple, and the antenna is dust and waterproof. Connection to the router is established via QR codes or Wi-Fi name and password. Operation is user-friendly, taking place via the internet browser and therefore requiring no separate app. The router supports logging into campsite Wi-Fi networks with a login page (captive portal), GPS tracking of the motorhome, installing VPNs for streaming abroad, and is Starlink compatible.
Router Technical Specifications:
• Supported mobile network generations: 5G (up to 3.4 Gbps), 4G LTE (Cat 19 up to 1.6 Gbps), 3G (up to 42 Mbps)
• Supported WiFi frequencies (input): 2.4 GHz, 5 GHz
• Supported WiFi frequencies (output): 2.4 GHz, 5 GHz
• Supports GPS for location tracking and time synchronization

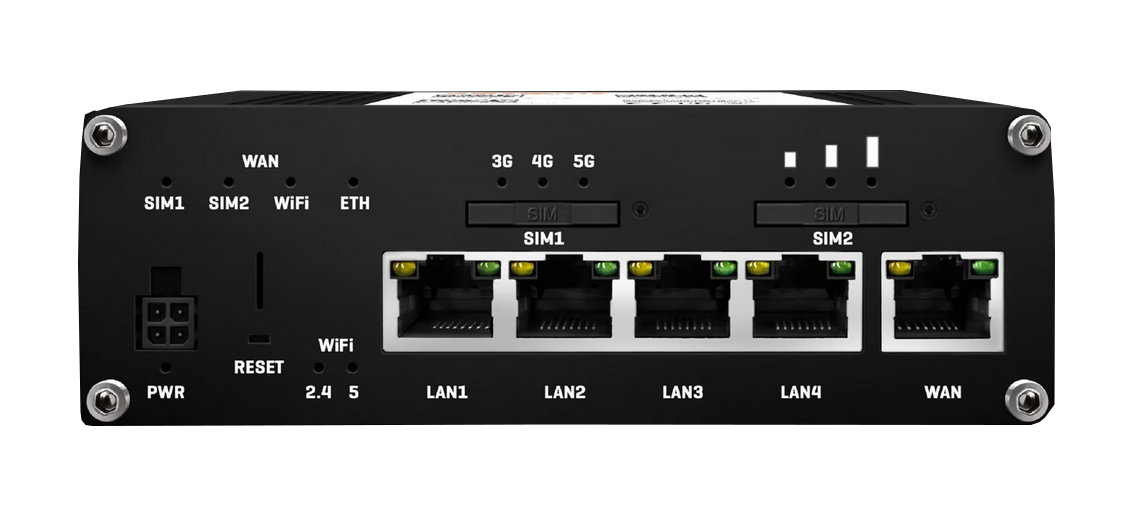

• 2 SIM card slots: Mini SIM (2FF)

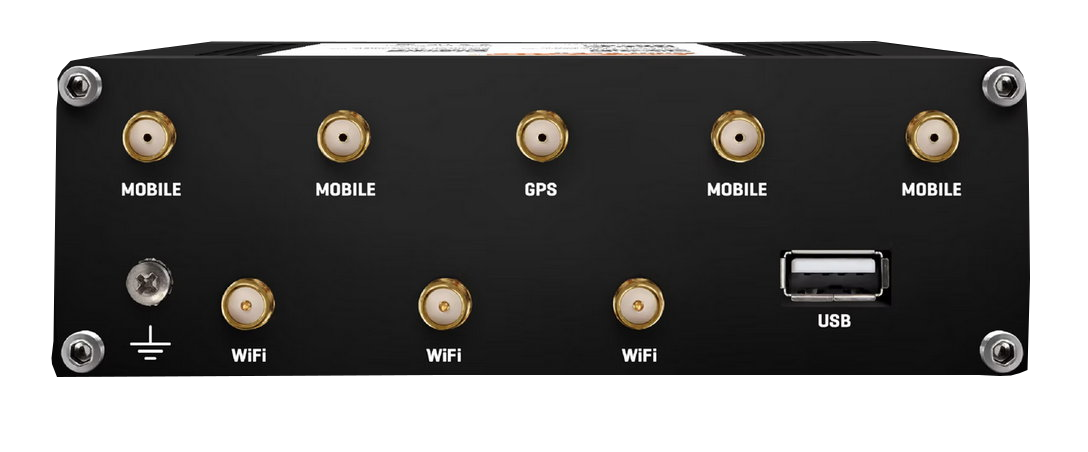

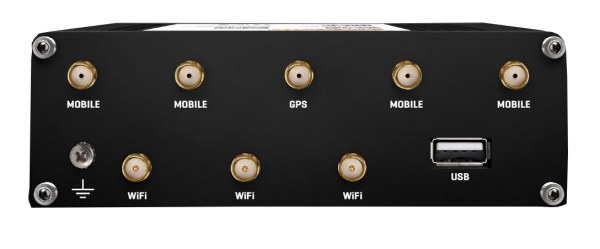

• Ethernet interfaces: 1 x WAN, 4 x LAN RJ45
• Power supply: 9–50 V DC
• Dimensions: 130.4 x 42.6 x 103.4 mm
• Weight: 452 g
• Operating temperature: -40°C 75°C
• Protection class: IP30
Antenna specifications:
• 4G / LTE / 5G
• MIMO frequency range: 617 - 960 MHz, 1710 - 2800 MHz, 3300 - 6000 MHz
• Signal gain: 617 - 960 MHz +6 dBi 1710 - 2800 MHz +10 dBi, 3300 - 6000 MHz +11 dBi
• Cable: 4 x TFC-302, 2 m length (1 m or 2 m cable extension with 1 WLAN antenna cable available as an option)
• Connectors: SMA male
• WLAN 2.4 GHz / 5 GHz
• Signal gain: +13 dBi
• Cable: 2 x TFC-302, 2 m length (1.5 m or 3 m cable extension with 1 WLAN antenna cable available as an option)
• Connector: RP-SMA male
• GPS
• Frequency range: 1575.42 MHz
• Signal gain: +28 ±2 dBi
• Cable: 1 x TFC-302, 2 m length (1.5 m or 3 m cable extension with 1 WLAN antenna cable available as an option)
• Connector: SMA male
• Operating temperature: -40°C to 80°C
• Protection class: IP69K (except cable outlet)
• Dimensions: 181.5 x 181.5 x 75 mm

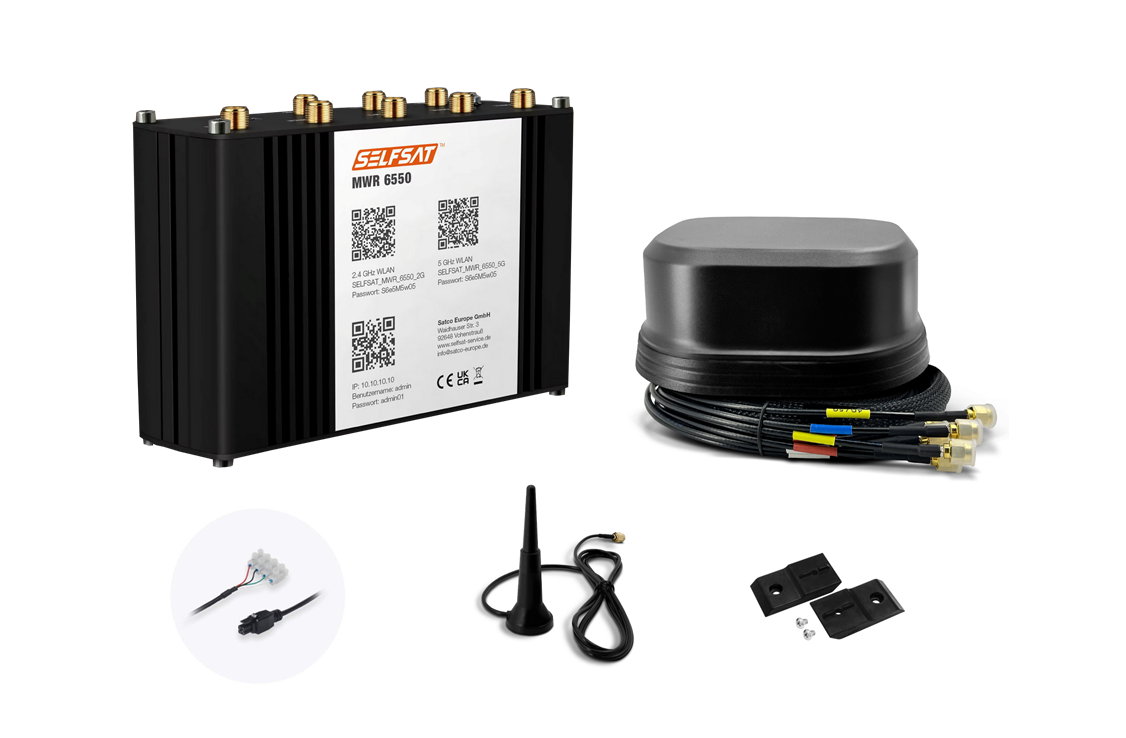

Scope of delivery:

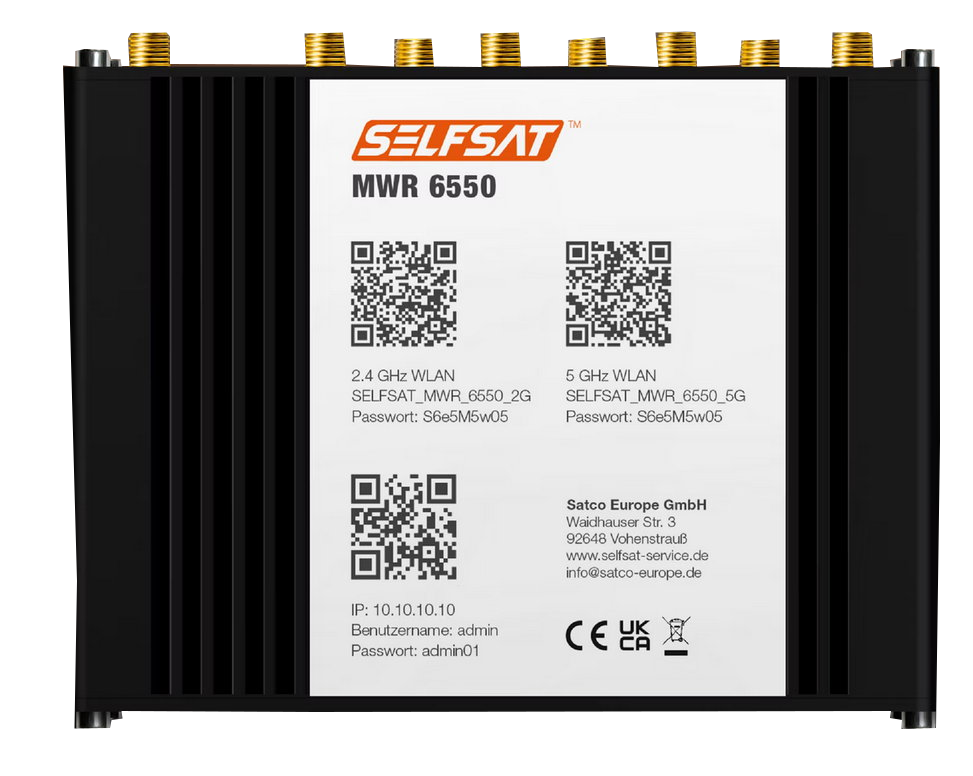

• MWR 6550 router

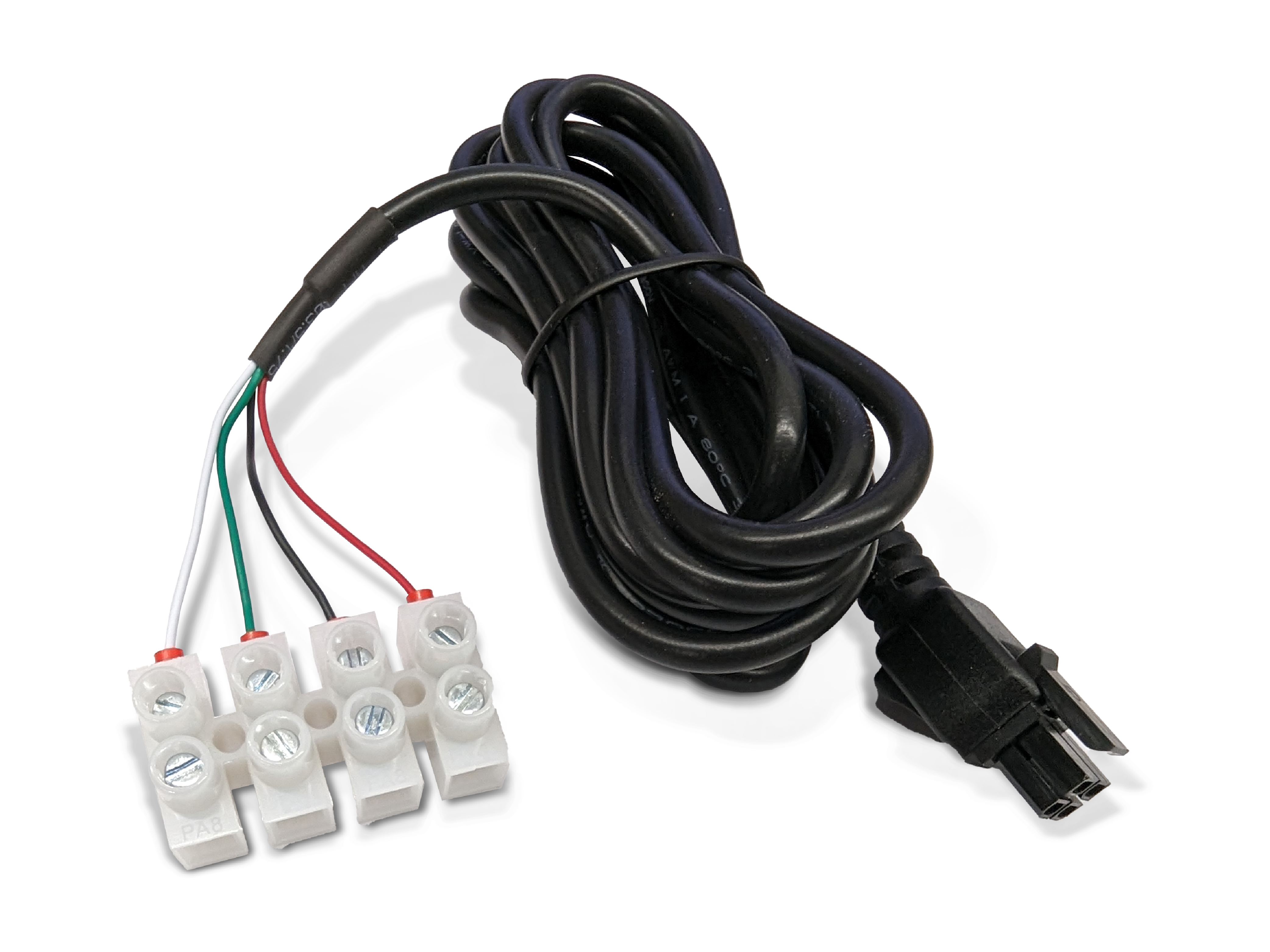

• 4-pin power cable (230 V power adapter or 12 V cigarette lighter cable available as an option)

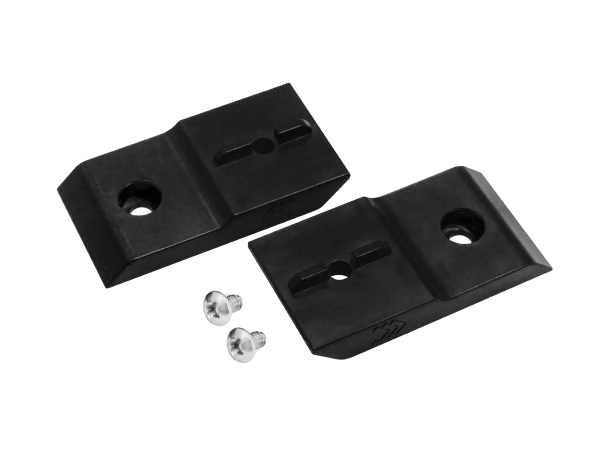

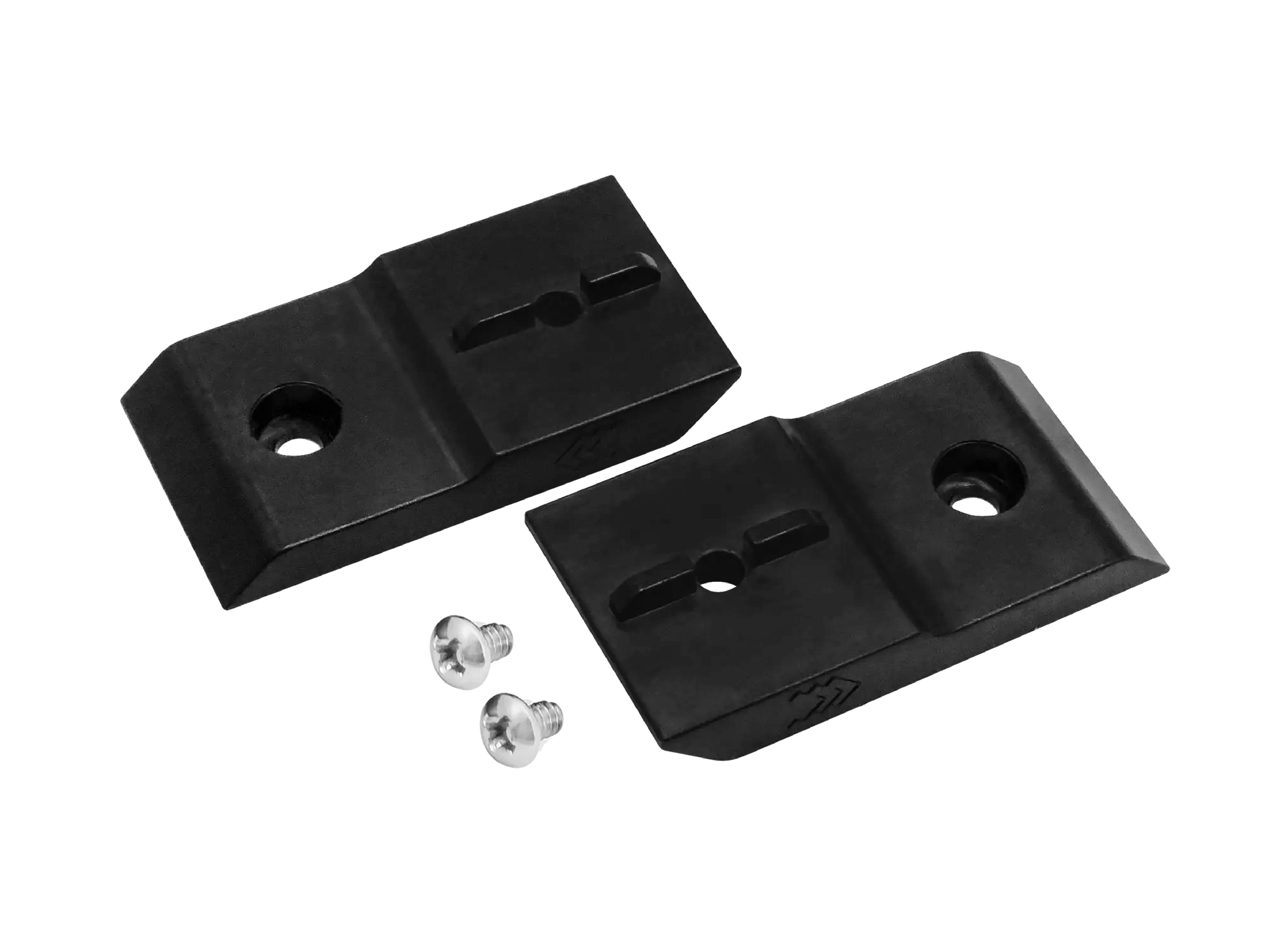

• Mounting kit
• 2 SIM card adapters for Micro SIM or Nano SIM to Mini SIM

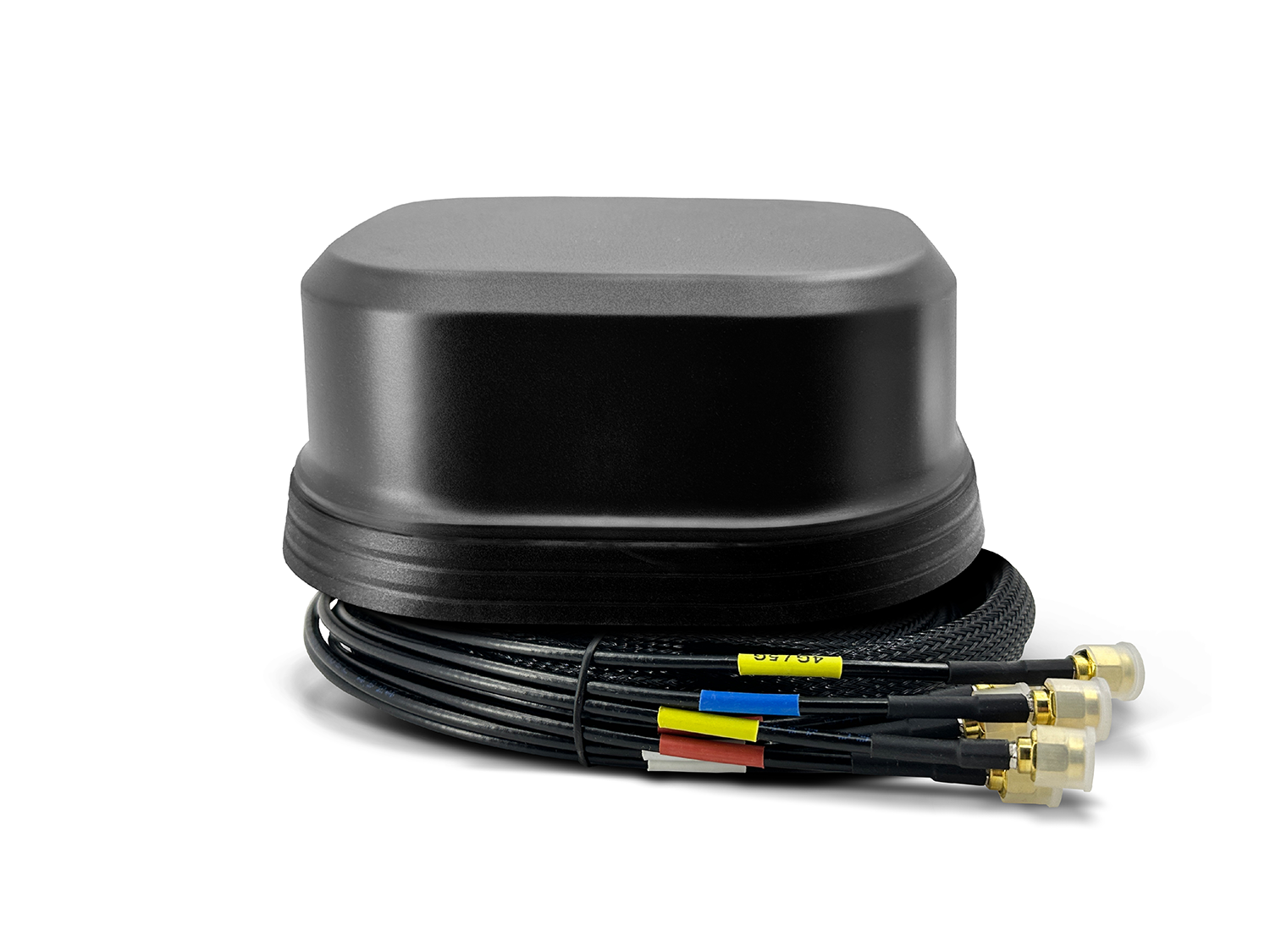

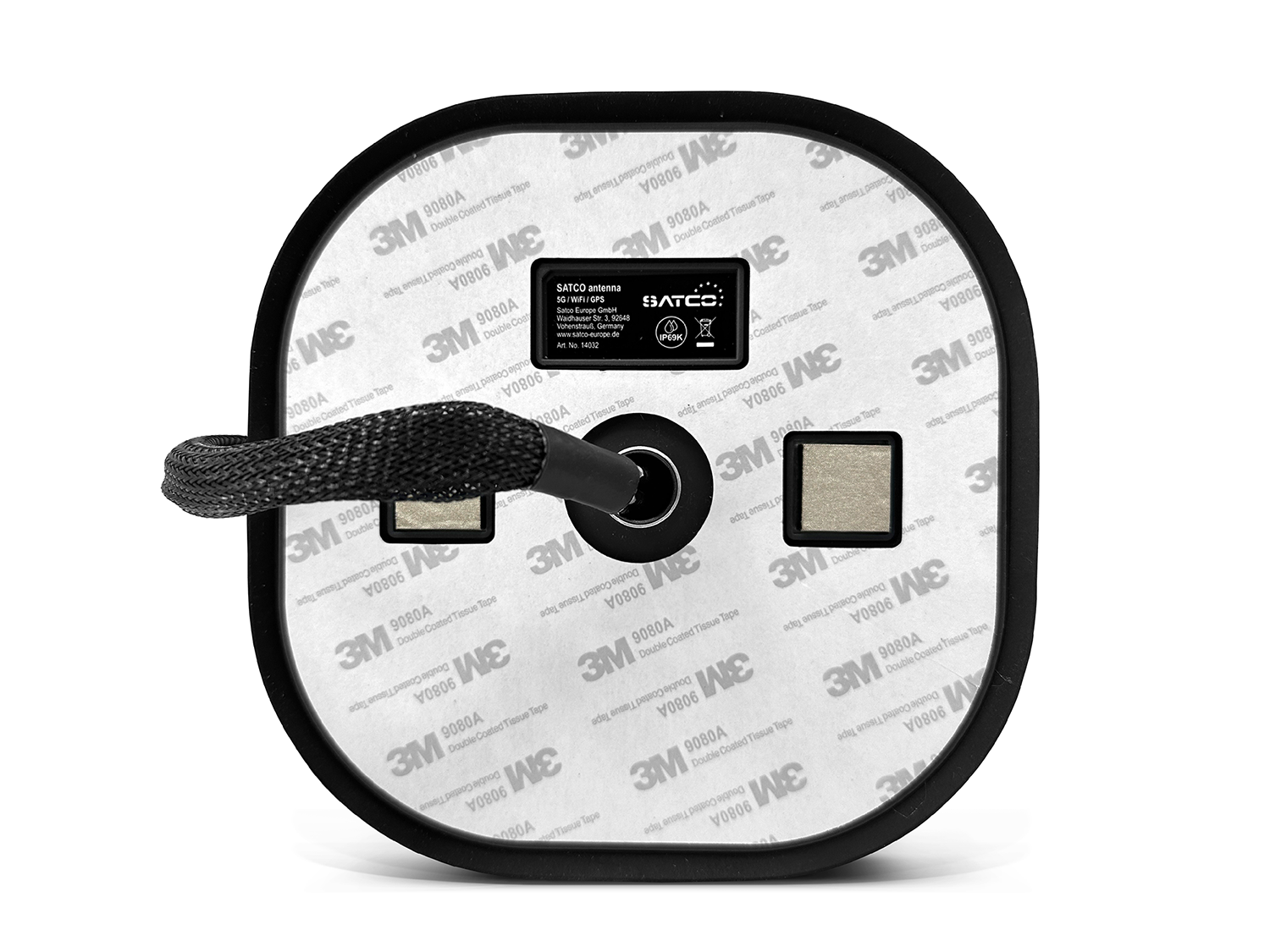

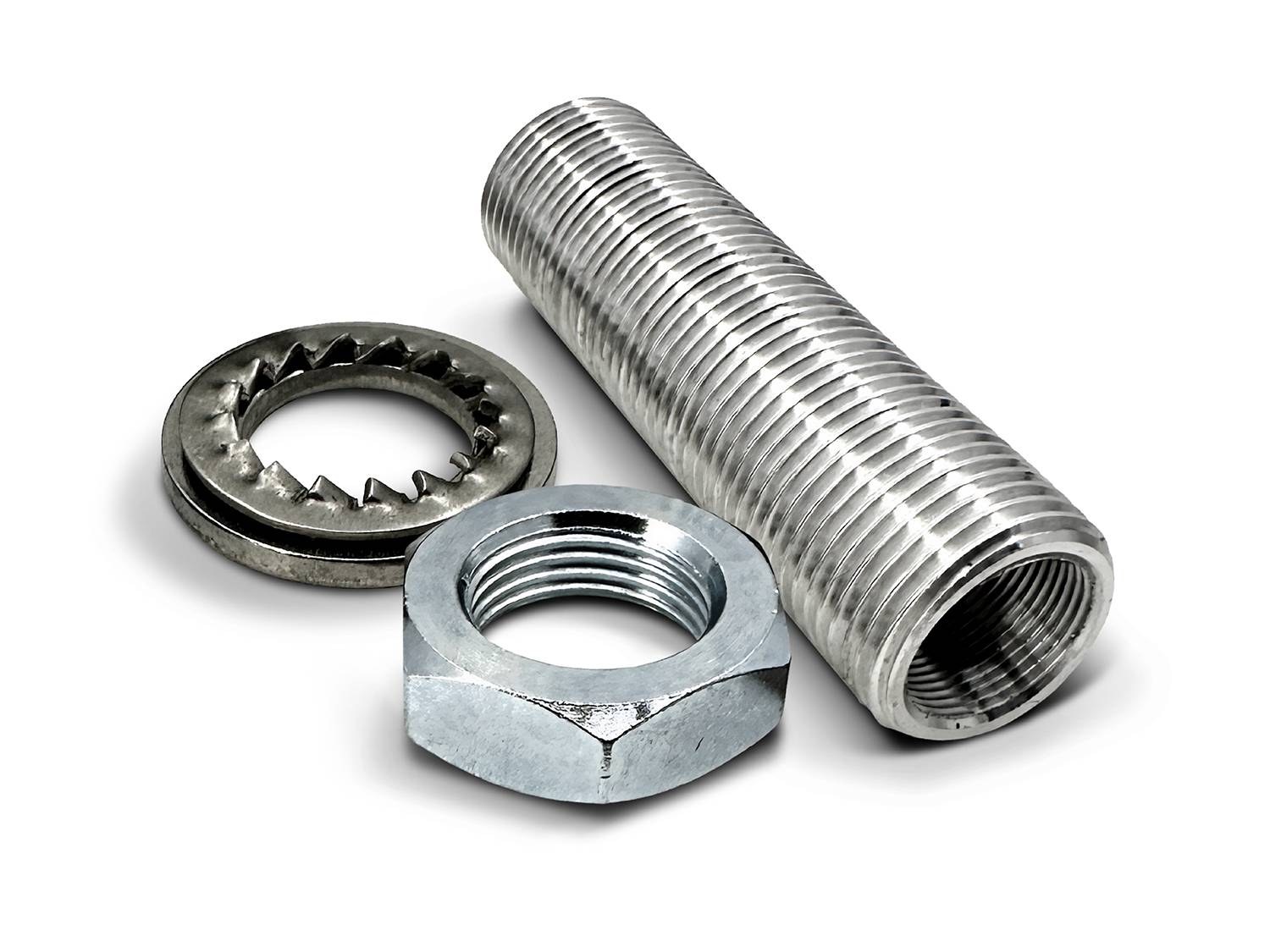

• SATCO roof antenna including threaded extension

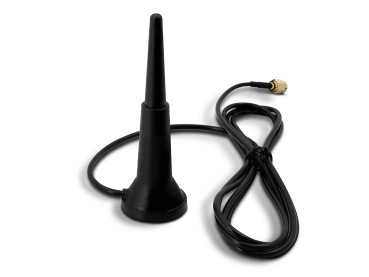

• WiFi indoor antenna
• Hook and loop adhesive dots for WiFi indoor antenna
• Installation and operating instructions
Antenna is also available in white:
"SE-6550-SAW"
*************************************************************************************************
