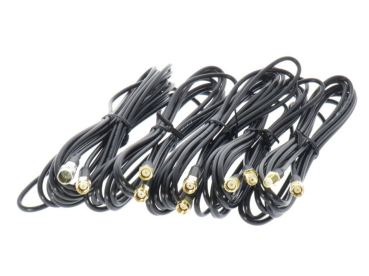

Antenna connection set for Panorama Antennas:
Contents:
1 cable with SMA socket - SMA plug labelled "LTE/5G MAIN 1".
1 cable with SMA socket - SMA plug labelled "LTE/5G ANT 2
1 cable with SMA socket - SMA plug labelled "LTE/5G ANT 3
1 cable with SMA socket - SMA plug labelled "LTE/5G ANT 4
1 cable with SMA plug - SMA plug rerverse pole labelled with "WLAN MAIN 1".
1 cable with SMA plug - SMA plug Rerverse pole labelled "WLAN ANT 2
1 cable with FME plug - SMA plug labelled "GPS
Low-loss cables are the cables with the best electrical properties for the loss-free transmission of antenna signals. Our lowloss cable series has the best conductivity values and therefore the lowest cable resistance. They are achieved by using tinned strands for the inner conductor (7*d=0.25mm), for the shield (42*d=0.11mm) and an additional aluminium foil between the PE dielectric and the shield. Only high-quality Fakra plugs and sockets from Rosenberger are used. They have an excellent finish and fit due to a special punch-bend technology of the Rosenberger company(Fakra-SF).
Technical data:
Length: 0,5 metres
Characteristic impedance: 50 Ohm
Capacity: 95pF/m
Extended POLYTHEN insulation 2.00 mm
Aluminium foil shielding and additional tinned copper braiding
Outer diameter: 3.6 mm
Ideal to connect the following 5G antennas from Panorama Antennas to routers from CamperNet, Teltonika and equivalents.
For example:
LGMDM4-6-60-24-58
LGMDMB4-6-60-24-58
*************************************************************************************************
Angaben zur Produktsicherheit/GPSR:
Marke/Trademark: Dietz
Hersteller/Manufacturer: Audiotechnik Dietz Vertriebs-GmbH, Maybachstr. 10, 67269 Grünstadt,
www.dietz.biz, verkauf@dietz.biz
*************************************************************************************************
UNI-7L050
Shippingtime:
1-2 days
