Meter goods: The number of the order quantity corresponds to the cable length in metres! Example: You order 5 pieces, i.e. you receive the cable in 5 metres length. Note: Meter goods cannot be exchanged!

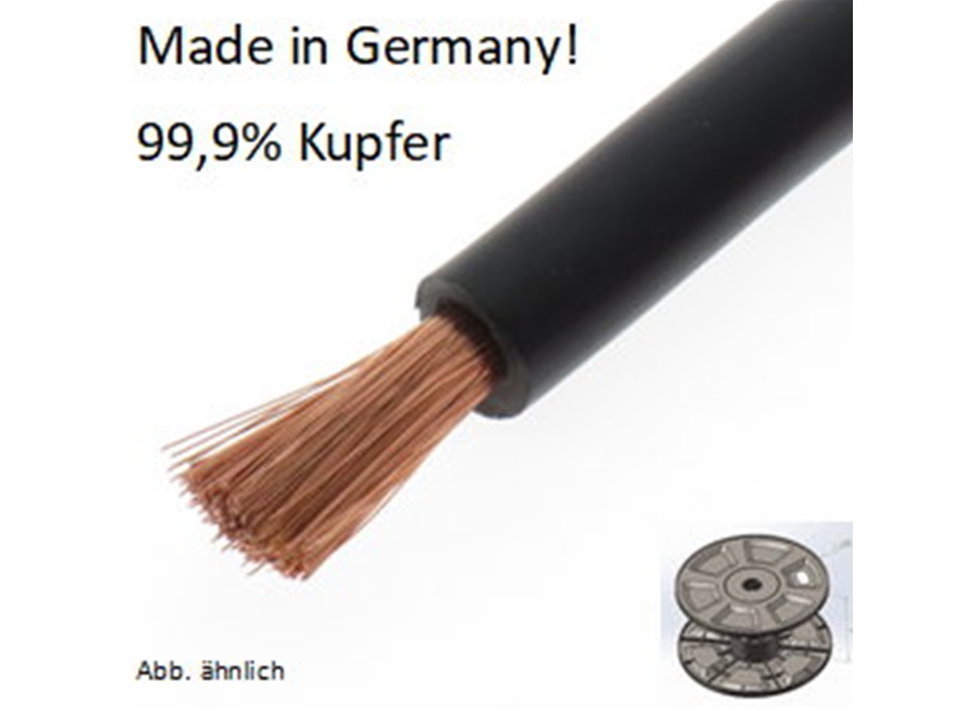

Fine pure copper cable with a copper content of 99.9%.
especially for use in motor vehicles, trucks, camper vans
The imprinted metre marking makes it easier to cut the battery cable to length
Technical data:
Conductor: electrolytic copper, bare according to DIN 13602
Insulation: lead-free soft PVC according to ISO 6722-1, class A
Shore hardness: approx. A89
Temperature range: -40 to +90 degrees Celsius (3000h)
Voltage range: max 60 VDC or 25 Volt AC
Nominal cross-section: 6 mm2
Outer diameter: approx. 4.7 mm +/- 0.2 mm
Strand diameter: max. 3.2 mm
Number of single wires: 84
Single wire diameter: 0.305 mm
Electrical resistance at 20 degrees: 3.1 Ohm/km
RoHS & REACH compliant
*************************************************************************************************
Angaben zur Produktsicherheit/GPSR:
Marke/Trademark: Dietz
Hersteller/Manufacturer: Audiotechnik Dietz Vertriebs-GmbH, Maybachstr. 10, 67269 Grünstadt,
www.dietz.biz, verkauf@dietz.biz
*************************************************************************************************
