SELFSAT MWR 5550 - 5G/4G LTE/3G & Wi-Fi Router with speeds up to 3.3 Gbps
The SELFSAT MWR 5550 is a router that can be powered by a 12-volt vehicle electrical system or a 230-volt outlet. It can receive an incoming Wi-Fi signal or, thanks to an inserted SIM card, a mobile network signal and broadcast a private, password-protected Wi-Fi network. Furthermore, you can connect multiple devices to the router simultaneously. It is SIM-unlocked and can be used with prepaid or postpaid SIM cards from various providers. Since it has two SIM card slots, foreign SIM cards can also be used, for example, when traveling abroad.
It receives a 2.4 GHz Wi-Fi signal as well as 5G, 4G LTE, or 3G mobile network signals. Thanks to MIMO (Multiple Input Multiple Output) technology, it can send and receive multiple data packets simultaneously to achieve the best possible connection speed.
Connecting to your router's Wi-Fi is as easy as in a hotel or at home. The initial connection can be established using the QR codes on the router or by entering the Wi-Fi network name and password. After changing the password, you can connect using your personal password. Setting up and using the router's simplified, user-friendly interface is possible on Apple and Android smartphones, tablets, and laptops alike, and is done via a web browser. No app installation is required.
Transmission Rates:
The SELFSAT MWR 5550 modem allows you to establish a constant 5G, 4G LTE, or 3G internet connection with transmission rates of up to 3.3 Gbps download and 900 Mbps upload. In 4G LTE mode, speeds of up to 2.0 Gbps download and 200 Mbps upload are possible, and in 3G UMTS mode, speeds of 42 Mbps download and 5.76 Mbps upload (according to the DC-HSPA+ standard) are possible. It also allows you to set up a Wi-Fi/LAN network to share the internet connection with multiple devices.
SIM Card Slots:
The SELFSAT MWR 5550 router has two SIM card slots, each of which can be equipped with a SIM card from any provider. For example, you can use two SIM cards from different providers and switch networks if one provider's coverage is insufficient. After the appropriate configuration, you can connect your devices wirelessly via Wi-Fi or via a wired LAN connection to the MWR 5550 router and use the internet connection.
External antenna connections:

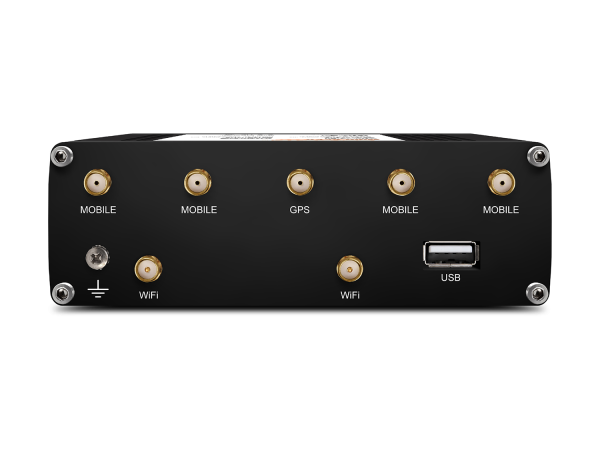

The SELFSAT MWR 5550 router also features four external 5G/4G LTE/3G antenna connections (SMA connectors) and one GPS antenna connection (SMA connector). A high-performance 5G, 4G LTE, or 3G antenna, or a GPS antenna, can be connected if needed.
2.4 GHz and 5 GHz Wi-Fi Access Point:
Thanks to the integrated 2.4 GHz and 5 GHz Wi-Fi access point, you can easily set up your own Wi-Fi network and conveniently connect your Wi-Fi clients to the SELFSAT MWR 5550 router. Data transfer rates of up to 867 Mbps are available according to the Wi-Fi AC standard. Naturally, the SELFSAT MWR 5550 router supports all current encryption and security mechanisms, such as WPA/WPA2. Connecting wired devices or integrating the router into an existing wired network is also no problem thanks to the five integrated 10/100/1000 Mbps Ethernet ports.
Network Storage:
The SELFSAT MWR 5550 router has a USB 2.0 port. This interface can be used to connect a mass storage device. The integrated Samba server allows you to make the mass storage available as network storage.
Web Interface:

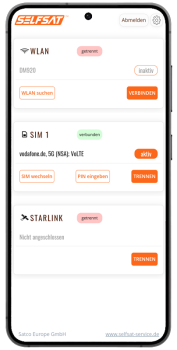

The user-friendly web interface allows all users to conveniently operate the router.
Consistent Performance:
The robust aluminum housing, solid technology, and sophisticated firmware ensure consistent performance and a long lifespan for the SELFSAT MWR 5550 router.
Router Features:
• Supported mobile network generations: 5G (up to 3.3 Gbps), 4G LTE (Cat 20 up to 2.0 Gbps), 3G (up to 42 Mbps)
• Supported Wi-Fi frequencies (input): 2.4 GHz, 5 GHz
• Supported Wi-Fi frequencies (output): 2.4 GHz, 5 GHz
• Supports GPS for location tracking and Time synchronization
• 2 SIM card slots: Mini SIM (2FF)
• Ethernet interfaces: 1 x WAN, 4 x LAN RJ45
• Power supply: 9–50 V DC
• Dimensions: 132 x 45 x 96 mm
• Weight: 533 g
• Operating temperature: -40°C to 75°C
• Protection class: IP30
One antenna for all functions!
Perfect FM and DAB+ reception with a 41 cm antenna, as well as internet via UMTS, LTE, and 5G or Wi-Fi. GPS/GNSS function for navigation or router use. The antenna is already 5G-ready! Even if you are currently using an LTE router, the antenna is already prepared for a new 5G router.
Panoramic antenna compatible with all LTE and 5G routers.
A special feature of this antenna is its eighth connector, which allows for combinations of FM and DAB+ radio. The included antenna/amplifier/cable kit enables this connection to be used for these functions. In this case, the antenna must be connected to a neutral point, i.e., the central nut must make electrical contact with the metal roof.
This antenna is specifically designed for RUTX50, RUTX14, and RUTX12, but is also backward compatible with RutX11, Rut956, Rut955, Rut951, Rut950, Rut360, CamperNet1, and all other 4G and 5G routers with appropriate adapters.
The antenna features four receiver elements for LTE/5G and Wi-Fi, as well as one element for GPS/GLONASS and one element for the aforementioned FM/DAB+ radio application.
Technical Specifications:
Color: Black
Frequency: Element 1: 1562-1612 MHz
Elements 2 & 3: 698-960 MHz, 1710-2170 MHz, 2500-3800 MHz
Elements 4-7: 2 x 2.4/5.0/7.1 GHz
Gain:
Element 1: 26 dB
Elements 2 & 3: 5 dBi (617-960 MHz), 8 dBi (1710-3800 MHz), 9 dBi (4900-6000 MHz)
Elements 4-7: 5 dBi (2396-2485 MHz), 11 dBi (4900-7200 MHz)
Polarization: Vertical
Radiation pattern: Omnidirectional
Resistance: 50 ohms
Max. input power: 10W / Main radiator 60W
Mounting: 1-hole mounting 18mm
Dimensions: Height without radiator 90mm / Length 243mm / Width 63mm
Material: Black ASA
Cable length: 300mm
Connectors:
4 x SMA male connectors [4G/5G]
2 x SMA female connectors [WIFI]
FME female connector [GPS/GNSS]
Radiator: FME (male)
Cable set:
The antenna is supplied with a cable set consisting of 7 cables, each 1.5 meters long, for the routers mentioned above:
4 x LTE with SMA connector
2 x WLAN with SMA RP connector
1 x GPS with SMA connector
Scope of delivery:
- MWR 5550 Router

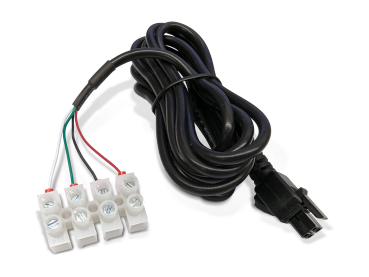

- TEL-12V (Teltonika 12V connection cable for permanent installation)

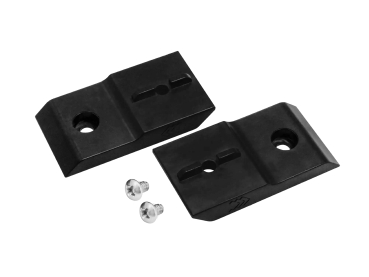

- TEL-MON2 (Mounting bracket for permanent installation)
- 2 SIM card adapters for Micro SIM or Nano SIM to Mini SIM

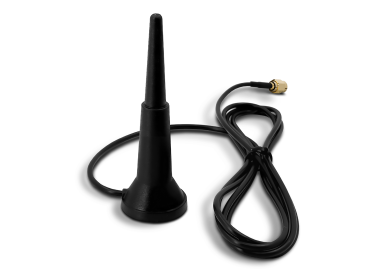

• 1 WiFi magnetic antenna
- User manual
- Panoramic shark fin antenna with 1.5 m cable set
- PAN-ANT287 FM/DAB+ add-on kit with 7.5 m cable
- UNI-3L750 GPS cable set for navigation
- Adapter 8441 for GPS use of the antenna for navigation
- Swivel joint 4615_01
Note: The antenna's GPS connection can then be used either for navigation or for the GPS function of a router.
*************************************************************************************************
