SELFSAT 5G Antennen

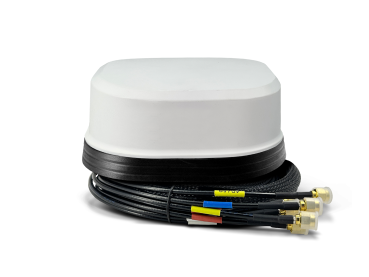

Roof antenna compatible with SELFSAT MWR 6550, 5550, 5540, 4550, 4540, and 4524 routers, as well as Teltonika RUTC50, RUTX50, RUTX14, RUTX11, RUTM54, RUTM51, and RUTM11

External antenna with 4 cables for 5G/4G LTE mobile networks, 2 cables for Wi-Fi, and 1 cable for GPS.

7-in-1 combo outdoor antenna: (2) Wi-Fi + (4) 5G/4G LTE/3G MIMO + (1) GPS. This combo antenna is designed for outdoor use and features two Wi-Fi antennas, one GPS antenna, and four 5G/4G LTE/3G MIMO antennas. It is suitable for installation on mobile vehicles. The antenna has seven cables, each 2 meters long. The WiFi cables are equipped with RP-SMA connectors (male), the other cables with SMA connectors (male).

Antenna Technical Specifications:
- 4G / LTE / 5G
- MIMO Frequency Range: 617 - 960 MHz, 1710 - 2800 MHz, 3300 - 6000 MHz - Signal Gain: 617 - 960 MHz +6 dBi; 1710 - 2800 MHz +10 dBi, 3300 - 6000 MHz +11 dBi
- Cable: 4 x TFC-302, length 2 m (1.5 m or 3 m cable extension with 1 WLAN antenna cable available as an option)
- Connectors: SMA male / male
- WLAN 2.4 GHz / 5 GHz
- Signal gain: +13 dBi
- Cable: 2 x TFC-302, length 2 m (1 m or 2 m cable extension with 1 WLAN antenna cable available as an option)
- Connector: RP-SMA male / male
- GPS
- Frequency range: 1575.42 MHz
- Signal gain: +28 ±2 dBi
- Cable: 1 x TFC-302, length 2 m (1,5 m or 3 m cable extension with 1 WLAN antenna cable available as an option)
- Connector: SMA male
- Operating temperature: -40°C to 80°C
- Protection class: IP69K (except cable outlet)
- Dimensions: 181.5 x 181.5 x 75 mm
- Weight: 750 g

The antenna is also available in white:
"SE-SatcoW"

*************************************************************************************************
Angaben zur Produktsicherheit/GPSR:
Marke/Trademark: SELFSAT
Hersteller/Manufacturer: Satco Europe GmbH, Waidhauser Str. 3, 92648 Vohenstrauß, info@satco-europe.de
*************************************************************************************************

Roof antenna compatible with SELFSAT MWR 6550, 5550, 5540, 4550, 4540, and 4524 routers, as well as Teltonika RUTC50, RUTX50, RUTX14, RUTX11, RUTM54, RUTM51, and RUTM11

External antenna with 4 cables for 5G/4G LTE mobile networks, 2 cables for Wi-Fi, and 1 cable for GPS.

7-in-1 combo outdoor antenna: (2) Wi-Fi + (4) 5G/4G LTE/3G MIMO + (1) GPS. This combo antenna is designed for outdoor use and features two Wi-Fi antennas, one GPS antenna, and four 5G/4G LTE/3G MIMO antennas. It is suitable for installation on mobile vehicles. The antenna has seven cables, each 2 meters long. The WiFi cables are equipped with RP-SMA connectors (male), the other cables with SMA connectors (male).

Antenna Technical Specifications:
- 4G / LTE / 5G
- MIMO Frequency Range: 617 - 960 MHz, 1710 - 2800 MHz, 3300 - 6000 MHz - Signal Gain: 617 - 960 MHz +6 dBi; 1710 - 2800 MHz +10 dBi, 3300 - 6000 MHz +11 dBi
- Cable: 4 x TFC-302, length 2 m (1.5 m or 3 m cable extension with 1 WLAN antenna cable available as an option)
- Connectors: SMA male / male
- WLAN 2.4 GHz / 5 GHz
- Signal gain: +13 dBi
- Cable: 2 x TFC-302, length 2 m (1,5 m or 3 m cable extension with 1 WLAN antenna cable available as an option)
- Connector: RP-SMA male / male
- GPS
- Frequency range: 1575.42 MHz
- Signal gain: +28 ±2 dBi
- Cable: 1 x TFC-302, length 2 m (1,5 m or 3 m cable extension with 1 WLAN antenna cable available as an option)
- Connector: SMA male
- Operating temperature: -40°C to 80°C
- Protection class: IP69K (except cable outlet)
- Dimensions: 181.5 x 181.5 x 75 mm
- Weight: 750 g

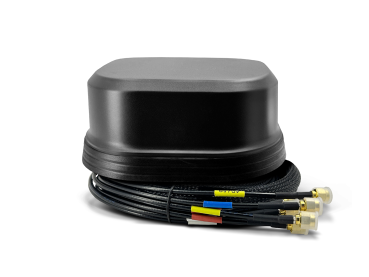

The antenna is also available in black:
"SE-SatcoB"

*************************************************************************************************
Angaben zur Produktsicherheit/GPSR:
Marke/Trademark: SELFSAT
Hersteller/Manufacturer: Satco Europe GmbH, Waidhauser Str. 3, 92648 Vohenstrauß, info@satco-europe.de
*************************************************************************************************

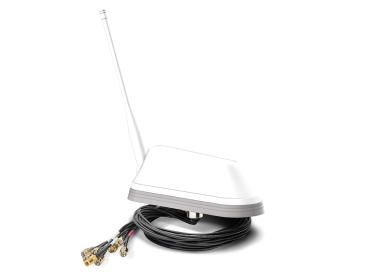

High-performance MIMO antenna for 4G LTE / 5G, DAB+, WLAN and GPS

This powerful MIMO antenna has been specially developed for use when camping and ensures a reliable and stable connection wherever you are. Thanks to the wide frequency range of 698 to 960 MHz, 1710 to 2800 MHz and 3300 to 3800 MHz, it is ideal for 4G LTE and 5G reception. With a signal gain of +13 dBi, it significantly improves the signal strength and enables optimum network coverage. In addition to the mobile internet connection, the antenna also supports WLAN in the 2.4 GHz and 5 GHz range, allowing you to utilise a stable wireless connection. A powerful GPS module is also integrated, which enables precise positioning with a frequency range of 1,575 MHz and a signal gain of +28 dBi. For easy installation, the antenna has seven TFC-302 cables with a length of 2 metres, which can optionally be extended by 1 or 2 metres. The connections are designed as SMA connectors (male) to ensure versatile compatibility. Thanks to its robust design and IP69K protection class, the antenna is particularly resistant to dust, water and extreme temperatures from -40°C to 85°C. With compact dimensions of 188 x 68 x 76 mm and a weight of 330 g, it can be easily attached to motorhomes, camper vans or other vehicles thanks to the simple magnetic holder. Antenna technical specifications:
• 4G / LTE / 5G
• MIMO frequency range: 698 - 960 MHz, 1710 - 2800 MHz, 3300 - 3800 MHz
• Signal gain: 698 - 960 MHz up to +5 dBi; 1710 - 2800 MHz up to +9 dBi, 3300 - 3800 MHz up to +10 dBi
• Cable: 4 x RG174, length 1 m (1.5 m or 3 m cable extension available as an option)
• Connectors: SMA male / male
• WLAN 2.4 GHz / 5 GHz
• Signal gain: 2.4 – 2.5 GHz up to +3 dBi, 5.15 – 5.85 GHz up to +13 dBi
• Cable: 2 x RG174, length 1 m (1,5 m or 3 m cable extension available as an option)
• Connector: RP-SMA male
• GPS
• Frequency range: 1562 - 1612 MHz
• Signal gain: +28 ±2 dBi
• Cable: 1 x RG174, length 1 m (1,5 m or 3 m cable extension available as an option)
• Connector: SMA male
• DAB+ / DVB-T
• VHF signal gain: 14 dBi, UHF signal gain: 10 dBi
• Operating temperature: -40°C to 80°C
• Protection class: IP69K (except cable outlet)
• Dimensions: 185 x 60 x 55 mm
• Weight: 330 g

*************************************************************************************************
Angaben zur Produktsicherheit/GPSR:
Marke/Trademark: SELFSAT
Hersteller/Manufacturer: Satco Europe GmbH, Waidhauser Str. 3, 92648 Vohenstrauß, info@satco-europe.de
*************************************************************************************************

High-performance MIMO antenna for 4G LTE / 5G, DAB+, WLAN and GPS

This powerful MIMO antenna has been specially developed for use when camping and ensures a reliable and stable connection wherever you are. Thanks to the wide frequency range of 698 to 960 MHz, 1710 to 2800 MHz and 3300 to 3800 MHz, it is ideal for 4G LTE and 5G reception. With a signal gain of +13 dBi, it significantly improves the signal strength and enables optimum network coverage. In addition to the mobile internet connection, the antenna also supports WLAN in the 2.4 GHz and 5 GHz range, allowing you to utilise a stable wireless connection. A powerful GPS module is also integrated, which enables precise positioning with a frequency range of 1,575 MHz and a signal gain of +28 dBi. For easy installation, the antenna has seven TFC-302 cables with a length of 2 metres, which can optionally be extended by 1 or 2 metres. The connections are designed as SMA connectors (male) to ensure versatile compatibility. Thanks to its robust design and IP69K protection class, the antenna is particularly resistant to dust, water and extreme temperatures from -40°C to 85°C. With compact dimensions of 188 x 68 x 76 mm and a weight of 330 g, it can be easily attached to motorhomes, camper vans or other vehicles thanks to the simple magnetic holder. Antenna technical specifications:
• 4G / LTE / 5G
• MIMO frequency range: 698 - 960 MHz, 1710 - 2800 MHz, 3300 - 3800 MHz
• Signal gain: 698 - 960 MHz up to +5 dBi; 1710 - 2800 MHz up to +9 dBi, 3300 - 3800 MHz up to +10 dBi
• Cable: 4 x RG174, length 1 m (1.5 m or 3 m cable extension available as an option)
• Connectors: SMA male / male
• WLAN 2.4 GHz / 5 GHz
• Signal gain: 2.4 - 2.5 GHz up to +3 dBi, 5.15 - 5.85 GHz up to +13 dBi
• Cable: 2 x RG174, length 1 m (1,5 m or 3 m cable extension available as an option)
• Connector: RP-SMA male
• GPS
• Frequency range: 1562 - 1612 MHz
• Signal gain: +28 ±2 dBi
• Cable: 1 x RG174, length 1 m (1,5 m or 3 m cable extension available as an option)
• Connector: SMA male
• DAB+ / DVB-T
• VHF signal gain: 14 dBi, UHF signal gain: 10 dBi
• Operating temperature: -40°C to 80°C
• Protection class: IP69K (except cable outlet)
• Dimensions: 185 x 60 x 55 mm
• Weight: 330 g

*************************************************************************************************
Angaben zur Produktsicherheit/GPSR:
Marke/Trademark: SELFSAT
Hersteller/Manufacturer: Satco Europe GmbH, Waidhauser Str. 3, 92648 Vohenstrauß, info@satco-europe.de
*************************************************************************************************

High-performance MIMO antenna for 4G LTE / 5G, DAB+, WLAN and GPS

This powerful MIMO antenna has been specially developed for use when camping and ensures a reliable and stable connection wherever you are. Thanks to the wide frequency range of 698 to 960 MHz, 1710 to 2800 MHz and 3300 to 3800 MHz, it is ideal for 4G LTE and 5G reception. With a signal gain of +13 dBi, it significantly improves the signal strength and enables optimum network coverage. In addition to the mobile internet connection, the antenna also supports WLAN in the 2.4 GHz and 5 GHz range, allowing you to utilise a stable wireless connection. A powerful GPS module is also integrated, which enables precise positioning with a frequency range of 1,575 MHz and a signal gain of +28 dBi. For easy installation, the antenna has seven TFC-302 cables with a length of 2 metres, which can optionally be extended by 1 or 2 metres. The connections are designed as SMA connectors (male) to ensure versatile compatibility. Thanks to its robust design and IP69K protection class, the antenna is particularly resistant to dust, water and extreme temperatures from -40°C to 85°C. With compact dimensions of 188 x 68 x 76 mm and a weight of 330 g, it can be easily attached to motorhomes, camper vans or other vehicles thanks to the simple magnetic holder. Technische Daten Antenne:
• 4G / LTE / 5G/ DAB+ MIMO
• Frequenzbereich 174-230 MHz, 698-960 MHz, 1710-2800 MHz, 3300-3800 MHz
• Signalgewinn: +13 dBi
• Kabel: 6x RG174, Länge 1 m (1 m oder 2 m Kabelverlängerung optional erhältlich)
• Anschlüsse: 4 x SMA männlich, mobile Daten
• Anschlüsse: 2 x SMA Stecker RP, WLAN
• Anschlüsse: 1 x FAKRA BUCHSE weiblich / female
• Anschlüsse: 1 x SMA männlich, GPS
• WLAN 2.4 GHz / 5 GHz
• GPS GNSS-Frequenzbereich 1575 MHz
• GPS-Signalgewinn +28 dBi
• Betriebstemperatur -40°C - 85°C
• Schutzklasse: IP69 (ausgenommen Kabelausgang)
• Abmessung: 188 x 68 x 76 mm
• Gewicht: 330g



*************************************************************************************************
Angaben zur Produktsicherheit/GPSR:
Marke/Trademark: SELFSAT
Hersteller/Manufacturer: Satco Europe GmbH, Waidhauser Str. 3, 92648 Vohenstrauß, info@satco-europe.de
*************************************************************************************************

High-performance MIMO antenna for 4G LTE / 5G, DAB+, WLAN and GPS

This powerful MIMO antenna has been specially developed for use when camping and ensures a reliable and stable connection wherever you are. Thanks to the wide frequency range of 698 to 960 MHz, 1710 to 2800 MHz and 3300 to 3800 MHz, it is ideal for 4G LTE and 5G reception. With a signal gain of +13 dBi, it significantly improves the signal strength and enables optimum network coverage. In addition to the mobile internet connection, the antenna also supports WLAN in the 2.4 GHz and 5 GHz range, allowing you to utilise a stable wireless connection. A powerful GPS module is also integrated, which enables precise positioning with a frequency range of 1,575 MHz and a signal gain of +28 dBi. For easy installation, the antenna has seven TFC-302 cables with a length of 2 metres, which can optionally be extended by 1 or 2 metres. The connections are designed as SMA connectors (male) to ensure versatile compatibility. Thanks to its robust design and IP69K protection class, the antenna is particularly resistant to dust, water and extreme temperatures from -40°C to 85°C. With compact dimensions of 188 x 68 x 76 mm and a weight of 330 g, it can be easily attached to motorhomes, camper vans or other vehicles thanks to the simple magnetic holder. Technische Daten Antenne:
• 4G / LTE / 5G/ DAB+ MIMO
• Frequenzbereich 174-230 MHz, 698-960 MHz, 1710-2800 MHz, 3300-3800 MHz
• Signalgewinn: +13 dBi
• Kabel: 6x RG174, Länge 1 m (1 m oder 2 m Kabelverlängerung optional erhältlich)
• Anschlüsse: 4 x SMA männlich, mobile Daten
• Anschlüsse: 2 x SMA Stecker RP, WLAN
• Anschlüsse: 1 x FAKRA BUCHSE weiblich / female
• Anschlüsse: 1 x SMA männlich, GPS
• WLAN 2.4 GHz / 5 GHz
• GPS GNSS-Frequenzbereich 1575 MHz
• GPS-Signalgewinn +28 dBi
• Betriebstemperatur -40°C - 85°C
• Schutzklasse: IP69 (ausgenommen Kabelausgang)
• Abmessung: 188 x 68 x 76 mm
• Gewicht: 330g



*************************************************************************************************
Angaben zur Produktsicherheit/GPSR:
Marke/Trademark: SELFSAT
Hersteller/Manufacturer: Satco Europe GmbH, Waidhauser Str. 3, 92648 Vohenstrauß, info@satco-europe.de
*************************************************************************************************
