DAB+ glass adhesive antenna w. phantom power SMB socket /poly bag

Professional antenna for optimum reception of VHF/DAB+ and GPS/GLONASS for front installation on vans. Antenna with the following features:

- Flat angle of only 25 degrees.
- Antenna with optimised rod, length approx. 41.5 cm, in 16 V design.
- DAB+ reception 174-237 MHz & 1452-1492 MHz
- VHF/FM reception 87-108 MHz
- GPS/GLONASS 1575.42 MHz
- 12 V external power supply (no phantom power possible)
- Low installation depth approx. 16 mm
- Gain: FM: 15 dBi
- Gain: DAB+: 18dBi
- Gain: GPS+: 29dBi
- Power supply: 12 volts, 100 mA
- Temperature range (-40 degrees to + 85 degrees Celsius)
- Impedance: 50 Ohm
- Cable to antenna:
- Cable: RG 174, FM 300 mm, Fakra plug, white, code B
- Cable: RG 174, DAB+ 300 mm, Fakra plug, grey, code G
- Cable: RG 174, GPS/GLONASS,+ 300 mm, fakra plug, blue, code C

Note: This antenna is delivered without cable!

Recommended LOWLOSS extension cable:

For FM and DAB+:

UNI-2L350:
UNI LOWLOSS set with different connectors for FM. With this cable set, 99% of the car radios on the market can be connected with our antennas. The set consists of 2 LowLoss antenna cables with Fakra colour coding for VHF and DAB+.

- VHF lowloss cable Fakra socket - Fakra socket B, white
- DAB+ lowloss cable Fakra socket - SMB socket 90 degrees, Fakra G, grey
Adapter for FM:
- Adapter with lowloss fakra cable - DIN plug
- Adapter with lowloss fakra cable - ISO plug

For GPS/GLONASS:

UNI-3L350:
GPS connection cable set. Universal set for 99% of all devices!

Completely blue colour coding according to fakra standard to avoid signal confusion.

- 3.5 metre RG174 cable fakra socket - fakra socket, fakra C, blue
- Adapter RG174 Fakra plug - GT5 socket for GPS connection of e.g. Alpine, Kenwood and Clarion devices.
- Adapter RG174 Fakra plug - GT16 socket for the GPS connection of e.g. Pioneer devices.

Other variants:



*************************************************************************************************
Angaben zur Produktsicherheit/GPSR:
Marke/Trademark: Dietz
Hersteller/Manufacturer: Audiotechnik Dietz Vertriebs-GmbH, Maybachstr. 10, 67269 Grünstadt,
www.dietz.biz, verkauf@dietz.biz
*************************************************************************************************
FM/DAB+:
UNI-2L500: Set with 5 m cable length
UNI-2L750: Set with 7.5 m cable length
UNI-2L1000: Set with 10.0 m cable length

GPS/GLONASS:
UNI-3L500: Set with 5 m cable length
UNI-3L750: Set with 7.5 m cable length
UNI-3L1000: Set with 10.0 m cable length

Low-loss cables are the cables with the best electrical properties for the loss-free transmission of antenna signals. Our Lowloss cable series has the best conductivity values and thus the lowest cable resistance. They are achieved by using tinned strands for the inner conductor (7*d=0.25mm), for the shield (42*d=0.11mm) and an additional aluminium foil between the PE dielectric and the shield. Only high-quality Fakra plugs and sockets from Rosenberger are used. They have an excellent finish and fit due to a special punching and bending technology by Rosenberger (Fakra-SF).

Technical data of the low loss cable:

Characteristic impedance: 50 Ohm
d capacitance: 95pF/m
Extended POLYTHEN insulation 2.00 mm
Aluminium foil shielding and additional tinned copper braiding
Outer diameter: 3.6 mm


*************************************************************************************************
Angaben zur Produktsicherheit/GPSR:
Marke/Trademark: Dietz
Hersteller/Manufacturer: Audiotechnik Dietz Vertriebs-GmbH, Maybachstr. 10, 67269 Grünstadt,
www.dietz.biz, verkauf@dietz.biz
*************************************************************************************************

Shark Fin roof antenna with the following functions and features:
- DAB reception, active and low-noise in band III.
- Radio reception, active and low-noise for AM/FM
- 12V power supply either via inner conductor of cable connections (phantom power) or via DIN plug-in sleeve
- Can be fitted to new Mercedes Benz (MB), VW/Audi hole patterns (sealing adapter available: 4624_01 (MB) 4625_01 (VW/Audi))
- Low installation depth (16.5 mm)
- Cable type: RG 174
- Services: AM/FM, DAB+
- Connectors: FAKRA(m) G, FAKRA(m) B

Additional information:
- Mounting: Roof mounting
- Additional info: Roof antenna, active
- Category/special feature: active Sharkfin antenna with separate signal routing, for VW/Audi, MB, phantom or external power supply

Dimensions:
- Width: 65 mm
- Height: 70 mm
- Length: 104 mm
- Weight: 0.179 kg

*************************************************************************************************
Product safety information:
Brand: ATTB
Manufacturer: ATTB Antennentechnik Bad Blankenburg GmbH, Gewerbegebiet 2, 07407 Rudolstadt, info@attb.de
*************************************************************************************************

DAB through USB

The Dension DAB+U DAB-Radio Receiver is the versatile solution for receiving Digital Audio Broadcasts in cars or for other devices having an 'mp3 playback from USB' function.

*************************************************************************************************
Angaben zur Produktsicherheit/GPSR:
Marke/Trademark: Dension (DAB+ Empfänger)
Hersteller/Manufacturer: Dension Elektronikai Kft, H-1116 Budapest, Sztregova u. 1., info@dension.com
Marke/Trademark: Dietz (Antenne)
Hersteller/Manufacturer: Audiotechnik Dietz Vertriebs-GmbH, Maybachstr. 10, 67269 Grünstadt,
www.dietz.biz, verkauf@dietz.biz
*************************************************************************************************

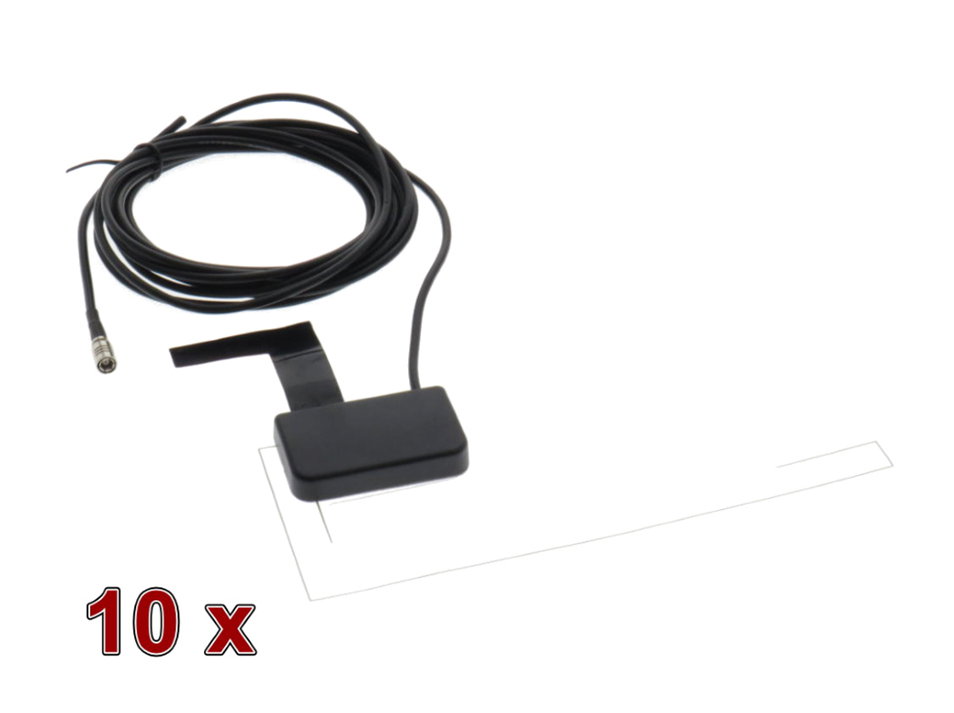

Universal disc antenna for DAB reception with 3 m connection cable and SMB socket.
Working voltage 12 volts. Black cable is for 12 volt connection. Please stick the black foil on metal, the transparent foil part on the window!

Antenna type: Car DAB & DAB+ antenna
Reception frequency:
170 MHz~240 MHz & 1452MHz~1492 MHz
Operating voltage:
DC 10.5~16V
Input Gain:
Band III 15dB+/-3dB & L-Band 12dB+/-3dB
Output impedance:
50Ohm
Noise level:
2.0dB MAX
Cable length:
3000+/-30mm
Insulation resistance:
DC500V>100MOhm
Connector:
SMB female
Operating temperature:
-40C°~80C°
For devices with SMA female connector, the adapter 14946 (SMB male to SMA male) is also required.


*************************************************************************************************
