The antenna A3 is according to our tests, the best antenna at the moment for optimal radio reception in camper vans. The electronics, the antenna radiator and the antenna supports are perfectly matched to each other. You will be thrilled! In addition, the antenna is equipped with GPS.
Highlight is the possibility also digital terrestrial television (DVB-T2) to receive. The scope of delivery includes a splitter, which provides DAB + and DVBT2 from one output of the antenna.

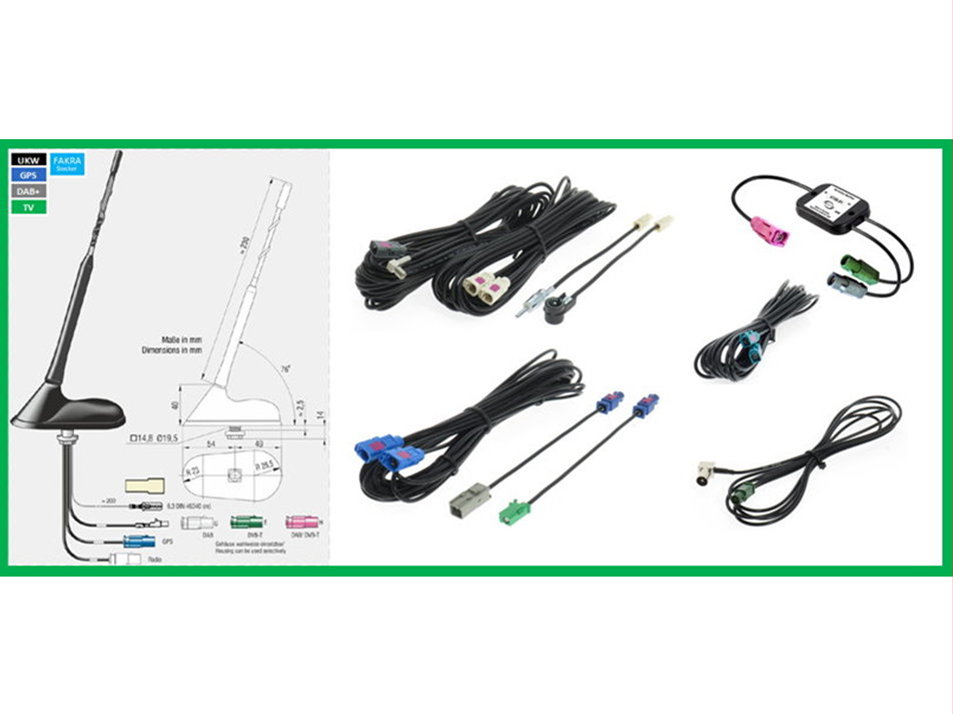

Delivery contents:
Antenna A3

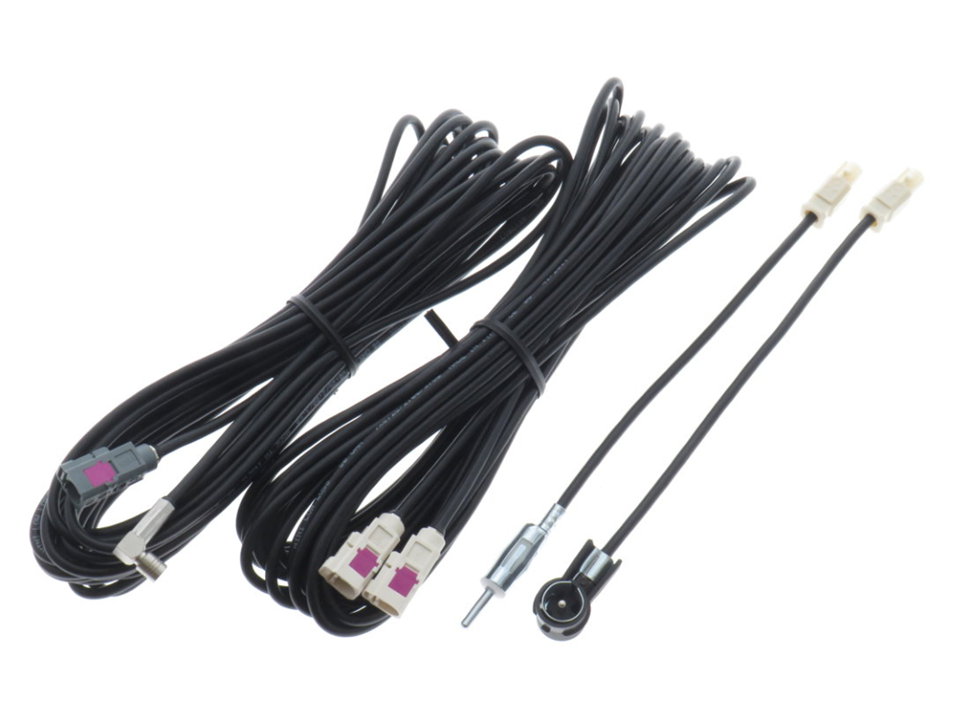

Lowloss cable 5 m, Fakra socket - Fakra socket (B-coding, white)
Adapter 1: Fakra plug - DIN plug, for VHF (B-coding, white)
Adapter 2: Fakra plug - ISO plug, for FM (B-coding, white)
Lowloss cable 5 m, Fakra socket - SMB socket , for DAB+ (G-coding, grey)
GPS cable 5 m, Fakra socket - Fakra socket (C-coding, blue)
Adapter 3: Fakra plug - GT5 socket (e.g. Alpine,Kenwood, Clarion), (C coding, blue)
Adapter 4: Fakra plug - GT16 socket (f. Pioneer), (C-coding, blue)

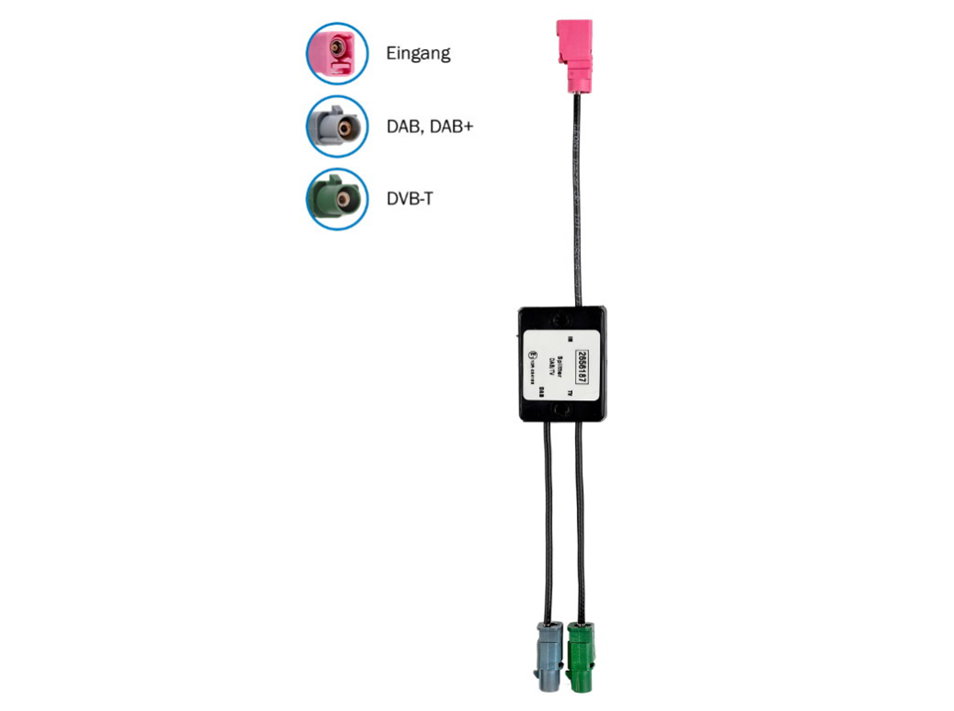

Passive splitter for DAB+/DVB-T2

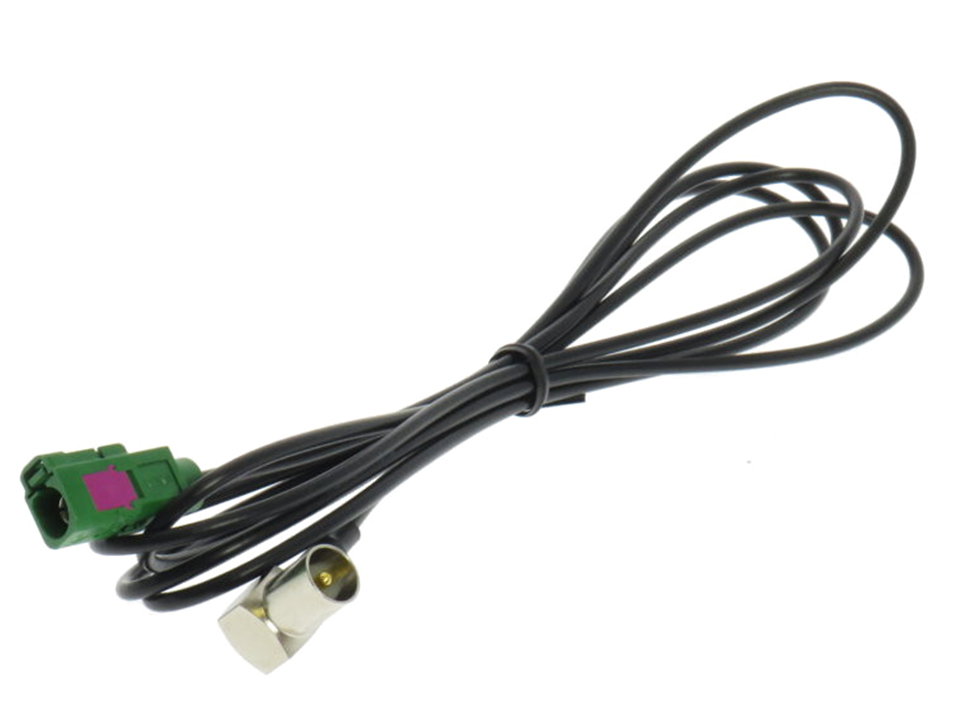

Fakra socket - Fakra socket, 3 m + Fakra plug to coax plug (IEC m) 2 m for DVB-T2

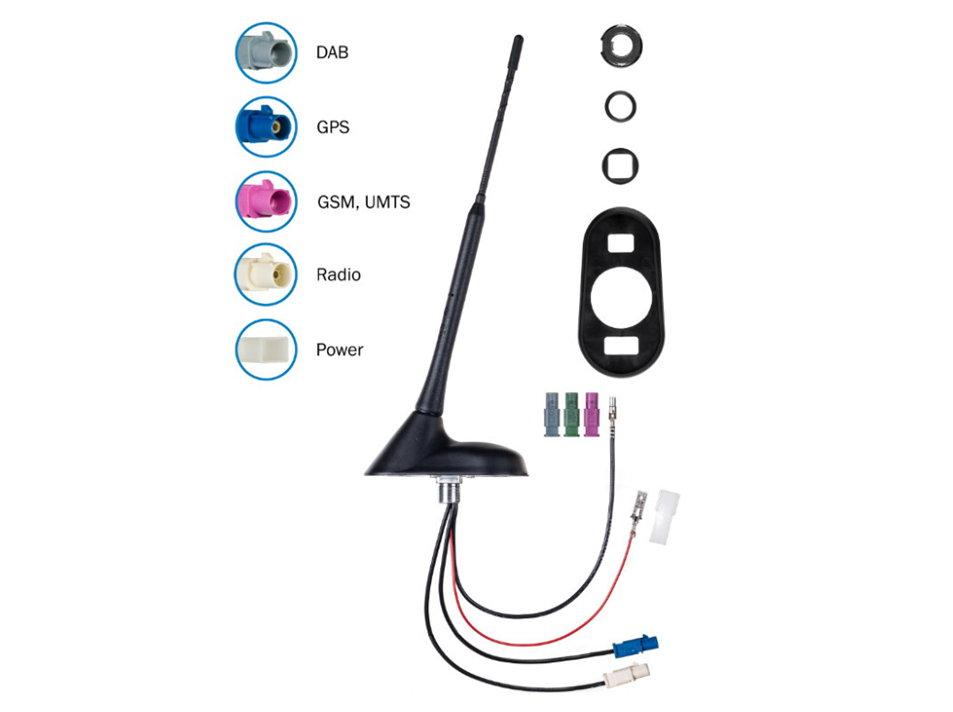

Roof antenna with the following features:
- DAB reception, active and low noise in BAND 3 and L (passive)
- VHF/FM/AM reception, active and low noise
- Active GPS antenna
- 12 volt power supply either via inner conductor of the cable connections (phantom power) or via DIN socket (see picture)
- low-noise antenna rod
- low installation depth (approx. 15 mm)
- Gain: FM: 15 dB - (87.5-108 MHz)
- Gain: AM: 5dB - (0.15-16 MHz)
- Gain: DAB+: 15 dB - (174-230 MHz)
- Gain: DVB-T2+: 12/10 dB - (474-602/610-786 MHz)
- Gain: GPS: 28 dB -(1575.42 MHz)
- Power supply: AM/FM 9-16 volts, 35mA at 12 volts.
- Power supply: DAB+ 5-12 volts, 25mA
- Power supply: GPS+ 3-5.5 volts, 15-40mA
- Cable: RG 174, AM/FM 185 mm, Fakra plug, white
- Cable: RG 174, DAB+ 250 mm, Fakra plug, grey (DAB)or green (DVB-T) or violet (DAB/DVB-T)
- Cable: RG 174, GPS 175 mm, Fakra plug, blue
Low loss cables are the cables with the best electrical properties for the lossless transmission of antenna signals. Our lowloss cable series has best conductivity values and therefore lowest cable resistances. They are achieved by using tinned strands for the inner conductor (7*d=0,25mm), for the shield (42*d=0,11mm) and an additional aluminum foil between the PE dielectric and the shield. Only high quality Fakra plugs and sockets from Rosenberger are used. They have an excellent finish and fit due to a special punch-bend technology of the Rosenberger company(Fakra-SF).
Technical data:
Characteristic impedance: 50 Ohm
Capacity: 95pF/m
Extended POLYTHEN insulation 2.00 mm
Aluminium foil shielding and additional tinned copper braiding.
Outer diameter: 3.6 mm
Optionally available: articulated joint ATTB_4615_01.
*************************************************************************************************
Product safety information:
Brand: ATTB
Manufacturer: ATTB Antennentechnik Bad Blankenburg GmbH, Gewerbegebiet 2, 07407 Rudolstadt, info@attb.de
*************************************************************************************************
