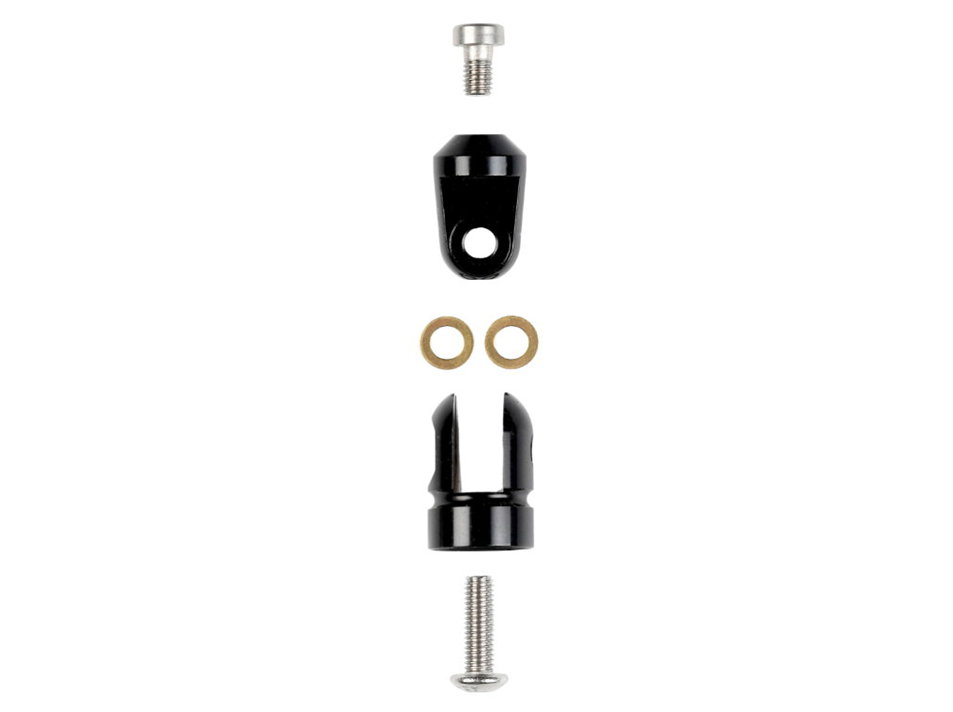

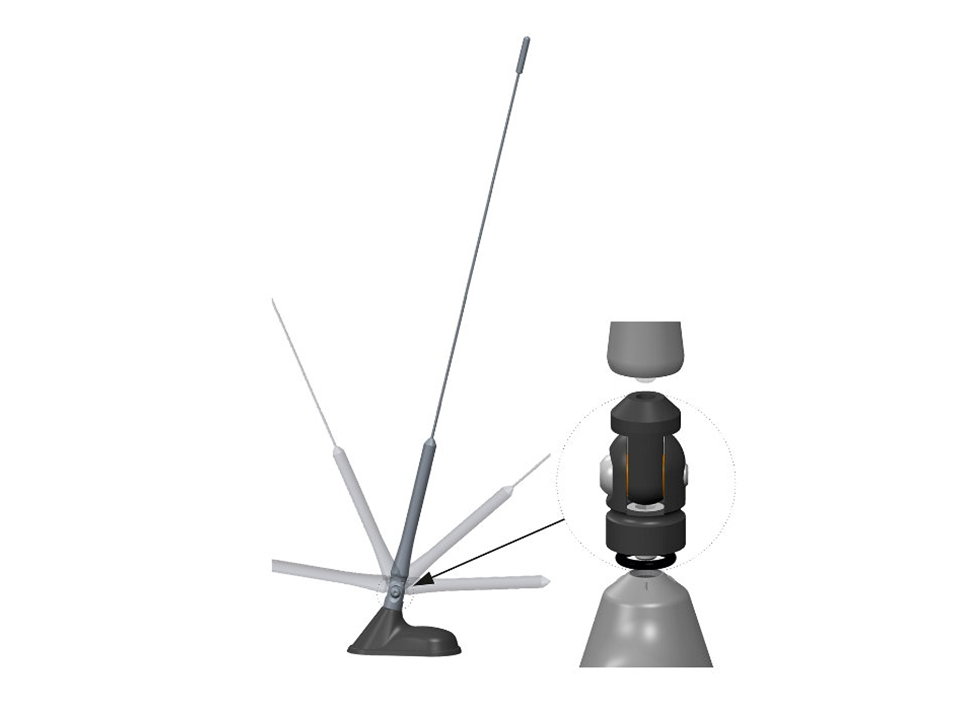

Joint for retrofitting 16V roof antennas

The antenna A3 is according to our tests, the best antenna at the moment for optimal radio reception in camper vans. The electronics, the antenna radiator and the antenna supports are perfectly matched to each other. You will be thrilled! In addition, the antenna is equipped with GPS.
Highlight is the possibility also digital terrestrial television (DVB-T2) to receive. The scope of delivery includes a splitter, which provides DAB + and DVBT2 from one output of the antenna.

Delivery contents:

Antenna A3
Lowloss cable 5 m, Fakra socket - Fakra socket (B-coding, white)
Adapter 1: Fakra plug - DIN plug, for VHF (B-coding, white)
Adapter 2: Fakra plug - ISO plug, for FM (B-coding, white)

Lowloss cable 5 m, Fakra socket - SMB socket , for DAB+ (G-coding, grey)

GPS cable 5 m, Fakra socket - Fakra socket (C-coding, blue)
Adapter 3: Fakra plug - GT5 socket (e.g. Alpine,Kenwood, Clarion), (C coding, blue)
Adapter 4: Fakra plug - GT16 socket (f. Pioneer), (C-coding, blue)

Passive splitter for DAB+/DVB-T2
Fakra socket - Fakra socket, 3 m + Fakra plug to coax plug (IEC m) 2 m for DVB-T2

Roof antenna with the following features:

- DAB reception, active and low noise in BAND 3 and L (passive)
- VHF/FM/AM reception, active and low noise
- Active GPS antenna
- 12 volt power supply either via inner conductor of the cable connections (phantom power) or via DIN socket (see picture)
- low-noise antenna rod
- low installation depth (approx. 15 mm)
- Gain: FM: 15 dB - (87.5-108 MHz)
- Gain: AM: 5dB - (0.15-16 MHz)
- Gain: DAB+: 15 dB - (174-230 MHz)
- Gain: DVB-T2+: 12/10 dB - (474-602/610-786 MHz)
- Gain: GPS: 28 dB -(1575.42 MHz)
- Power supply: AM/FM 9-16 volts, 35mA at 12 volts.
- Power supply: DAB+ 5-12 volts, 25mA
- Power supply: GPS+ 3-5.5 volts, 15-40mA

- Cable: RG 174, AM/FM 185 mm, Fakra plug, white
- Cable: RG 174, DAB+ 250 mm, Fakra plug, grey (DAB)or green (DVB-T) or violet (DAB/DVB-T)
- Cable: RG 174, GPS 175 mm, Fakra plug, blue

Low loss cables are the cables with the best electrical properties for the lossless transmission of antenna signals. Our lowloss cable series has best conductivity values and therefore lowest cable resistances. They are achieved by using tinned strands for the inner conductor (7*d=0,25mm), for the shield (42*d=0,11mm) and an additional aluminum foil between the PE dielectric and the shield. Only high quality Fakra plugs and sockets from Rosenberger are used. They have an excellent finish and fit due to a special punch-bend technology of the Rosenberger company(Fakra-SF).

Technical data:

Characteristic impedance: 50 Ohm
Capacity: 95pF/m
Extended POLYTHEN insulation 2.00 mm
Aluminium foil shielding and additional tinned copper braiding.
Outer diameter: 3.6 mm

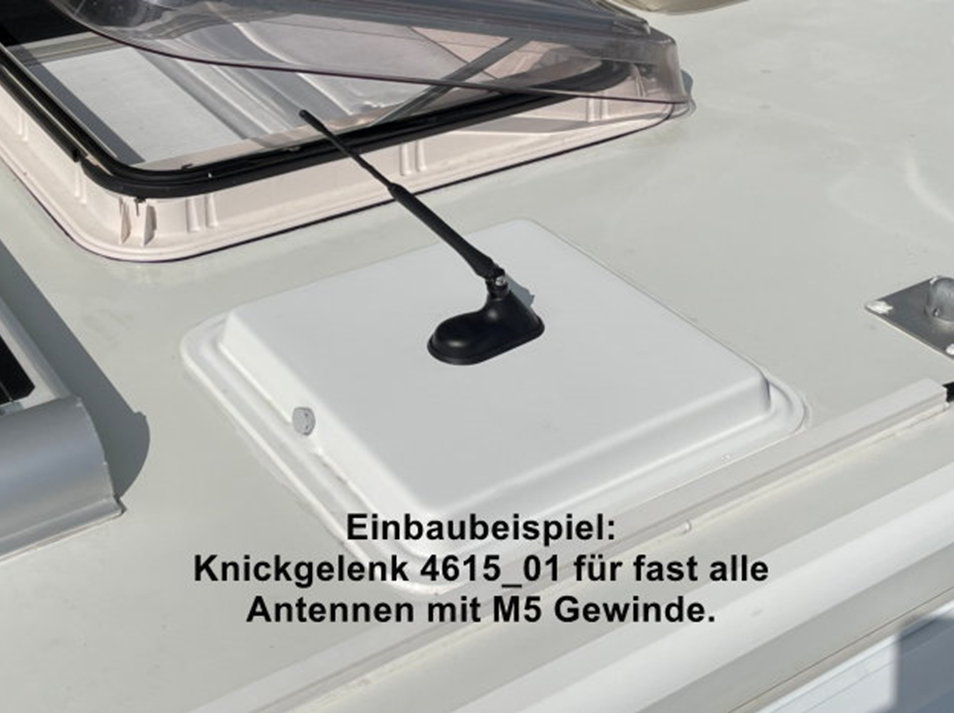

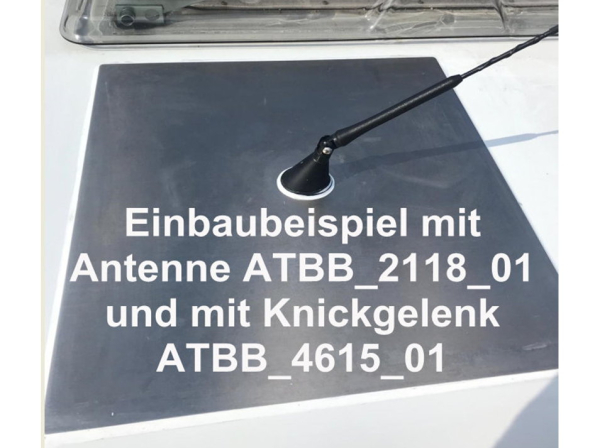

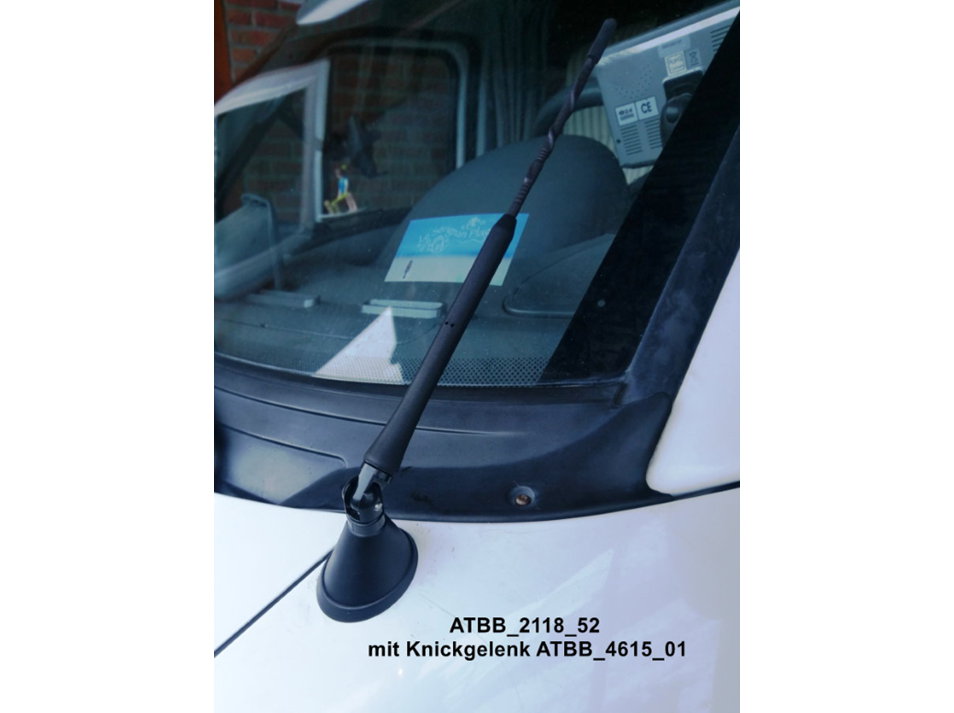

Optionally available: articulated joint ATTB_4615_01.

*************************************************************************************************
Product safety information:
Brand: ATTB
Manufacturer: ATTB Antennentechnik Bad Blankenburg GmbH, Gewerbegebiet 2, 07407 Rudolstadt, info@attb.de
*************************************************************************************************

Highest quality and reliability "Made in Germany".

The ATTB 2118.04 roof antenna is an antenna developed and manufactured by Antennentechnik Bad Blankenburg for retrofitting vehicles. ATTB specialises in radio-based networking solutions for various industries and applications. With its own research, development and production, ATTB has stood for the highest quality and reliability "Made in Germany" since 1919.

We drive connectivity: networking without compromise

The ATTB Kombiflex roof antenna 2118.04 establishes reliable, high-performance radio connections in the field of broadcasting and is suitable for mobile outdoor use. It undergoes the most stringent testing processes, is manufactured in Germany from high-quality components and offers first-class transmission or reception performance - even under the most difficult conditions.

Frequency bands and communication services

The ATTB 2118.04 multifunction antenna covers several frequency bands and thus communication services. In the broadcasting range, AM (0.15 - 1.71 MHz), FM (87.5 - 108 MHz) and DAB+ (DAB+ BIII, 174 - 230 MHz; DAB+ L-Band, 1452 - 1492 MHz) can be received.

Special features and characteristics

- Active and low-noise DAB reception in band III
- Passive DAB reception in the L-band range
- Active broadcast reception for LMK/UKW
- Active antenna with separate signal routing
- 12V power supply for the amplifier either via DIN plug-in sleeve or via inner conductor of the cable connections (only one connection recommended)
- Low-noise antenna rod
- Low installation depth (15 mm)
- Low installation effort (only one mounting hole for 2 functions)
- Cable type: RG 174
- Services: AM/FM, DAB+
- Connectors: FAKRA(m) G, FAKRA(m) B

Dimensions:
- Width: 56 mm
- Height: 270 mm
- Length: 45 mm
- Weight: 0.241 kg

*************************************************************************************************
