Perfect Antenna 5G Internet Router Set:
Consisting of a Selfsat MWR 5550 router, 12-volt cable, PAN-ANT615 panoramic antenna with a 1.5 m cable set and ANT2810 extension for FM/DAB+ including a 10 m UNI cable set, a 10 m UNI cable set for GPS navigation, 4615 swivel joint, and a 36 x 36 x 8 cm white powder-coated stainless steel mounting plate (15909w).
A special feature of this antenna is its eighth connector for FM/DAB+ combinations. This connector can be used for these functions with the included radiator/amplifier/cable kit. In this case, the antenna requires a counterpart, which is provided by the 15903 antenna mount. The antenna is further distinguished by four LTE/5G receivers, three Wi-Fi receivers, and one GPS/GLONASS receiver.
Perfect FM and DAB+ reception with a 41 cm antenna, as well as internet access via UMTS, LTE, and 5G.
GPS/GNSS function for navigation.

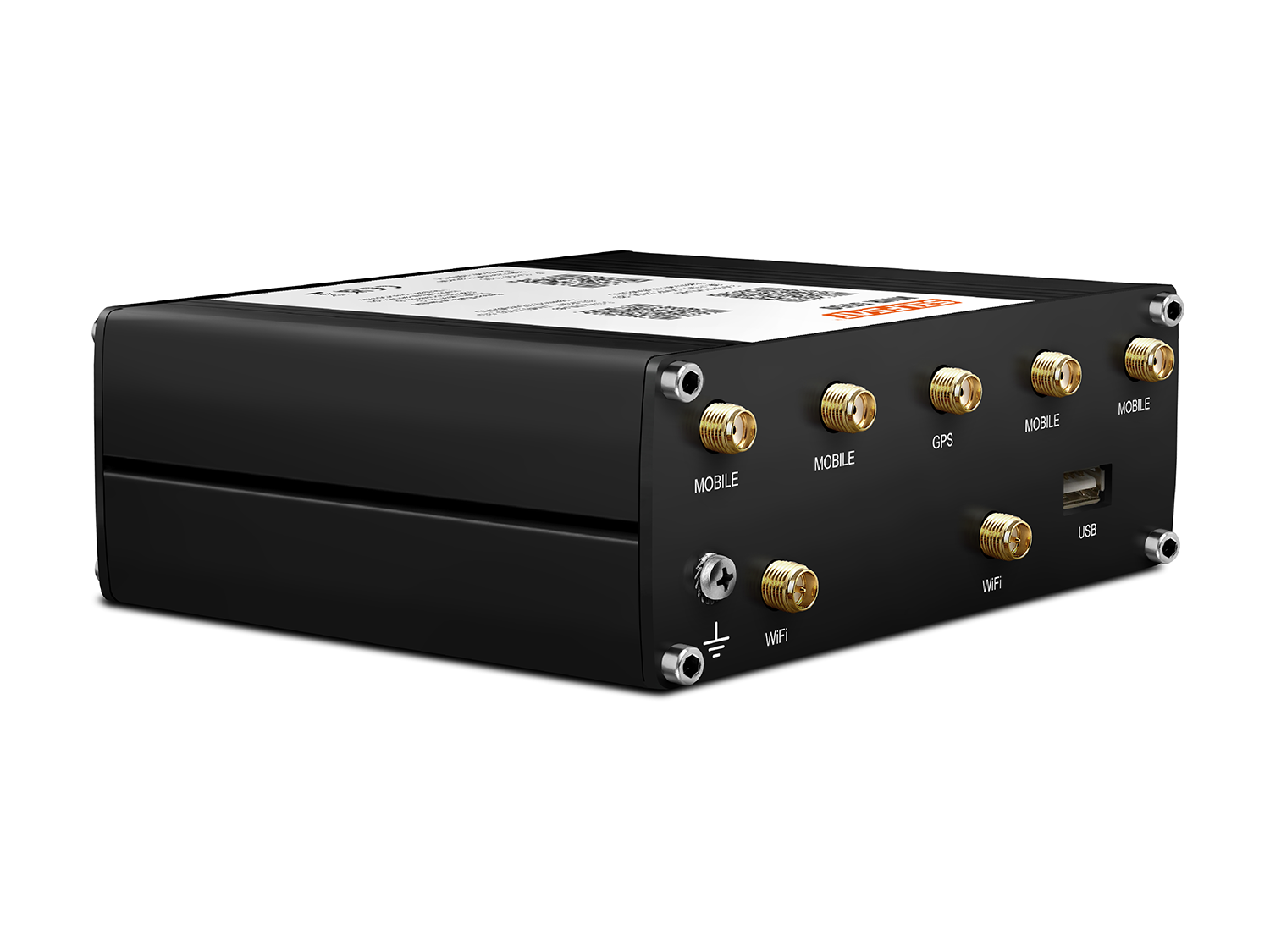

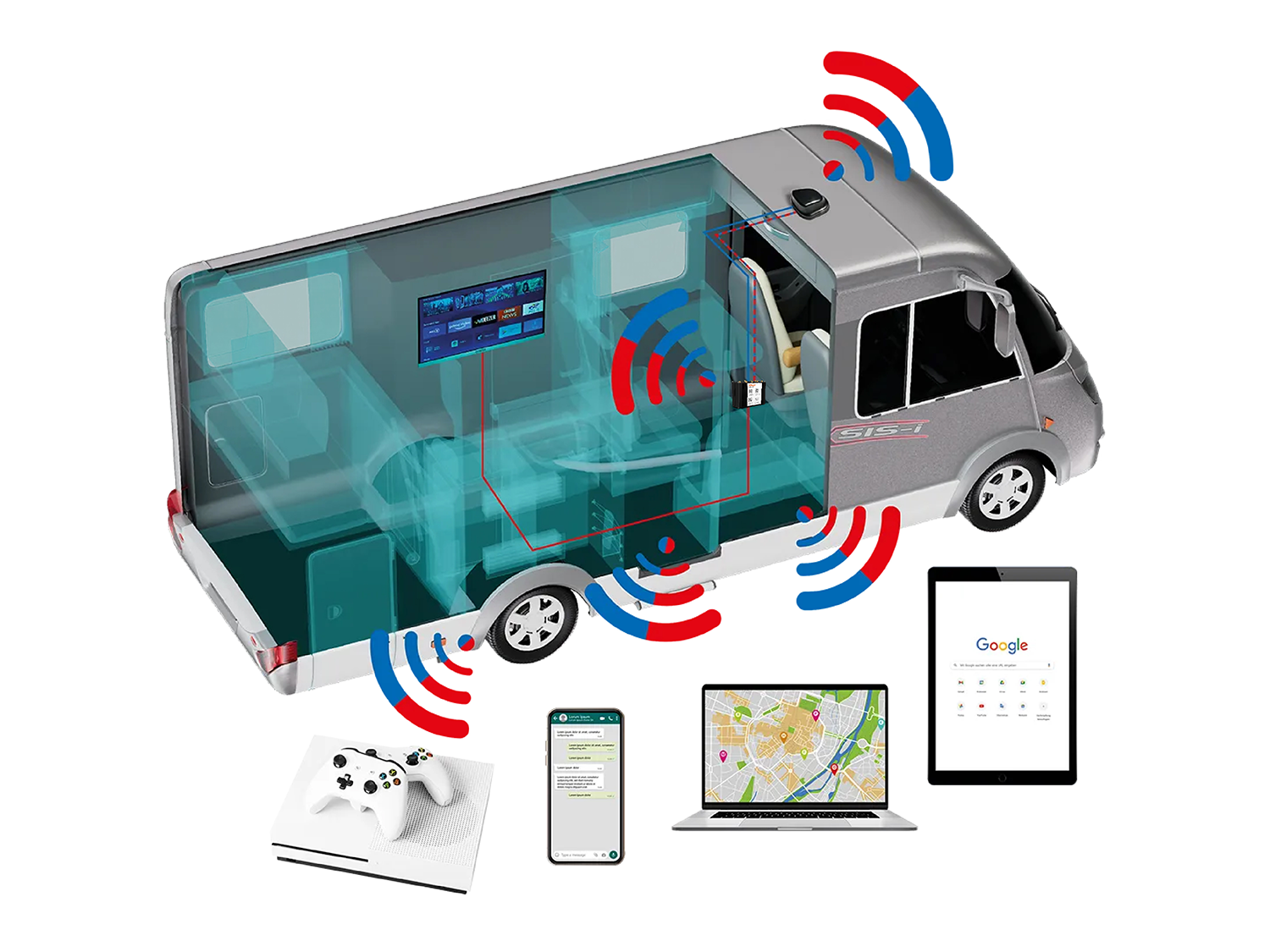

The SELFSAT MWR 5550 is a router that can be powered by a 12-volt vehicle electrical system or a 230-volt connection. It can receive an incoming Wi-Fi signal or, thanks to an inserted SIM card, a mobile network signal and broadcast a private, password-protected Wi-Fi signal. Furthermore, you can connect multiple devices to the router simultaneously. It is SIM-unlocked and can be used with prepaid or contract SIM cards from various providers. Since it has two SIM card slots, it can also be used with two other devices. For example, foreign SIM cards can also be used abroad.
It receives a 2.4 GHz Wi-Fi signal, as well as 5G, 4G LTE, or 3G mobile network signals. Thanks to MIMO (Multiple Input Multiple Output) technology, it can send and receive multiple data packets simultaneously to achieve the best possible connection speed.
Connecting to your router's Wi-Fi is as easy as in a hotel or at home. The initial connection can be established using the QR codes on the router or by entering the Wi-Fi network name and password. After changing the password, you can connect using your personal password. Setting up and using the router's simplified, user-friendly interface is possible on Apple and Android smartphones, tablets, and laptops alike, and is done via a web browser. No app installation is required.
Transmission Rates:
The SELFSAT MWR 5550 modem allows you to establish a constant 5G, 4G LTE, or 3G internet connection with transmission rates of up to 3.3 Gbps download and 900 Mbps upload. In 4G LTE mode, speeds of up to 2.0 Gbps download and 200 Mbps upload are possible, and in 3G UMTS mode, speeds of 42 Mbps download and 5.76 Mbps upload (according to the DC-HSPA+ standard) are possible. It also allows you to set up a Wi-Fi/LAN network to share the internet connection with multiple devices.
SIM Card Slots:
The SELFSAT MWR 5550 router has two SIM card slots, each of which can be equipped with a SIM card from any provider. For example, you can use two SIM cards from different providers and switch networks if one provider's coverage is insufficient. After the appropriate configuration, you can connect your devices wirelessly via Wi-Fi or via a wired LAN connection to the MWR 5550 router and use the internet connection.
External Antenna Connections:

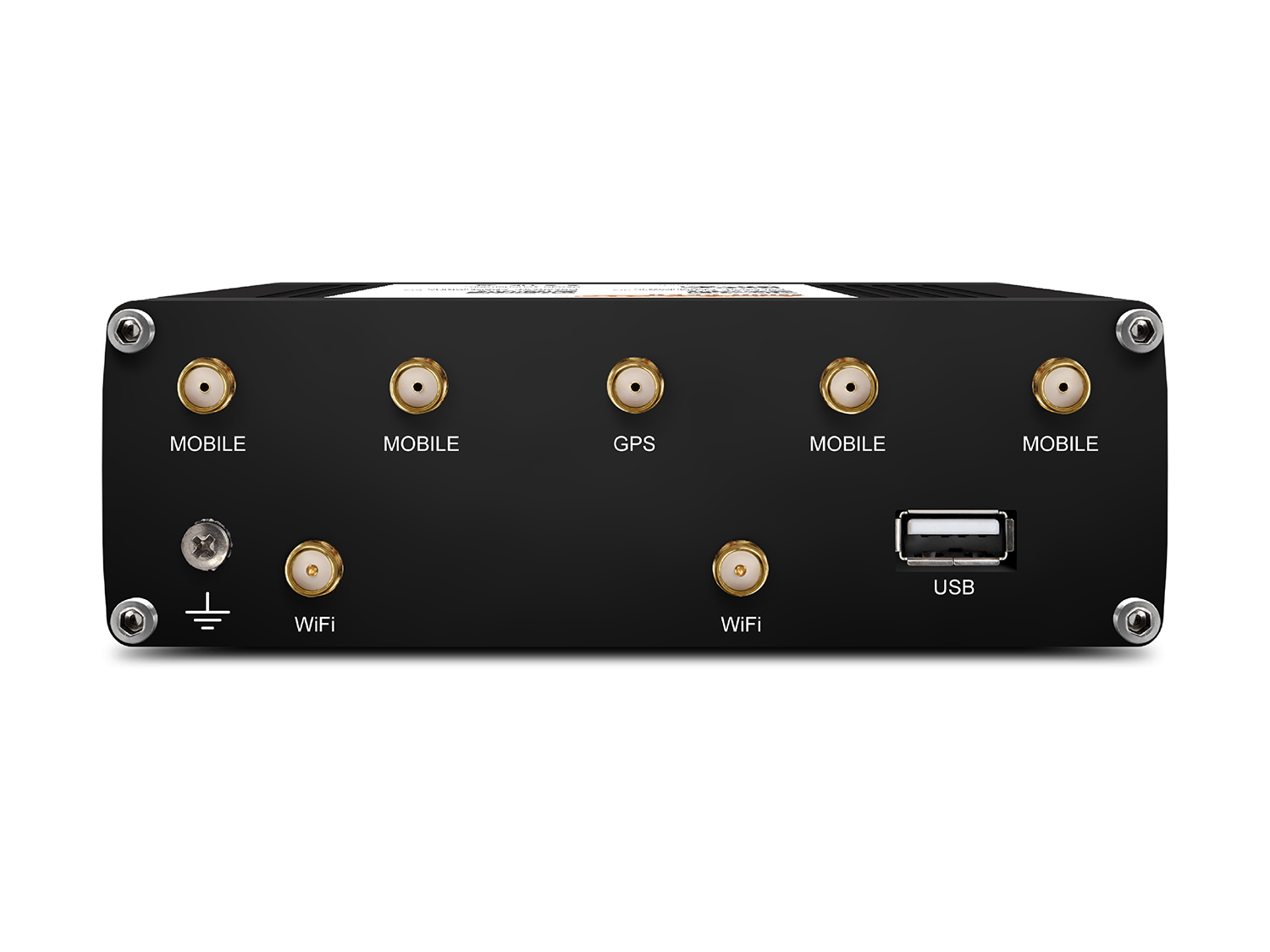

The SELFSAT MWR 5550 router also features four external 5G/4G LTE/3G antenna connections (SMA connectors) and one GPS antenna connection (SMA connector). This allows you to connect a high-performance 5G, 4G LTE, 3G, or GPS antenna if needed.
2.4 GHz and 5 GHz Wi-Fi Access Point:
Thanks to the integrated 2.4 GHz and 5 GHz Wi-Fi access points, you can easily set up your own Wi-Fi network and conveniently connect your Wi-Fi clients to the SELFSAT MWR 5550 router. Data transfer rates of up to 867 Mbps are available according to the Wi-Fi AC standard. Naturally, the SELFSAT MWR 5550 router supports all current encryption and security mechanisms, such as WPA/WPA2. Connecting wired devices or integrating the router into an existing wired network is also no problem thanks to the five integrated 10/100/1000 Mbps Ethernet ports.
Network Storage:
The SELFSAT MWR 5550 router has a USB 2.0 port. This interface can be used to connect a mass storage device. The integrated Samba server allows you to make the mass storage available as network storage.

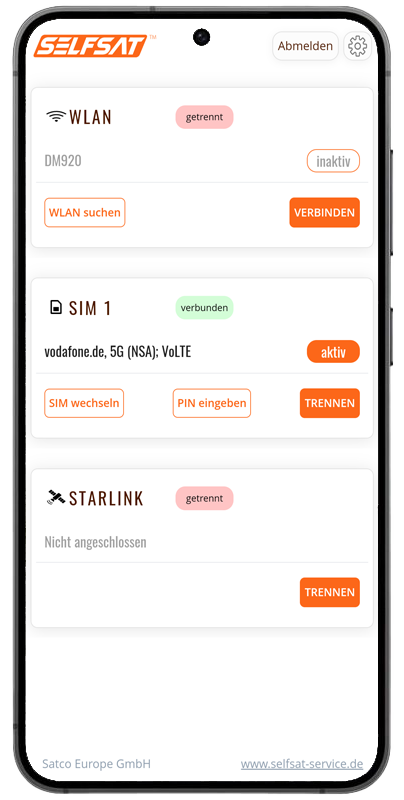

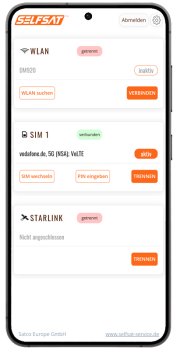

Web Interface:
The user-friendly web interface allows all users to conveniently operate the router.
Consistent Performance:
The robust aluminum housing, solid technology, and sophisticated firmware ensure consistent performance and a long lifespan for the SELFSAT MWR 5550 router.

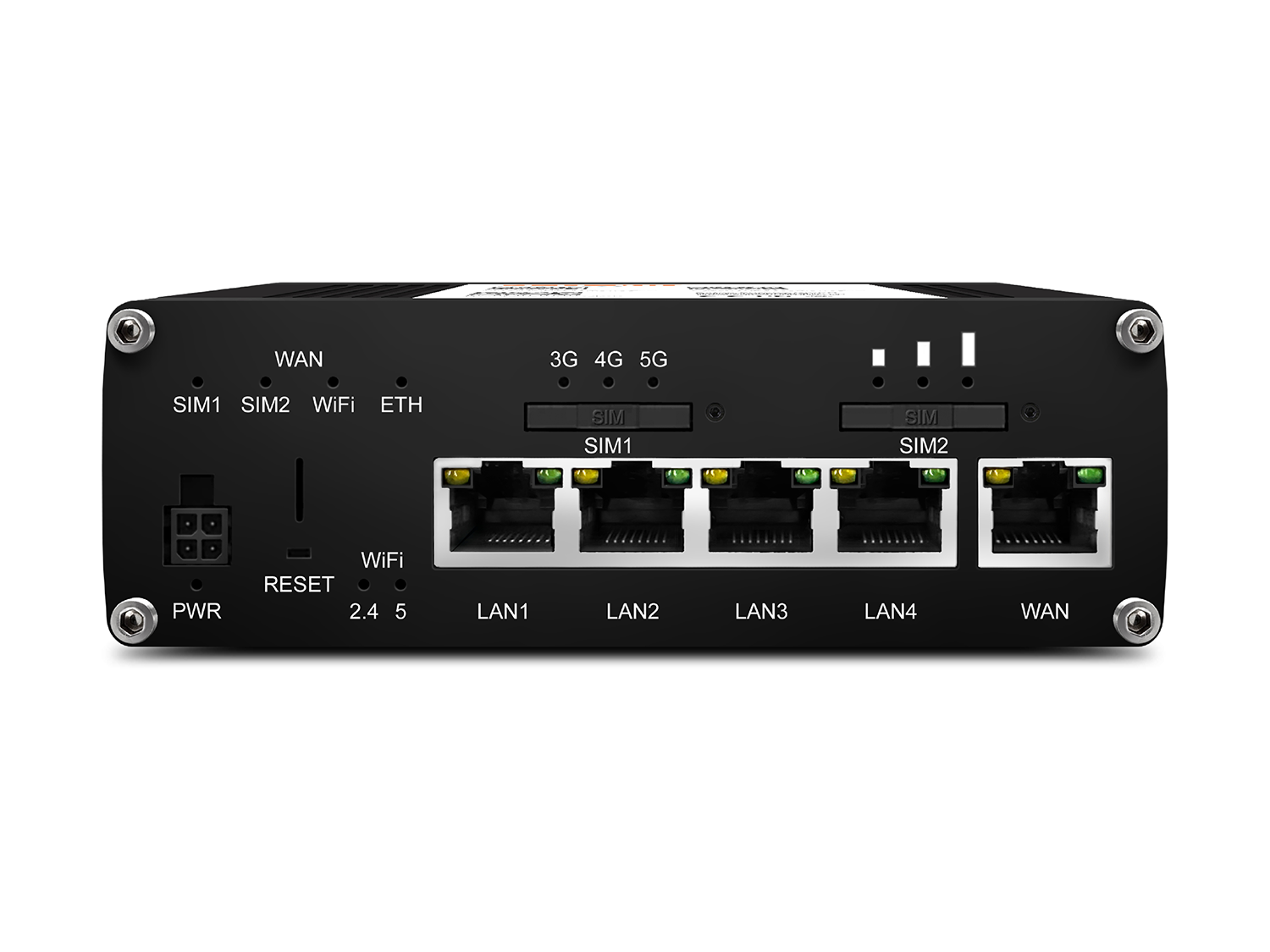

Router Features:
• Supported mobile network generations: 5G (up to 3.3 Gbps), 4G LTE (Cat 20 up to 2.0 Gbps), 3G (up to 42 Mbps)
• Supported Wi-Fi frequencies (input): 2.4 GHz, 5 GHz
• Supported Wi-Fi frequencies (output): 2.4 GHz, 5 GHz
• Supports GPS for location tracking and Time synchronization
• 2 SIM card slots: Mini SIM (2FF)
• Ethernet interfaces: 1 x WAN, 4 x LAN RJ45
• Power supply: 9 - 50 volts DC
• Dimensions: 132 x 45 x 96 mm
• Weight: 533 g
• Operating temperature: -40°C - 75°C
• Protection class: IP30
Scope of delivery:
• MWR 5550 Router

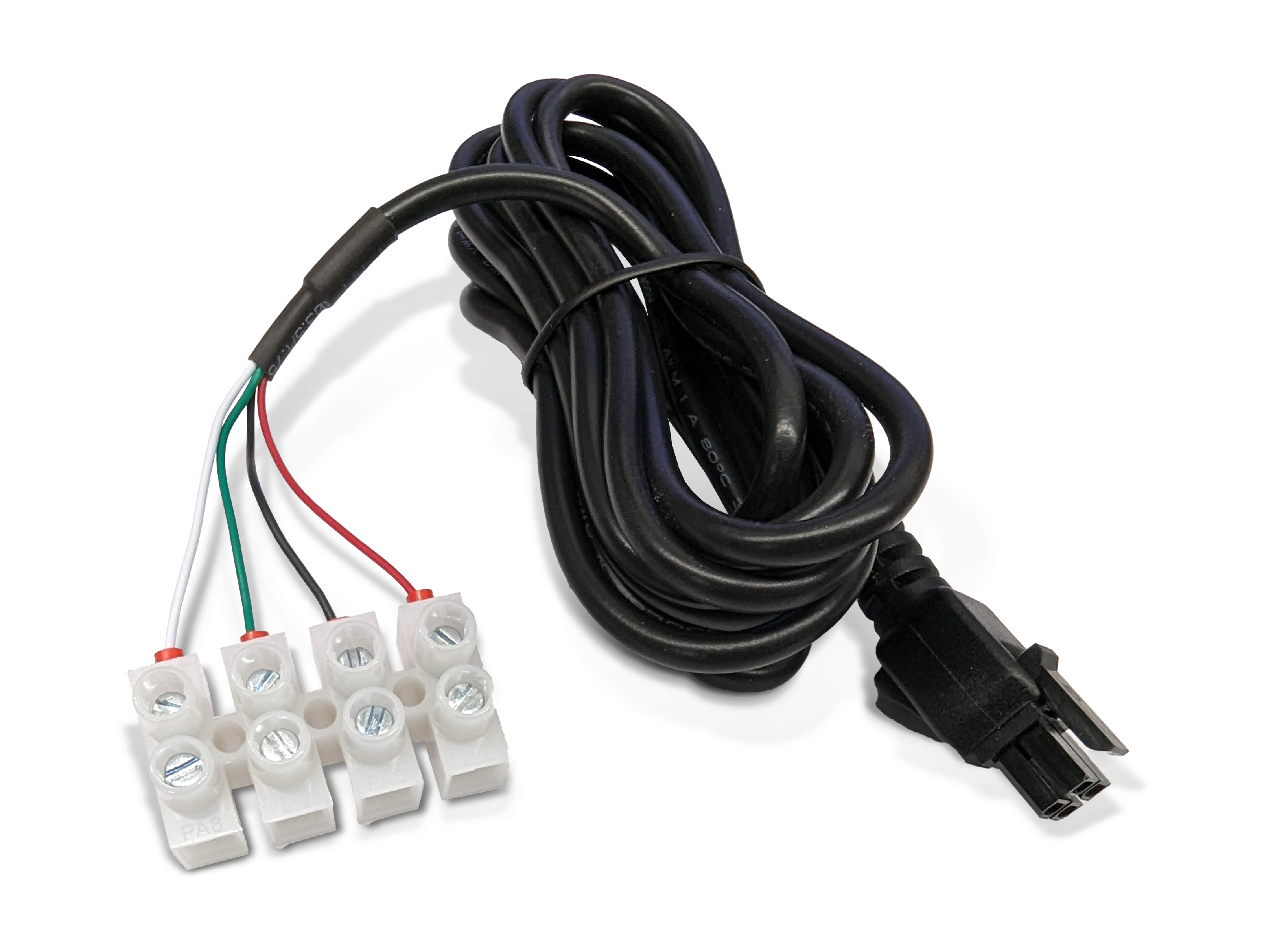

• TEL-12V (Teltonika 12V connection cable for permanent installation)

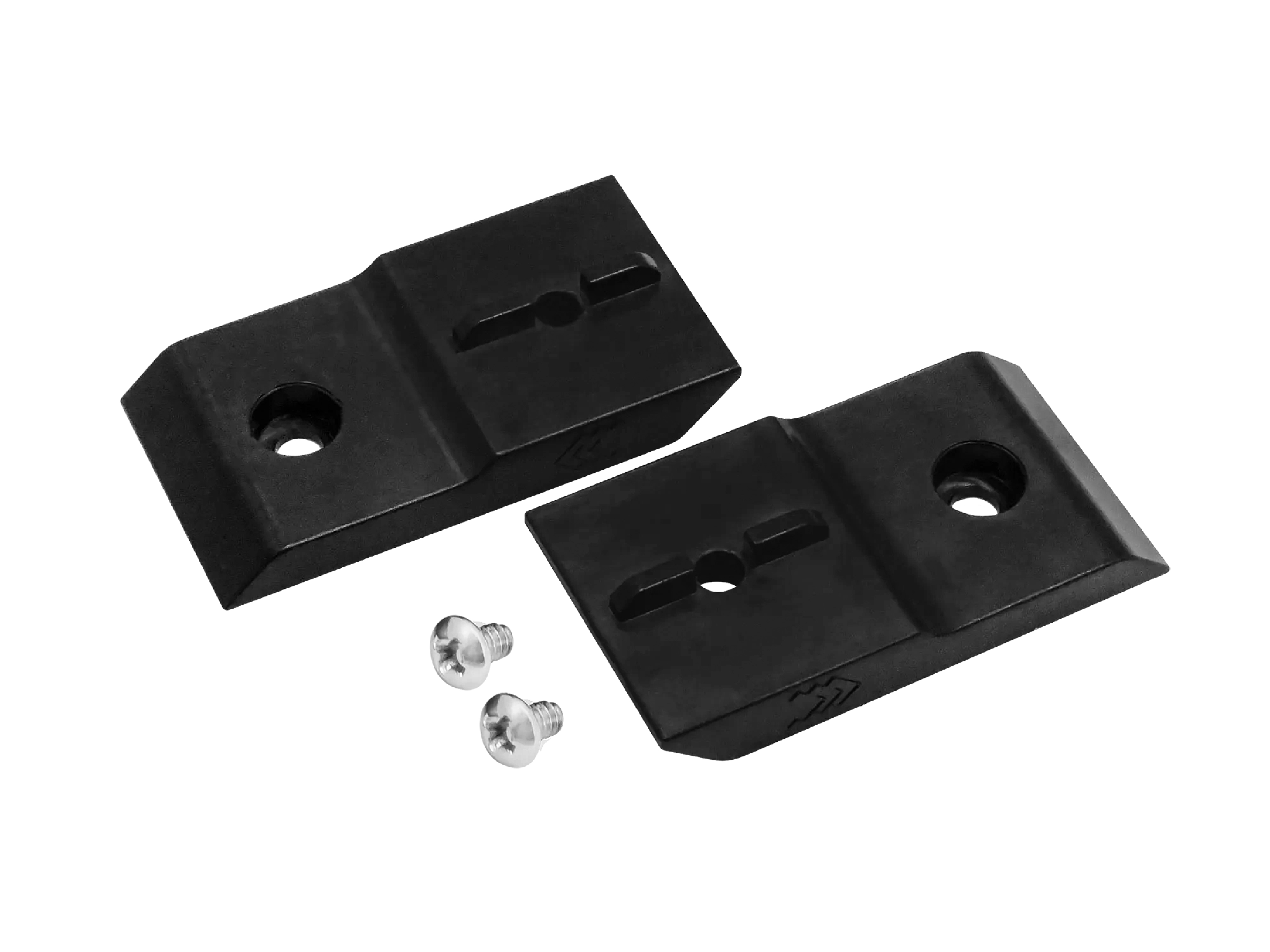

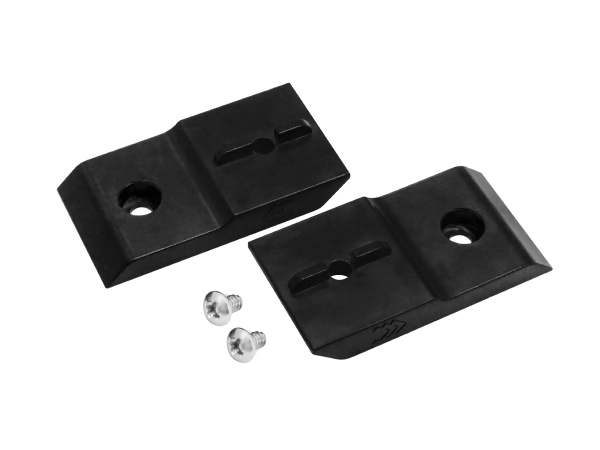

• TEL-MON2 (Mounting bracket for permanent installation)
• 2 SIM card adapters for Micro SIM or Nano SIM to Mini SIM

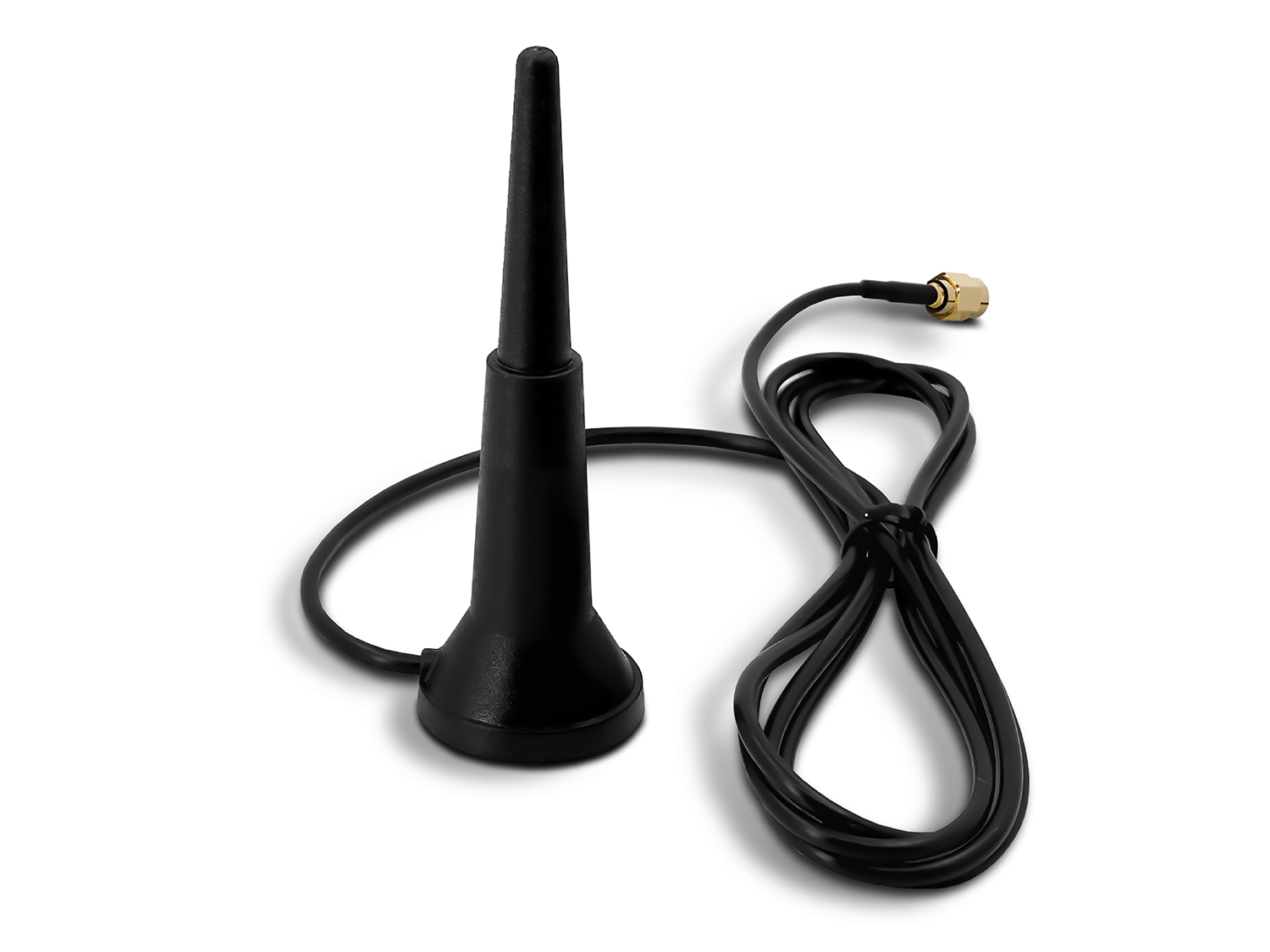

• 1 WiFi magnetic antenna
• User manual
*************************************************************************************************
