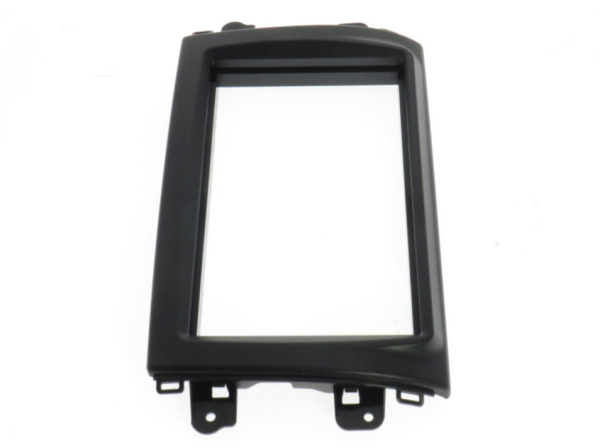

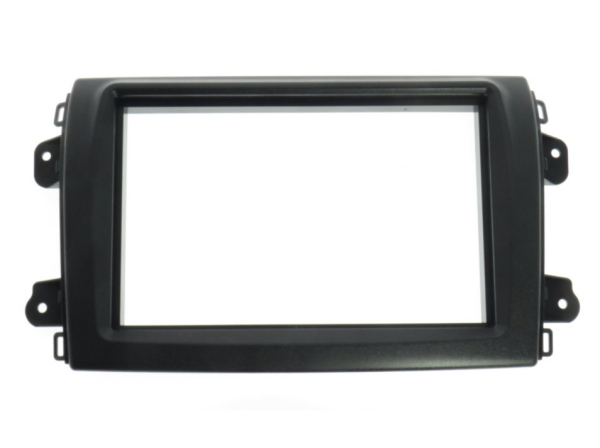

Double DIN facia adapter for the new FIAT DUCATO 8, model year 2022.
Dimensions of the facia adapter:
Largest width visible: 240 mm
Largest width with eyelets: 277 mm
Largest height visible: 154 mm
Recess for sheet metal frame: 183 mm (width), 112 mm (height)
Corresponds to the dimension for double ISO frame, our Art. No. BOA_24430_02. Please order the metal frame separately, if not already included with the radio. The optional set BOA_24430_02 contains the sheet metal frame, the metal brackets for the connection to the radio incl. screws, 2 unlocking keys and the matching plastic frame to cover the remaining gap of 7-10 mm for the insertion of the unlocking keys.
Most double DIN radios are mounted as follows, e.g. 13550 and 13552:
1. mounting of the plastic cover.
2. insert the sheet metal basket into the plastic panel from the front and fix it by bending over various tabs.
3. Install the metal clips supplied with the metal basket on the side of the radio.
4. Push the radio into the metal basket from the front until the metal clips snap into place.
5. Cover the gap between the radio front and the plastic panel with the cover frame supplied with the metal basket.
The sheet metal frames supplied with the radio cannot usually be used!
Note: The facia adapter 13550 and 13552 differ only in design! With the facia adapter 13552 there is a little more installation depth.
*************************************************************************************************
