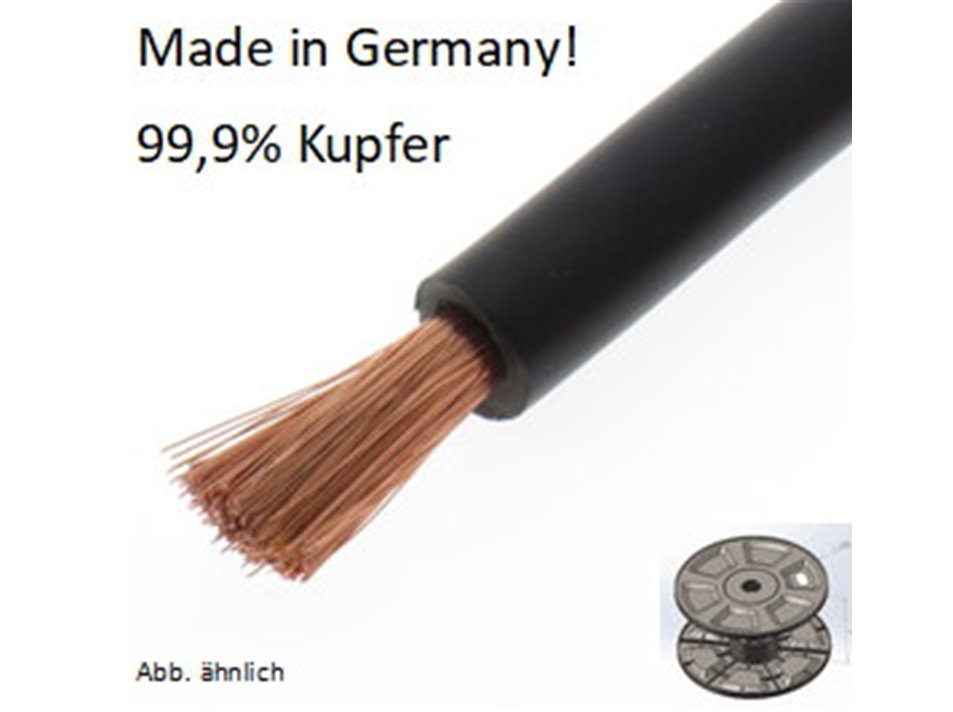

Fine pure copper cable with a copper content of 99.9%.
Especially for use in cars, trucks and motorhomes
The imprinted metre marking facilitates cutting the battery cable to length
Bobbin length: 40 m
Bobbin diameter: 30 cm
Spulenbreite: 14 cm
Perforation of the bobbin carrier: 31 mm
Technical data:
Conductor: electrolytic copper, bare according to DIN 13602
Insulation: lead-free soft PVC according to ISO 6722-1, class A
Shore hardness: approx. A89
Temperature range: -40 to +90 degrees Celsius (3000h)
Voltage range: max 60 VDC or 25 Volt AC
Nominal cross-section: 50 mm2
Weight: approx. 17.25 kg
Outer diameter: approx. 12.7 mm +/- 0.2 mm
Strand diameter: max. 9.5 mm
Number of single wires: 378
Single wire diameter: 0.41 mm
Electrical resistance at 20 degrees: 0.38 Ohm/km
Copper insert per roll: 14.4 kg
RoHS & REACH compliant
