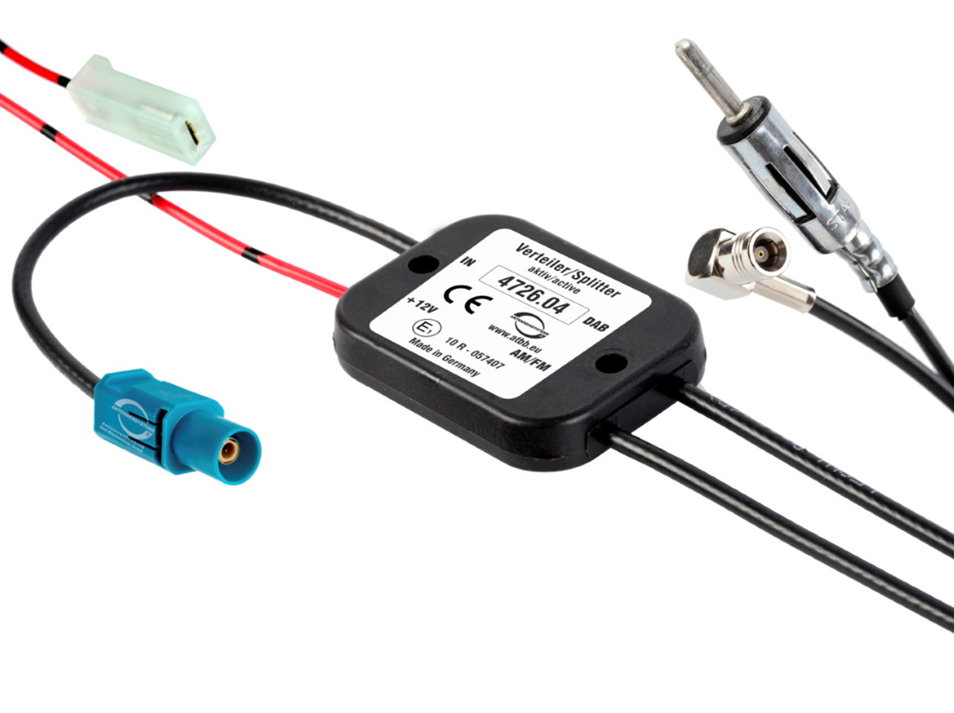

Active radio distributor for the vehicle or house interior with the following functions and features:
- Distribution of analogue radio and DAB+ frequency ranges
- Improvement of the reception quality of passive radio antennas
- Simple and quick mounting
- Cable type: RG 174
- Services: AM/FM, DAB, DAB+

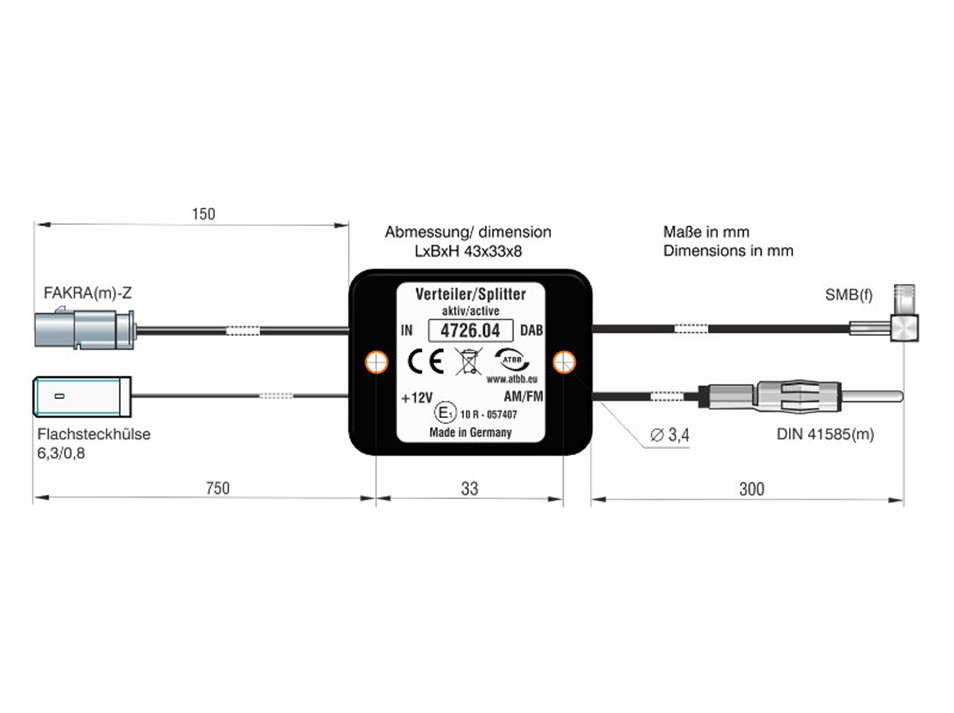

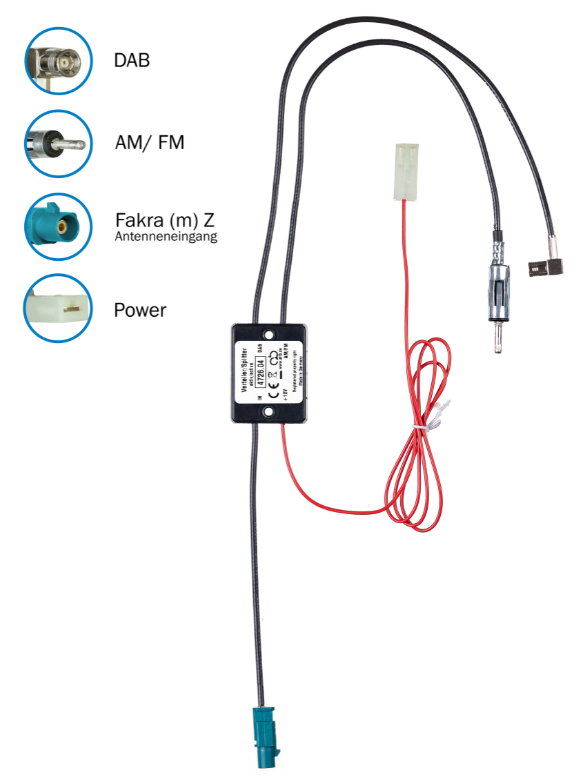

- connectors: SMB(f), FAKRA(m) Z, DIN 41585(m)
Note:
- The product is intended for typical roof/fender antennas.
- Do not use with integrated glass or active roof antennas
Additional information:
- Mounting: Adhesive/screw mounting
- Additional info: Crossover
- Category/Special feature: Active crossover for passive single-cable solution

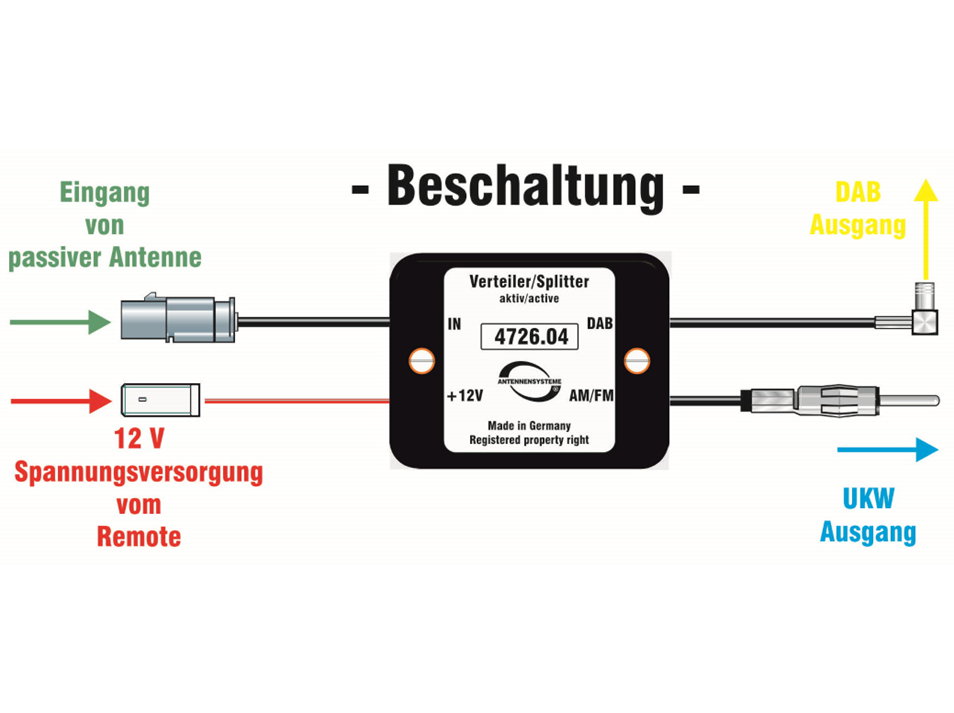

Also works with active FM/UKW antennas if the antenna itself does not filter the frequency band. With a phantom antenna, a phantom adapter must be inserted between the splitter and the antenna connection, e.g. 8551, as any phantom voltage from the radio is not passed through.
The best results are achieved when the splitter is combined with a passive FM/UKW/DAB antenna: - 16 V antenna: ATTB_2116_01 - Flex antenna with adjustable rod from 10-115 degrees: ATTB_3940_01 - Shark/shark antenna: ATTB_3759_01 These antennas always have a piece of cable 40cm with a Fakra socket. You can then use a possibly existing Fakra cable or bring the signal into the dashboard with the extension cable Dietz: 8475 (Fakra plug - Fakra socket, length 5 metres). Connect the splitter there. If the radio has an ISO antenna connection for FM, you will also need the adapter, Dietz 8300.
Original article number: 4726.04
*************************************************************************************************
Product safety information:
Brand: ATTB
Manufacturer: ATTB Antennentechnik Bad Blankenburg GmbH, Gewerbegebiet 2, 07407 Rudolstadt, info@attb.de
*************************************************************************************************
