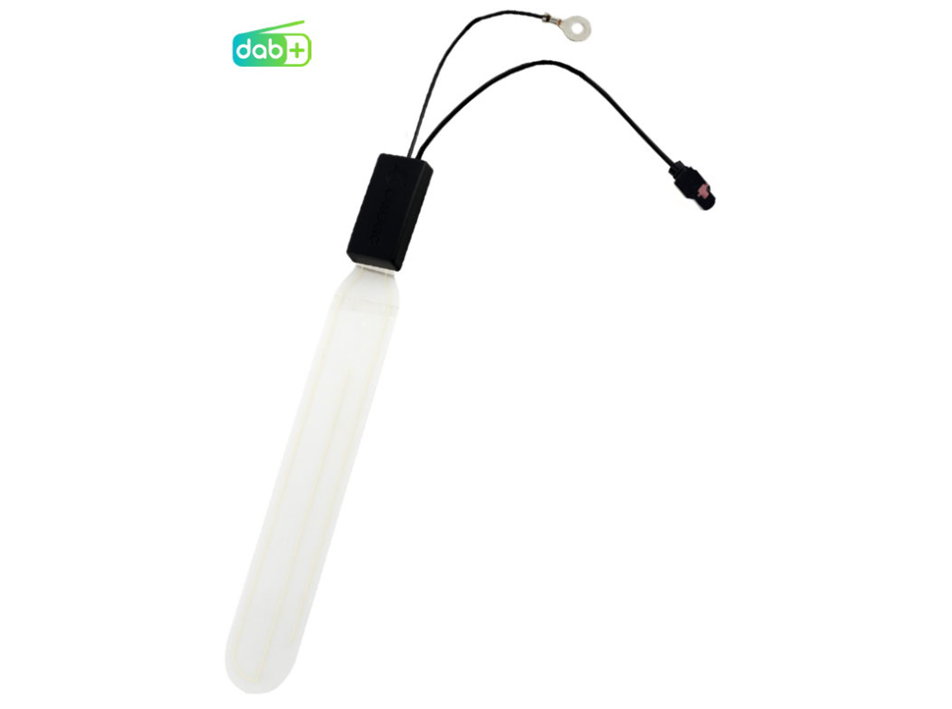

Internal antenna for digital DAB radio reception. Its compact amplifier circuit and transparent receiving element guarantee high reception quality thanks to careful design and the use of high-performance components. At the same time, the visual impact of the antenna on the car window is reduced to a minimum.
Adhesive glass antenna for DAB+
Frequency range: III Band = 174-240 MHz
Gain: III Band = 8dBi
Power supply : 12V phantom power
Connector : FAKRA plug, black
Power consumption: 90 mA
Impedance: 50 Ohm

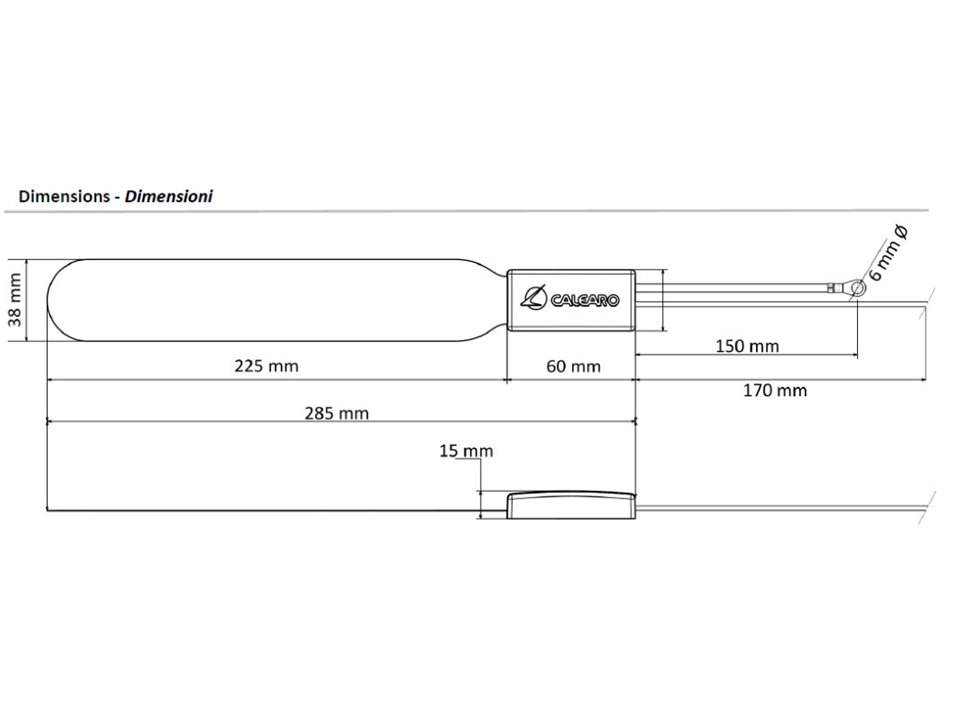

For further technical data, see additional picture
We recommend the following extension cables:
Fakra socket - SMB socket:
9471: 0.75 m lowloss cable
9472: 1,5 m lowloss cable
9472: 1,5 m lowloss cable
9474: 3,0 m lowloss cable
9482: 5,0 m lowloss cable
9492: 7.5 m lowloss cable
This model replaces the variant: 7677938
*************************************************************************************************
Product safety information:
Brand: Calearo
Manufacturer: MTA S.p.A., V.le dell'Industria, 12 - 26845 Codogno (LO) – ITALY, info@mta.it
*************************************************************************************************
