Generates an additional DAB/DAB+ signal from an FM/VHF antenna.
Connections to the radio:
FM/UKW: 150 Ohm DIN plug
DAB/DAB+: SMB socket
Connector to antenna: 50 Ohm ISO socket
Also works with active FM/UKW antennas if the antenna itself does not filter the frequency band.

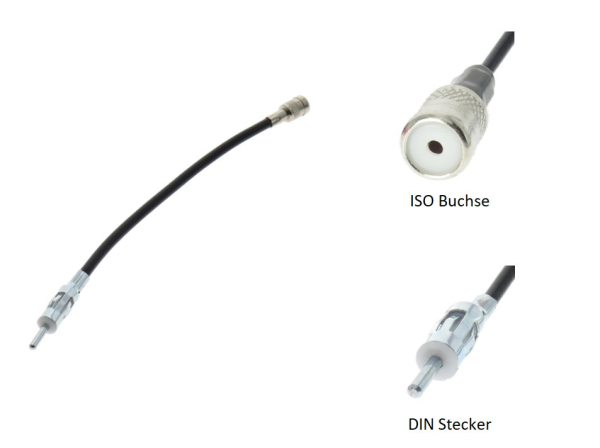

The following adapter cables are included in the delivery:
8524 Fakra socket DIN plug
8555 Fakra socket ISO socket
8526 Fakra socket SMB socket Technical data:
Frequencies/amplification:
AM=0.15-1.71MHz, 25 dB +/-1
FM=87,5-108MHz, 13,5 dB +/-1
III Band=174-240 MHz, 21 dB +/-1
L BAND=1452-1492 MHz, 14 dB +/-1
Current consumption: 110 mA
Impedance: 50 Ohm
