Antenna adapter FAKRA plug - SMB socket angled

Active radio distributor for the vehicle or house interior with the following functions and features:
- Distribution of analogue radio and DAB+ frequency ranges
- Improvement of the reception quality of passive radio antennas
- Simple and quick mounting
- Cable type: RG 174
- Services: AM/FM, DAB, DAB+
- Connectors: FAKRA(f) Z, SMB(f)

Note:
- The product is intended for typical roof/fender antennas.
- Do not use with integrated glass or active roof antennas

Additional information:
- Mounting: Adhesive/screw mounting
- Additional info: Crossover
- Category/Special feature: Active crossover for passive single-cable solution

Also works with active FM/UKW antennas if the antenna itself does not filter the frequency band. With a phantom antenna, a phantom adapter must be inserted between the splitter and the antenna connection, e.g. 8551, as any phantom voltage from the radio is not passed through.

The best results are achieved when the splitter is combined with a passive antenna FM/UKW/DAB:

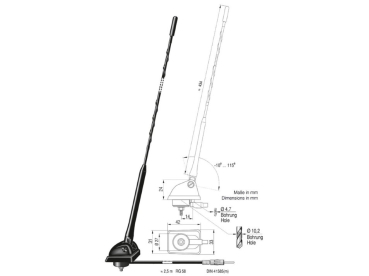

- 16 V antenna: ATTB_2116_01
- Flex antenna with adjustable rod from 10-115 degrees: ATTB_3940_01
- Shark antenna: ATTB_3759_01

These antennas always have a piece of cable 40cm with a Fakra socket. You can then use a possibly existing Fakra cable or bring the signal into the dashboard with the extension cable Dietz: 8475 (Fakra plug - Fakra socket, length 5 metres). Connect the splitter there. If the radio has a DIN antenna connection for VHF, you will also need the adapter: Dietz 8509 (Fakra plug - DIN plug) or if the radio has an ISO connection: Dietz 8508 (Faka plug - ISO plug)

Original article number: 4726.03

*************************************************************************************************
Product safety information:
Brand: ATTB
Manufacturer: ATTB Antennentechnik Bad Blankenburg GmbH, Gewerbegebiet 2, 07407 Rudolstadt, info@attb.de
*************************************************************************************************

For branded devices that only require an opening of 98 x 172.5 mm. With metal brackets and screws. Double DIN facia adapter for the new FIAT DUCATO, model year 2022.

Dimensions of the facia adapter:

Largest width visible: 245 mm (top)
Largest width with retaining lugs: 281 mm
Largest height visible: 159 mm
Difference to other solutions, such as 13550 or 13552:
Most double DIN radios are mounted as follows, e.g. for 13500 and 13552:
1. mounting of the plastic facia adapter.
2. insert the sheet metal basket into the plastic cover from the front and fix it by bending over various tabs.
3. Install the metal clips supplied with the metal basket on the side of the radio.
4. Push the radio into the metal basket from the front until the metal clips snap into place.
5. Cover the gap between the radio front and the plastic cover with the cover frame supplied with the metal basket.

In the case of the 60144 panel shown here, the radio is mounted from behind against the panel and finally installed in the dashboard together with the plastic panel.
This eliminates the need for the inner cover of the facia adapter as described in item 5 above and makes the installation look a bit more shapely.
Please note that this is possible with most branded radios if you have the taper in the front to 98 x 172.5 mm. Some so-called Chinese radios do not have this taper.


*************************************************************************************************
