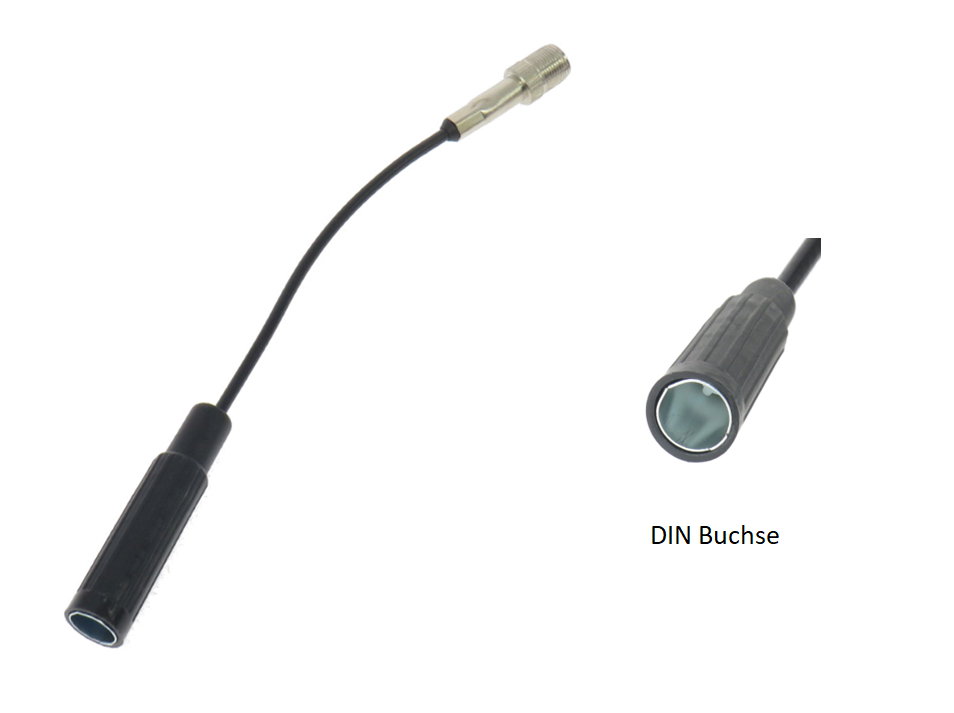

Antenna adapter DIN socket - M10 plug screw thread

Universal disc antenna for DAB reception with 2.5 m connection cable and SMB socket.
Working voltage 12 volts. This antenna is supplied via phantom power.
Mounting instructions: The antenna is best mounted horizontally, e.g. on the dashboard. Please keep at least 5 cm distance to metal surfaces.

Antenna type:
Car DAB & DAB+ antenna
Reception frequency:
170 MHz~240 MHz & 1452MHz~1492 MHz
Operating voltage:
DC 10.5~16V
Input Gain:
Band III 18dBi+/-3dB & L-Band 15dBi+/-2diB
Output impedance:
50Ohm
Noise level:
2.0dB MAX
Cable length:
2500+/-30mm
Insulation resistance:
DC500V>100MOhm
Working current: 20 +/- 2 mA
Connector:
SMB female
Operating temperature:
-20C°~85C°

For devices with SMA female connector, the adapter 14946 (SMB male to SMA male) is also required.


*************************************************************************************************
Angaben zur Produktsicherheit/GPSR:
Marke/Trademark: Dietz
Hersteller/Manufacturer: Audiotechnik Dietz Vertriebs-GmbH, Maybachstr. 10, 67269 Grünstadt,
www.dietz.biz, verkauf@dietz.biz
*************************************************************************************************

Universal disc antenna for DAB reception with 3 m connection cable and SMB socket.
Working voltage 12 volts. This antenna is supplied via phantom power. Please stick the black foil on metal, the transparent foil part on the window!

Antenna type: Car DAB & DAB+ antenna
Reception frequency:
170 MHz~240 MHz & 1452MHz~1492 MHz
Operating voltage:
DC 10.5~16V
Input Gain:
Band III 15dB+/-3dB & L-Band 12dB+/-3dB
Output impedance:
50Ohm
Noise level:
2.0dB MAX
Cable length:
3000+/-30mm
Insulation resistance:
DC500V>100MOhm
Connector:
SMB female
Operating temperature:
-40C°~80C°

For devices with SMA female connector, the adapter 14946 (SMB male to SMA male) is required.


*************************************************************************************************
