PRODUCT DESCRIPTION
- Connection to the 5G mobile network (up to 3.4 Gbps) or 4G LTE (Cat 19 up to 1.6 Gbps)
- Connection to campsite Wi-Fi networks with and without a login page (captive portal)
- Connection to Starlink when a Starlink antenna is connected
- Particularly easy setup and operation
- GPS tracking of the motorhome or caravan is possible
- VPN-enabled, e.g., for streaming abroad
A reliable internet connection in a motorhome or caravan is often a challenge – whether for smartphones, tablets, laptops, smart TVs, or game consoles. SELFSAT offers innovative solutions for stable and secure Wi-Fi coverage on the go.
SELFSAT routers operate via the vehicle's 12/24-volt electrical system and receive both Wi-Fi and cellular signals to provide a private, secure Wi-Fi network within the vehicle. The powerful external antenna ensures optimal reception and overcomes the shielding effect of the vehicle's exterior. Thanks to Wi-Fi 6, users benefit from higher speeds, improved response times, and maximum efficiency.
Installation is straightforward, and the antenna is dustproof and waterproof. Connecting to the router is effortless via QR code scan or by manually entering the Wi-Fi name and password. The intuitive user interface allows for easy control directly through your web browser, without the need for an additional app.
In addition, the router supports connecting to campsite Wi-Fi networks, enables VPN setup for unlimited streaming, and is compatible with Starlink – for even more flexible internet access on the go.
Router Specifications:
• Supported mobile network generations: 5G (up to 3.4 Gbps), 4G LTE (Cat 19 up to 1.6 Gbps), 3G (up to 42 Mbps)
• Supported Wi-Fi frequencies (input): 2.4 GHz, 5 GHz
• Supported Wi-Fi frequencies (output): 2.4 GHz, 5 GHz
• Supports GPS for location tracking and time synchronization
• 2 SIM card slots: Mini SIM (2FF)
• Ethernet ports: 1 4 x WAN, 4 x LAN RJ45
• Power supply: 9 - 50 volts DC
• Dimensions: 132 x 44.2 x 95 mm
• Weight: 530 g
• Operating temperature: -40°C - 75°C
• Protection class: IP30
The antenna features 4 receiving elements for LTE/5G, 2 elements for WLAN, and 1 element for GPS. Especially because it enables the highest achievable antenna gain of up to 9 dBi.
Technical Specifications:
Color: Black
Frequencies: GPRS/UMTS/LTE/5G
Element 1: 617-960 MHz, 1710-6000 MHz
Element 2: 617-960 MHz, 1710-6000 MHz
Element 3: 617-960 MHz, 1710-6000 MHz
Element 4: 617-960 MHz, 1710-6000 MHz
Element 5: 2400/4900-6000 MHz
Element 6: 2400/4900-6000 MHz
Element 7: 1562-1612 MHz (GPS;GNSS)
Gain:
Element 1&4 @617-960MHz 4dBi
Element 1&4 @1710-3800MHz 8dBi
Element 1&4 @4900-6000MHz 9dBi
Element 5-6 @2400MHz 9dBi
Element 5-6 @4900-6000MHz 9dBi
Element 7 @1562-1612MHz (GPS;GNSS) 26dB LNA
Typical Efficiency:
Element 1&2: 70%
Element 3-5: 80%
Isolation: LTE >10dB, Wi-Fi >12dB
Resistance: 50 Ohms
Dimensions: Height 81 mm / Diameter 180 mm
Mounting: 1-hole mounting 19 mm
Thread: M18 x 1
Cable length to antenna: 1.0 m
Connectors:
4 x SMA male connectors [4G/5G]
2 x SMA RP male connectors [WIFI]
1 x SMA male connector [GPS]
For longer cable lengths, we recommend the following cable sets:
- 7-piece extension cable set: 1.5 m: UNI-510L150
- 7-piece extension cable set: 3.0 m: UNI-510L300
- 7-piece extension cable set: 5.0 m: UNI-510L500
- 7-piece Extension cable set: 6.0 m: UNI-510L600
- 7-piece extension cable set: 7.5 m: UNI-510L750
Note:
All panoramic antennas are supplied with a waterproof adhesive pad for mounting. Additionally, the antenna is secured with an M18 nut, for example, on metal supports. For insulated roofs, we recommend using a threaded extension, which is included in the delivery.

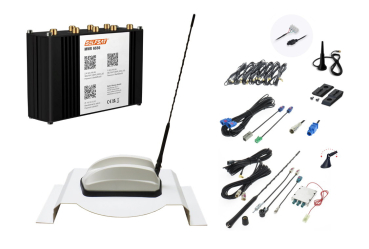

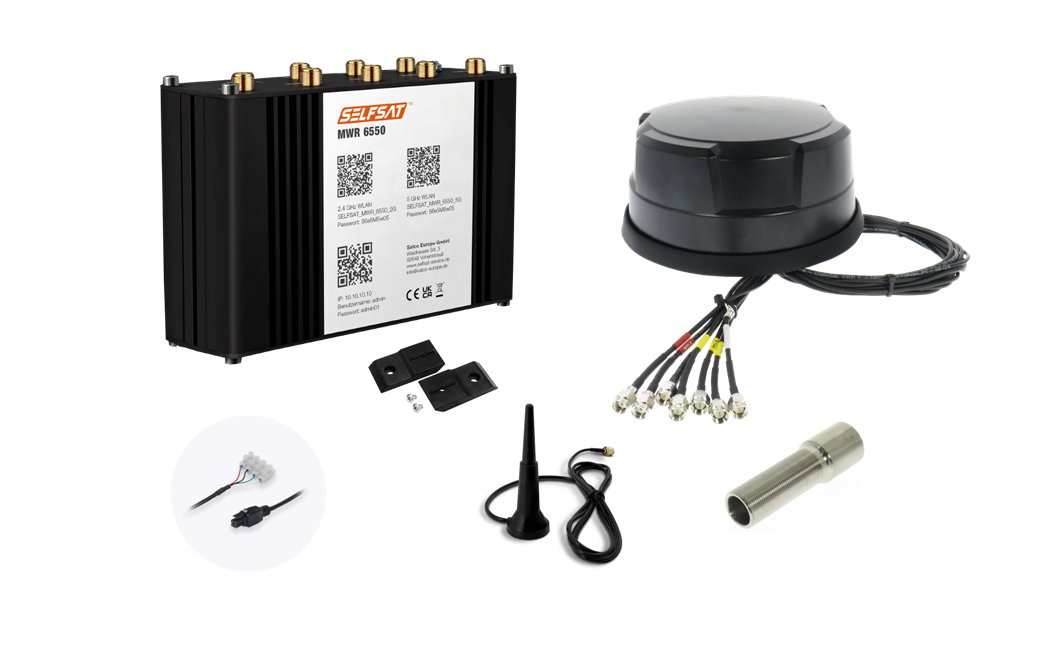

Scope of delivery:
• MWR 6550 Router
• Panoramic antenna PAN-ANT510B with 1m cable

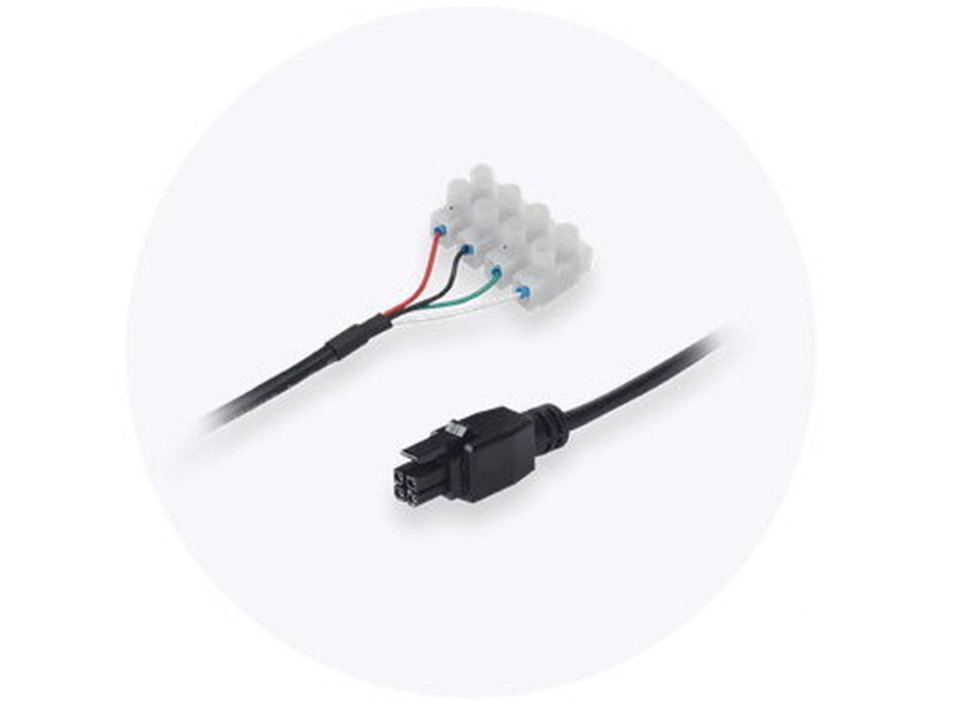

• TEL-12V: Connection cable for permanent installation

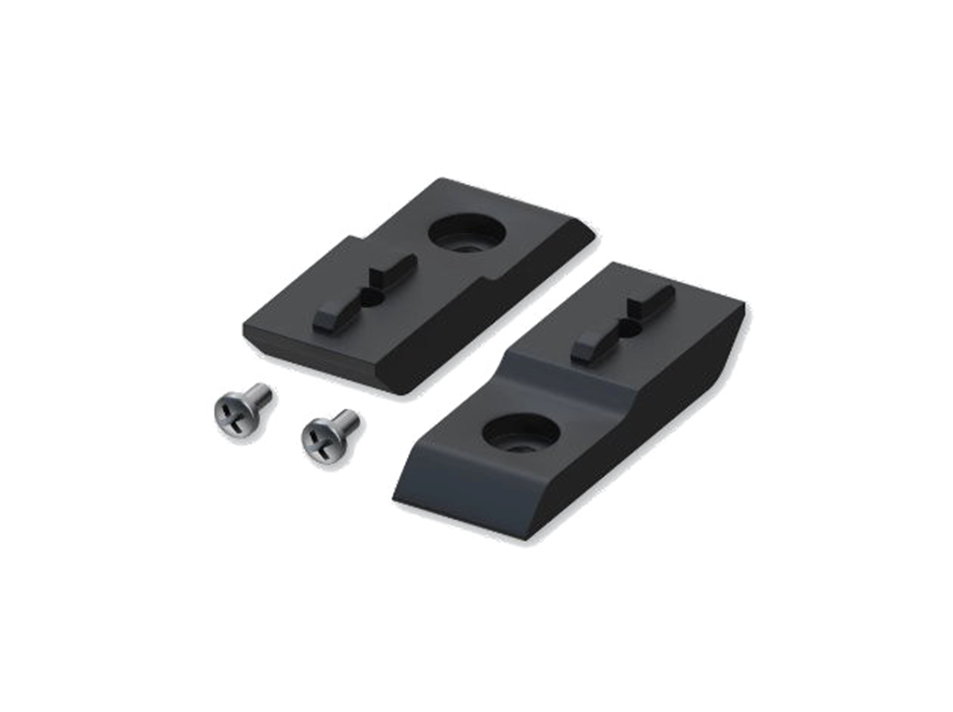

• TEL-MON2: Mounting bracket for permanent installation
• 2 SIM card adapters for Micro SIM or Nano SIM to Mini SIM
• 1 WiFi magnetic antenna
• Threaded extension PAN-SAM-100
• User manual
Also available in white:
"SE-6550-PAW"
*************************************************************************************************
