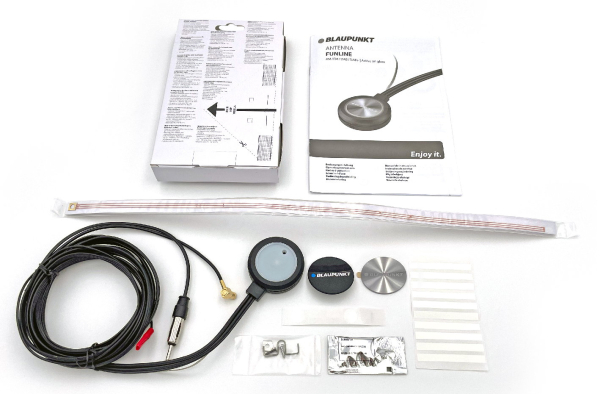

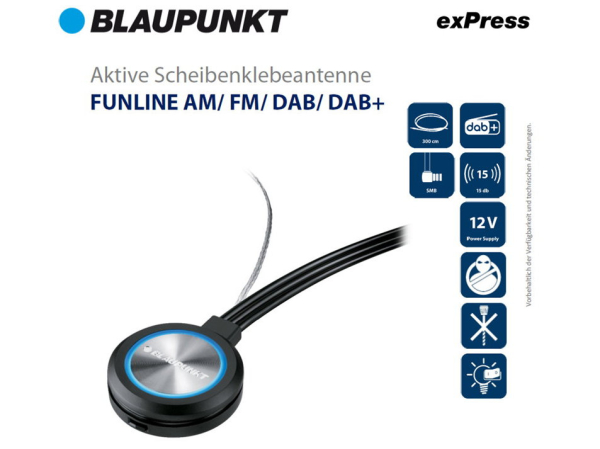

Window antenna Blaupunkt

Product No.:: BP_FUNLINE_DAB
Shipping time:: 1-2 days (abroad may vary)
Stock:: pieces
Weight:: 0.201 kg per piece

59,90 EUR

incl. 19% tax excl. Shipping costs

Add to wish list

Description

Description

Integrated amplifier
- Blue LED-Light (switchable)
- Separate power supply 9- 16 Volt
- Max. power consumption < 80 mA
- AM 0.15-6.2 MHz
- FM 76-108 MHz, +6dB, Noise figure < 6dB
- DAB 174-240 MHz, +18dB, Noise fig. < 4dB
- Connector: SMB (DAB) + DIN (FM/ AM)
- Cable: 2.85 m
- Operation temperature: -30°C - +95°C
- Compatible with all Blaupunkt Car Radios
- DAB/ FM antenna can also be used individually
- Non- destructive assembling, for nonheated/non-coated windscreens
- Antenna lenght 450mm (2 pcs.)
- Amplifier ? 50mm x 15mm
- Successor of 7 617 495 142 001

*************************************************************************************************
Product safety information:
Brand: Blaupunkt
Manufacturer: Evo-Sales GmbH, Hastenbecker Weg 33, 31785 Hameln, ticket@bpautomotive.de
*************************************************************************************************

Customers who bought this product bought also the following products:

Antenna set A10, FM/DAB+ 41cm; 10m cable,...

According to our tests, the A10 antenna is currently the best antenna for optimum radio reception in camper vans. The electronics and the antenna radiators are perfectly matched to each other. For vehicles where the height is not important, we always recommend the 41 cm antenna radiator. You will be thrilled!

Delivery contents:

Antenna A10
Central hole d= 20 mm
Lowloss cable 10 m, Fakra socket - Fakra socket, for VHF
Adapter 1: Fakra plug - DIN plug
Adapter 2: Fakra plug - ISO plug

Lowloss cable 10 m, Fakra socket - SMB socket , for DAB+

Roof antenna with the following features:
- 16V antenna with long rod, length approx. 41cm
- DAB+ reception, active and low noise in BAND 3
- VHF/FM/AM reception, active and low-noise
- 12 V power supply via external cable 0.75 mm2 (phantom powering not possible)
- Low installation depth (approx. 15 mm)
- Gain: FM: 9 dB
- Gain: DAB+: 14 dB
- Power supply: 12 volts, 30mA
- Cable: RG 174, FM 300 mm, Fakra plug, white, code B
- Cable: RG 174, DAB+ 300 mm, Fakra plug, grey, code G

Low-loss cables are the cables with the best electrical properties for the loss-free transmission of antenna signals. Our lowloss cable series has the best conductivity values and therefore the lowest cable resistance. They are achieved by using tinned strands for the inner conductor (7*d=0.25mm), for the shield (42*d=0.11mm) and an additional aluminium foil between the PE dielectric and the shield. Only high-quality Fakra plugs and sockets from Rosenberger are used. They have an excellent finish and fit due to a special punch-bend technology of the Rosenberger company(Fakra-SF).

Technical data:

Characteristic impedance: 50 Ohm
Capacity: 95pF/m
Extended POLYTHEN insulation 2.00 mm
Aluminium foil shielding and additional tinned copper braiding
Outer diameter: 3.6 mm

Note: This set replaces the previous sets:

A1T0L1000UNI

*************************************************************************************************
Angaben zur Produktsicherheit/GPSR:
Marke/Trademark: Dietz
Hersteller/Manufacturer: Audiotechnik Dietz Vertriebs-GmbH, Maybachstr. 10, 67269 Grünstadt,
www.dietz.biz, verkauf@dietz.biz
*************************************************************************************************

Art.Nr:

152,00 EUR

incl. 19% tax excl. Shipping costs

DEKASEAL 1512 white, 310 ml, butyl sealant...

Tip:
For sealing a visible sealing seam, even with larger gaps, e.g. on vans. Can be overpainted.

Paintable, stable butyl sealant with skin formation.
Typical applications are plastic sealants in many areas, from industry to vehicle construction.
Its strengths, apart from its high tightness, are its ease of disassembly, i.e. it is well suited for joints that need to be undone at a later date. Excess material can be removed with cleaner (cannot be dabbed off).
Because of its stability, it is ideal for sealing cable penetrations and for installing roof hatches (e.g. Heki).
Also suitable for panel vans with installation frame.

- 310 ml cartridge available in black.
- Temperature resistant from -30°C to +100°C.
- Long shelf life up to two years.

The technical data sheet and the safety data sheet can be found here under the "Documents" tab.

Danger warning:
H226 Flammable liquid and vapour
H412 Harmful to aquatic organisms, long lasting effects

For experienced users only

*************************************************************************************************
Angaben zur Produktsicherheit/GPSR:
Marke/Trademark: DEKALIN
Hersteller/Manufacturer: DEKA Kleben & Dichten GmbH, Kirchgasse 1, 61203 Reichelsheim, info@dekalin.de
*************************************************************************************************

Art.Nr:

21,99 EUR
70,94 EUR per

incl. 19% tax excl. Shipping costs

Blaupunkt NÜRNBERG 200 DAB, BT

Highlights
• High Grade RDS Tuner
• DAB+ Tuner
• FM (RDS), AM
• Playback formats : MP3, WMA
• Fast USB read-in
• Selectable display modes (File, Folder, Title, Artist, Album & Time)
• Data carrier : USB
• 9-digit display
• Bluetooth integrated (HFP, A2DP)
• Integrated microphone
• Front USB
• Front Aux in
• 4x50 Watt Max.
• 2 channel preamplifier
• Sound presets (Flat, Rock,Pop, Classic)
• X Bass
• White key illumination

Subject to technical changes. For further technical data, please refer to the pictures or the technical data sheet under the "Documents" tab.

*************************************************************************************************
Product safety information:
Brand: Blaupunkt
Manufacturer: Evo-Sales GmbH, Hastenbecker Weg 33, 31785 Hameln, ticket@bpautomotive.de
*************************************************************************************************

Art.Nr:

129,00 EUR

incl. 19% tax excl. Shipping costs

DENSION Gateway Lite with Bluetooth, for...

Retrofit solution for hands-free (Bluetooth), audio streaming (A2DP),USB, AUX,

Gateway Blue Lite:

Simple interface without text display for USB, AUX, hands-free and audio streaming. Connected instead of the CD changer and operated via the steering wheel buttons and radio buttons/CD changer buttons.

This interface can be used for several vehicle models. In addition to the interface, a vehicle-specific cable set (D_CABL_TO1, D_CABL_SU1, or D_CABL_HB1) is required.

This product cannot be used individually and is intended specifically as a modular product for retailers. For end users the complete sets of the product series: D_GWL3xxx" are intended.

Please refer to the Dension database for any compatibility restrictions. You can find the link to the database in our store: www.dietzshop.de next to the shopping cart. After entering your vehicle data, a tabular list of possibilities will appear. Please click on the blue eye to get more information about restrictions.

*************************************************************************************************
Product safety information:
Brand: Dension
Manufacturer: Dension Elektronikai Kft, H-1116 Budapest, Sztregova u. 1., info@dension.com
*************************************************************************************************

Art.Nr:

219,00 EUR

incl. 19% tax excl. Shipping costs
