A residual current circuit breaker is already integrated in the 230V AC output of the inverter, which saves you the time-consuming installation of a residual current circuit breaker in your vehicle. Take a look at the technical details and you will see that this is a modern, high-quality, state-of-the-art device. Thanks to electronically regulated fan control, the fan is only switched on as required. The good workmanship and well thought-out technology guarantee reliable use and a long service life. The unit has all the necessary protective circuits, such as temperature protection, short-circuit protection, low-voltage cut-off (to protect your battery), and overload protection (in case you connect too large a load).
A wired remote control is supplied, with which you can switch the converter on and off. When the converter is switched off via the remote control, no more power is consumed. The cable length of the remote control is approx. 5 metres.

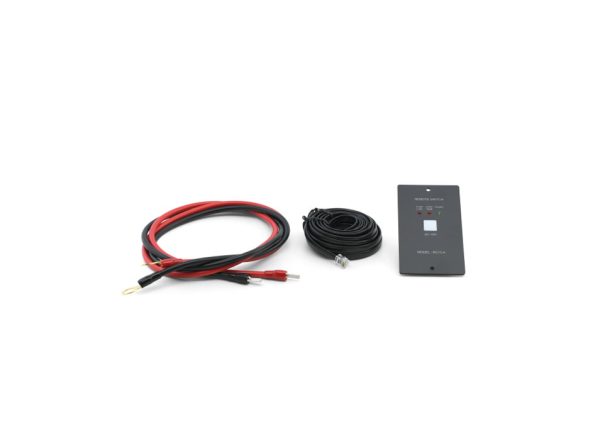

Delivery contents:
- Inverter SWI650W12V pure sine wave
- Battery connection cable with ring eyelets (1 metre)
- Remote control with control display and 5 metre cable length
- Of course you will also receive an instruction manual in German
Technical data:
- 600 watts for continuous power
- 650 watts for 15 minutes
- 1200 Watt short-time peak (25ms)
- 10 to 16.5V DC input voltage range
- crystal-precise 230V AC, 50 Hz output voltage
- pure sine wave
- Distortion factor max. 3%
- Efficiency max. 90%
- Residual current circuit breaker integrated in the output
- Standby consumption 0.6A
- Alarm signal at 10.5V battery voltage
- Deep discharge protection, switch-off of the load at 10V battery voltage
- Overvoltage protection, switch-off at more than 16.5V DC at input
- the 230V AC output is short-circuit proof
- the 12V DC input is protected against polarity reversal by fuses
- automatic disconnection of the voltage transformer in case of overload
- temperature protection, protective shutdown at more than 60°C in the housing
- Microcontroller controlled
- Temperature- and load-controlled fan, the fan only runs when required
- Mains switch on the unit (on/off switch)
- Fine aluminium casing with blue lacquer finish
- Dimensions L=280mm, W=236mm, H=83mm
- 3,0kg weight including connection cable (without packaging)
- E-mark (e-mark) This mark indicates that the unit may be operated on land and water in vehicles.
*************************************************************************************************
Product safety information:
Brand: Fraron
Manufacturer: FraRon electronic GmbH, Industriestr. 2a, 63825 Schöllkrippen, kontakt@fraron.de
*************************************************************************************************
