Universal DAB / DAB+ active antenna with SMB socket

Universal DAB / DAB+ active antenna with SMB socket

Product No.:: ATTB_4573_01
Shipping time:: 1-2 days (abroad may vary)
Stock:: pieces
Weight:: 0.128 kg per piece

76,01 EUR

incl. 19% tax excl. Shipping costs

Add to wish list

Description

Description

Adhesive glass antenna for all fixed vehicle windows with the following features:
- Quick installation
- Favourable transmission characteristics due to outer rod
- Simple, concealed cable routing
- Antenna swivelling range > 180
- Adjustment of joint inhibition with hexagonal screw
- Cable type: RG 174
- Services: DAB
- Cable length: 3 m
- Connectors: SMB(f)

Note:
- Coating-, particle- and hot-wire-free pane in the mounting area.

Additional information:
- Mounting: Adhesive mounting
- Additional info: Adhesive glass outdoor antenna
- Category/special feature: Active DAB+ antenna with 230 mm outer rod

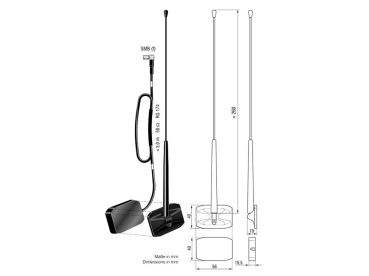

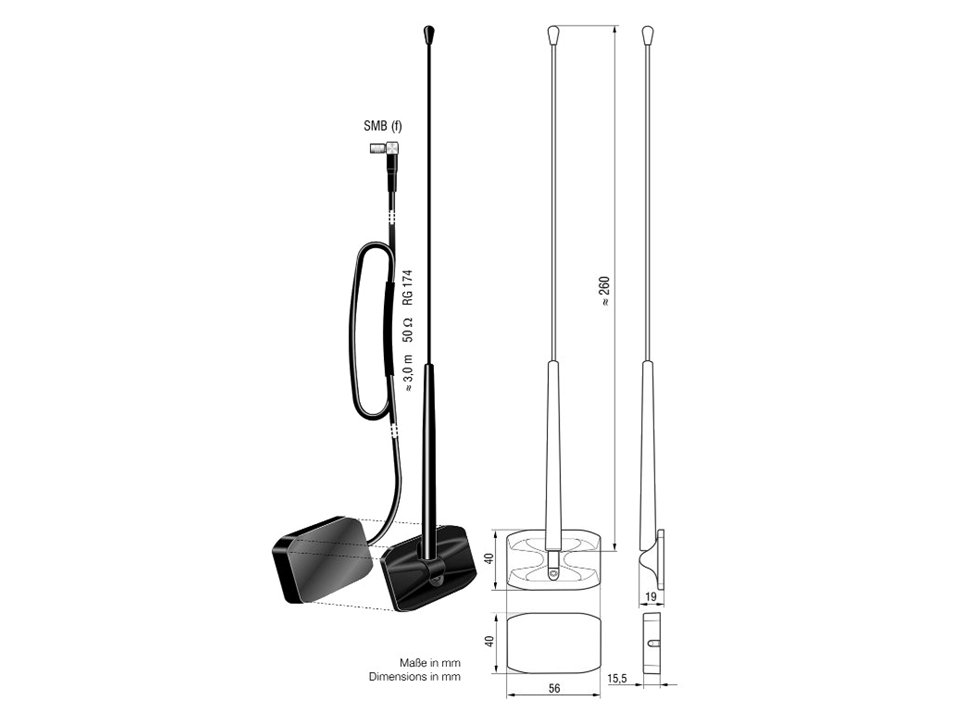

Dimensions:
- Width: 56 mm
- Height: 300 mm
- Length: 40 mm
- Weight: 0.126 kg

*************************************************************************************************
Product safety information:
Brand: ATTB
Manufacturer: ATTB Antennentechnik Bad Blankenburg GmbH, Gewerbegebiet 2, 07407 Rudolstadt, info@attb.de
*************************************************************************************************
