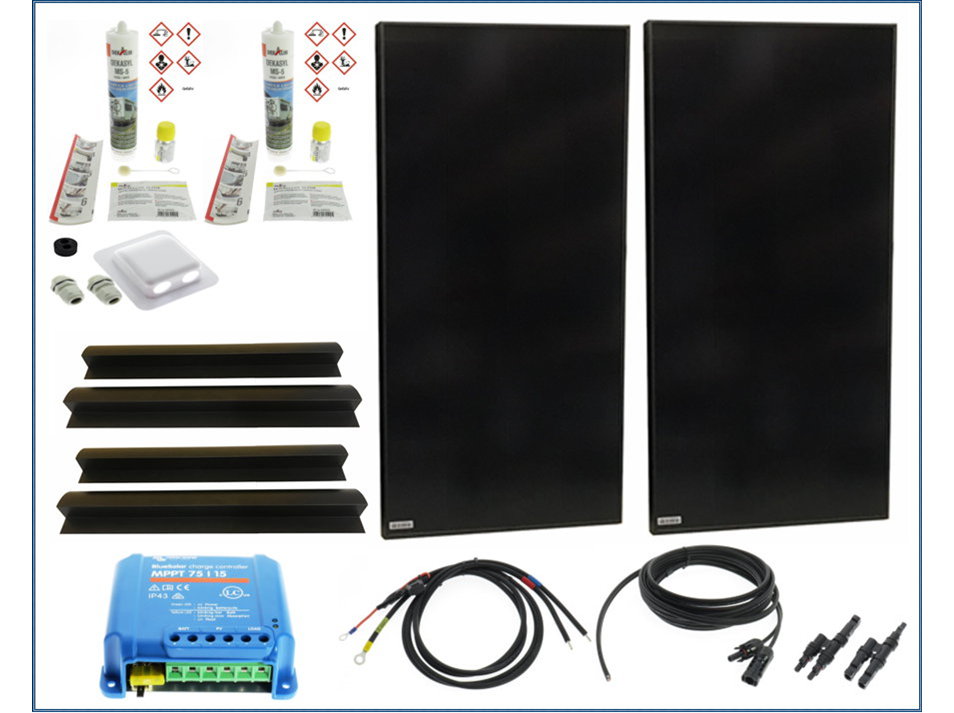

Complete solar kit for your camper van or caravan with 2 Sunpower solar modules, charge controller, mounting material and cable.
The solar panel features high-quality Sun Pearl cells. The shingle cell technology divides the panel into 4 parallel branches. If one branch is covered by shade, the other branches continue to work. Therefore, the shade resistance of these panels is very high.
Panel dimensions: 1.03 * 0.53 * 0.035 m
12 VDC,
2x solar panel 100 W including spoiler,
1 x Victron solar charge controller with Bluetooth function:
VI_MPPT_7515_Smart
1x roof duct,
2x DEKALIN adhesive set white, Dekavator, MS-5 310 ml, cloth, brush
5 m module cable QuickCab4,
1x Y-cable QuickClip
1.5 m battery cable with fuse (20 A),
Weight: 18.75 kg
Manufacturer: Phaesun
The charge controller:
12/24V 20A max. module short-circuit current, 20A max. load current, LED, IP31
The simplicity and high performance of the new Steca Solarix PRS solar charge controller make it particularly attractive. The latest Steca algorithms are used here to ensure optimal battery maintenance.
The Solarix PRS charge controllers are equipped with an electronic fuse for optimal protection. They operate according to the serial principle and disconnect the solar module from the battery to protect against overcharging.
The Solarix PRS charge controllers are universal charge controllers: they can be used with lead-acid or gel batteries, without the need for complex configuration settings. For larger projects, charge controllers can also be equipped with special functions: e.g. night light function and selectable charge termination and deep discharge protection voltages.
Product features
Series regulator
Automatic voltage adjustment
Voltage and current control
PWM control
Multi-stage charging technology
Current-compensated load cut-off threshold
Automatic load restart
Temperature compensation
Common positive or negative earth of one terminal
Self-test function
Monthly maintenance charge
Electronic protection functions
Overcharge protection
Deep discharge protection
Reverse polarity protection of module, load and battery
Automatic electronic fuse
Short-circuit protection of load and module
Overvoltage protection at module input
No-load protection without battery
Reverse current protection at night
Overtemperature and overload protection
Shutdown in case of battery overvoltage
Displays
Multifunction LED display
Multi-colour LED
5 LEDs show operating states for operation, charging status, fault messages
General note:
The Sun-Pearl kits are easy to install on your caravan or sailboat. They enable the operation of various 12 volt consumers: lamps, radio, TV/SAT or even small pond pumps. With a 230 volt inverter, you can even connect AC electrical appliances. These kits come in different versions with different charge controllers and modules, suitable for every need of the vehicle. This makes these kits the ideal solution for sufficient power on board.
We will be happy to advise you!
*************************************************************************************************
