Shark antenna active - FM/DAB+ set with 7.5m cable set

Shark antenna active - FM/DAB+ set with 7.5m cable set

Product No.:: ATTB_3775_72
Shipping time:: 1-2 days (abroad may vary)
Stock:: pieces
Weight:: 0.49 kg per piece

205,00 EUR

incl. 19% tax excl. Shipping costs

Add to wish list

Description

Description

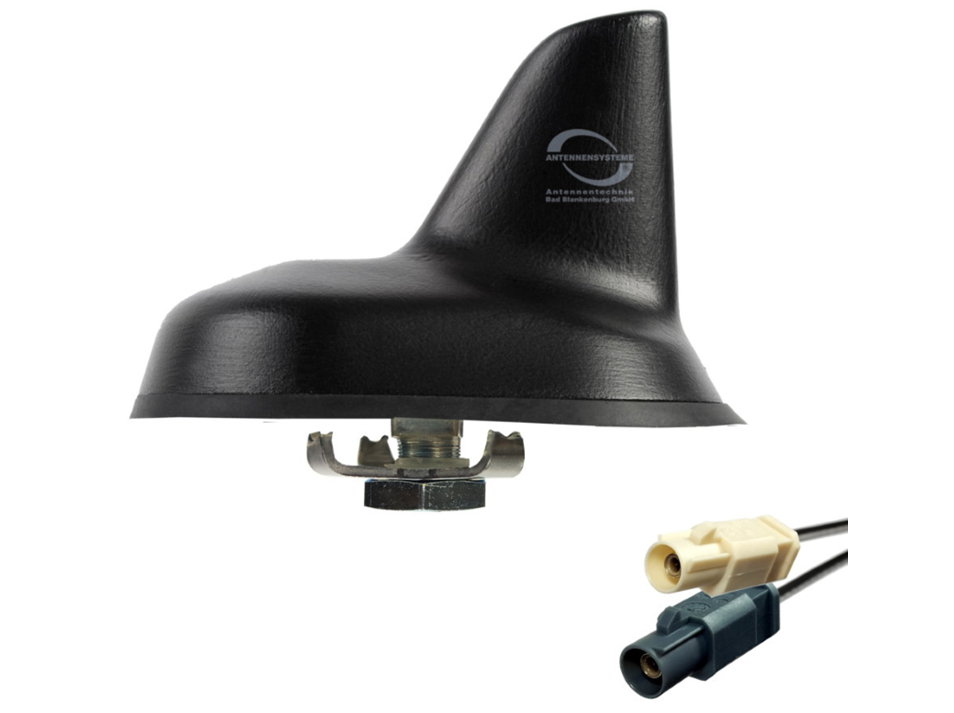

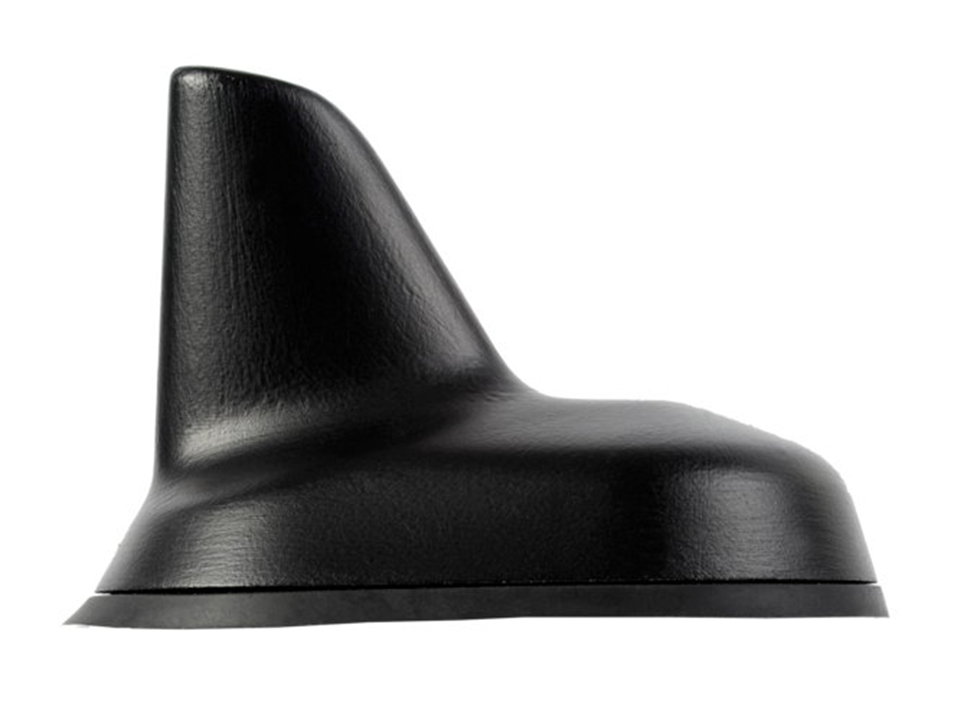

Shark Fin roof antenna with the following functions and features:

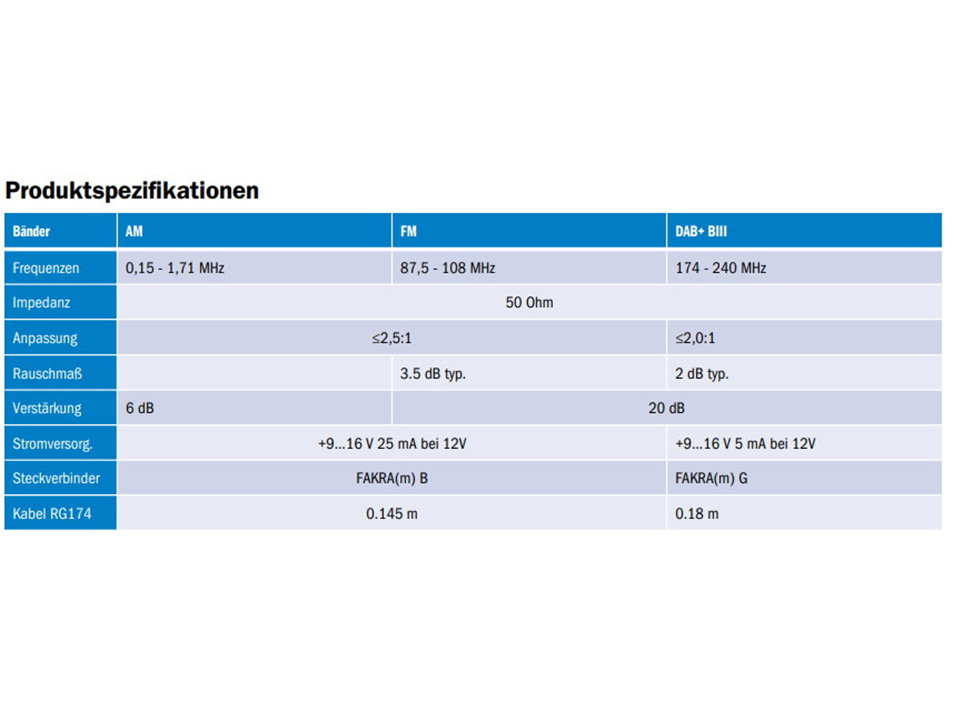

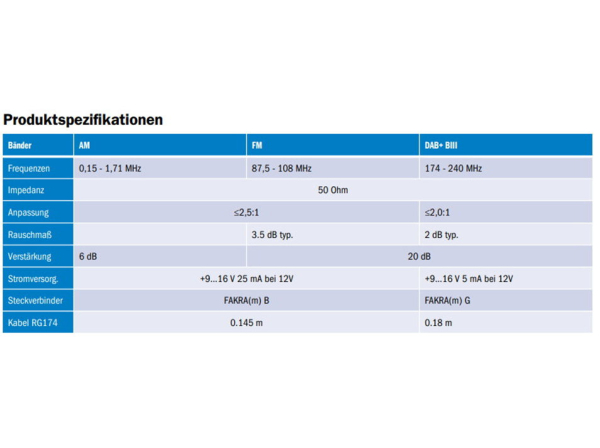

- DAB reception, active and low-noise in band III.
- Radio reception, active and low-noise for AM/FM

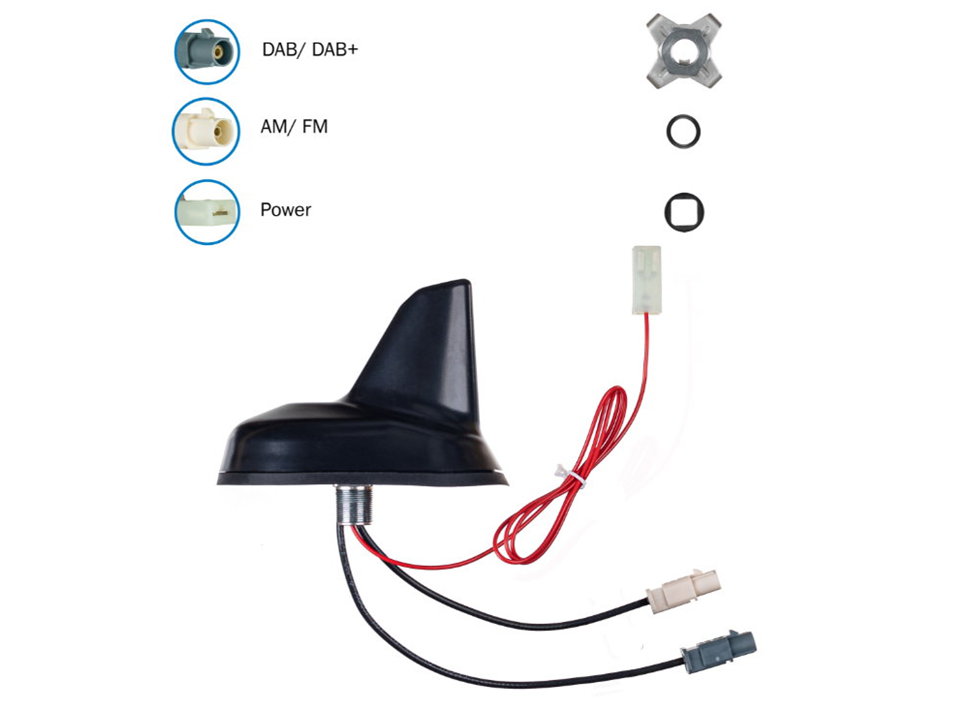

- 12V power supply either via inner conductor of cable connections (phantom power) or via DIN plug-in sleeve

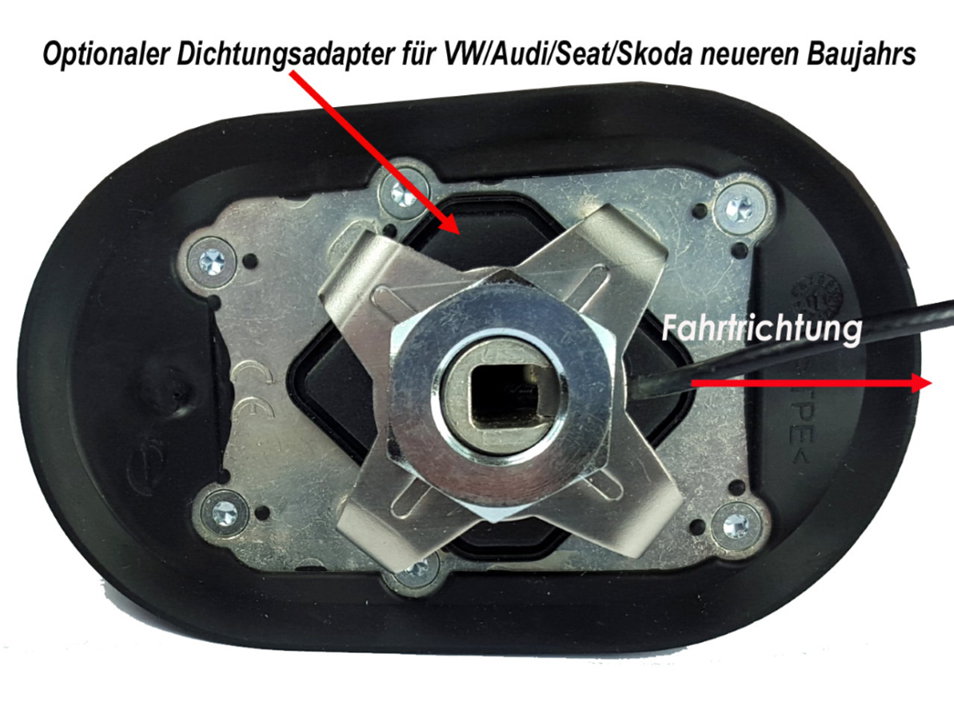

- Can be fitted to new Mercedes Benz (MB), VW/Audi hole patterns (sealing adapter available: 4624_01 (MB) 4625_01 (VW/Audi))
- Low installation depth (16.5 mm)
- Cable type: RG 174
- Services: AM/FM, DAB+
- Connectors: FAKRA(m) G, FAKRA(m) B

Additional information:
- Mounting: Roof mounting
- Additional info: Roof antenna, active
- Category/special feature: active Sharkfin antenna with separate signal routing, for VW/Audi, MB, phantom or external power supply

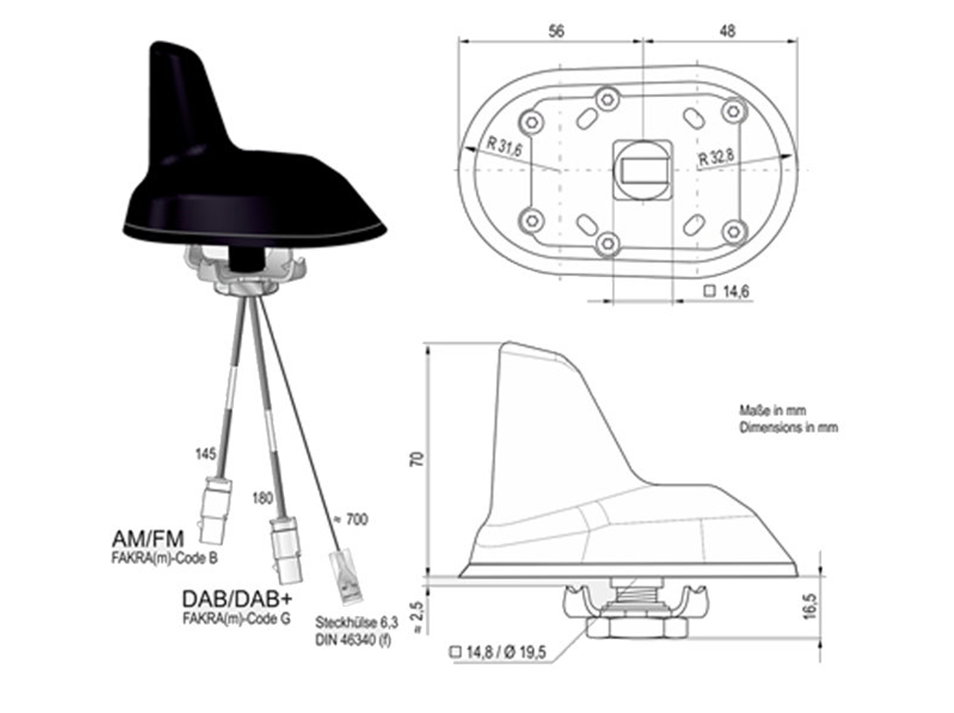

Dimensions:
- Width: 65 mm
- Height: 70 mm
- Length: 104 mm
- Weight: 0.179 kg

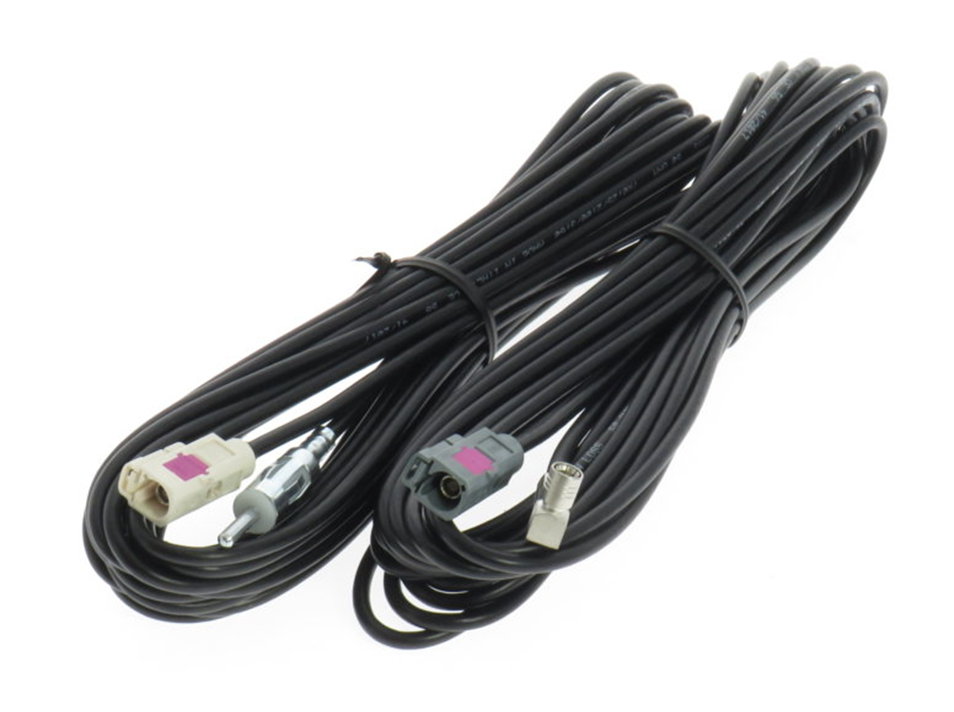

The following cables are included in the delivery:
- 1 piece 7.5 metre cable for VHF/FM (with Fakra socket and DIN plug)
- 1 piece 7.5 metre cable for DAB+ (with Fakra socket and SMB socket)

*************************************************************************************************
Product safety information:
Brand: ATTB
Manufacturer: ATTB Antennentechnik Bad Blankenburg GmbH, Gewerbegebiet 2, 07407 Rudolstadt, info@attb.de
*************************************************************************************************
