PRODUCT DESCRIPTION
- Connection to the 5G mobile network (up to 3.4 Gbps) or 4G LTE (Cat 19 up to 1.6 Gbps)
- Connection to campsite Wi-Fi networks with and without a login page (captive portal)
- Connection to Starlink when a Starlink antenna is connected
- Particularly easy setup and operation
- GPS tracking of the motorhome or caravan is possible
- VPN-enabled, e.g., for streaming abroad
A reliable internet connection in a motorhome or caravan is often a challenge – whether for smartphones, tablets, laptops, smart TVs, or game consoles. SELFSAT offers innovative solutions for stable and secure Wi-Fi coverage on the go.
SELFSAT routers operate via the vehicle's 12/24-volt electrical system and receive both Wi-Fi and cellular signals to provide a private, secure Wi-Fi network within the vehicle. The powerful external antenna ensures optimal reception and overcomes the shielding effect of the vehicle's exterior. Thanks to Wi-Fi 6, users benefit from higher speeds, improved response times, and maximum efficiency.
Installation is straightforward, and the antenna is dustproof and waterproof. Connecting to the router is effortless via QR code scan or by manually entering the Wi-Fi name and password. The intuitive user interface allows for easy control directly through your web browser, without the need for an additional app.
In addition, the router supports connecting to campsite Wi-Fi networks, enables VPN setup for unlimited streaming, and is compatible with Starlink – for even more flexible internet access on the go.
Router Specifications:
• Supported mobile network generations: 5G (up to 3.4 Gbps), 4G LTE (Cat 19 up to 1.6 Gbps), 3G (up to 42 Mbps)
• Supported Wi-Fi frequencies (input): 2.4 GHz, 5 GHz
• Supported Wi-Fi frequencies (output): 2.4 GHz, 5 GHz
• Supports GPS for location tracking and time synchronization
• 2 SIM card slots: Mini SIM (2FF)

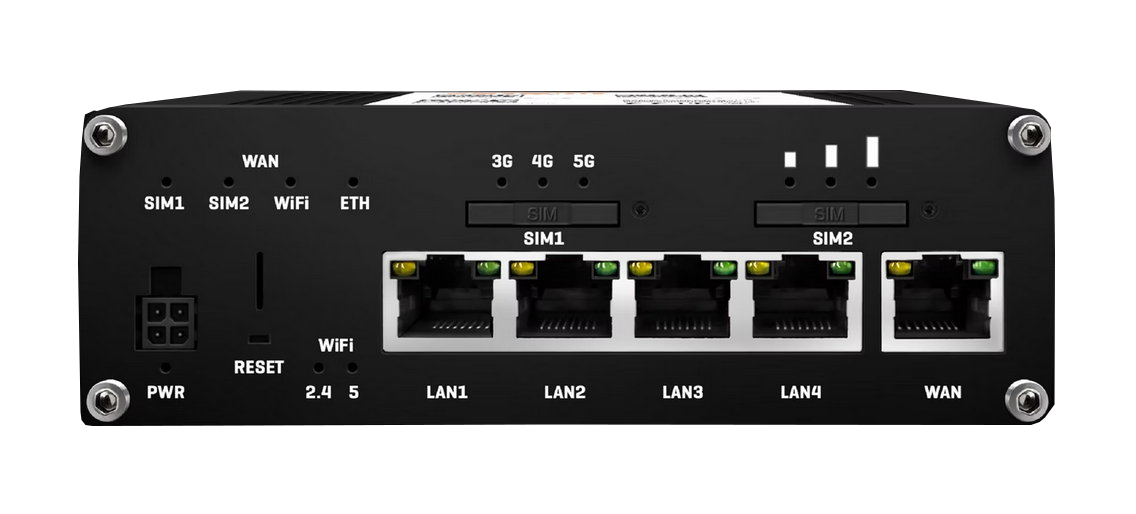

• Ethernet ports: 1 1 x WAN, 4 x LAN RJ45
• Power supply: 9 - 50 V DC
• Dimensions: 130.4 x 42.6 x 103.4 mm
• Weight: 452 g
• Operating temperature: -40°C - 75°C
• Protection class: IP30
Antenna specifications:
• 4G / LTE / 5G / DAB+ MIMO
• Frequency range: 174-230 MHz, 698-960 MHz, 1710-2800 MHz, 3300-3800 MHz
• Signal gain: +13 dBi
• Cable: 6 x RG174, length 1 m (1 m or 2 m cable extension available separately)

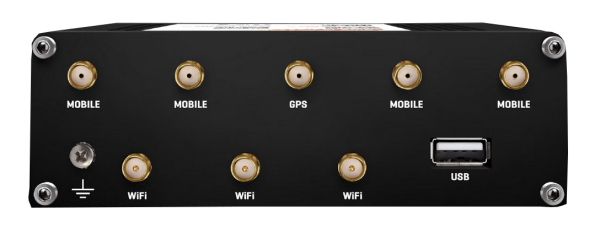

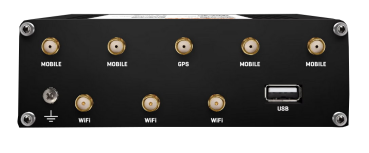

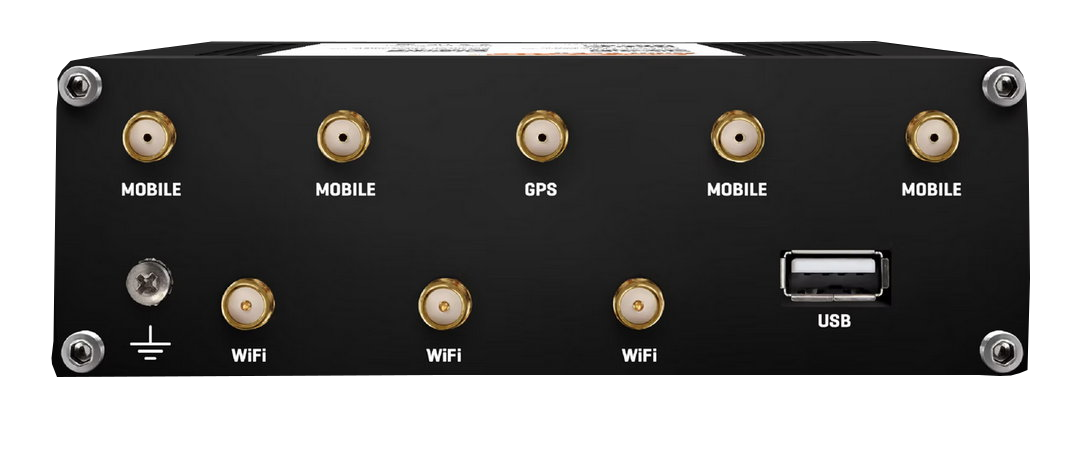

• Connectors: SMA male
• WLAN 2.4 GHz / 5 GHz
• GPS GNSS frequency range 1575 MHz
• GPS signal gain +28 dBi
• Operating temperature -40°C - 85°C
• Protection class: IP69 (except cable outlet)
• Dimensions: 188 x 68 x 76 mm
• Weight: 330 g

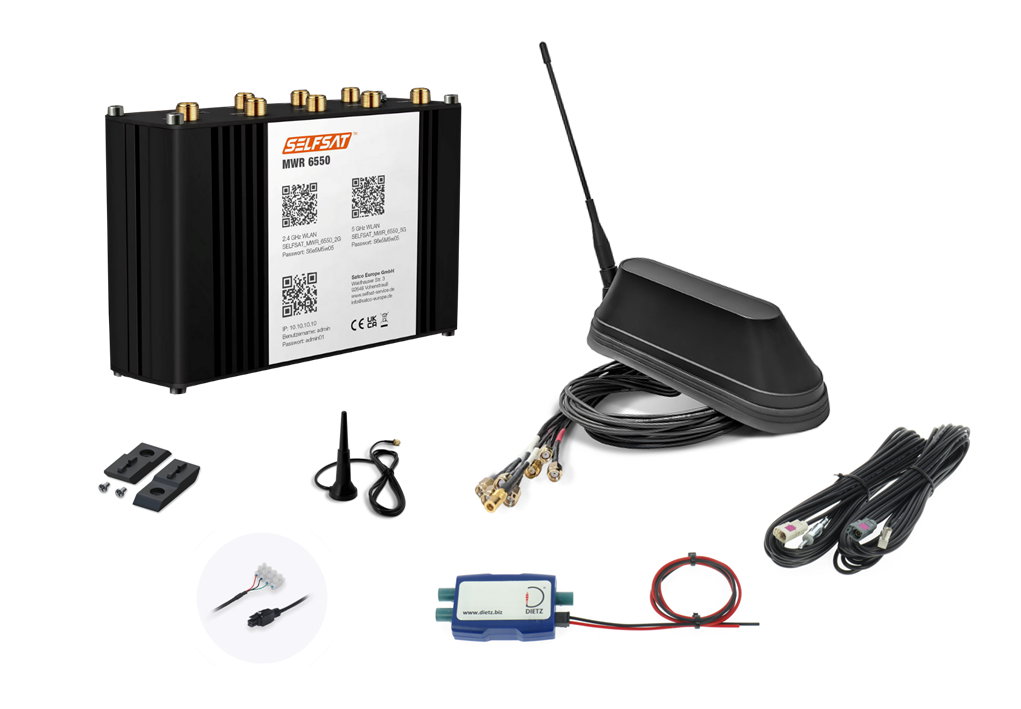

Scope of delivery:

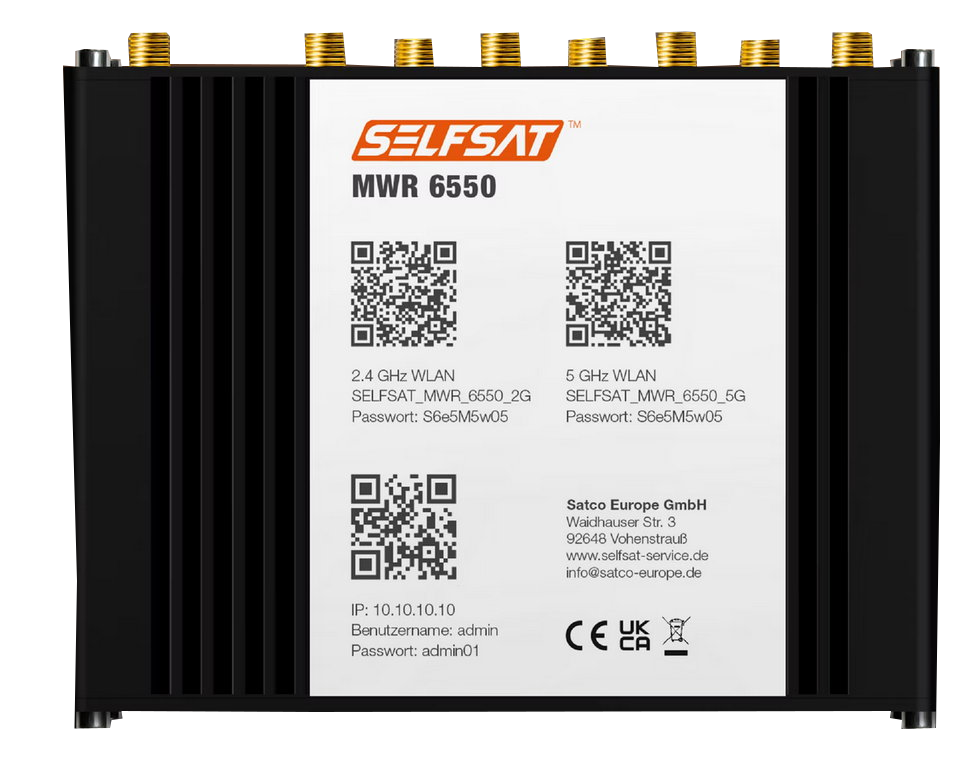

• MWR 6550 Router

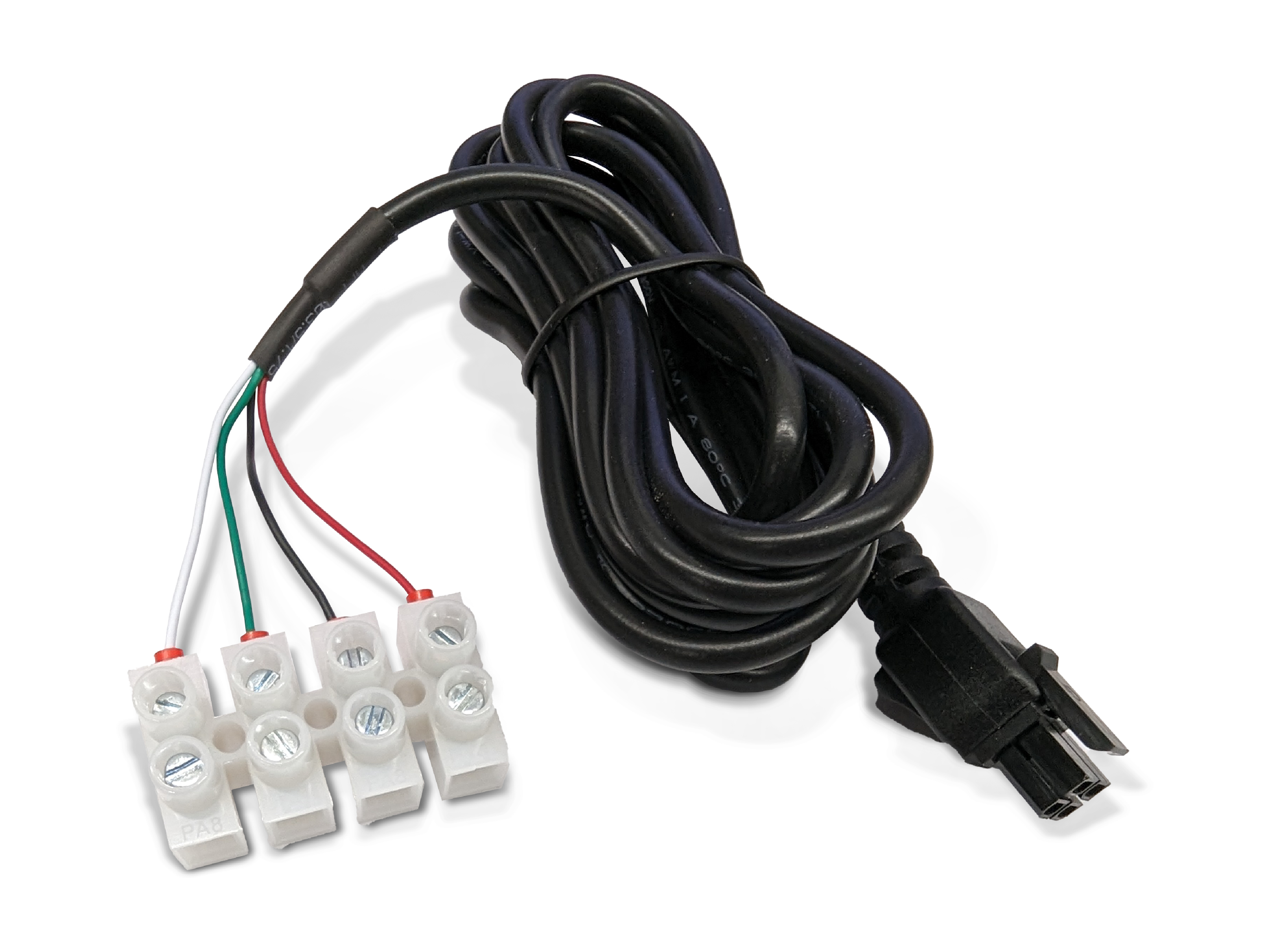

• 4-pin power cable (230-volt power adapter or 12-volt cigarette lighter cable available separately)

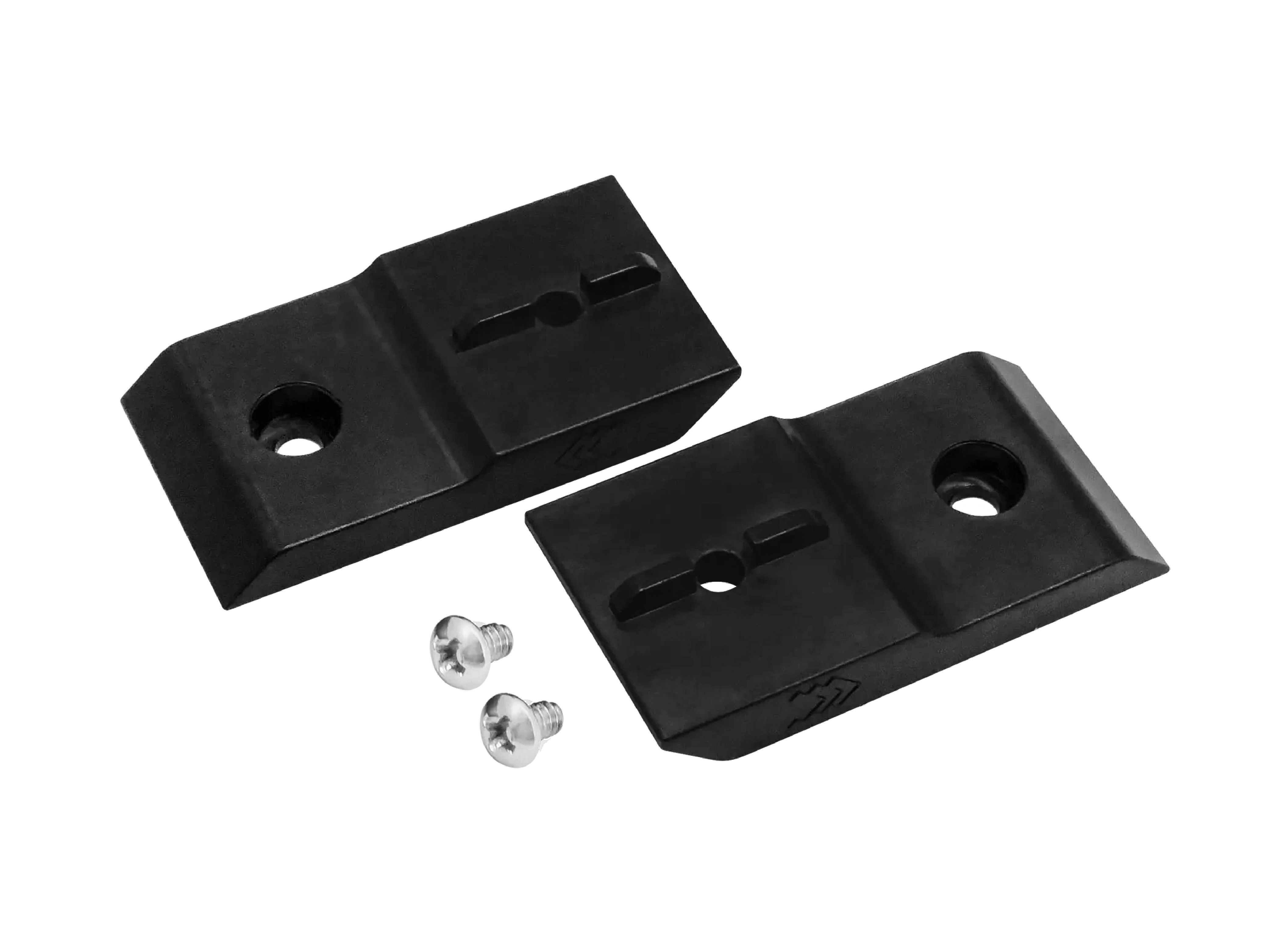

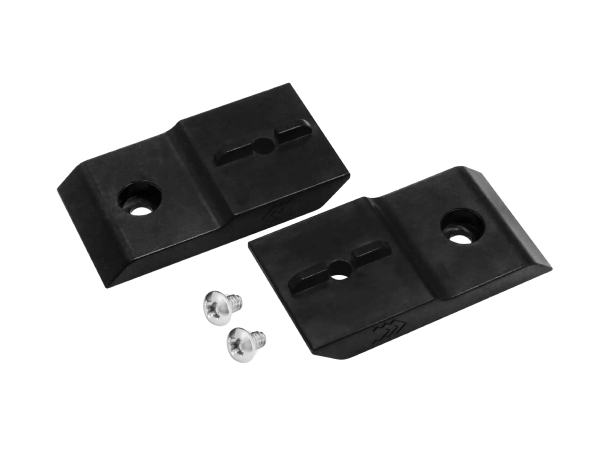

• Mounting kit
• 2 SIM card adapters for Micro SIM or Nano SIM to Mini SIM

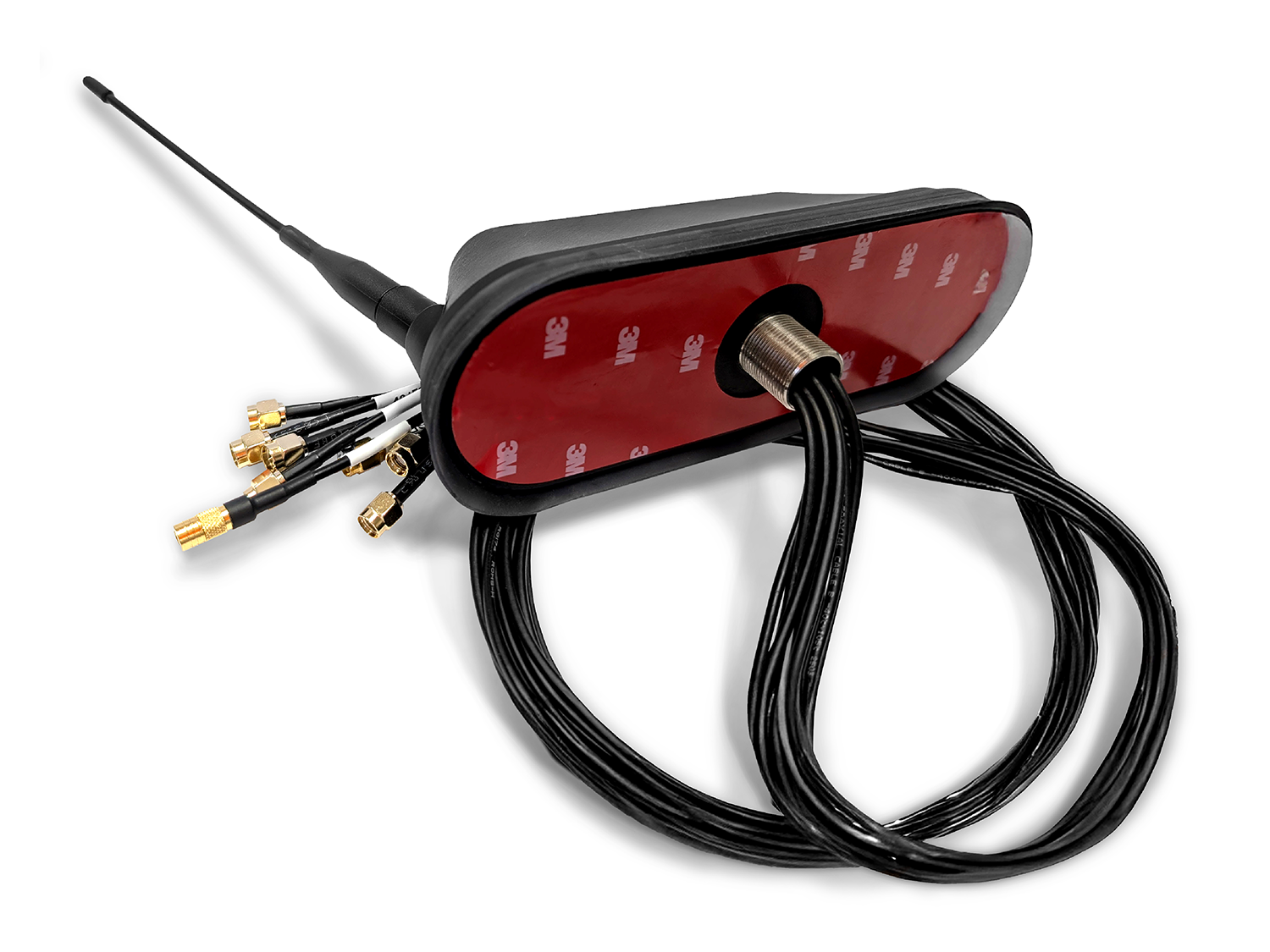

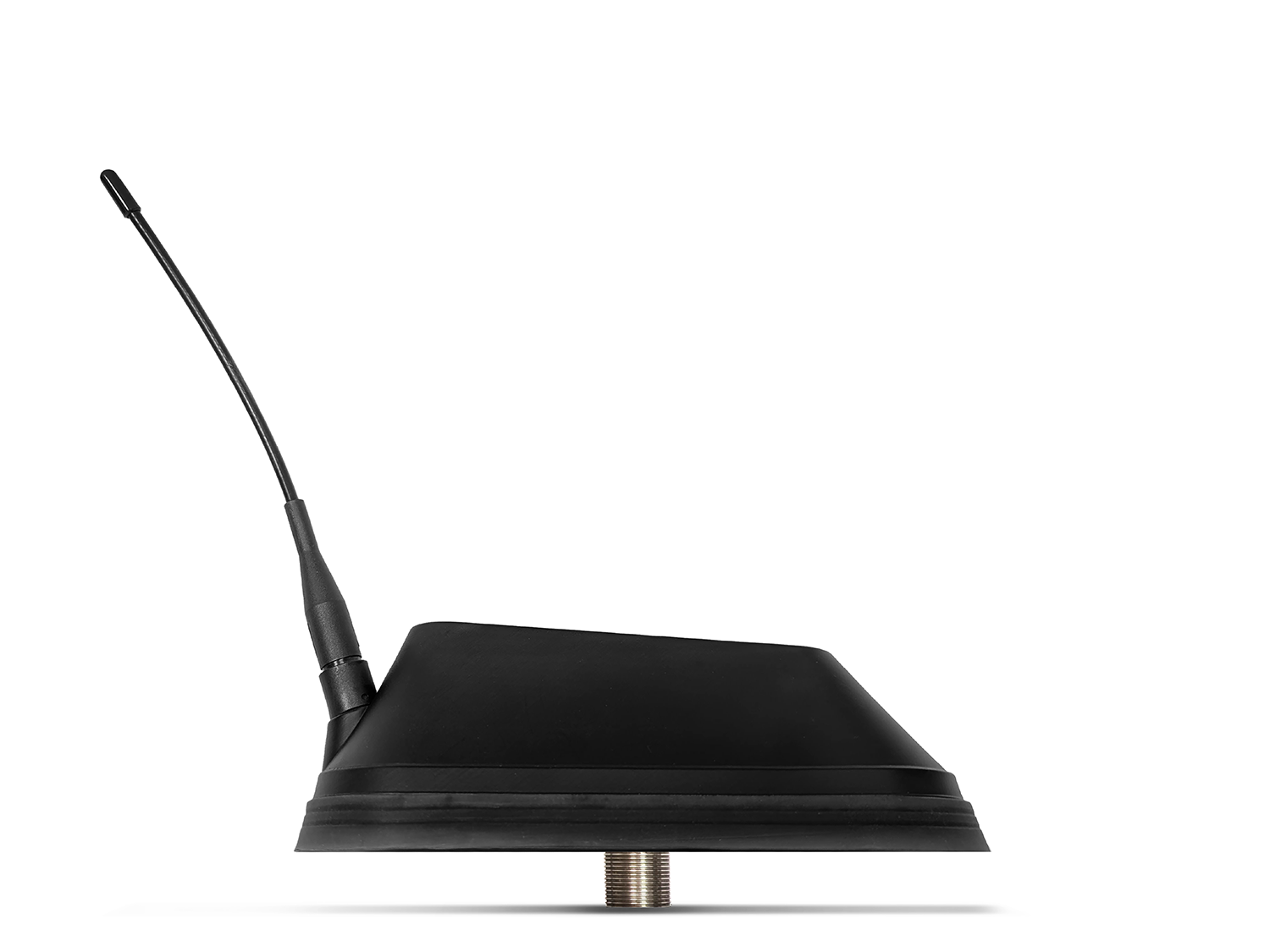

• SATCO roof antenna including threaded extension

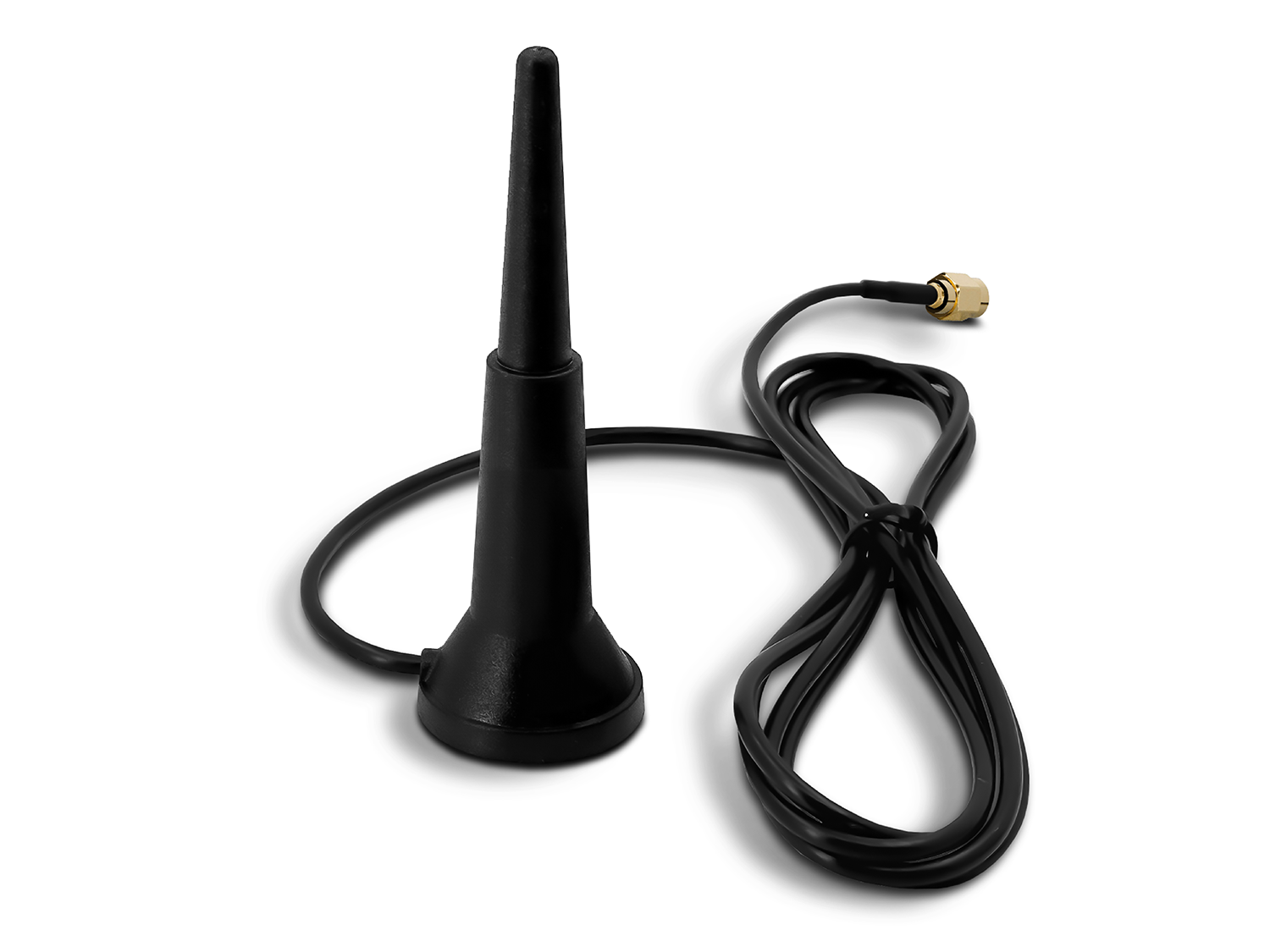

• WiFi indoor antenna
• Hook and loop adhesive dots for WiFi indoor antenna
• DAB+/FM Premium Active Splitter
• Low-Loss Extension Set (2 x 7.5 m) for FM/DAB
• Assembly and operating instructions
Also available in white: "SE-6550-SharkW"
*************************************************************************************************
