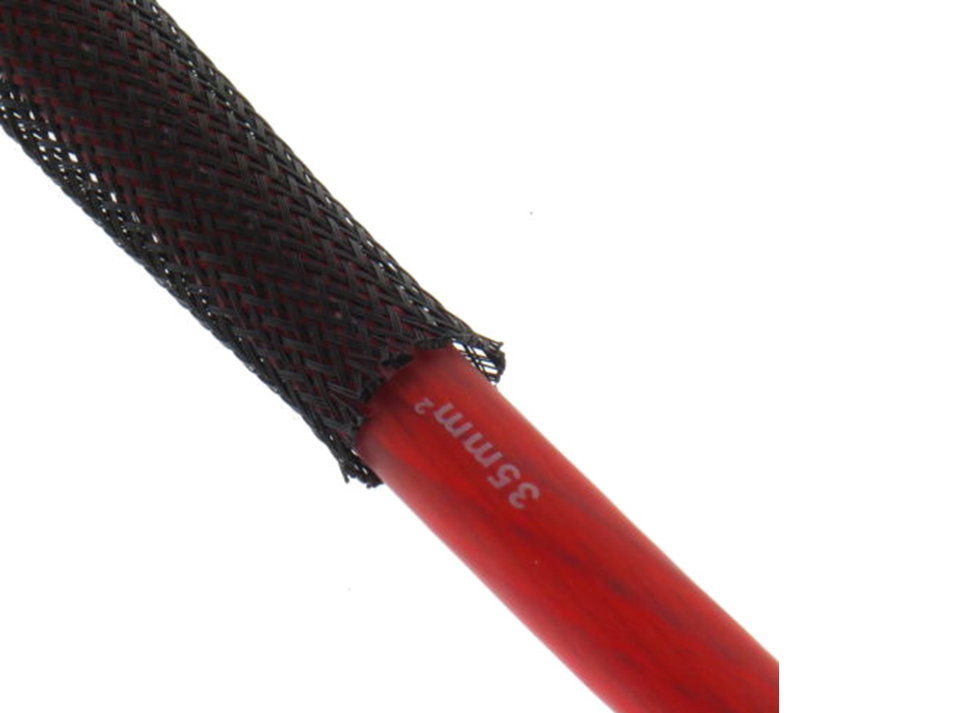

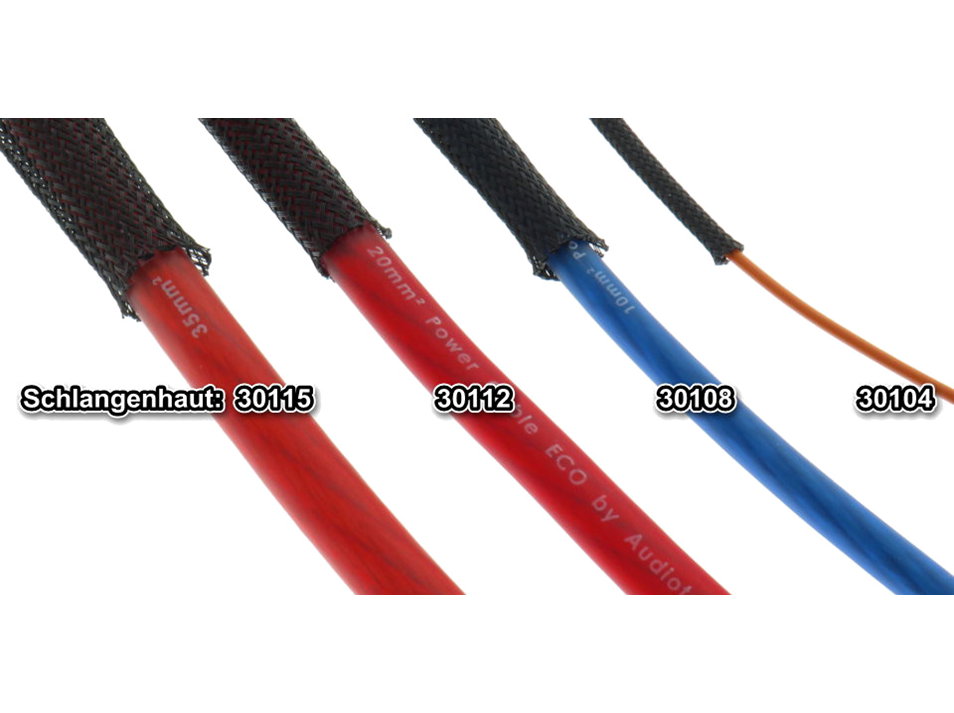

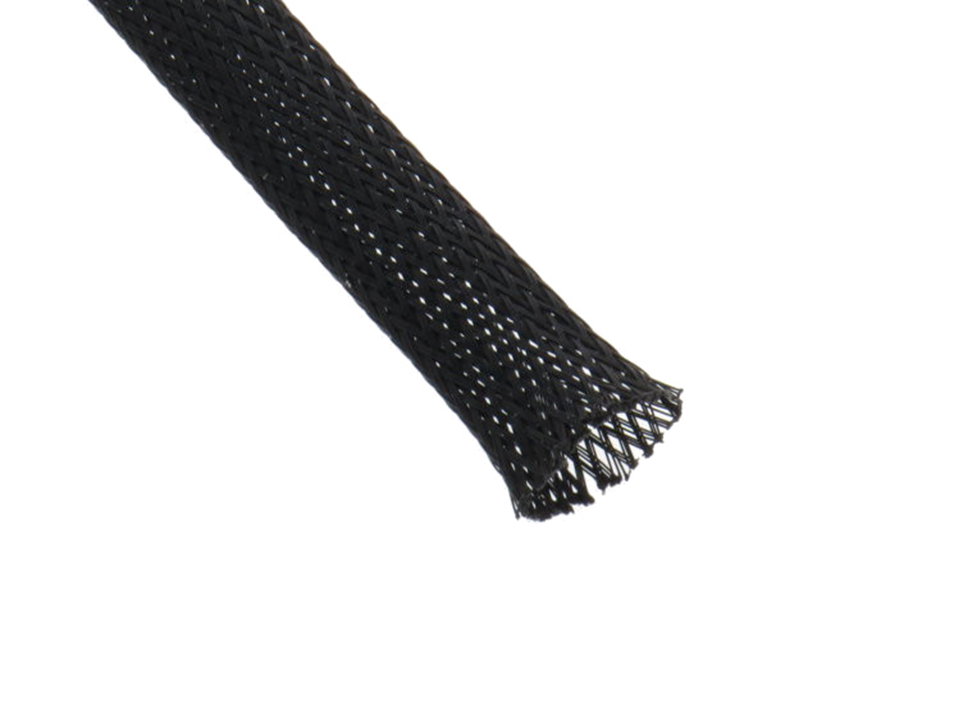

Polyester coating d=15 mm, l=10 m

Universal disc antenna for DAB reception with 3 m connection cable and SMB socket.
Working voltage 12 volts. Black cable is for 12 volt connection. Please stick the black foil on metal, the transparent foil part on the window!

Antenna type: Car DAB & DAB+ antenna
Reception frequency:
170 MHz~240 MHz & 1452MHz~1492 MHz
Operating voltage:
DC 10.5~16V
Input Gain:
Band III 15dB+/-3dB & L-Band 12dB+/-3dB
Output impedance:
50Ohm
Noise level:
2.0dB MAX
Cable length:
3000+/-30mm
Insulation resistance:
DC500V>100MOhm
Connector:
SMB female
Operating temperature:
-40C°~80C°
For devices with SMA female connector, the adapter 14946 (SMB male to SMA male) is also required.

LowLoss cables are the cables with the best electrical characteristics for lossless transmission of antenna signals. Our Lowloss cable series has the best conductivities and therefore the lowest cable resistance of all our cable series. They are achieved by using tinned leads for the inner conductor (7 * d = 0.25mm), shielding (42 * d = 0.11mm) and an additional aluminum foil between the PE dielectric and the shield. Only high quality Fakra connectors and sockets from Rosenberger are used. They have an excellent workmanship and fit through a special punch-bending technology (Fakra-SF).

Specifications:

Length: 1 meter
Characteristic impedance: 50 ohms Capacity: 95pF / m Advanced POLYTHEN insulation 2.00 mm
Aluminum foil screen and additional tinned copper braid
Outer diameter: 3.6 mm
