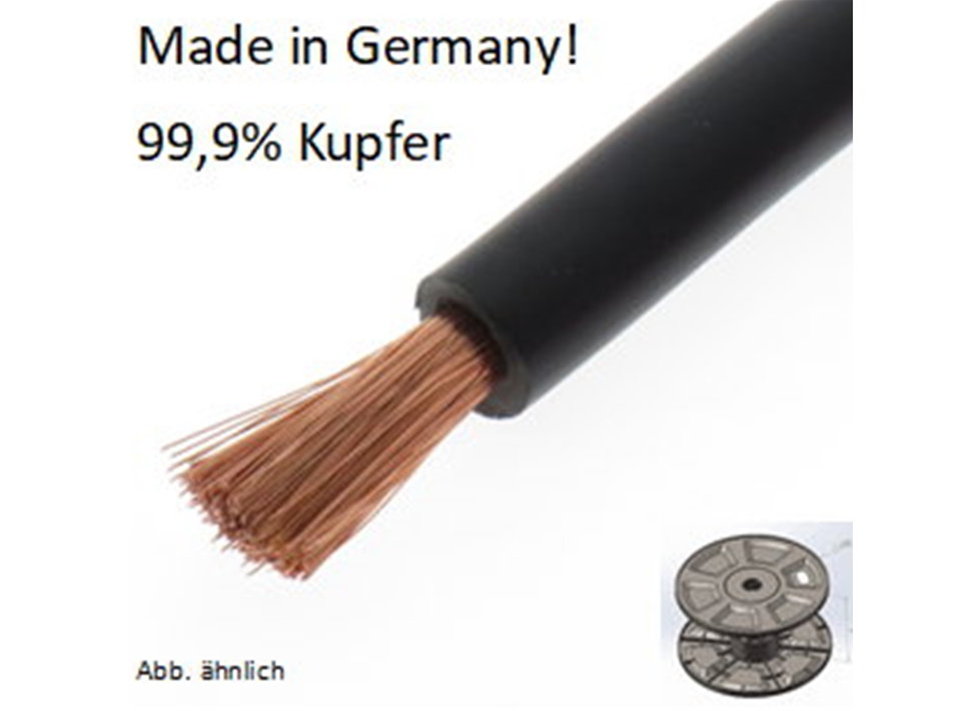

OFC power cable, 25 mm², black, 1 m, made in Germany!

Product No.:: 20226_m
Shipping time:: 1-2 days (abroad may vary)
Stock:: pieces
Weight:: 0.9 kg per piece

10,00 EUR
10,00 EUR per

incl. 19% tax excl. Shipping costs

Add to wish list

Description

Description

Meter goods: The number of the order quantity corresponds to the cable length in metres! Example: You order 5 pieces, i.e. you receive the cable in 5 metres length. Note: Meter goods cannot be exchanged!

Highly refined pure copper cable with a copper content of 99.9%. especially for use in motor vehicles, trucks, camper vans The imprinted metre marking makes it easier to cut the battery cable to length

Technical data:

Conductor: electrolytic copper, bare according to DIN 13602
Insulation: lead-free soft PVC according to ISO 6722-1, class A
Shore hardness: approx. A68
Temperature range: -40 to +90 degrees Celsius (3000h)
Voltage range: max 60 VDC or 25 Volt AC
Nominal cross-section: 25 mm2
Outer diameter: approx. 9.8 mm +/- 0.2 mm
Strand diameter: max. 6.58 mm
Number of single wires: 721
Single wire diameter: 0.205 mm
Electrical resistance at 20 degrees: 0.78 Ohm/km
Copper insert per roll: 12 kg
RoHS & REACH compliant
