LTE/WLAN antenna roof fin - cable central for CamperNet Evo or similar

Original item number: GPSD4-6-60-D from the GPS[X]D4[X]-6-60[-X] series.

Panorama antenna suitable for all LTE and 5G routers.

Especially for RUTX50, RUTX14, RUTX12, but also downward compatible to RutX11, Rut956, Rut955, Rut951, Rut950, Rut 360, CamperNet and all other 4G and 5G routers.

The antenna is characterised by 4 receiving elements for LTE/5G. Thus, it supports especially the fast 5G routers, which allow to use 2 modems in parallel and thus to double the transmission speed.

Technical data:

GPS/GNSS Elements: 1x 1562-1612 MHz
4G/5G Elements: 4x 617-960, 1427-6000 MHz
WiFi Elements: 2x 2.4/5.0/7.1GHz
Auxiliary radiator connection: Radiator dependent (optional for FM/DAB+)

Peak gain: Isotropic*:

4G/5G Elements:
5dBi (617-960MHz)
8dBi (1427-4200MHz)
9dBi (4900-6000MHz)

WiFi elements:
7dBi (2396-2485MHz)
11dBi (4900-7200MHz)

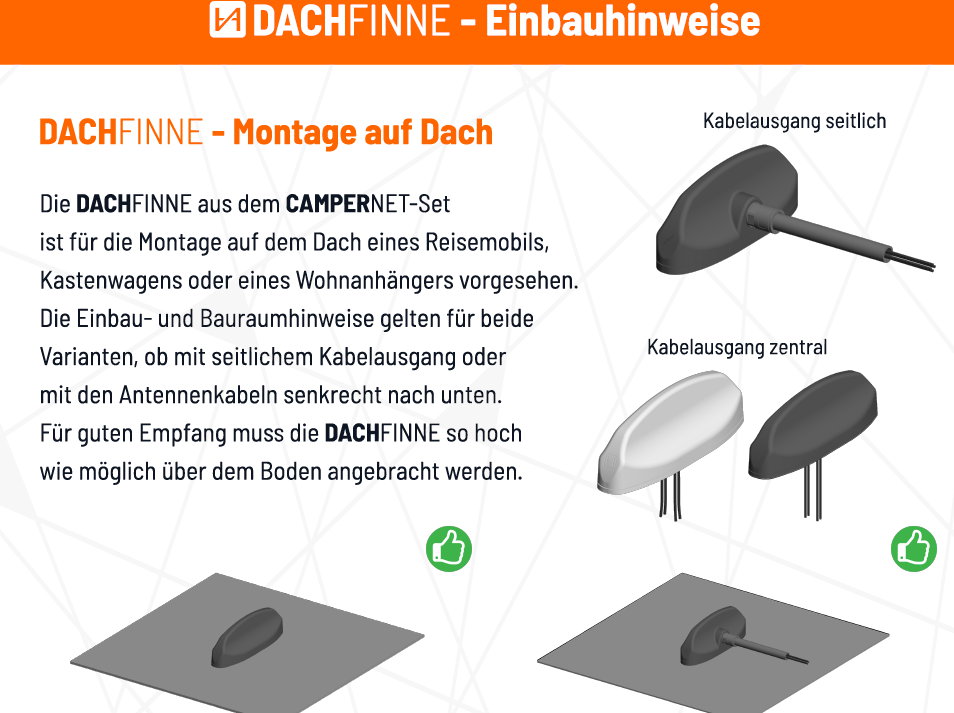

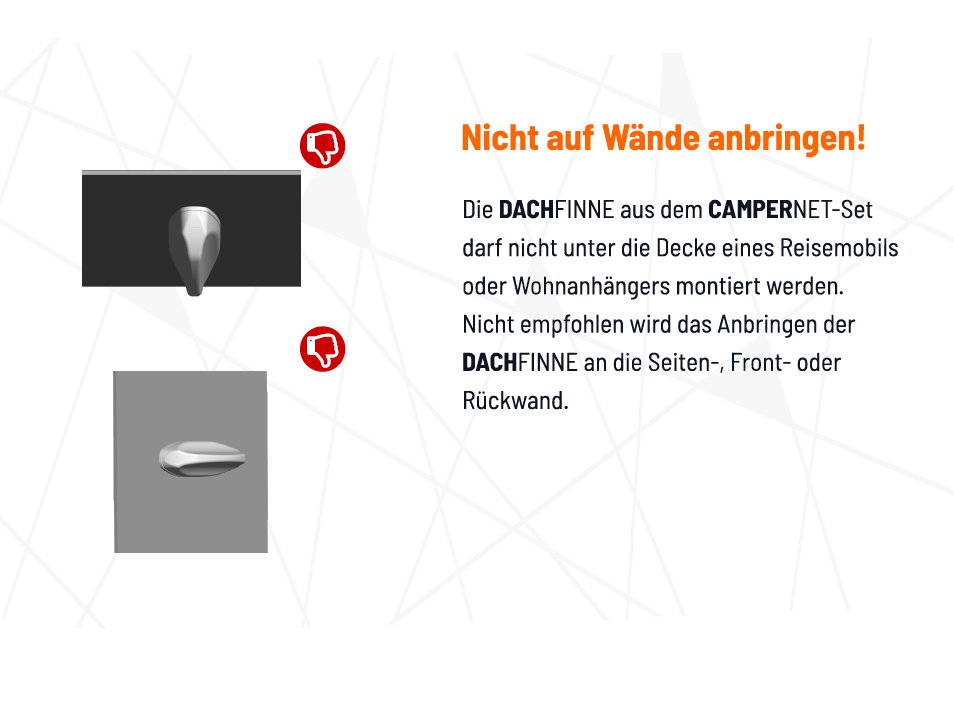

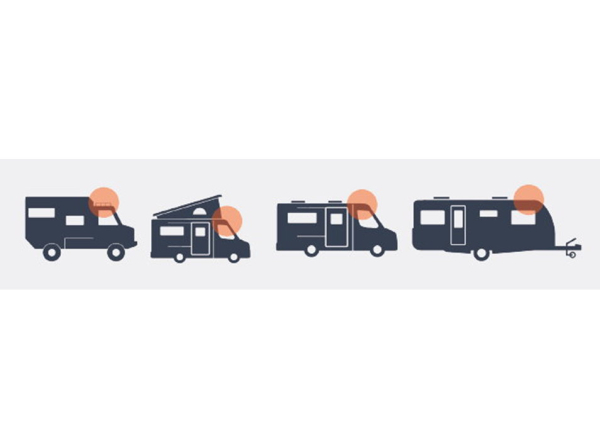

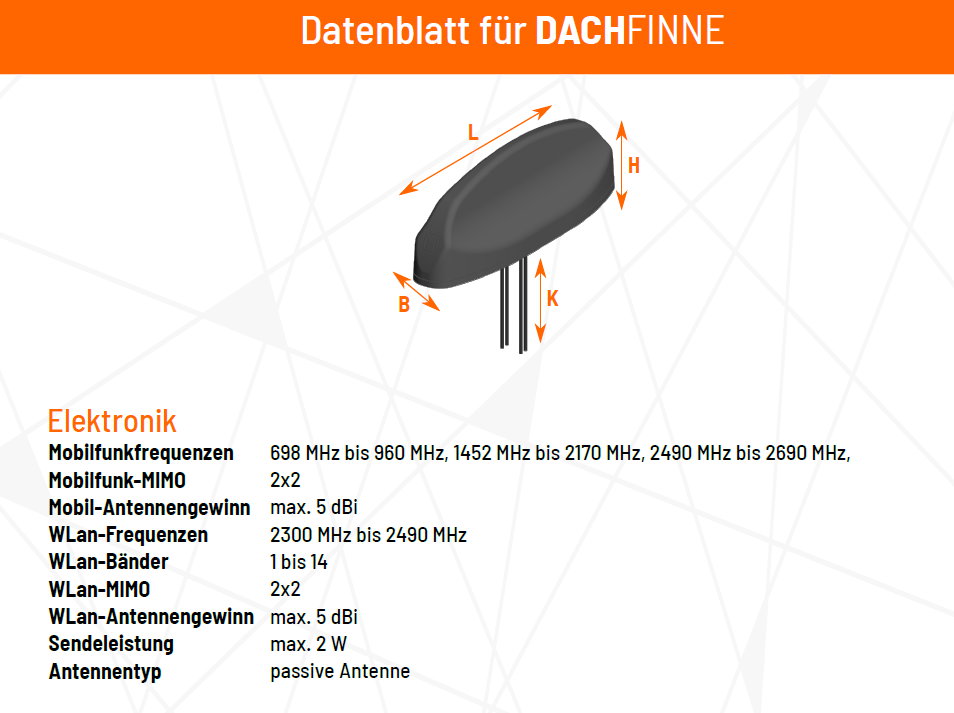

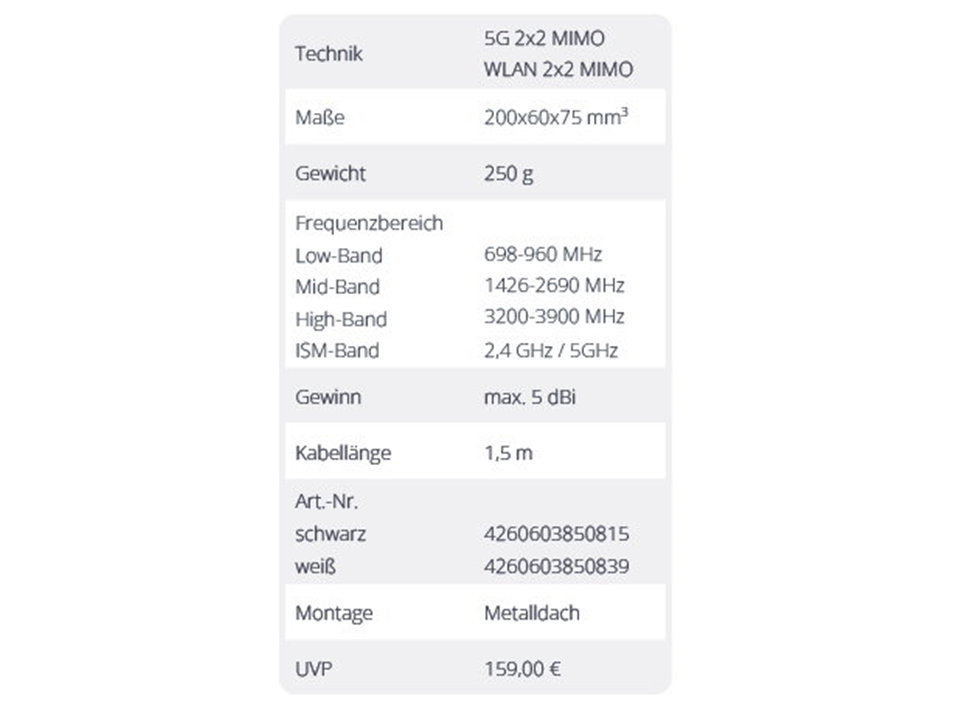

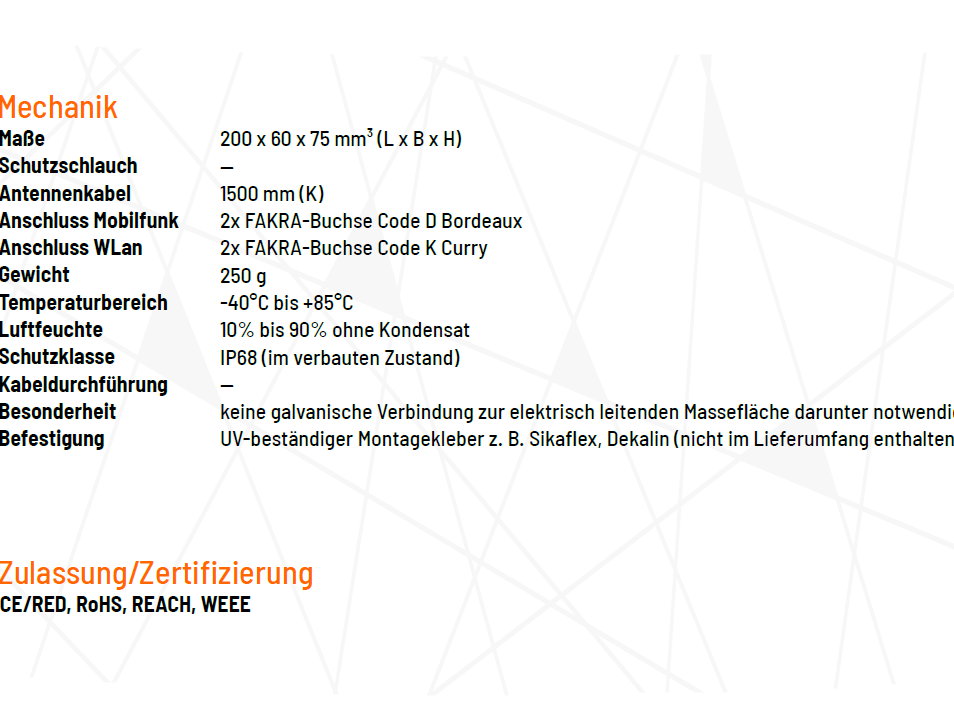

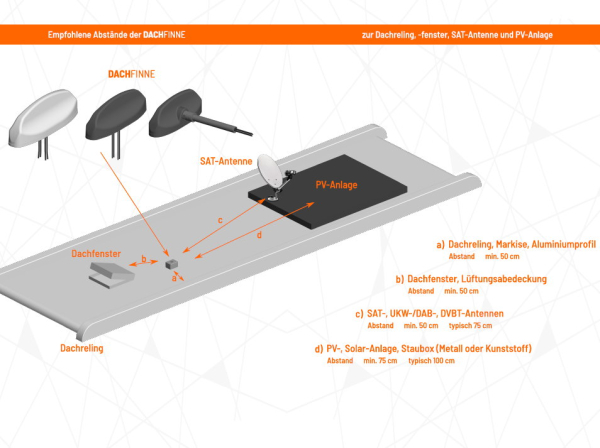

(For further technical data, see additional pictures)

GPS/GNSS data:
Frequency range (MHz): 1562-1612
Gain: LNA: 26dB
Polarisation: Right-hand circular
Operating voltage: 3-5V DC (powered via coax)
Current: Typically <20mA

Dimensions:

Overall height: 82 mm
Overall length: 253 mm
Width: 142 mm

Temperature range: -40° / +80°C
Material: ASA, silicone rubber, aluminium alloy
Protection class: IP69K

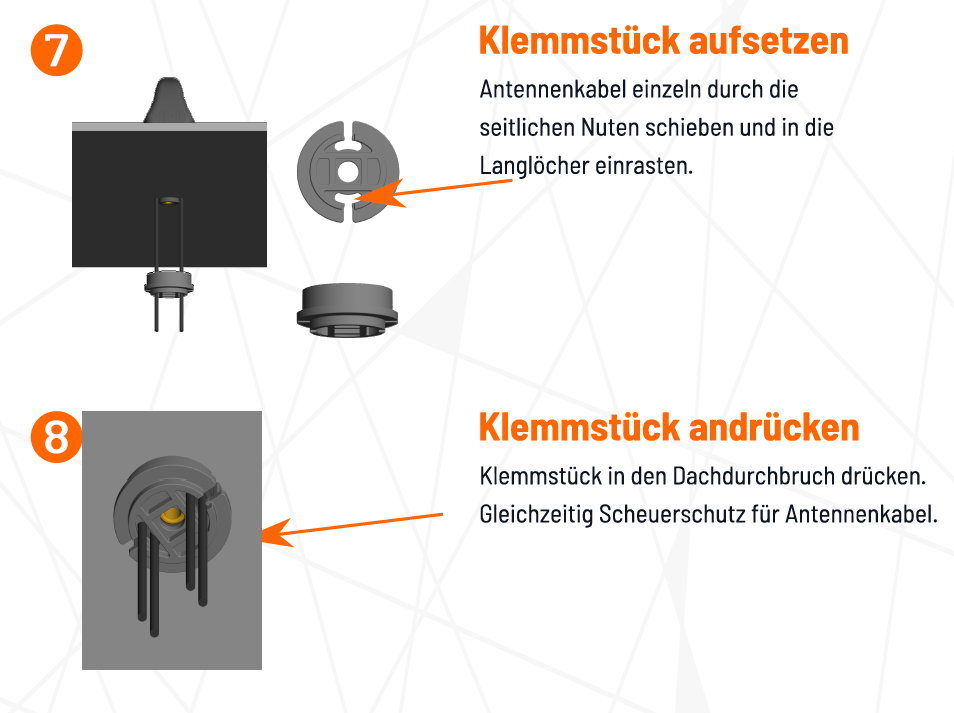

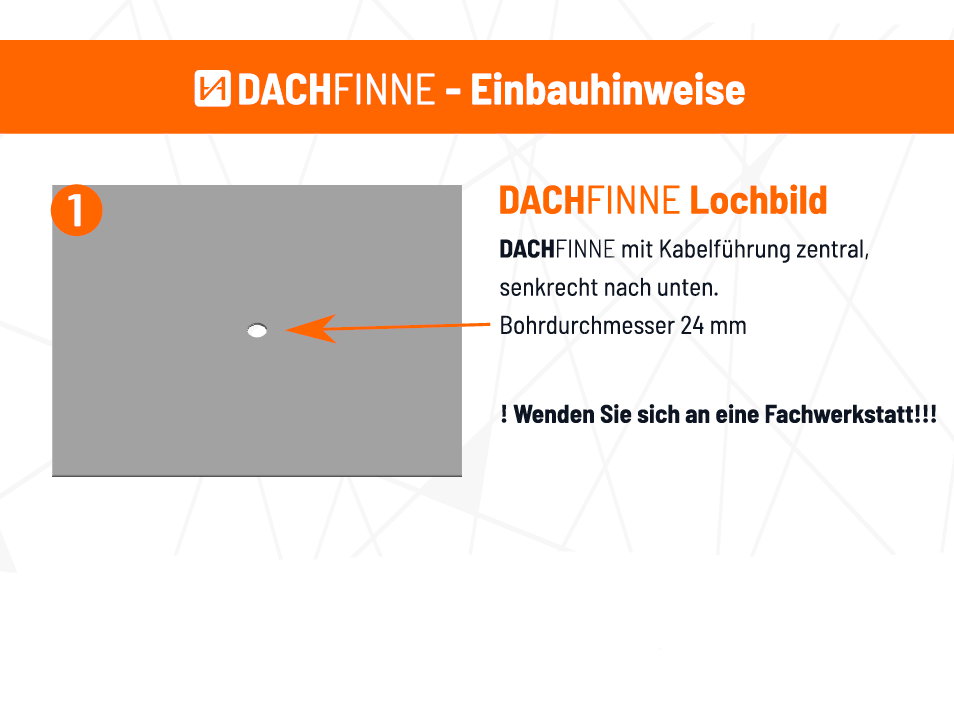

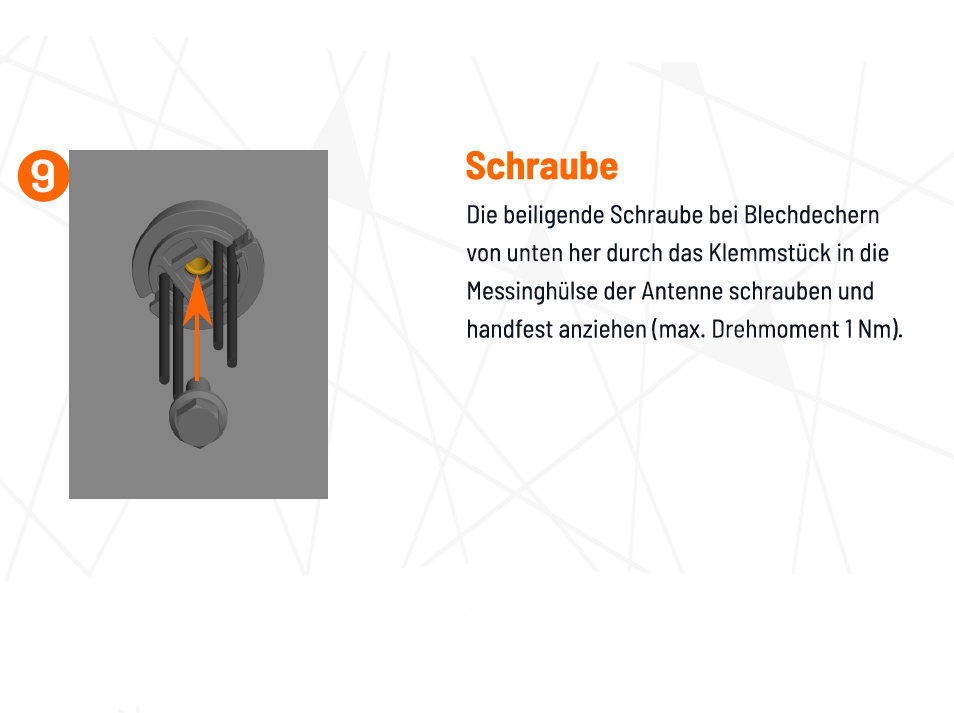

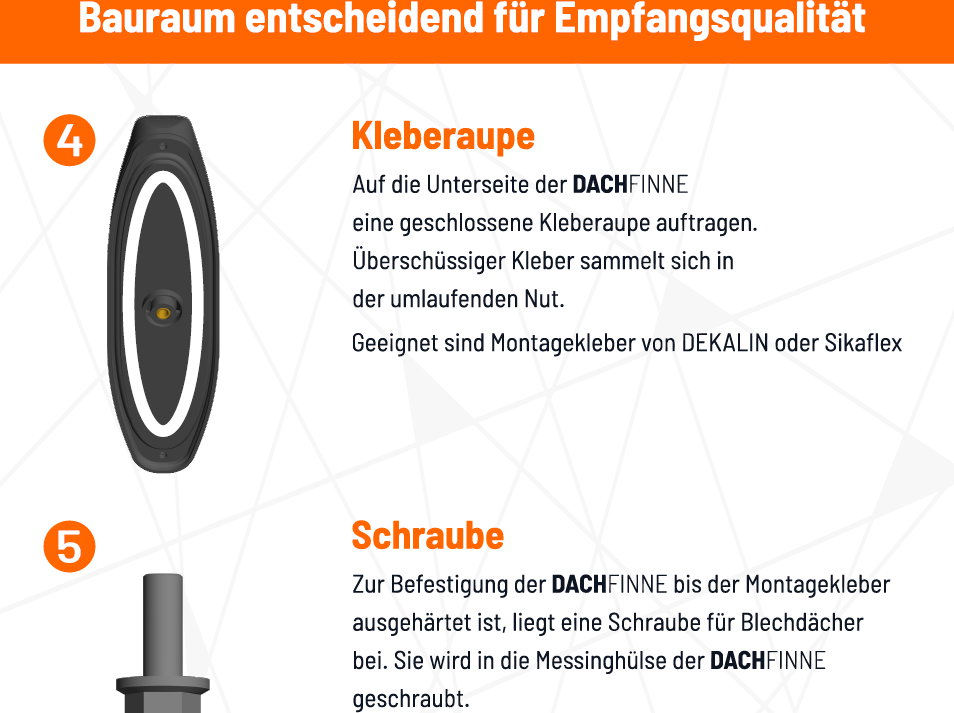

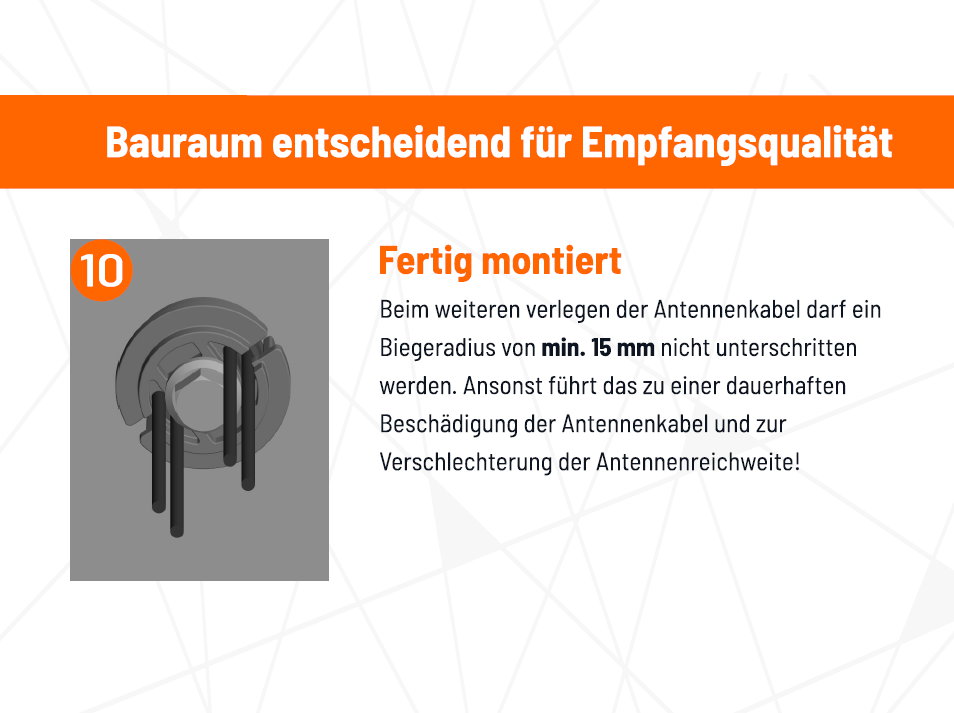

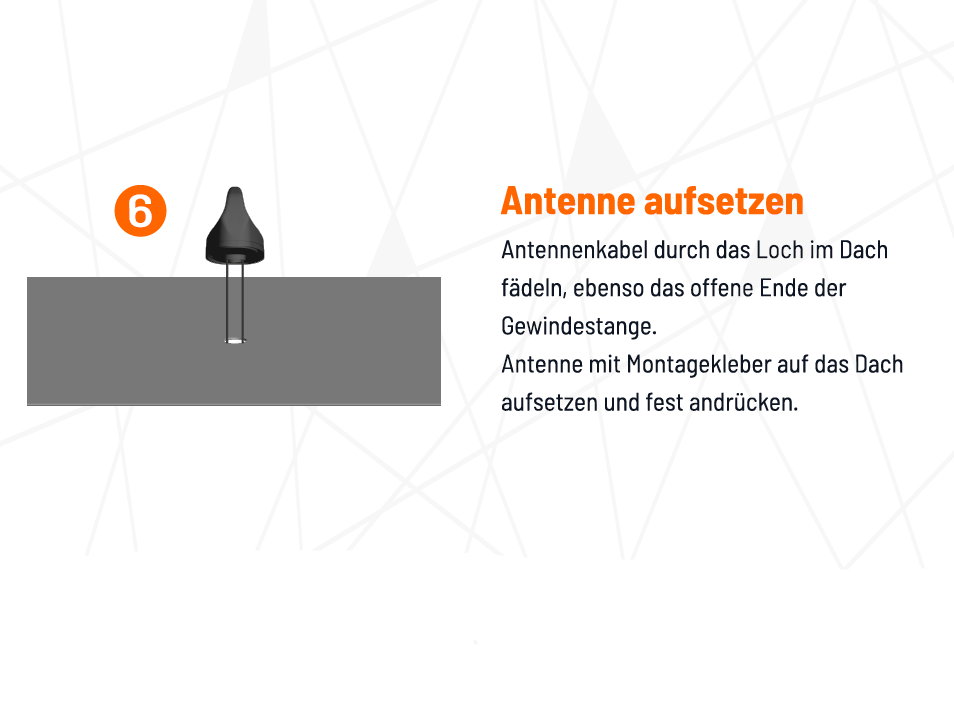

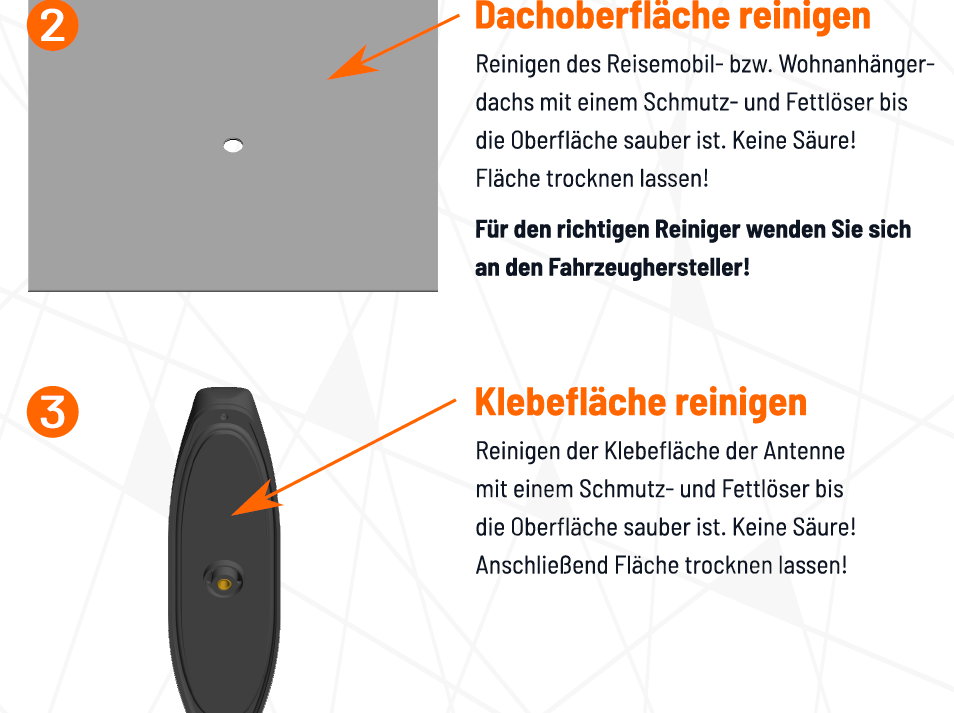

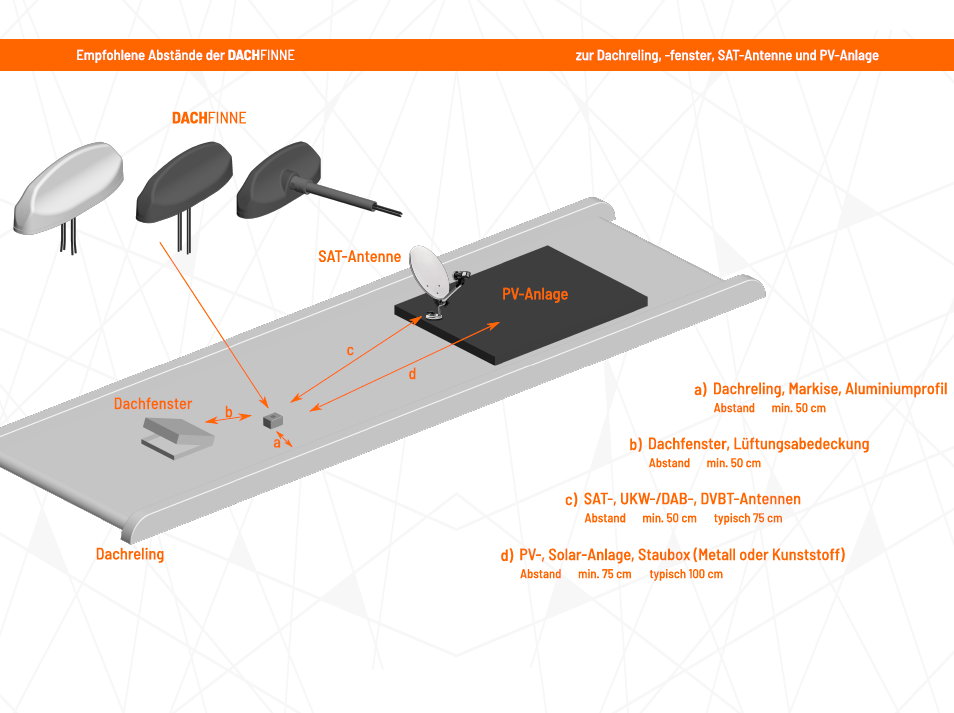

Drill hole: 19-20 mm
Cable type: FR RG174 (UN ECE R 118 Compliant)
Diameter: 2.9 mm
Length: 30 cm

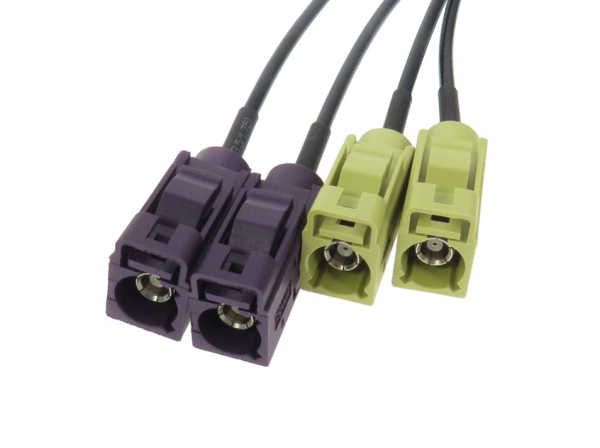

Connections to antenna:

4 x SMA male (m) [4G/5G]
2 x SMA socket (f) [WIFI / WLAN]
1 x FME socket (f) [GPS/GNSS]
1 x FME connector (m) for optional VHF/DAB+

Colour: black

Cable set:
The antenna is supplied with a cable set consisting of 7 cables for the above routers in the length of 3 metres each:
4 x 5G/LTE with SMA connector
2 x WLAN with SMA RP connector
1 x GPS with SMA connector

Note: If you want to connect the antenna directly to a router with SMA connectors, you will also need the following adapters:
2 x PAN-SAM-101 (for Wlan)
1 x PAN-SAM-102 (for GPS)

This antenna is available in the following versions:

PAN-ANT630B: Black with cable set in 3.0 m
PAN-ANT615B: Black with cable set in 1.5 m
PAN-ANT630: White with cable set in 3.0 m
PAN-ANT615: White with cable set in 1.5 m

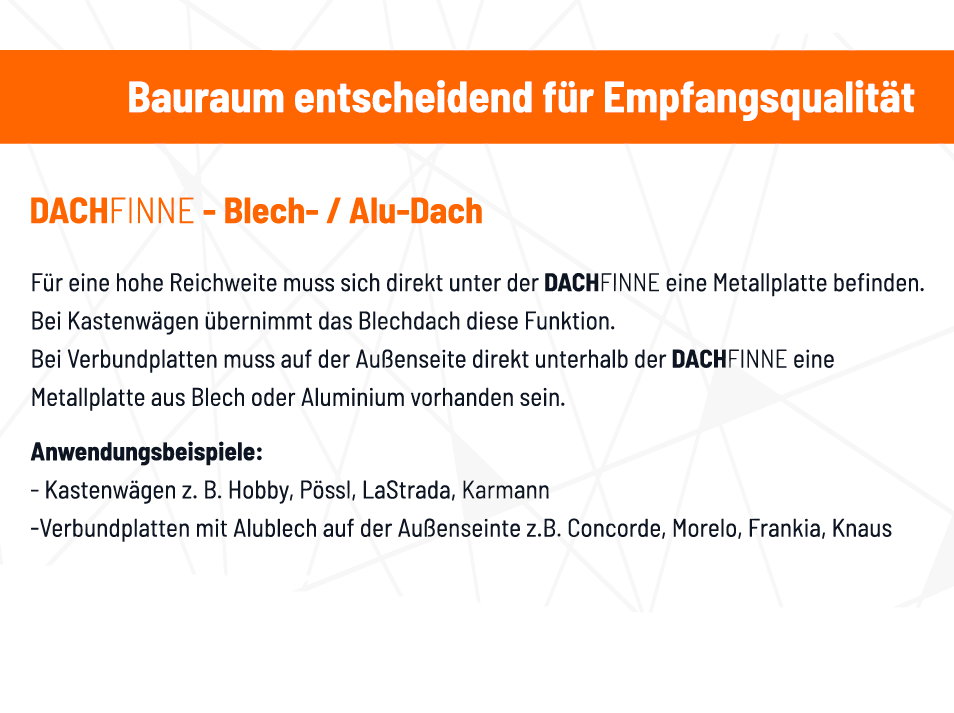

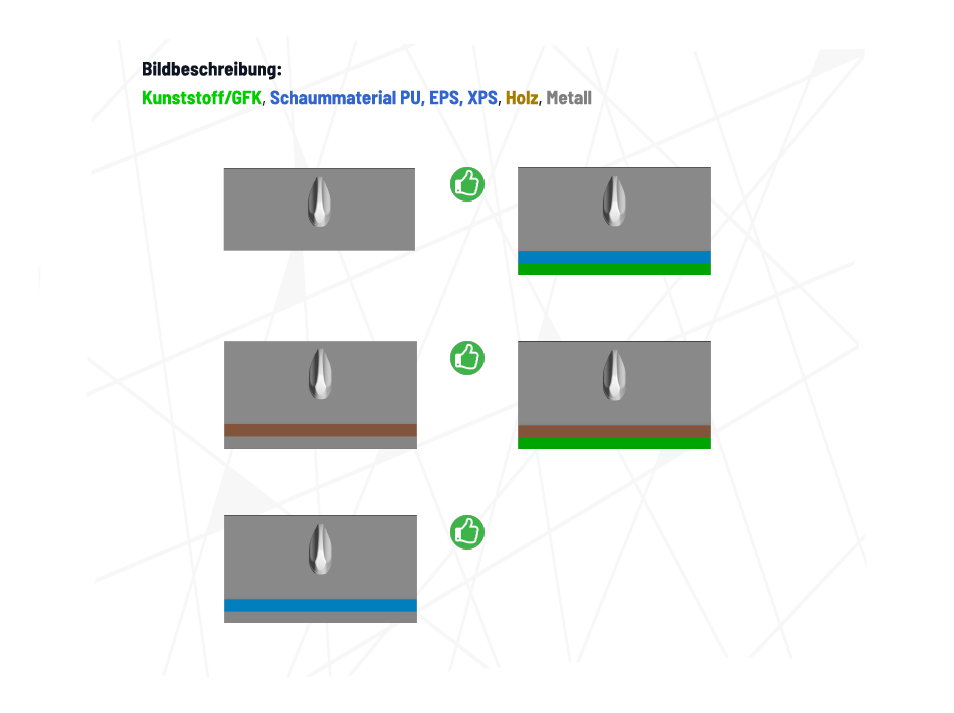

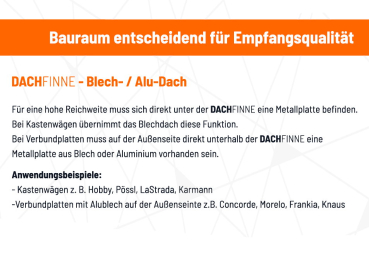

Special feature: The special feature of this antenna is that the antenna has an 8th connection for combinations of FM; DAB+. With an optional radiator/amplifier/cable kit, this connection can be used for the functions mentioned. In this case, the antenna must then have a ground plane, i.e. be mounted on metal. If the roof is made of a non-conductive material, the following antenna supports can be used: 15903, 15904 or 15906. Please order separately. Supplementary set for VHF and DAB+ PAN-ANT285 (5.0m cable length) PAN-ANT287 (7.5m cable length) PAN-ANT2810 (10.0m cable length) Please order separately.

*************************************************************************************************
