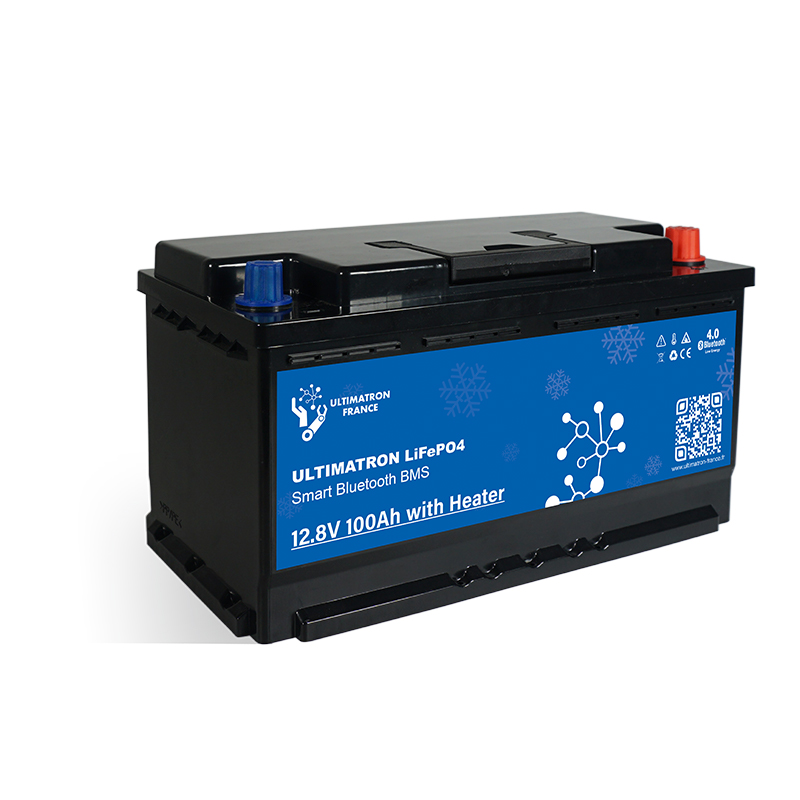

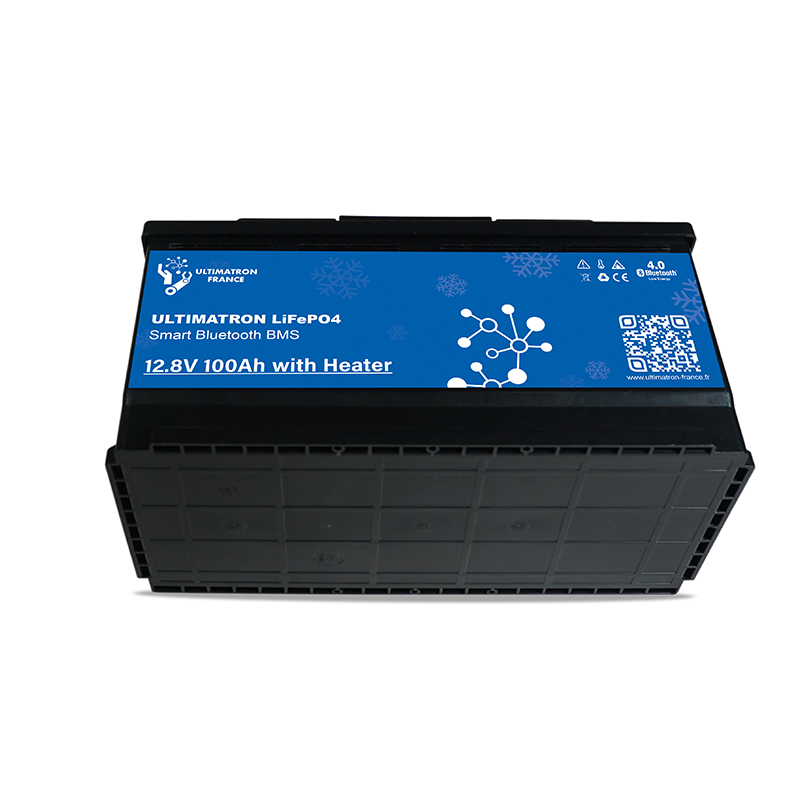

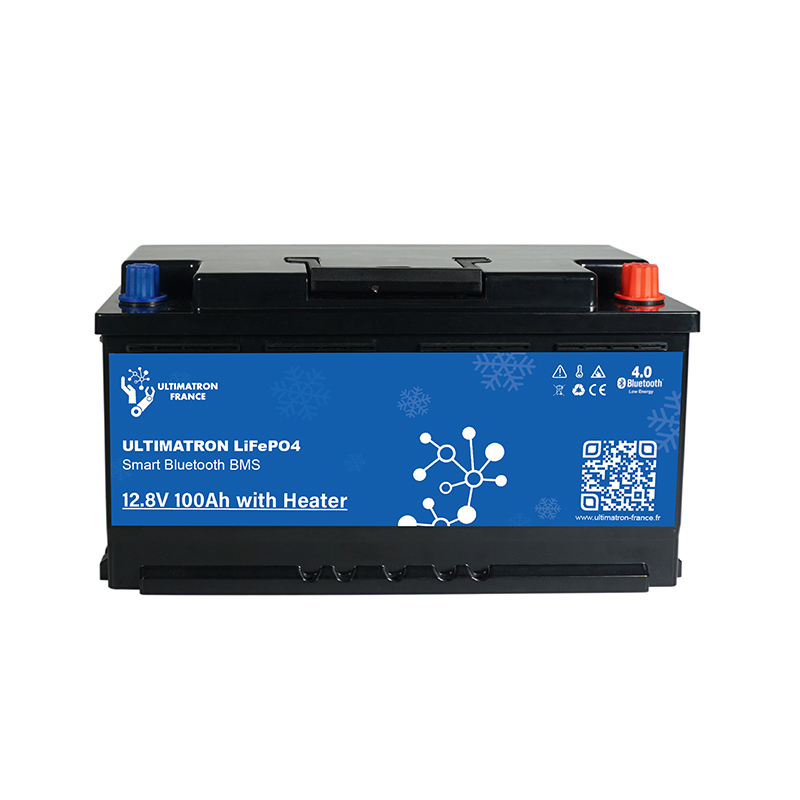

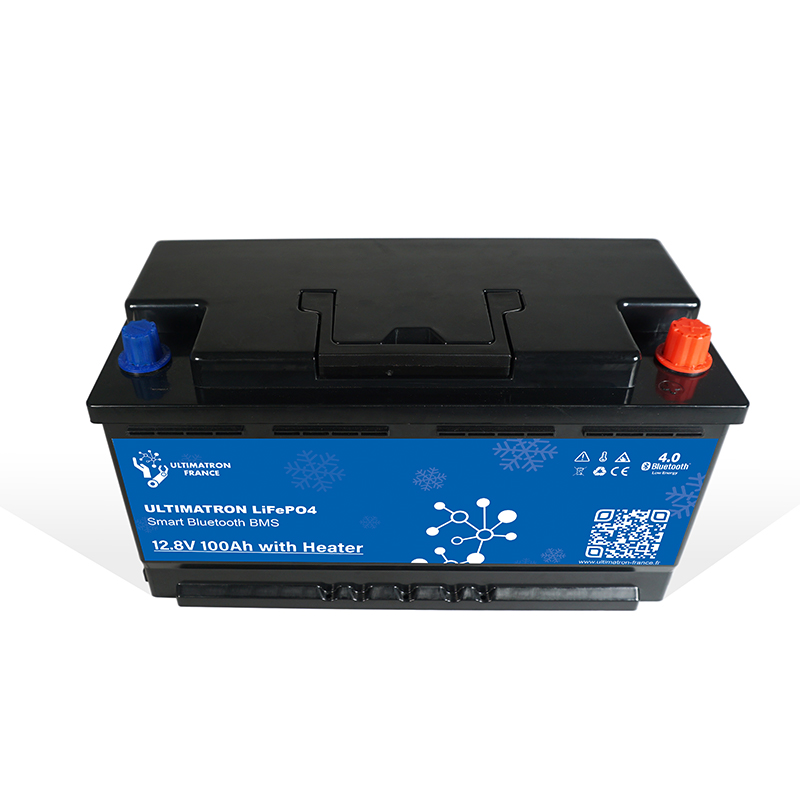

TIP: The lithium ULTIMATRON 100 Ah battery from the French battery manufacturer ULTIMATRON comes in an elegant plastic housing and can thus be attached to any place in the camper van body, for example with a battery strap. It meets all the requirements expected of a lithium battery and impresses with an excellent price-performance ratio.
An integrated battery management system (BMS) enables the control and charging of the various elements of a rechargeable battery and protects it from overcharging, overvoltage and overheating.

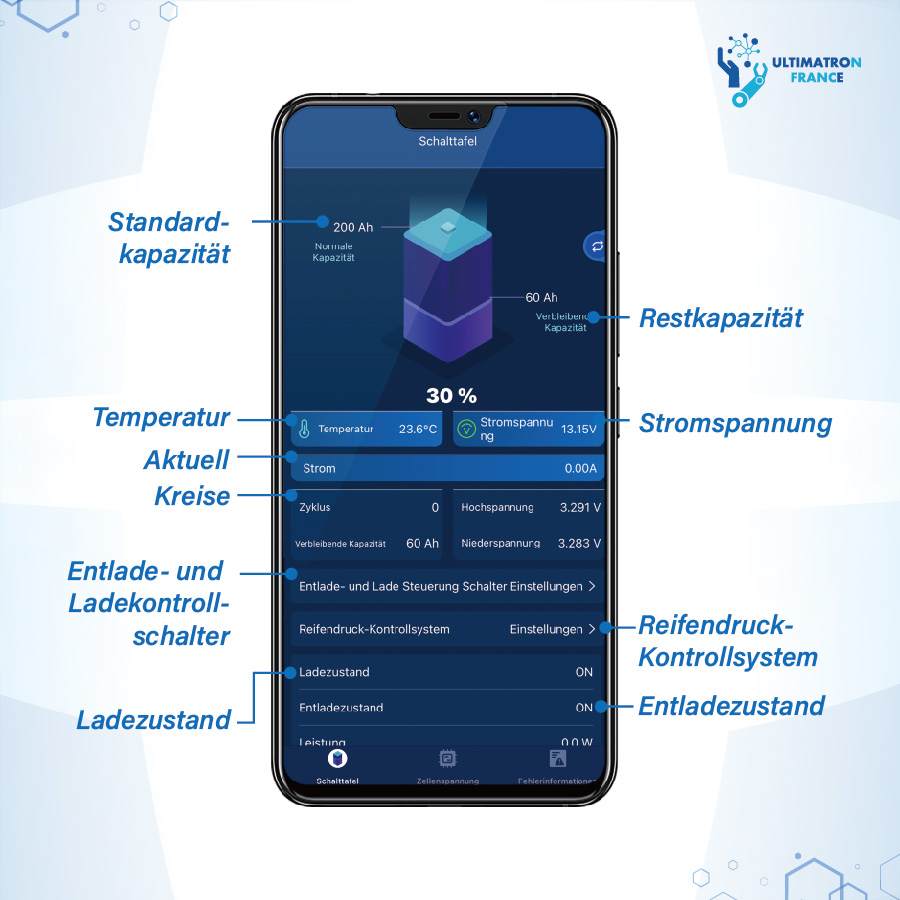

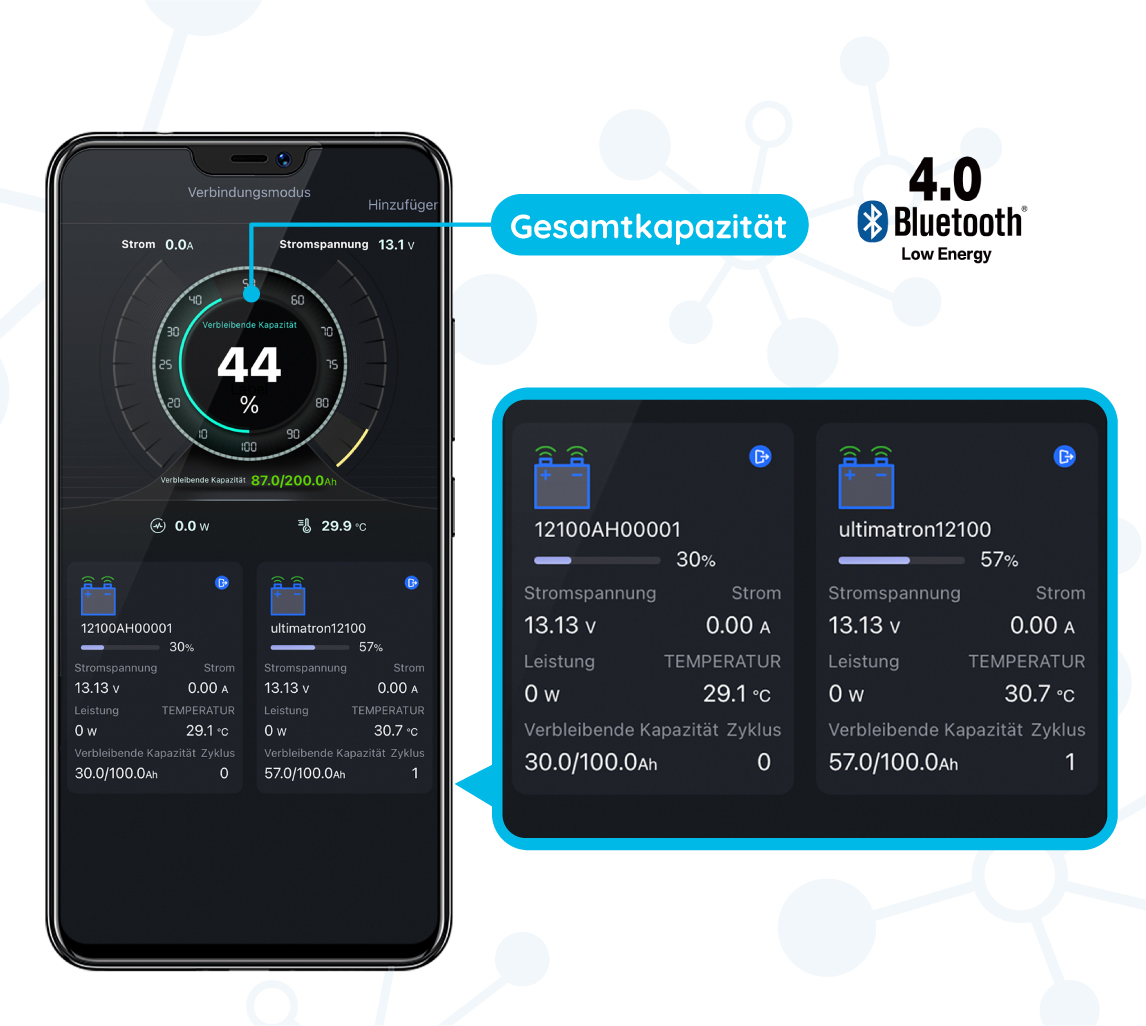

With the integrated Bluetooth 4.0 monitoring, you always have all important battery data visible on your smartphone or tablet. The application displays the data in real time.
About the integrated heating module:
For lithium batteries, the charging temperature range is above 0°C. If the external ambient temperature is higher than 0 °C, the battery's BMS detects the temperature and the battery is charged normally.
When the temperature drops below 0 °C, the BMS detects the low ambient temperature and automatically protects the battery, and the battery stops charging.
At this time, for the lithium battery with heater, the heater starts to work and the battery is heated above 0°C, reaches the charging temperature of the lithium battery and the battery enters the charging process.
A 100 Ah AGM battery can usually only be discharged up to 50%, as the critical voltage of 10.5 volts is then reached. The 100 Ah lithium battery, on the other hand, can be discharged almost completely. The exchange results in a capacity increase by a factor of 2. ( 50 Ah AGM to approx. 97 Ah lithium).
Electrical data:
- Nominal voltage: 12.8V
- Nominal capacity: 1200 Ah/1280 Wh
- Operating voltage range: 10-14.6 V
- Number of cycles: >3000 á 80% DoD
- Charging characteristics: CCCV/IU
- Charging voltage: 14.6 V
- Recommended charging current: 20 A
- Maximum charging current: 50 A
- Maximum discharge current: 150 A
- Peak discharge cut-off current (5-15 ms): 450A
- BMS battery management system: integrated
- Monitoring: Bluetooth 4.0 smartphone app

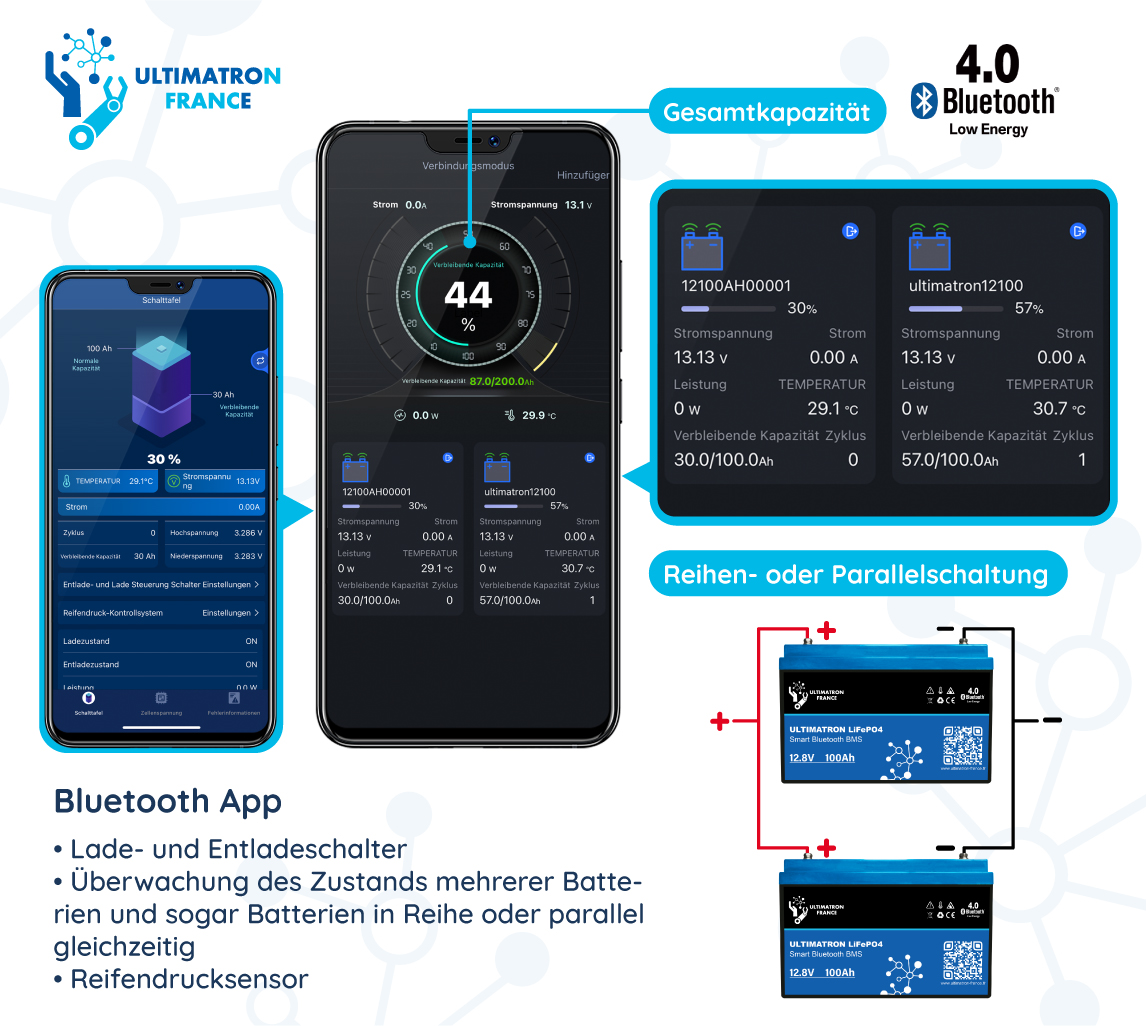

- Circuit options: Series and parallel connection for 12 V, 24 V, 36 V, 48 V applications.
- Maximum modules in series/parallel 4/4
- Protection: IP 65
- Temperature range discharge: -20 to 60 degrees Celsius
- Temperature range charging: 0 to 45 degrees Celsius
- Connections: DIN
- Weight: 12.6 kg
- Dimensions: 355x175x188 mm (LxWxH)
Advantages of ULTIMATRON lithium iron phosphate (LiFePO4) batteries:
- 5 years manufacturer's warranty
- Safe technology without risk of fire or explosion
- Integrated BMS
- Long service life
- 99% efficiency
- High stability even under extreme load
- No memory effect- no need for full charge and discharge cycles
- High performance even under extreme conditions
- Deep and even discharge and charge efficiency
- Small size and light weight
*************************************************************************************************
