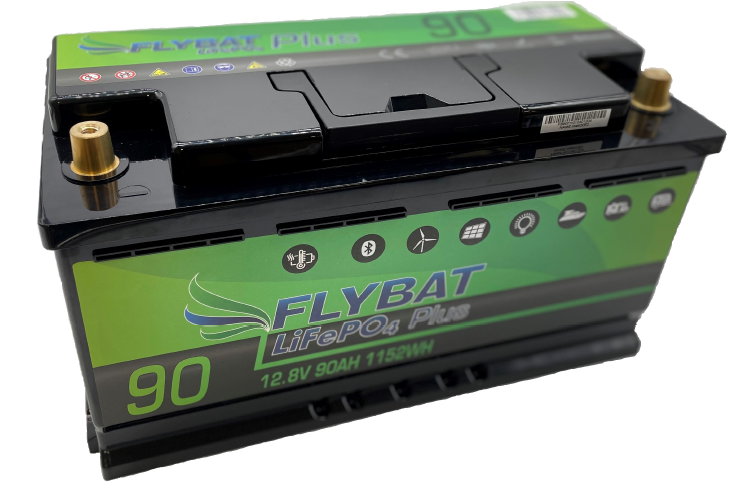

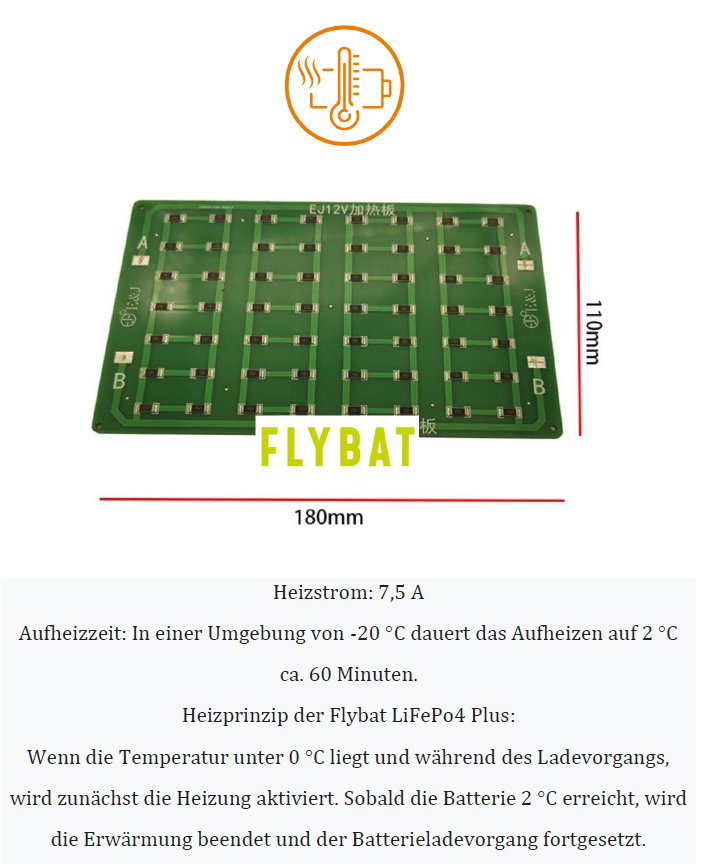

This lithium iron phosphate battery is characterised by an integrated heating module, which also allows the battery to be charged at sub-zero temperatures.
The housing of the battery corresponds to the housing of a 95 Ah AGM battery. This means that the standardised size of the battery means that installation is not a problem when replacing these batteries.

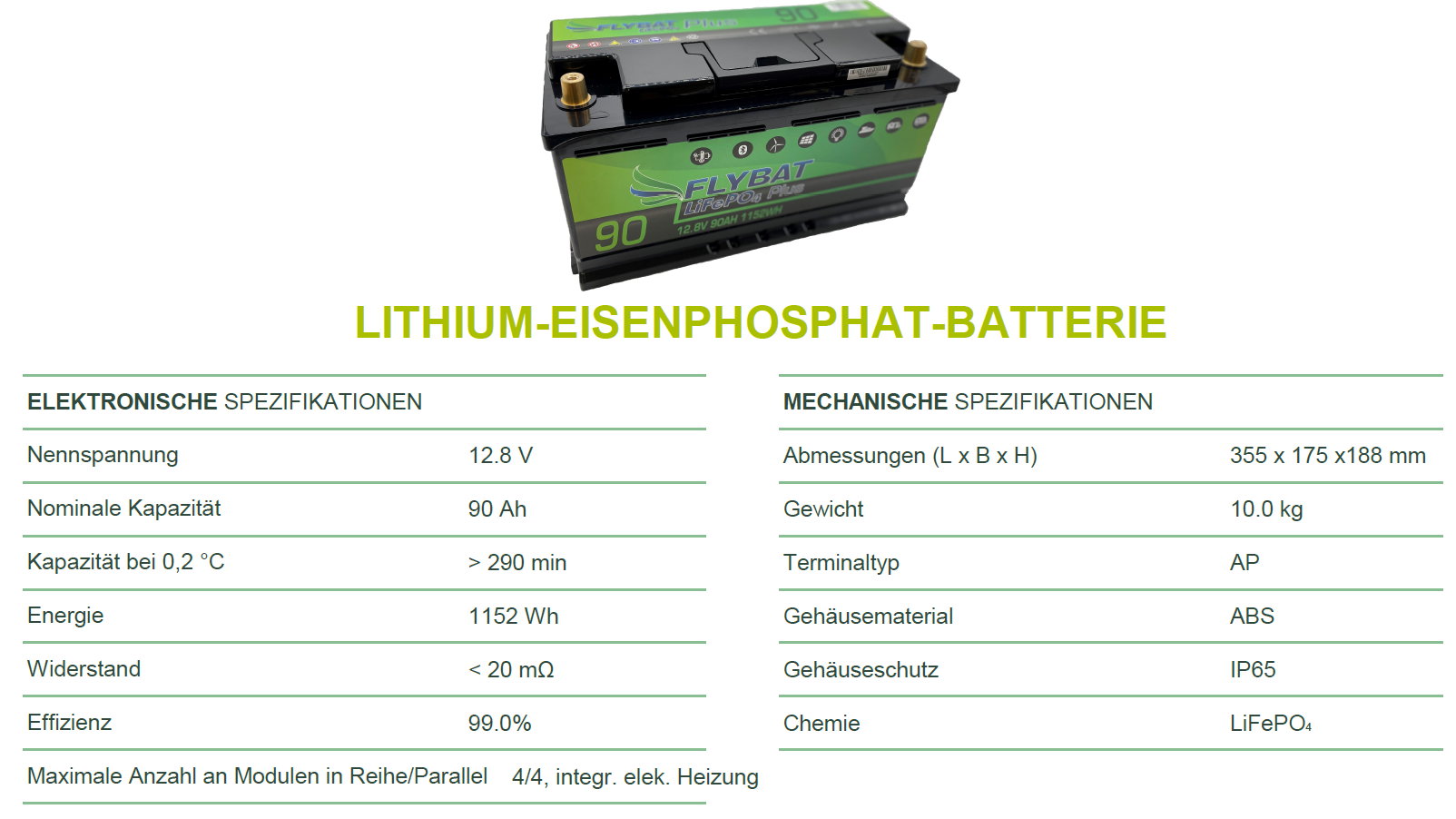

Electrical specifications:
- Nominal voltage: 12.8V
- Nominal capacity: 90 Ah
- Capacity 25A: >290min
- Energy: 1152Wh
- Resistance: <20 mOhm
- Efficiency: 99%
- Self-discharge: <3% per month
- Maximum modules in series/parallel 1
Mechanical specifications:

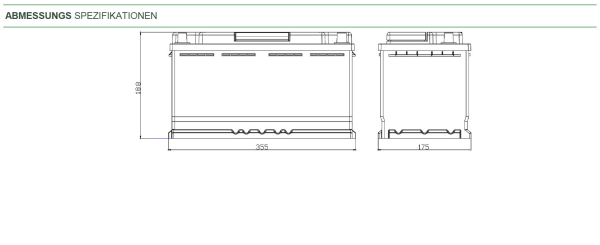

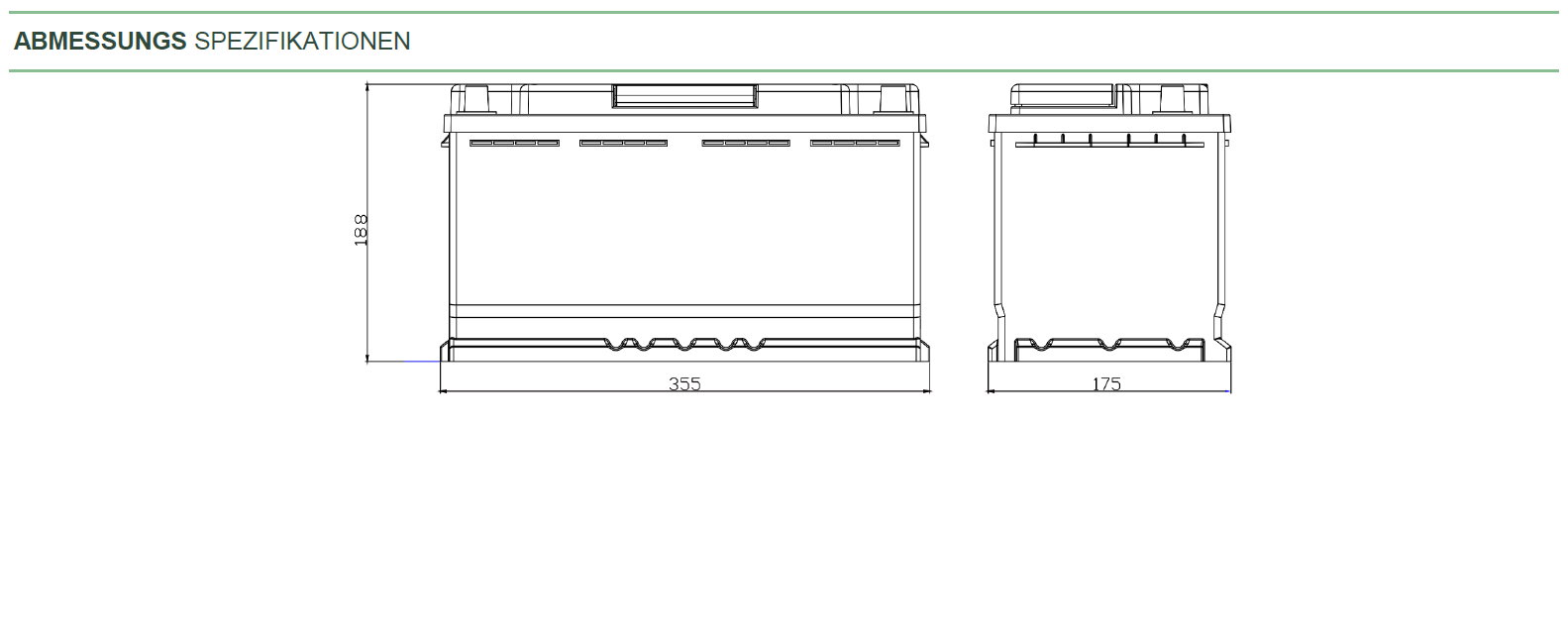

Dimensions (LxWxH): 355mm x 175mm x 188mm
Weight: 10kg
Terminal Typess: AP
Case material: ABS
Enclosure protection: IP65
Chemistry: LiFePO4
Temperature specifications:
Discharge temperature: -20 to 60 °C
Charging temperature: -20 to 60 °C
Storage temperature: -20 to 60°C
PCM high temperature cut-off: 80°C

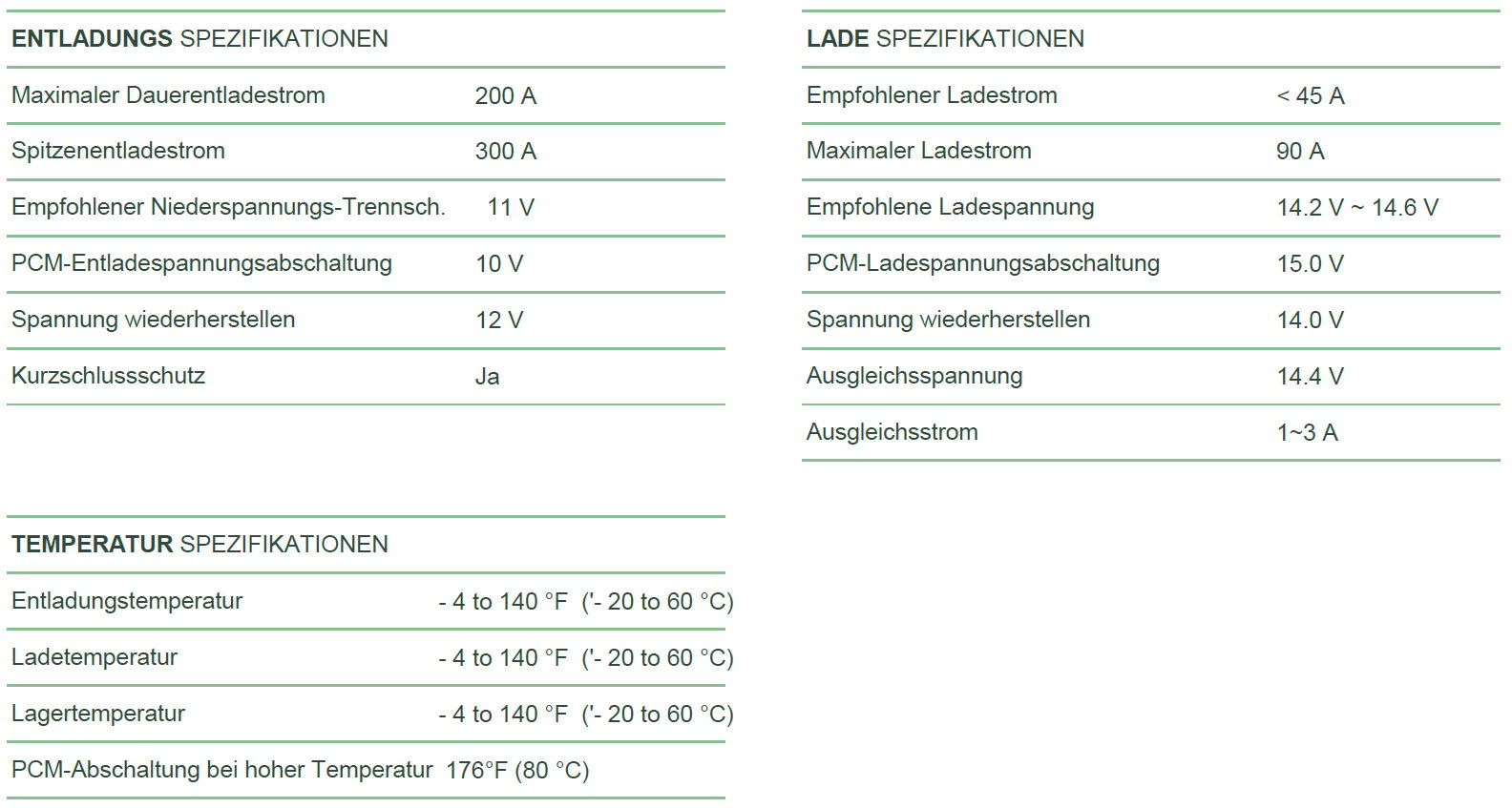

Charging specifications:
Recommended charging current: <45A
Maximum charge current: 90A
Recommended charging voltage: 14.2V-14.6V
PCM charge voltage cut-off: 15V
Balancing voltage: 14.4V
Discharge specifications:
Maximum continuous discharge current: 200 A
Peak discharge current: 300 A
Recommended low voltage cut-off: 11 V
PCM discharge voltage cut-off: 10 V
Reconnect voltage: 12 V
Short circuit protection: Yes
Advantages of FLYBAT lithium iron phosphate (LiFePO4) batteries:
- 5 years manufacturer's warranty
- Safe technology without risk of fire or explosion
- Integrated BMS
- Long service life
- 99% efficiency
- High stability even under extreme load
- No memory effect- no need for full charge and discharge cycles
- High performance even under extreme conditions
- Deep and steady discharge and charging efficiency
- Small size and light weight
*************************************************************************************************
Product safety information:
Brand: Flybat
Manufacturer: BVD GmbH, Riedacker 5, 74889 Sinsheim , bvd@bvd-batterien.de
*************************************************************************************************
