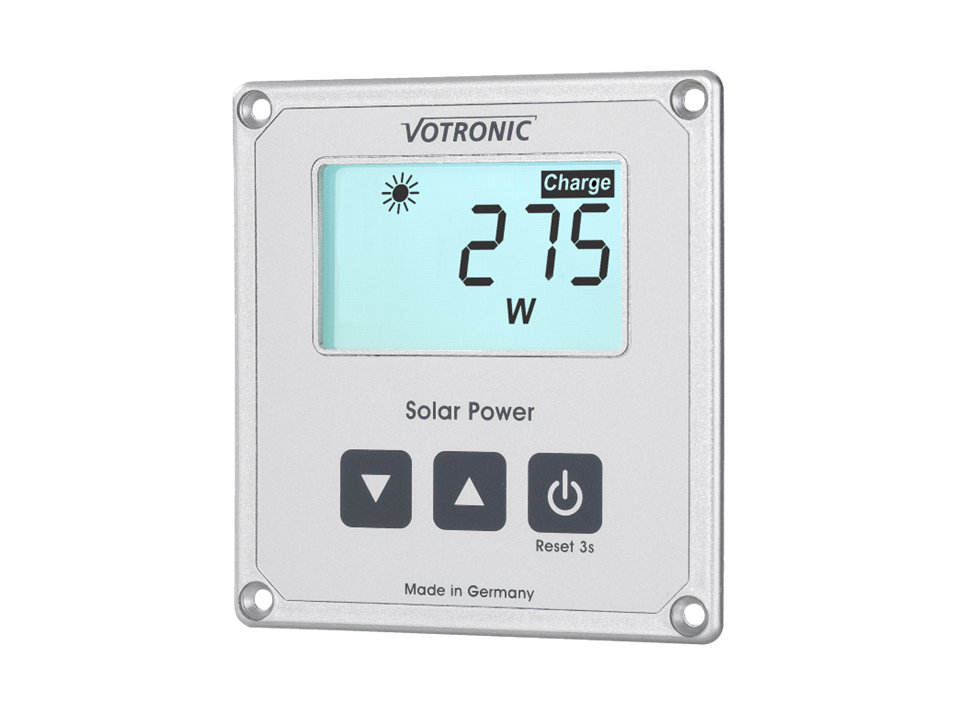

How much energy does my solar system actually deliver? Are the solar modules shaded or dirty or is something wrong? In order to be able to answer these questions, VOTRONIC offers the LCD Solar Computer S, which is simply connected to the VOTRONIC solar charge controller of the SR and MPP series and immediately provides comprehensive information.
The LCD Solar Computer S can also be connected to the controller at a later date, as the VOTRONIC solar charge controllers are already prepared for this and provide the required signals. Thus, the connection is kept extremely simple.
The measured values are shown clearly on the display and can be easily operated at the touch of a button for better control and use of the solar system. The display is backlit (switchable) and is very easy to read even from great distances and in all lighting conditions.
Matching the VOTRONIC module system, the LCD Solar Computer S is designed as a panel version and fits in with the other display modules both optically and mechanically (uniform height 85 mm). Small front panel dimensions and the particularly low installation depth of only 22 mm allow the unit to be mounted in almost any position. If the unit is not to be recessed, a suitable surface-mounted housing is available in our range of accessories. The connection to the solar controller is made ready to plug in using the 5 m long connection cable supplied, which can be extended by a further 5 m via an extension.
Technical data:
Nominal battery voltage (DC) in [V]: 12 and 24
Max. current consumption in [mA]: 3 - 30
Display: LC display with specific segments
Display function: W, A, V, Ah, Wh
Measuring range in [Wp]: 20 - 990
Dimensions (WxHxD) in [mm]: 80 x 85 x 25
Installation dimensions (WxHxD) in [mm]: 66 x 72 x 22
Weight in [g]: 55
Mark of conformity: CE, E-testing (EMC/vehicle directive)
