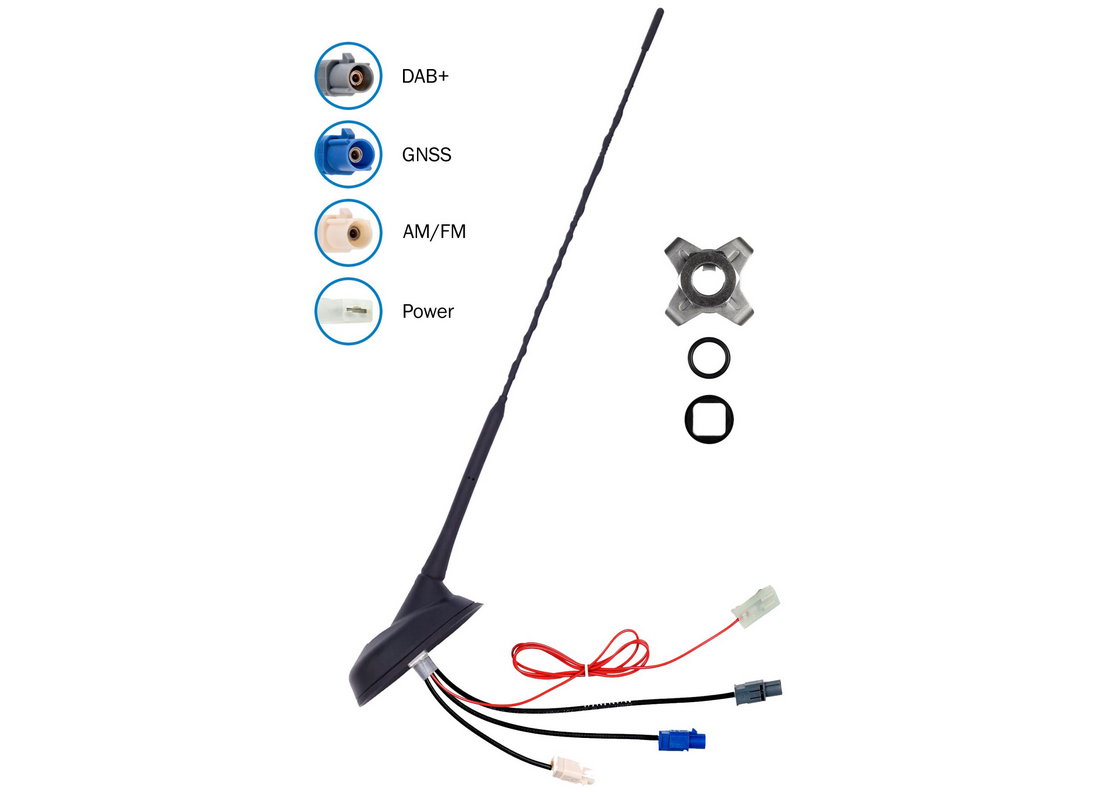

Combi-flex antenna - FM/DAB+/GPS/Glonass/ - Fakra - 41 cm Strahler
ATTB_2201_02
ATTB_2201_02
Mobile Preview: ATTB_2201_02
Mobile Preview: ATTB_2201_02

Combi-flex antenna - FM/DAB+/GPS/Glonass/ - Fakra - 41 cm Strahler

Product No.:
ATTB_2201_02
1-2 days 1-2 days (abroad may vary)
Weight:
0.031 kg per piece
149,00 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Description

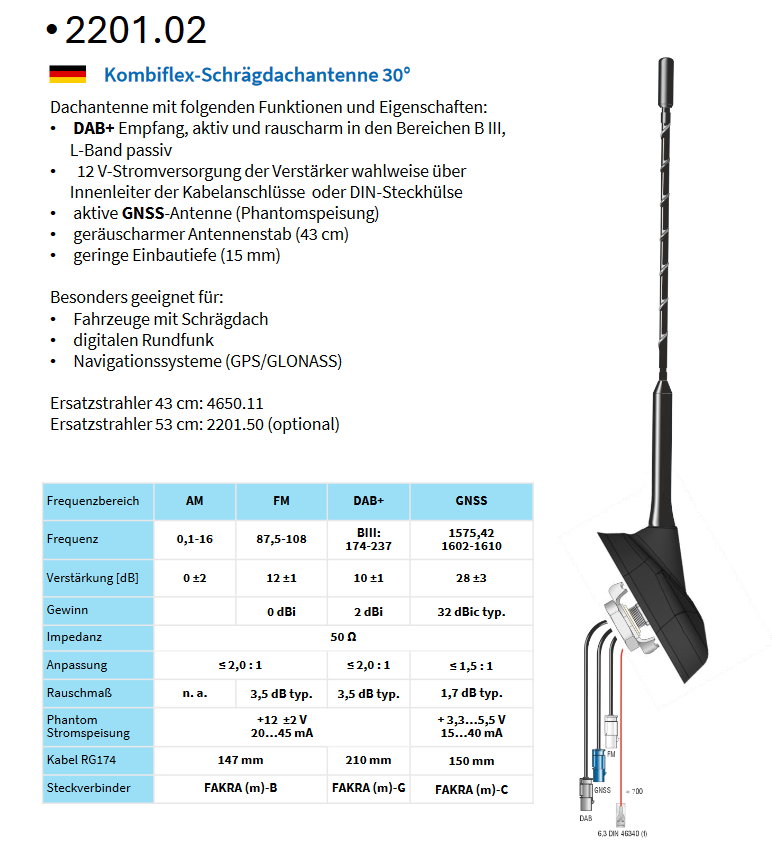

Neue Kombiflex-Schrägdachantenne 30°: Optimale Konnektivität für moderne Kastenwagenfahrzeuge

Kurzinfo:

- DAB+ Empfang, aktiv und rauscharm in den Bereichen B III, L-Band passiv • DAB+ Empfang, aktiv und rauscharm in den Bereichen B III, L-Band passiv • 12 V-Stromversorgung der Verstärker wahlweise über Innenleiter der Kabelanschlüsse oder DIN-Steckhülse • aktive GNSS-Antenne (Phantomspeisung)
- geräuscharmer Antennenstab (43 cm)
- geringe Einbautiefe (15 mm)
- Dienste: AM/FM, DAB, DAB+, GNSS, GPS
- Konnektoren: FAKRA

Wir freuen uns, unsere neueste Produktinnovation vorzustellen: Die Schrägdach-Antenne FM/DAB+/GNSS. Diese hochmoderne Antenne wurde speziell für Fahrzeuge mit 30° Schrägdächern entwickelt und bietet eine optimale Lösung für Modelle wie den MERCEDES-Benz Sprinter, VW Crafter, FIAT Ducato, CITROEN Jumper, PEUGEOT Boxer u.a..

Produktmerkmale:

- Unterstützung für AM, FM, DAB+ und GNSS in einem kompakten Design
- Verbesserte Empfangsqualität für verschiedene Kommunikationsdienste
- Elegante Integration in die Fahrzeugsilhouette
- Aktiver, rauscharmer DAB+ Empfang in den Bereichen Band III und L-Band
- Integrierte aktive GNSS-Antenne für präzise Navigationsdienste
- Flexibles Stromversorgungskonzept: 12V über Innenleiter oder DIN-Steckhülse
- Geringe Einbautiefe von nur 15 mm für einfache Installation
- Geräuscharmer Antennenstab (43 cm) mit optionalem 53 cm Ersatzstrahler

Unsere neue Kombiflex-Schrägdachantenne 30° vereint modernste Technologie mit praktischer Funktionalität. Sie gewährleistet nicht nur einen hervorragenden Empfang für AM/FM-Radio und digitales DAB+, sondern bietet auch präzise GNSS-Unterstützung für zuverlässige Navigationsdienste.

Mit dieser innovativen Antennenlösung setzen wir neue Maßstäbe in der Fahrzeugkommunikation und unterstreichen unser Engagement für fortschrittliche, kundenorientierte Produktentwicklung. Entdecken Sie die Zukunft der mobilen Konnektivität mit unserer Schrägdach-Antenne FM/DAB+/GNSS - die perfekte Wahl für moderne Fahrzeuge und anspruchsvolle Anwendungen.

Zudem arbeiten wir bereits an weiteren Kombinationsmöglichkeiten, um noch mehr Flexibilität für verschiedene Einsatzzwecke zu bieten.



*************************************************************************************************
Angaben zur Produktsicherheit:
Marke: ATTB
Hersteller: ATTB Antennentechnik Bad Blankenburg GmbH, Gewerbegebiet 2, 07407 Rudolstadt, info@attb.de
*************************************************************************************************
