Professional version with USB-A socket and maximum 2.4 amps charging current at 5 volts output voltage and with USB-C socket with maximum 3.0 amps charging current at 5 volts output voltage. This allows 2 smartphones to be charged at the same time, for example. The USB sockets are illuminated.

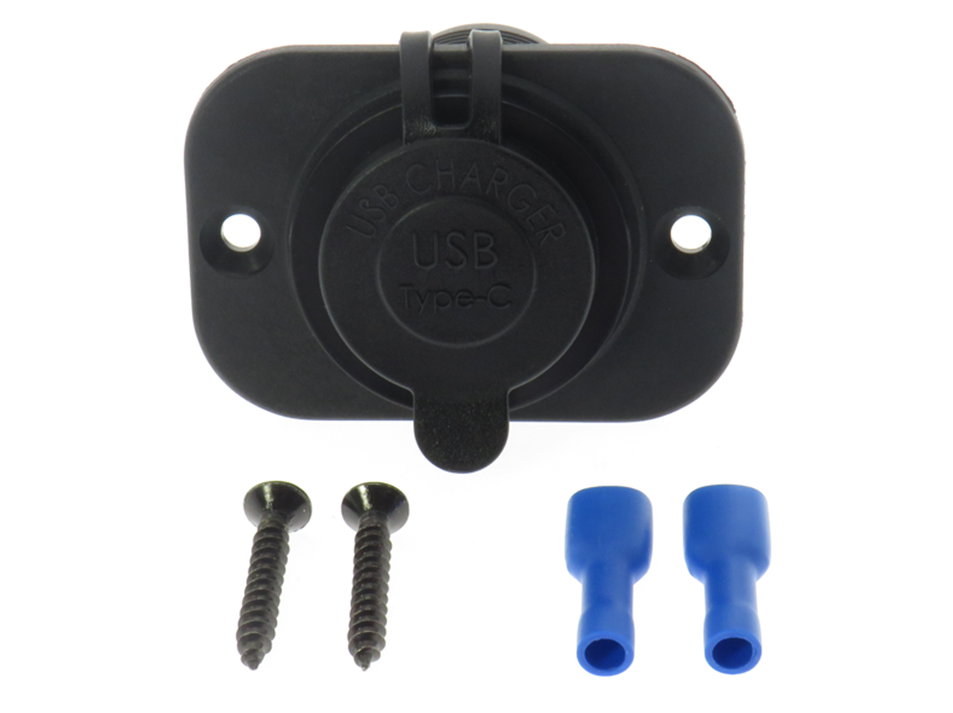

A rubber cover is included to protect the USB ports, but it does not have to be fitted.
The USB charging electronics can be mounted with or without the rectangular cover plate. The cover plate is mounted over the charging electronics from the front.
Technical data:
Input voltage: 12 volts
Output voltage: 5 volts
Connections: 2 x 6.3 mm flat plug
Colour black matt
Dimensions of the charging electronics:
Total length: 59 mm
Installation depth: 52 mm plus cable lugs
Mounting hole: 29 mm
Outer diameter: 37 mm
Dimensions of cover plate;
43 x 61 mm
Further optional accessories from the 2000 series:
Art.no. 24008: Surface-mounted housing
Art.no. 24009: Double surface-mounted housing
Art.no. 24010: Double cover plate
Further products from the Series 2000:
Art.no. 24024 Double USB charging electronics (2.4 A /2.4 A)
Art.no. 24036 Charging socket for cigarette plug
Art.no. 24029 12 Volt voltage indicator
*************************************************************************************************
