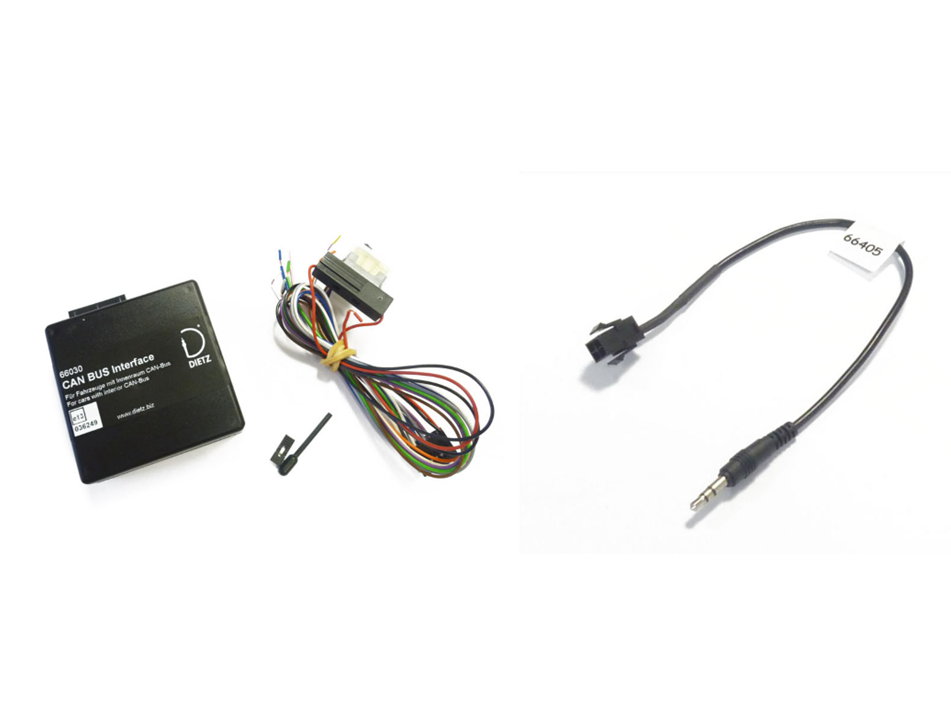

Interfacekit 66030 incl. 66405 for PIONEER & AUDIOVOX

Adapter e.g. for Pioneer GPS input, if a GPS antenna with Fakra socket is installed in the vehicle.


*************************************************************************************************
Angaben zur Produktsicherheit/GPSR:
Marke/Trademark: Dietz
Hersteller/Manufacturer: Audiotechnik Dietz Vertriebs-GmbH, Maybachstr. 10, 67269 Grünstadt,
www.dietz.biz, verkauf@dietz.biz
*************************************************************************************************

LowLoss cables are the cables with the best electrical characteristics for lossless transmission of antenna signals. Our Lowloss cable series has the best conductivities and therefore the lowest cable resistance of all our cable series. They are achieved by using tinned leads for the inner conductor (7 * d = 0.25mm), shielding (42 * d = 0.11mm) and an additional aluminum foil between the PE dielectric and the shield.

Specifications:

Length: 1,5 meters
Characteristic impedance: 50 ohms Capacity: 95pF / m Advanced POLYTHEN insulation 2.00 mm
Aluminum foil screen and additional tinned copper braid
Outer diameter: 3.6 mm

Especially for loss-free transmission of FM/UKW/DAB+ signals from antenna Blankenburgantennen or all other antennas that have SMB sockets.


*************************************************************************************************
Angaben zur Produktsicherheit/GPSR:
Marke/Trademark: Dietz
Hersteller/Manufacturer: Audiotechnik Dietz Vertriebs-GmbH, Maybachstr. 10, 67269 Grünstadt,
www.dietz.biz, verkauf@dietz.biz
*************************************************************************************************

Harness for CAN-Bus Interface/Steering wheel interface 66020, 66030, 66031_BP, 66032_BP.

For:

Audi A3, 8P FL, 2007-2012 ,
Audi A4, B8, 2008-2013 ,
Audi Q5, 2008-2018 ,
Audi TT, 8J, 2007-2018 ,
Porsche Cayenne, 2010-2018 ,
Skoda Octavia II, 2010-2012 ,
Skoda Roomster, 2010-2018 ,
Skoda Superb, 2008-2018 ,
Skoda Yeti, 2009-2018 ,
VW Amarok, 2013-2018 ,
VW Beetle, 2012-2018 ,
VW Eos, 2007-2018 ,
VW Golf V, 2004-2007 ,
VW Golf V Plus, 2004-2018 ,
VW Golf VI, 2008-2018 ,
VW Multivan T5, T6, 2007-2018 ,
VW Passat, B6, 2007-2009 ,
VW Passat, B7, 2004-2009 ,
VW Passat CC, 2010-2018 ,
VW Polo, 5, 2008-2018 ,
VW Polo, 5, 2009-2012 ,
VW Scirocco, 3 FL, 2008-2010 ,
VW Sharan, 2, 2011-2018 ,
VW Tiguan, 2010-2018 ,
VW Tiguan, 2007-2010 ,
VW Touareg, 2011-2018 ,
VW Touareg, 2004-2006 ,
VW Touran, 2004-2009 ,
VW Touran, 2010-2018 ,

Including phantom infeed adaptor for 1xFAKRA-, 2xFAKRA- and double-FAKRA-Connectors.

To use the interface 66030 a head unit specific adaptor cable is needed:

ALPINE (66401)
CLARION / JVC (66403)
KENWOOD (66406)
PIONEER / DYNAVIN / AUDIOVOX / MAC AUDIO(66405)
PANASONIC / ZENEC (66406)

Note for BLAUPUNKT Radios:

For Blaupunkt 1-DIN Radios (from 2014-) with 3 open wires (Key1, Key 2 and Ground) for steering wheel remote plese use Interface:
66031_BP (Blaupunkt Radio Cable inclusive!)

For Blaupunkt 2-DIN Radios (from 2014-) with 3,5 mm jack for steering wheel remote plese use Interface:
66032_BP (Blaupunkt Radio Cable with 3,5 mm plug inclusive!)

Content: 1 Stück


*************************************************************************************************
