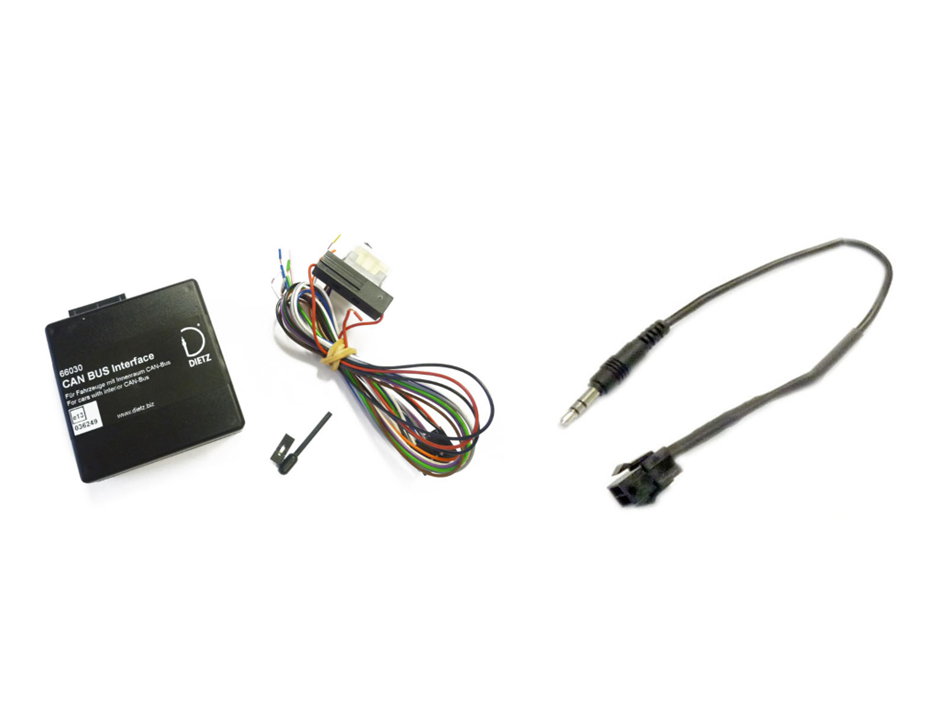

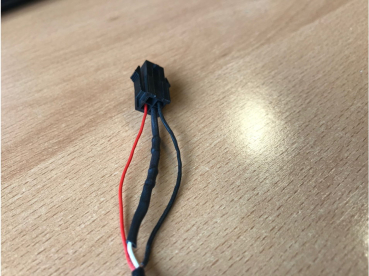

Interfacekit 66030 incl. 66401 for ALPINE

Content: 1 piece


*************************************************************************************************
Angaben zur Produktsicherheit/GPSR:
Marke/Trademark: Dietz
Hersteller/Manufacturer: Audiotechnik Dietz Vertriebs-GmbH, Maybachstr. 10, 67269 Grünstadt,
www.dietz.biz, verkauf@dietz.biz
*************************************************************************************************

Professional antenna for optimum reception of VHF/DAB+ and GPS/GLONASS for front installation on vans. Antenna with the following features:

-flat angle of only 25 degrees.
- Antenna with optimised rod, length approx. 41.5 cm, in 16 V design.
- DAB+ reception 174-237 MHz & 1452-1492 MHz
- VHF/FM reception 87-108 MHz
- 12 V external power supply (no phantom powering possible)
- Low installation depth approx. 16 mm
- Gain: FM: 7 dB
- Gain: DAB+: 12dB
- Power supply: 12 volts, 100 mA
- Temperature range (-40 degrees to + 85 degrees Celsius)
- Impedance: 50 Ohm
- Cable to antenna:
- Cable: RG 174, FM 300 mm, Fakra plug, white, code B
- Cable: RG 174, DAB+ 300 mm, Fakra plug, grey, code G
- Cable: RG 174, GPS/GLONASS,+ 300 mm, fakra plug, blue, code C

Note: This antenna is delivered with the following cable sets in 3.5 m length!

Recommended LOWLOSS extension cables:

For FM and DAB+:

UNI-2L350:
UNI LOWLOSS set with different connectors for FM. With this cable set, 99% of the car radios on the market can be connected with our antennas. The set consists of 2 LowLoss antenna cables with Fakra colour coding for VHF and DAB+.

- VHF lowloss cable Fakra socket - Fakra socket B, white
- DAB+ lowloss cable Fakra socket - SMB socket 90 degrees, Fakra G, grey
Adapter for FM:
- Adapter with lowloss fakra cable - DIN plug
- Adapter with lowloss fakra cable - ISO plug

For GPS/GLONASS:

UNI-3L350:
GPS connection cable set. Universal set for 99% of all devices!

Completely blue colour coding according to fakra standard to avoid signal confusion.

- 3.5 metre RG174 cable fakra socket - fakra socket, fakra C, blue
- Adapter RG174 Fakra plug - GT5 socket for GPS connection of e.g. Alpine, Kenwood and Clarion devices.
- Adapter RG174 Fakra plug - GT16 socket for the GPS connection of e.g. Pioneer devices.

Low-loss cables are the cables with the best electrical properties for the loss-free transmission of antenna signals. Our lowloss cable series has the best conductivity values and therefore the lowest cable resistance. They are achieved by using tinned strands for the inner conductor (7*d=0.25mm), for the shield (42*d=0.11mm) and an additional aluminium foil between the PE dielectric and the shield. Only high-quality Fakra plugs and sockets from Rosenberger are used. They have an excellent finish and fit due to a special punching and bending technology by Rosenberger (Fakra-SF).

Technical data of the low loss cable:

Characteristic impedance: 50 Ohm
d capacitance: 95pF/m
Extended POLYTHEN insulation 2.00 mm
Aluminium foil shielding and additional tinned copper braiding
Outer diameter: 3.6 mm


*************************************************************************************************
