- The antenna is designed for mounting in inherently stable plastic assemblies.
- The operating voltage is supplied to the antenna via a separate supply line
- The voltage supply must be connected to a fused circuit
- Can be used with 4724.02 (broadcast distributor for AM/FM and DAB+ frequency division)
- The voltage lead of the broadcasting distributor is not connected
- Cable type: 75 Ohm
- Services: AM/FM, DAB
- Cable length: 2.5 m
- Connectors: DIN 41585(m)
Additional information:
- Mounting: Adhesive/screw mounting
- Additional info: Broadcast antenna
- Category/Special feature: powerful active and floating dipole antenna
Dimensions:
- Width: 63 mm
- Height: 10 mm
- Length: 75 mm
- Weight: 0.183 kg
Note:

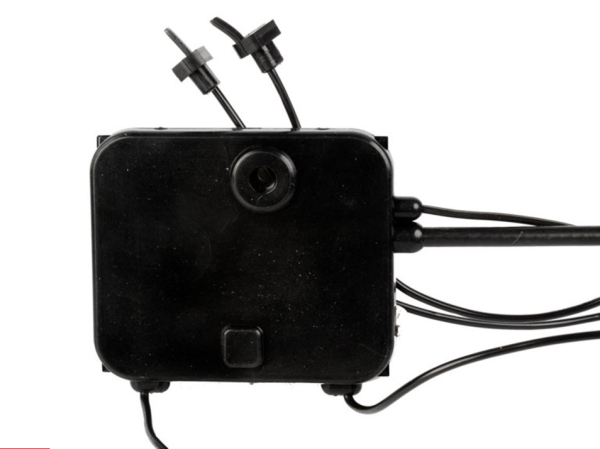

Drivers of many camper vans complain about poor VHF/FM reception. This active antenna, which can be easily installed under plastic parts, provides a remedy.
With the specified splitter, the antenna can also be used for DAB+ reception.
We recommend the following accessories:
- ATTB_4724_02: Passive splitter with DIN/SMB connectors
- ATTB_3003_01 (2m) or ATTB_3003_02 (3m) (DIN socket - DIN plug, 4.5m)
- If the radio has an ISO input, the Dietz adapter 8302 is required.
