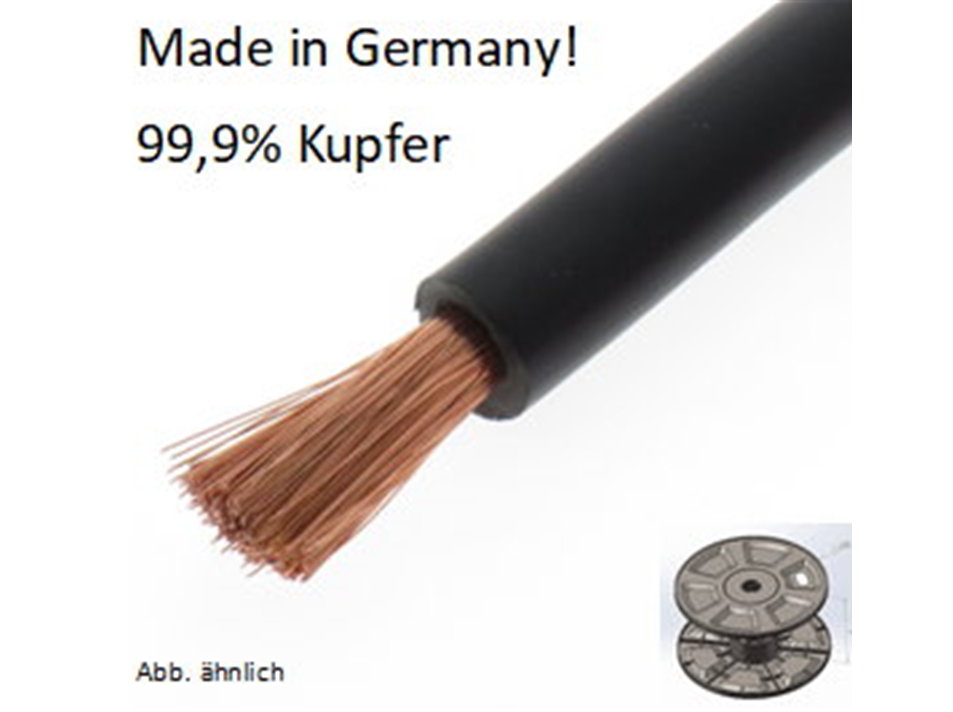

Ultra-fine pure copper cable with a copper content of 99.9%.
Especially for use in cars, trucks and motorhomes
The imprinted metre marking facilitates cutting the battery cable to length
Bobbin length: 40 m
Bobbin diameter: 30 cm
Spulenbreite: 14 cm
Perforation of the bobbin carrier: 31 mm
Technical data:
Conductor: electrolytic copper, bare according to DIN 13602
Insulation: lead-free soft PVC according to ISO 6722-1, class A
Shore hardness: approx. A68
Temperature range: -40 to +90 degrees Celsius (3000h)
Voltage range: max 60 VDC or 25 Volt AC
Nominal cross-section: 35 mm2
Weight: approx. 14,4 kg
Outer diameter: approx. 11,4 mm +/- 0.2 mm
Strand diameter: max. 6.58 mm
Number of single wires: 1029
Single wire diameter: 0.205 mm
Electrical resistance at 20 degrees: 0.55 Ohm/km
Copper insert per roll: 13,44 kg
RoHS & REACH compliant
