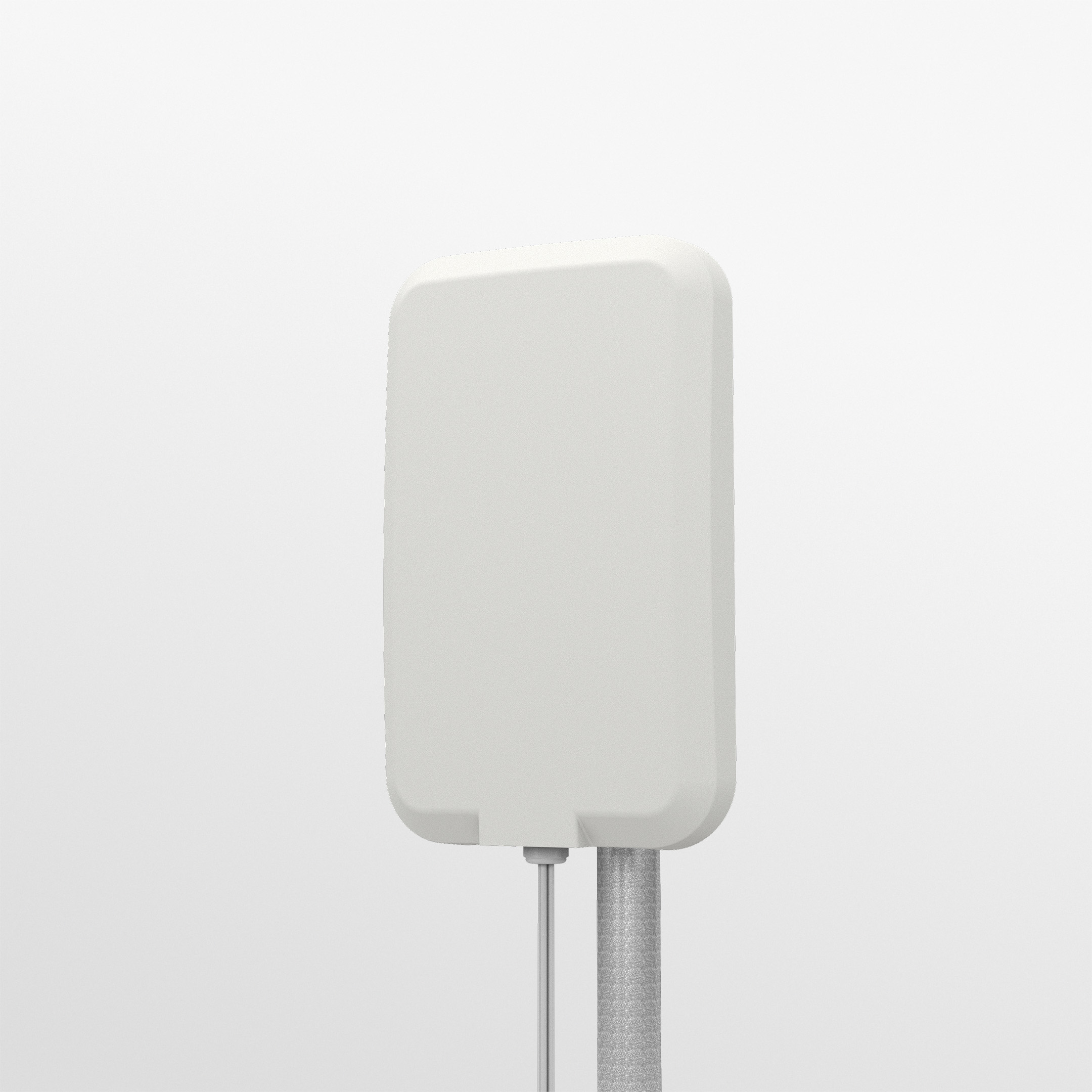

4x4 MIMO Directional Antenna for 4G/5G with 5 m SMA Cable (Male)
The WMM4G-6-60 is a high-performance 4x4 MIMO directional antenna designed to improve reception in 4G and 5G networks. Four separately fed broadband antenna elements are integrated into a compact housing, enabling client-side MIMO support. The antenna achieves a peak gain of up to 6 dBi in the 617–960 MHz frequency range and 9 dBi in the 1710–6000 MHz range.

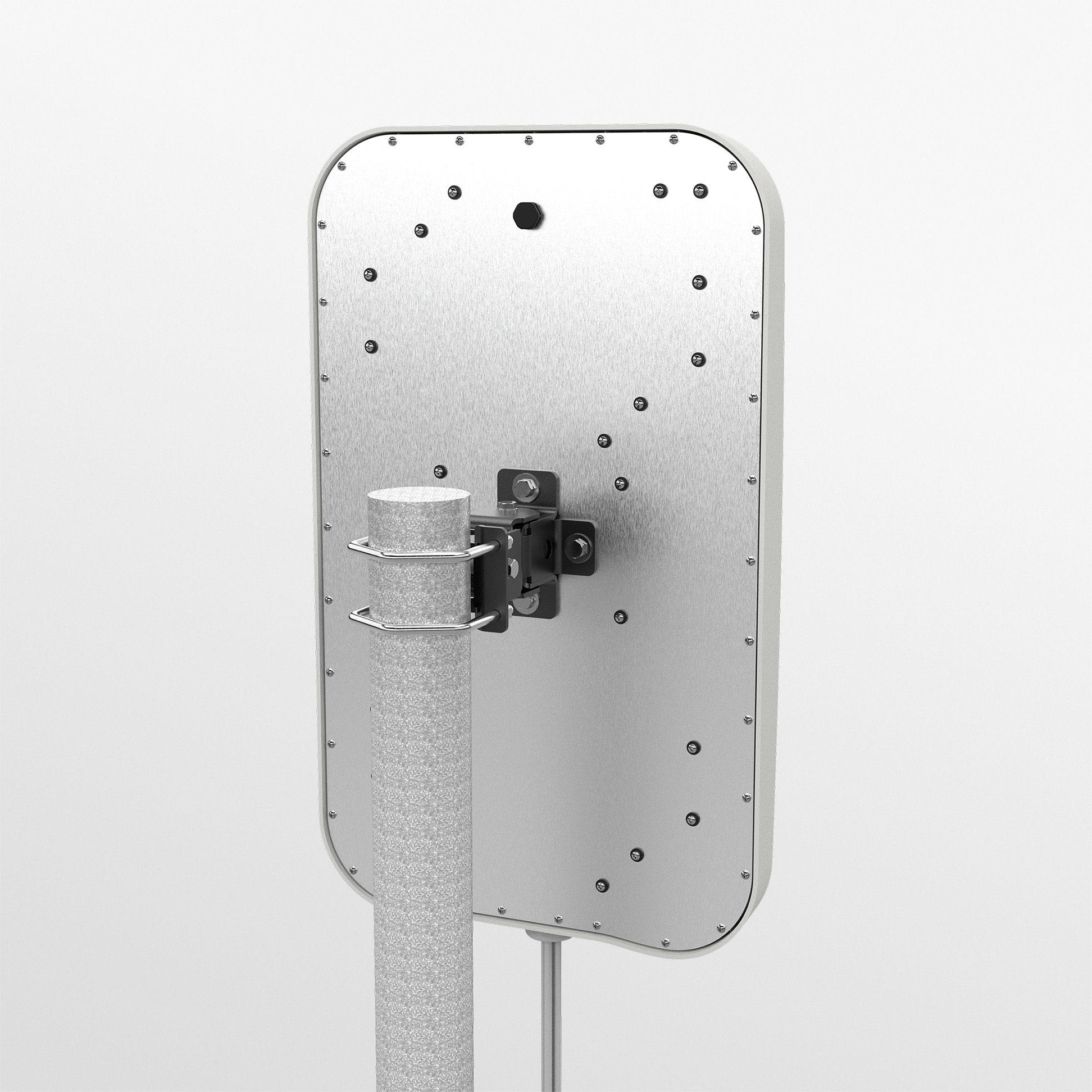

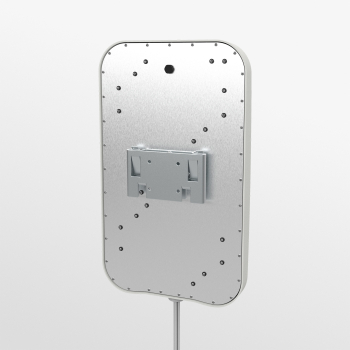

The robust, weatherproof housing is designed for wall mounting; suitable brackets for wall and pole installation are included.
The WMM4G-6-60 comes with a 5 m long, low-loss, double-shielded cellular/LTE cable. This reduces open connectors and simplifies cable management, enabling quick and easy installation.
Element 1 & 2
- 6dBi @617-960MHz
- 9dBi @1710-6000MHz
- Radiation pattern: Directional
- Polarization: +/- 45 degrees vertical
- Impedance: 50 ohms
- Max. input power: 20W
Mechanical data
- Dimensions: Height 507mm / Width 307mm / Depth 85mm
- Material: ASA plastic
- Color: White
Mounting data

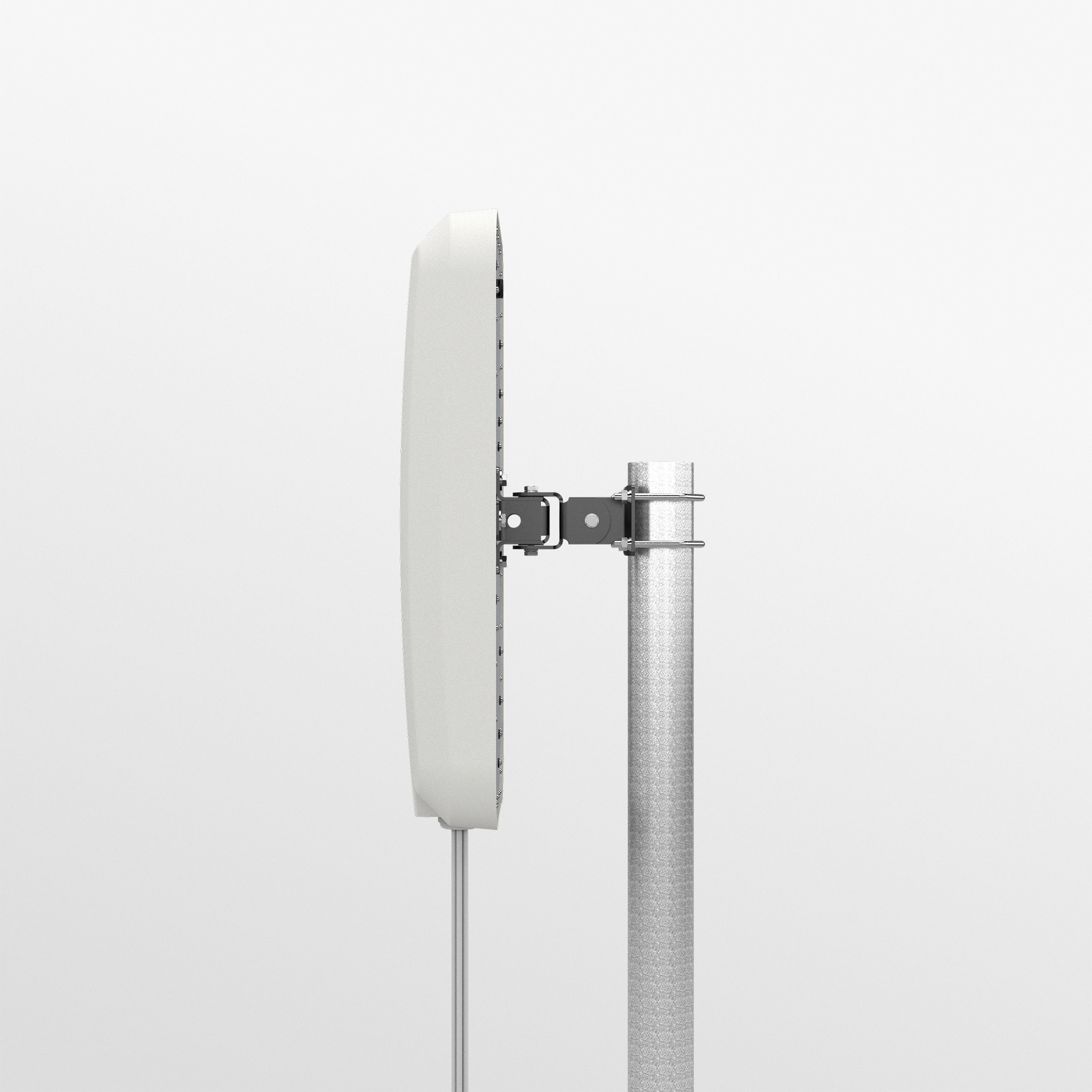

Mounting: Wall or pole mount
Cable data
- Cable type: C32 FRZH cable (EN6722/EN45545-2)
- Cable length: 5m
- Connectors: 4 x SMA male connector
Technical Data:
General
Type: Directional antenna
Version: 4G / 5G
Color: White
Electrical Specifications
Frequency Range: 617-960/1710-6000 MHz
Gain: 6/9 dB
Impedance: 50 ohms
Connections / Interfaces
Connection: SMA male connector
Dimensions
Width: 307 mm
Height: 507 mm
Depth: 85 mm
Connection Cable Length: 0.5 m
*************************************************************************************************
