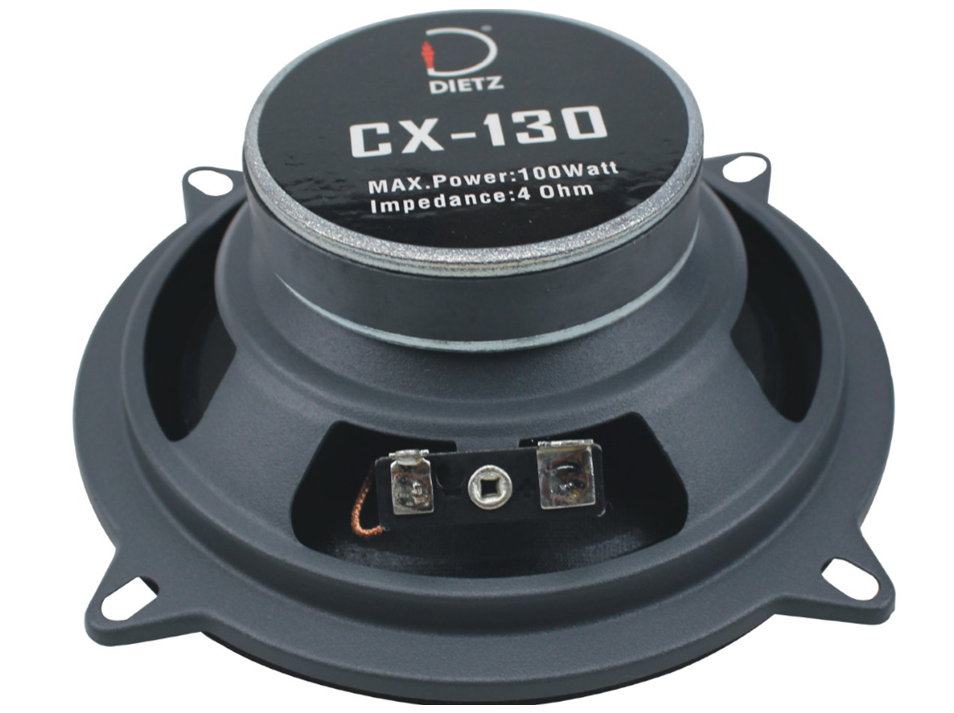

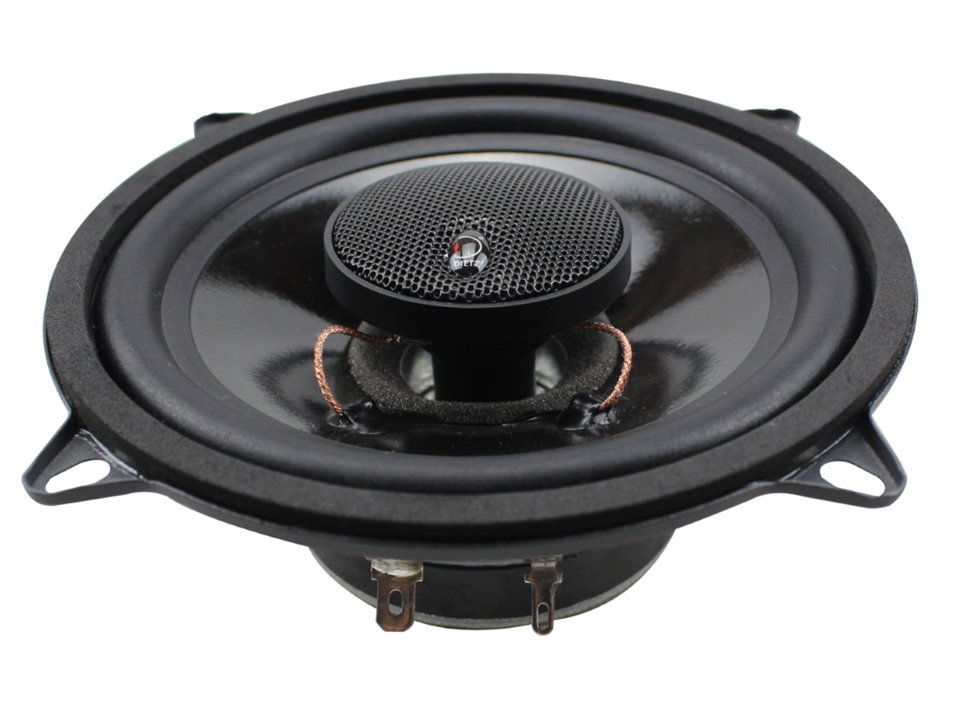

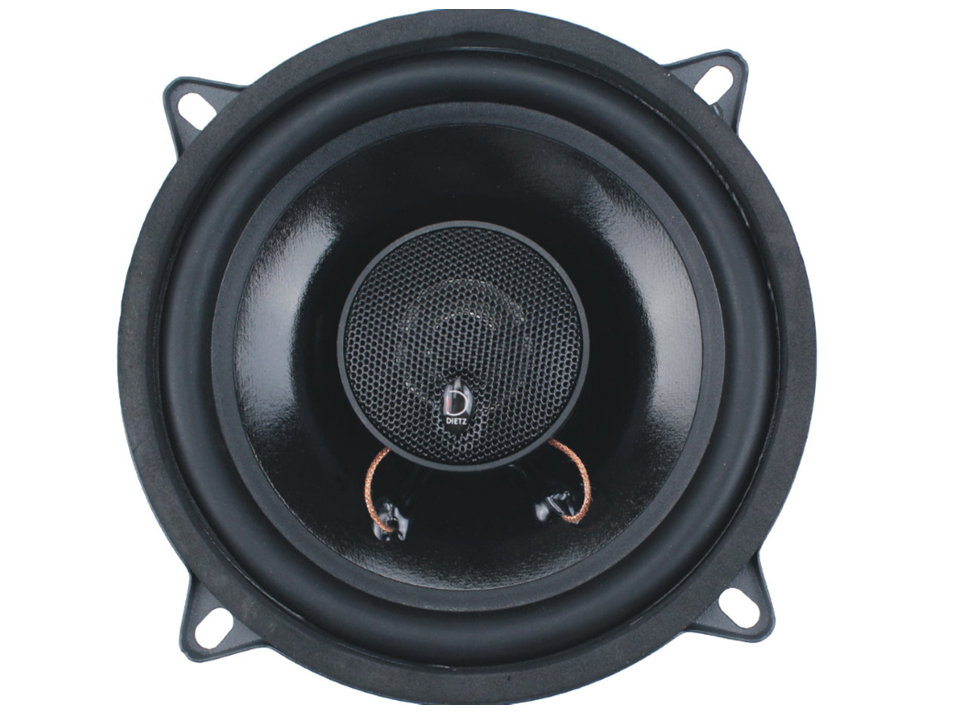

Dietz 2-way coax-speakers, 130mm, 5,25 Inch, 100 W, 1 pair

Active radio distributor for the vehicle or house interior with the following functions and features:
- Distribution of analogue radio and DAB, DAB+ frequency ranges
- Improvement of the reception quality of passive radio antennas
- Simple and quick mounting
- Cable type: RG 174
- Services: AM/FM, DAB, DAB+
- Connectors: SMB(f), DIN 41585(f), DIN 41585(m)

Note:
- The product is intended for typical roof/fender antennas.
- Do not use with integrated glass or active roof antennas

Additional information:
- Mounting: adhesive/screw mounting
- Additional info: Crossover
- Category/Special feature: Active crossover for passive single-cable solution

Also works with active FM/UKW antennas if the antenna itself does not filter the frequency band. With a phantom antenna, a phantom adapter must be inserted between the splitter and the antenna connection, e.g. 8551, as any phantom voltage from the radio is not passed through.

The best results are achieved when the splitter is combined with a passive FM/UKW/DAB antenna: - 16 V antenna: ATTB_2116_01 - Flex antenna with adjustable rod from 10-115 degrees: ATTB_3940_01 - Shark/shark antenna: ATTB_3759_01 These antennas always have a piece of cable 40cm with a Fakra socket. You can then use a possibly existing Fakra cable or bring the signal into the dashboard with the extension cable Dietz: 8479 (Fakra plug - DIN plug, length 5 metres). Connect the splitter there. If the radio has an ISO antenna connection for FM, you will also need the adapter, Dietz 8300.

Original article number: 4726.01

*************************************************************************************************
Product safety information:
Brand: ATTB
Manufacturer: ATTB Antennentechnik Bad Blankenburg GmbH, Gewerbegebiet 2, 07407 Rudolstadt, info@attb.de
*************************************************************************************************

Simple solution to build retro design surface mount loudspeakers. Suitable for our CX_130 series speakers. Simply screw a speaker from the CX-130 series and insert some damping material.
Content: 1 piece


*************************************************************************************************
Angaben zur Produktsicherheit/GPSR:
Marke/Trademark: Dietz
Hersteller/Manufacturer: Audiotechnik Dietz Vertriebs-GmbH, Maybachstr. 10, 67269 Grünstadt,
www.dietz.biz, verkauf@dietz.biz
*************************************************************************************************

Excellent roof antenna with the following features:
-flat angle of only 70 degrees, also ideal for front mounting if roof is not exactly horizontal.
- Antenna with short rod, length approx. 23 cm, in 16 V design.
- DAB+ reception 174-237 MHz & 1452-1492 MHz
- VHF/FM reception 87-108 MHz
- 12 V external power supply (no phantom powering possible)
- Low installation depth approx. 16 mm
- Gain: FM: 7 dB
- Gain: DAB+: 12dB
- Power supply: 12 volts, 100 mA
- Temperature range (-40 degrees to + 85 degrees Celsius)
- Impedance: 50 Ohm (DAB+); 75-150 Ohm (FM)
- Cable to antenna:
- Cable: RG 174, FM 300 mm, Fakra plug, white, code B
- Cable: RG 174, DAB+ 300 mm, Fakra plug, grey , code G

Note: This antenna is delivered without cable!

Recommended LOWLOSS extension cable:

9552: 5 metre lowloss cable for VHF/FM (with Fakra socket and DIN plug) and 5 metre lowloss cable for DAB+ (with Fakra socket and SMB socket.
9572: 7.5 metre lowloss cable for VHF/FM (with Fakra socket and DIN plug) and 7.5 metre lowloss cable for DAB+ (with Fakra socket and SMB socket).

or UNI LOWLOSS sets with different connectors for FM. With this cable set, 99% of the car radios on the market can be connected with our antennas. The sets consist of 2 LowLoss antenna cables with Fakra colour coding for VHF and DAB+.

- Lowloss cable Fakra socket - Fakra socket, beige
- Lowloss cable Fakra socket - SMB socket 90 degrees, Fakra G, grey
Adapter for VHF:
- Adapter with lowloss fakra cable - DIN plug
- Adapter with lowloss fakra cable - ISO plug

Variants:
UNI-2L500: Set with 5 m cable length
UNI-2L750: Set with 7,5 m cable length
UNI-2L1000: Set with 10,0 m cable length

Low-loss cables are the cables with the best electrical properties for the loss-free transmission of antenna signals. Our Lowloss cable series has the best conductivity values and thus the lowest cable resistance. They are achieved by using tinned strands for the inner conductor (7*d=0.25mm), for the shield (42*d=0.11mm) and an additional aluminium foil between the PE dielectric and the shield. Only high-quality Fakra plugs and sockets from Rosenberger are used. They have an excellent finish and fit due to a special punching and bending technology by Rosenberger (Fakra-SF).

Technical data of the low loss cable:

Characteristic impedance: 50 Ohm
Capacity: 95pF/m
Extended POLYTHEN insulation 2.00 mm
Aluminium foil shielding and additional
tinned copper braiding
Outer diameter: 3.6 mm

This antenna is also available with high quality LowLoss antenna extensions, (radio side DIN plug for FM and SMB socket for DAB+):

DZ_2113_52 with 2 extension cables 5.0 m (DIN plug/SMB socket).
DZ_2113_72 with 2 extension cables 7.5 m (DIN plug/SMB socket)
DZ_2113_L500 with 2 extension cables 5 m and 2 adapters (DIN plug/ISO plug/Fakra socket/SMB socket)
DZ_2113_L750 with 2 extension cables 7.5 m and 2 adapters (DIN plug/ISO plug/Fakra socket/SMB socket)
DZ_2113_L1000 with 2 extension cables 10 m and 2 adapters (DIN plug/ISO plug/Fakra socket/SMB socket)


*************************************************************************************************
