Can Bus -steering wheel interface for remote control of the most important functions of a radio, such as volume up, volume down, search function forward, search function back, mute (mute) and source (source selection) if available in the vehicle and supported by the respective radio brand. These 6 buttons are located on the back of the steering wheel, 3 on top of each other on the right and left side of the steering wheel. The telephone buttons on the front side of the steering wheel are also supported by this solution, if they are also supported by the radio protocol.
At the interface are still the following cables, which are connected as follows:
Speed: cable color pink
Handbrake: cable color green
For these functions the longer pink cable must be additionally pinned to the fuse box as described in the manual.
Reverse signal: cable color violet
For this function, the loose violet cable must additionally be pinned to the fuse box, as described in the instructions.
Only for vehicles with so-called camp preparation, i.e. for vehicles without radio ex works!
Important note: Please note that the gray 6-pin connector of the interface in the vehicle may only be connected to the also gray connector and not to the orange connector.

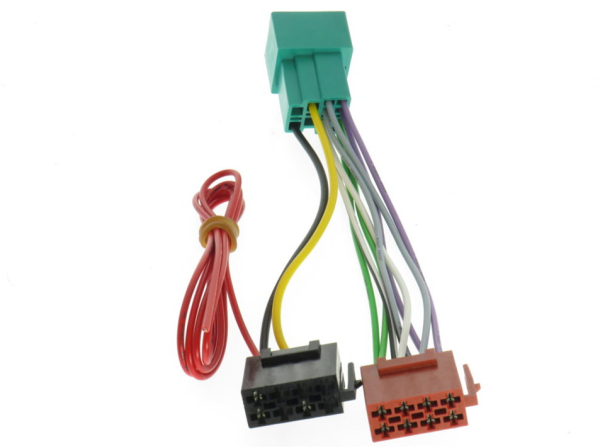

The interface is delivered with a plug & play cable set for the main functions. Some cables must be connected to the fuse box as described above.
For the following vehicles :
FIAT:
Ducato 8 (model year 2022-)
For the interface a radio specific adapter cable is still needed:
ALPINE (69001)
BLAUPUNKT (69002) (2-DIN devices from approx. 2015 except series 990)
KENWOOD (69005)
PIONEER, AUDIOVOX, DYNAVIN, MAC AUDIO (69021)
SONY (69006)
ZENEC (69029)
or universal cable 69111
Note: This interface supports only the above radio brands. The use of the universal cable 69111 is only possible for the above mentioned brands.
