The antenna A10 is, according to our tests, at the moment the best antenna for optimal radio reception in camper van. The electronics, the antenna radiator and the antenna supports are perfectly matched to each other. For vehicles where the height does not matter, we always recommend the 23 cm antenna radiator. You will be thrilled!

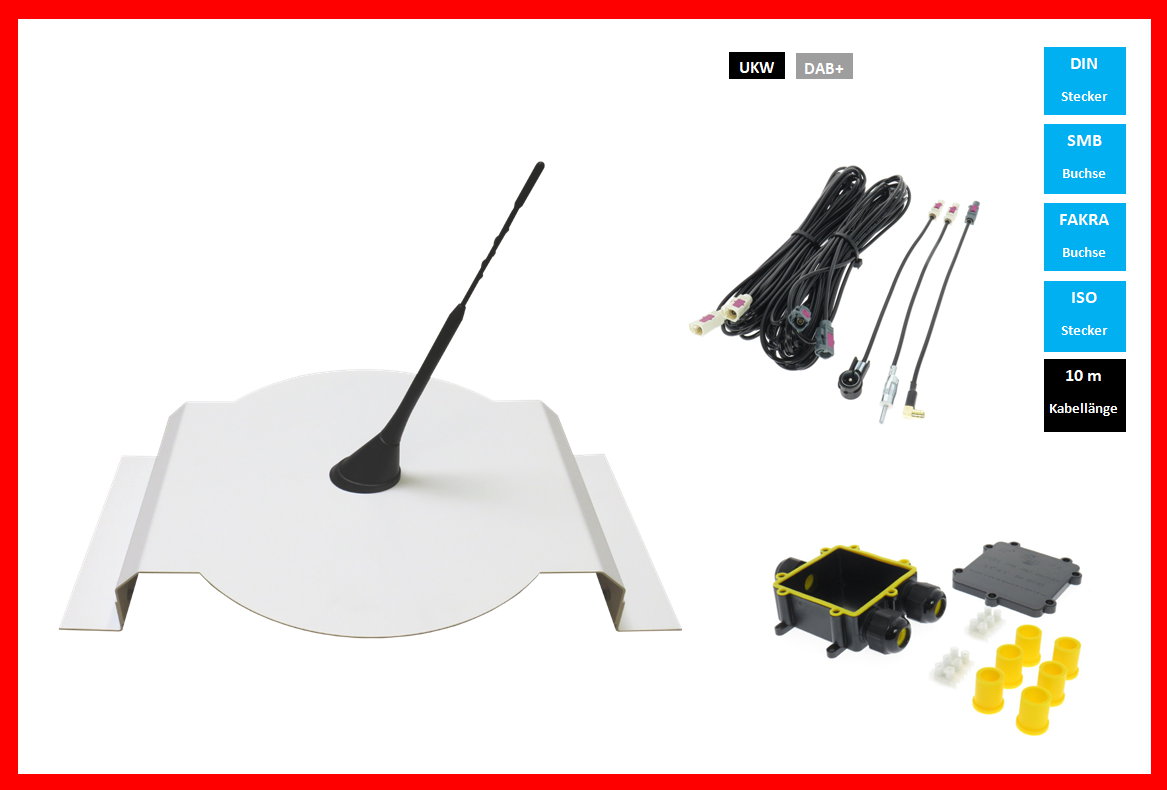

Delivery contents:
Antenna A10

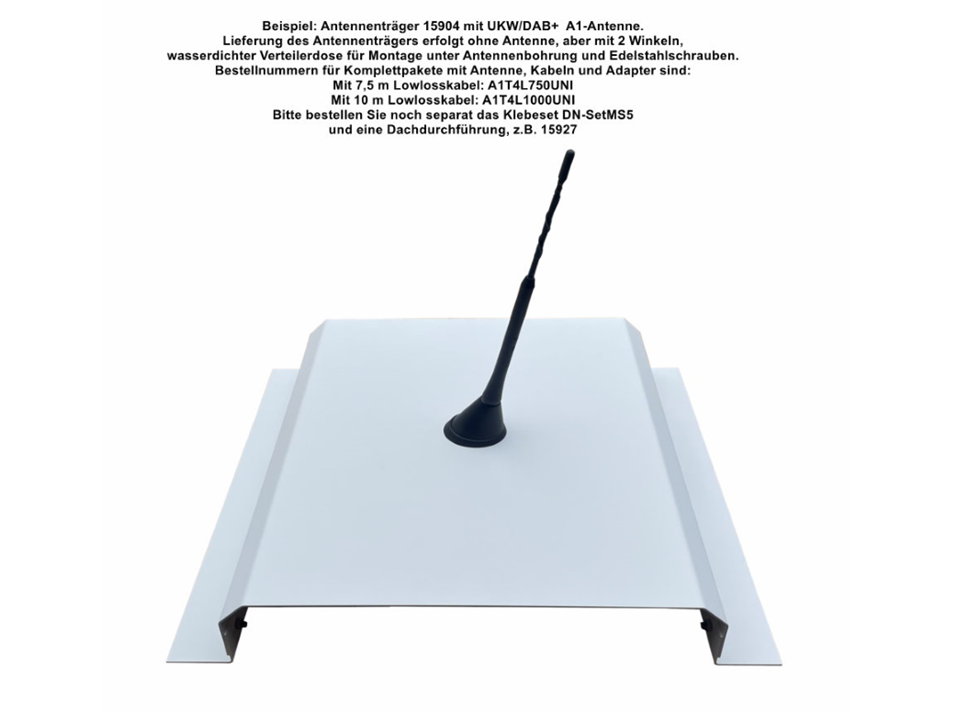

Antenna support 4, stainless steel 360*360*1,5 mm, painted white
central hole d= 20 mm

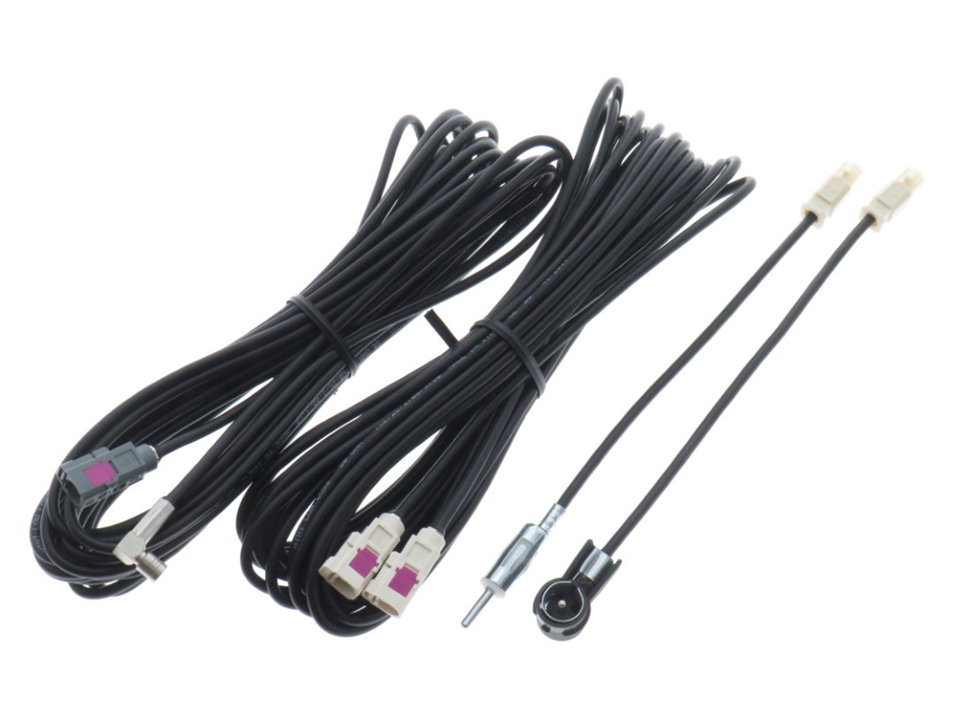

Lowloss cable 10 m, Fakra socket - Fakra socket, for VHF
Adapter 1: Fakra plug - DIN plug
Adapter 2: Fakra plug - ISO plug
Lowloss cable 10m, Fakra socket - SMB socket , for DAB+

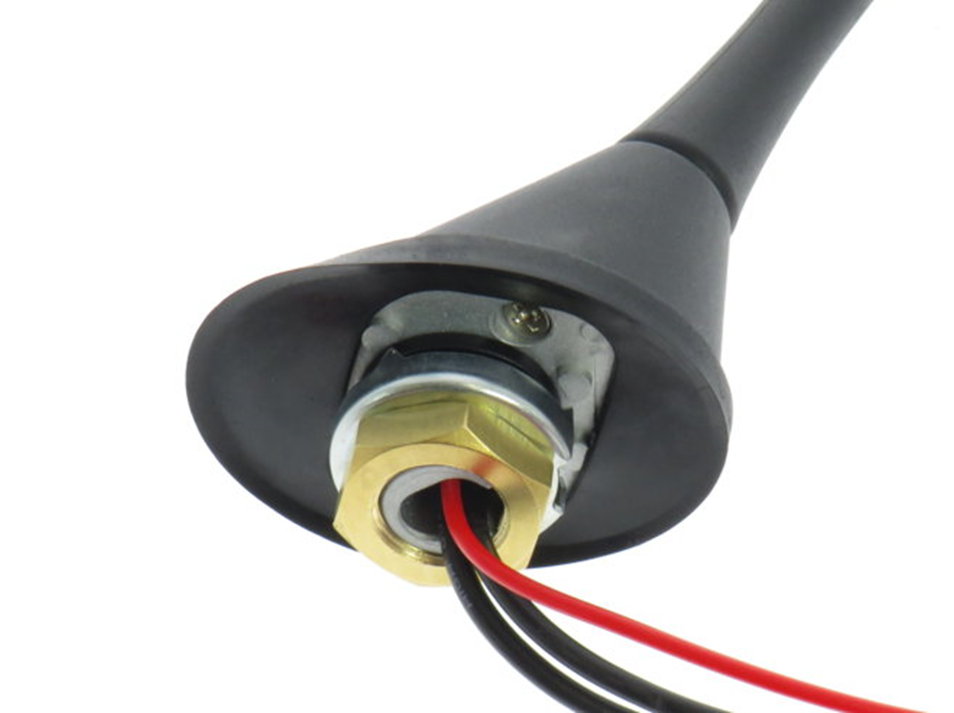

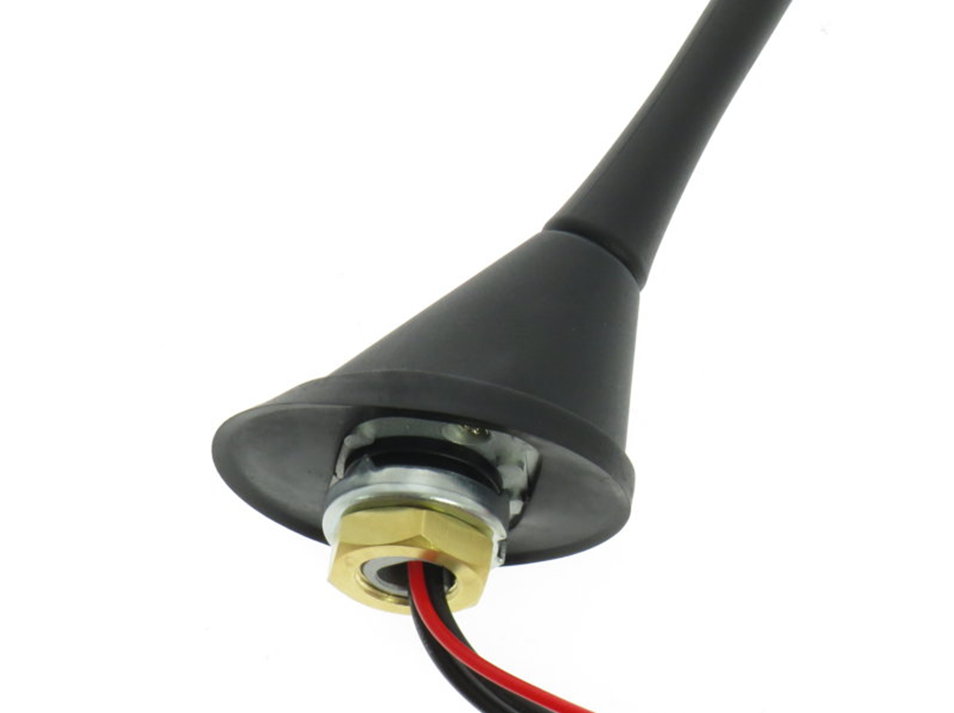

Roof antenna with the following features:
- 16V antenna with long rod, length approx. 23cm
- DAB+ reception, active and low noise in the BAND 3
- VHF/FM/AM reception, active and low noise
- 12 Volt power supply via external cable 0,75 mm2 (no phantom power possible)
- low installation depth (approx. 15 mm)
- gain: FM: 9 dB
- Gain: DAB+: 14 dB
- power supply: 12 Volt, 30mA

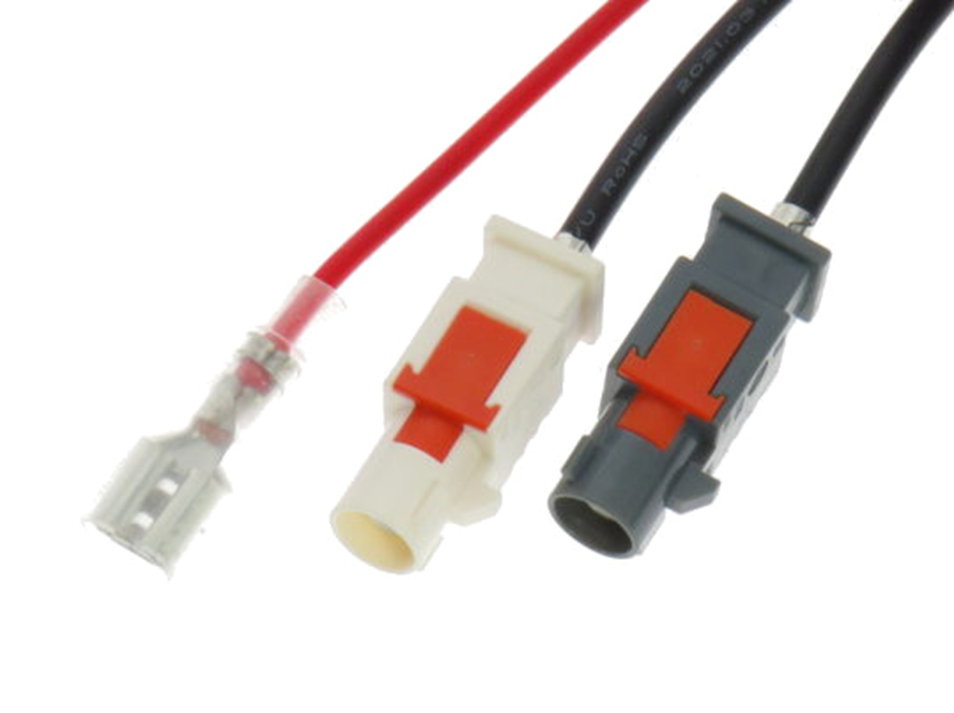

- cable: RG 174, FM 300 mm, Fakra plug, white, code B
- Cable: RG 174, DAB+ 300 mm, Fakra plug, gray, code G
Low-Loss cables (...low loss cables) are the cables with the best electrical properties for lossless transmission of antenna signals. Our lowloss cable series has best conductance values and therefore lowest cable resistance. They are achieved by using tinned strands for the inner conductor (7*d=0,25mm), for the shield (42*d=0,11mm) and an additional aluminum foil between the PE dielectric and the shield. Only high quality Fakra plugs and sockets from Rosenberger are used. They have excellent workmanship and fit due to a special punching-bending technology of Rosenberger(Fakra-SF).
Technical data:
Characteristic impedance: 50 Ohm
Capacitance: 95pF/m
Extended POLYTHEN insulation 2.00 mm
Aluminum foil shielding and additional tinned copper braiding
Outer diameter: 3.6 mm
Note: This set replaces the previous sets:
A1T4L1000UNI
*************************************************************************************************
