High-quality DAB+ splitter including two downstream amplifiers from Antenne Bad Blankenburg, Art. No. 4721.01 or 4721_01
Generates an additional DAB/DAB+ signal from a VHF/FM antenna
Connections to the radio:
Fakra plug
DAB/DAB+: Fakra plug
Connection to the antenna: Fakra plug
Also works with active FM/UKW antennas if the antenna itself does not filter the frequency band. In the case of a phantom antenna, a phantom adapter must be inserted between the splitter and the antenna connection, e.g. 8551.
For adaptation to radios with ISO and DIN connectors we recommend the complete kits 41107 and 41108 or the use of the following adapters: (not included in delivery.)
8524 Fakra socket DIN plug
8514 Fakra socket DIN socket
8525 Fakra socket ISO plug

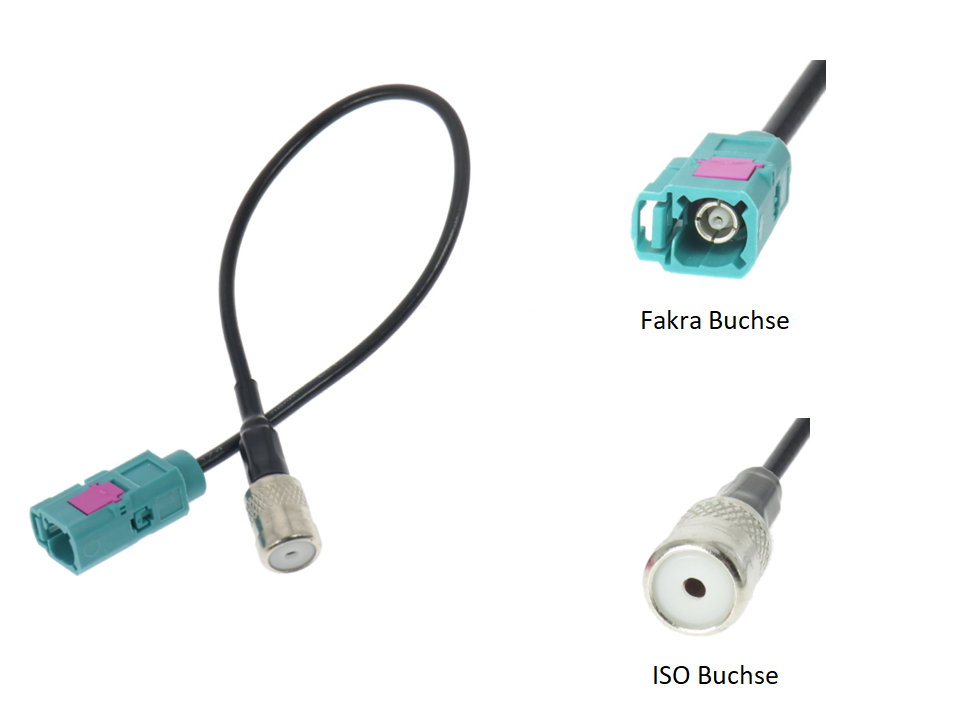

8555 Fakra socket ISO socket
8526 Fakra socket SMB socket
8527 Fakra socket SMA plug
8529 Fakra socket to Fakra socket
For the adaptation in vehicles with M10 antenna connection (screw thread) you need the following accessories. Assumption: Antenna with screw connection in the boot, e.g. BMW E36, and splitter is to be installed in the boot:
From the antenna to the splitter input:
ATTB_2327_02 with adapter 8529
From the splitter to the existing cable for VHF:
ATTB_2348_02
From splitter to DAB receiver:
9482, 5 m cable with SMB socket for digital receiver
*************************************************************************************************
Product safety information:
Brand: ATTB
Manufacturer: ATTB Antennentechnik Bad Blankenburg GmbH, Gewerbegebiet 2, 07407 Rudolstadt, info@attb.de
*************************************************************************************************
