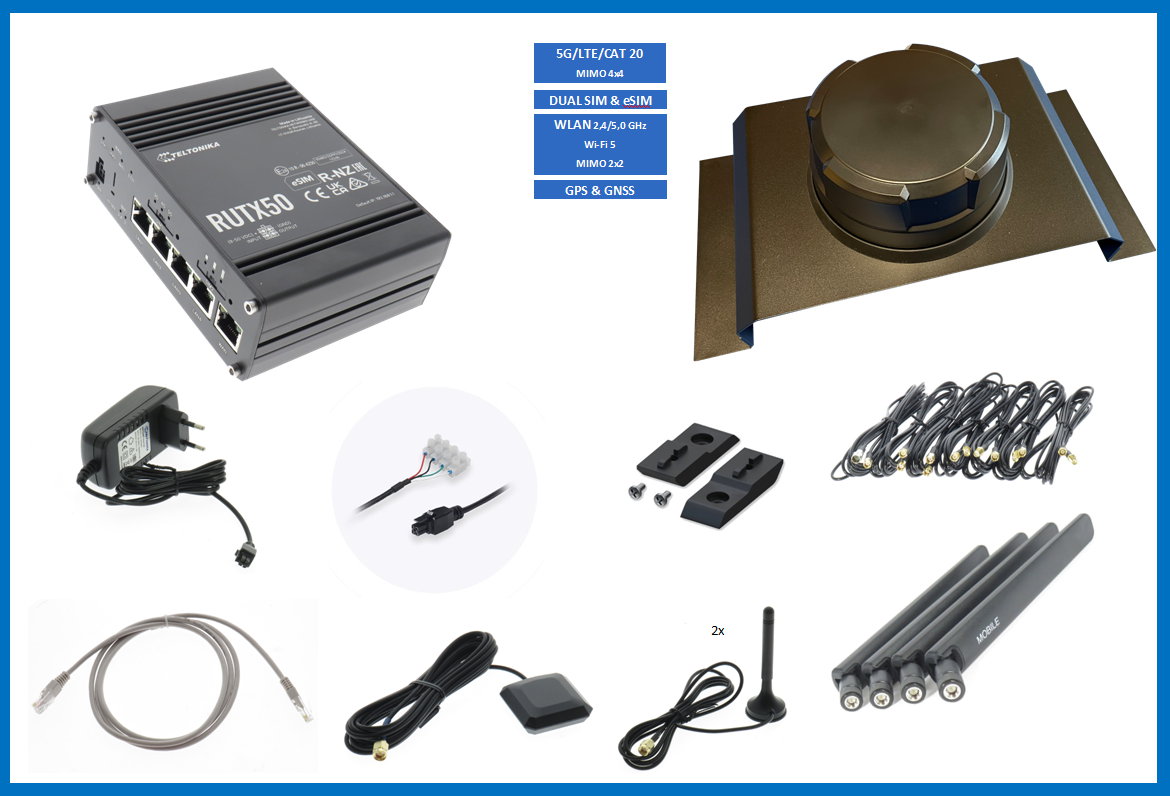

Router - antenna - roof mount - set, perfectly matched, consisting of the following components:

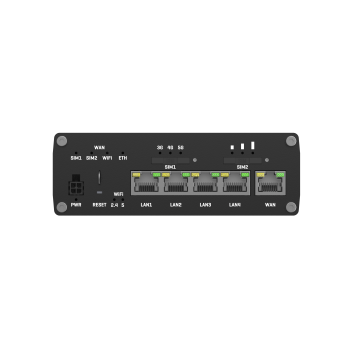

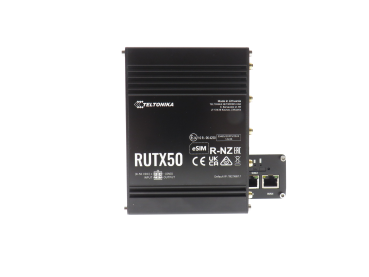

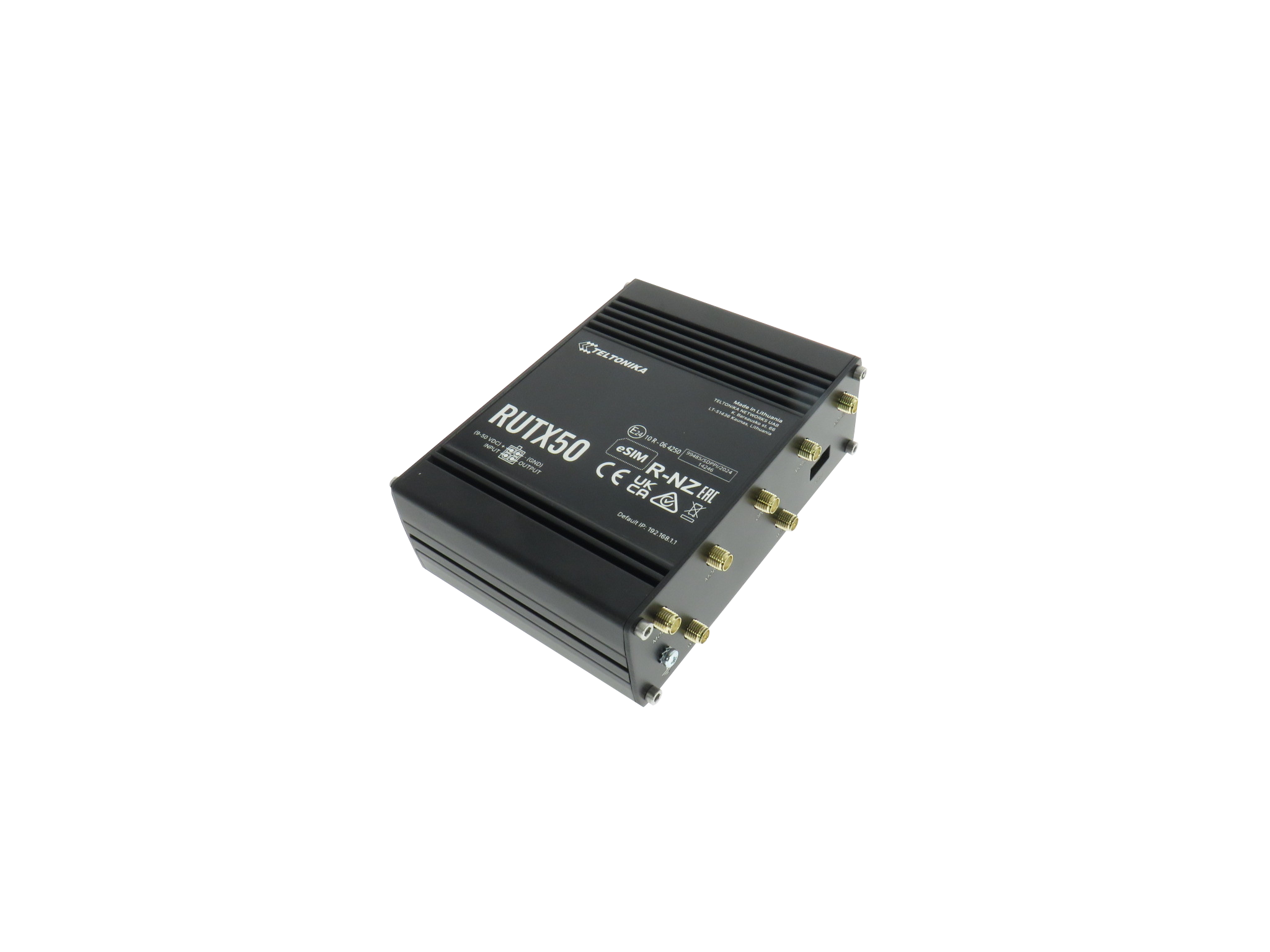

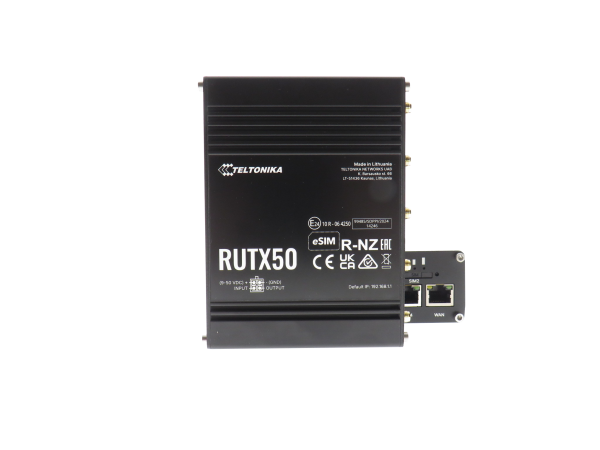

Teltonika 5G/WLAN Router RUTX50

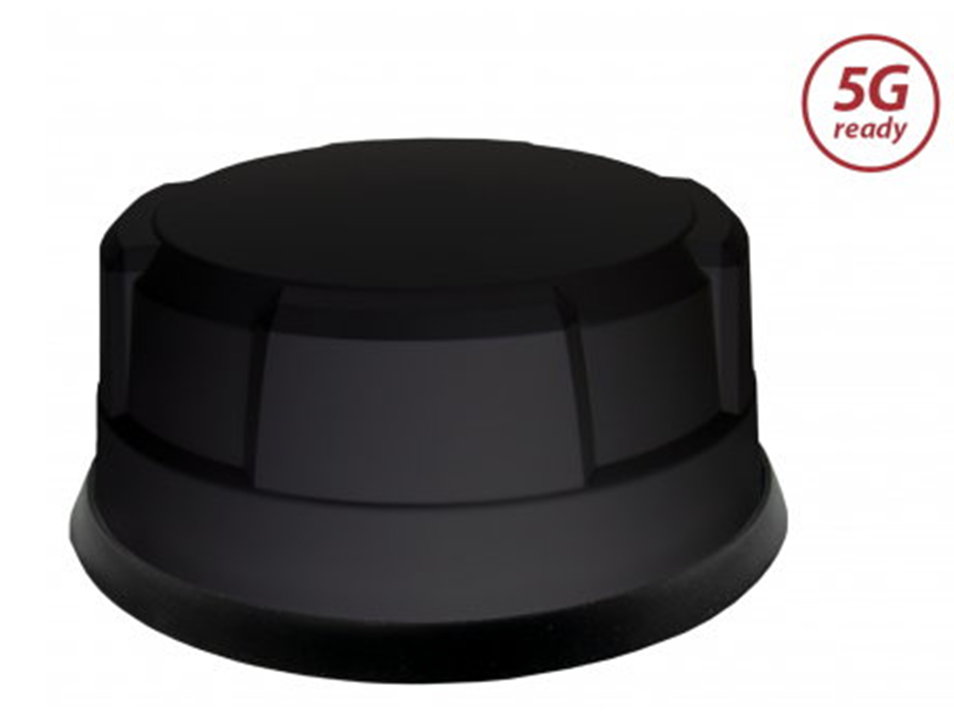

Panorama antenna ANT515B (antenna LGMDMB4-6-60-24-58 with 7-piece cable set 1.5 m)

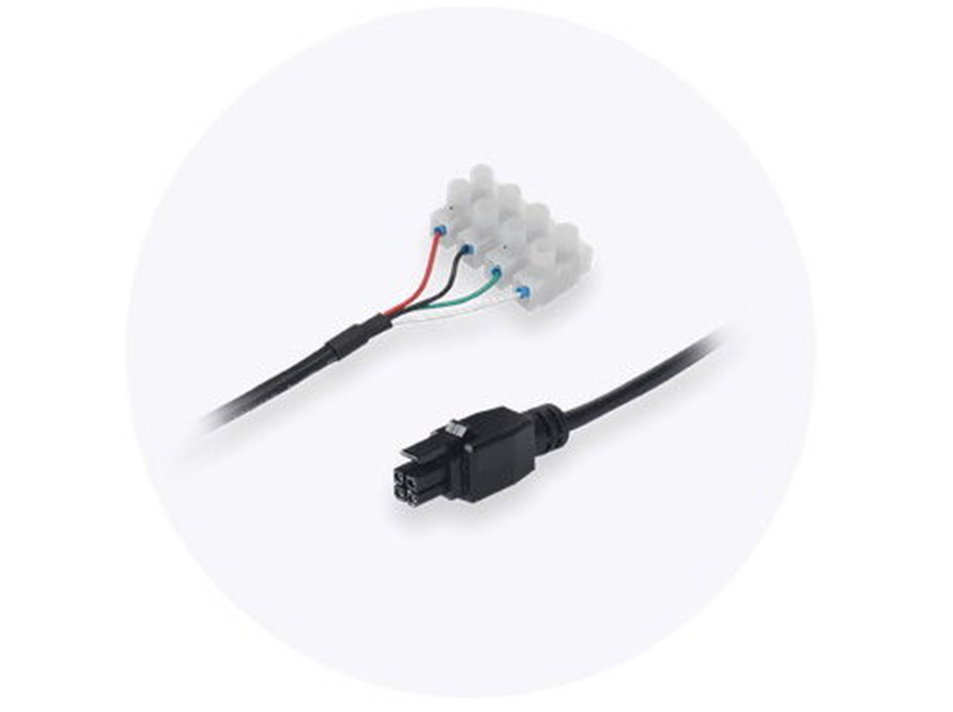

12 volt connection, TEL-12V

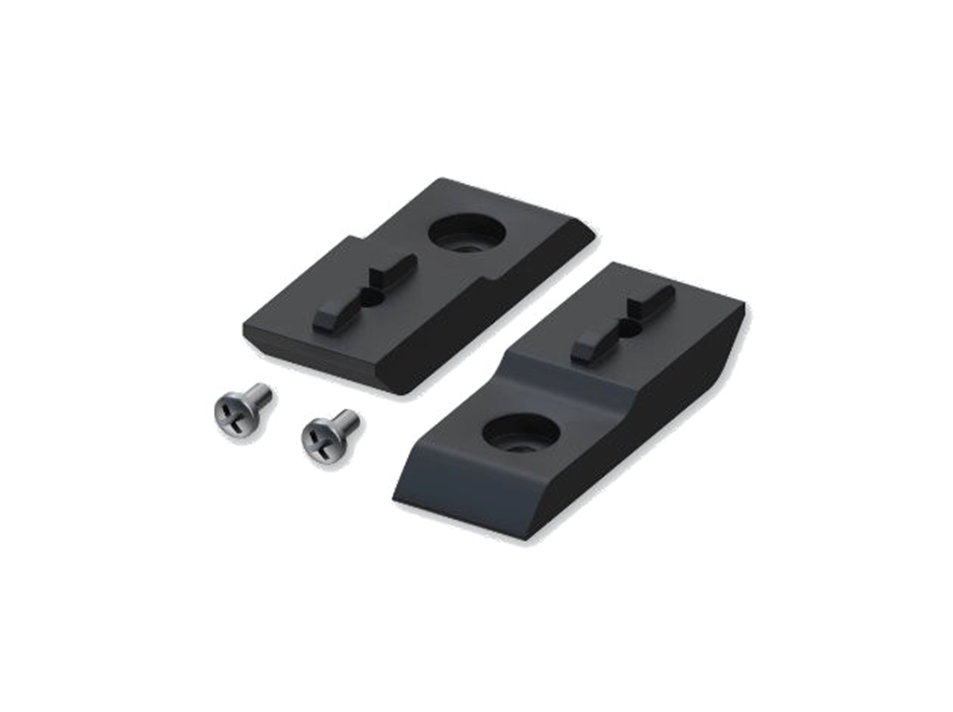

Mounting kit, TEL-MON2

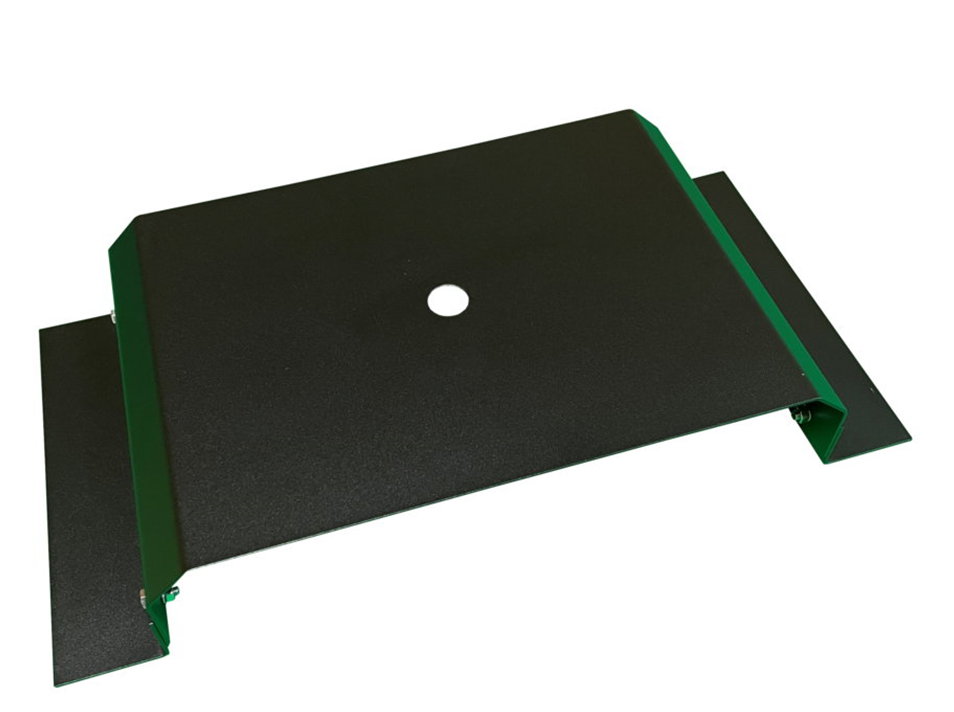

Antenna carrier 15908

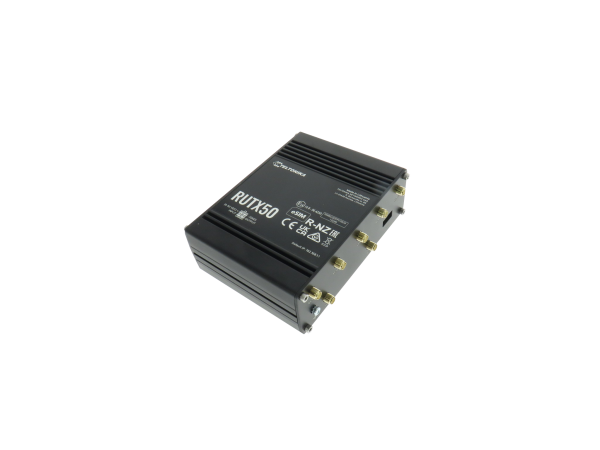

RUTX50 is your future-proof, multi-network industrial router, offering 5G mobile communication for high-speed and data-heavy applications.
5G dual SIM cellular communication combined with 5 Gigabit Ethernet ports and dual-band Wi-Fi enables reliable ultra-low latency data transfer.
The power of 5G technology, combined with a wide range of interfaces and industrial hardware features, ensures adaptability for future upgrades and expansions.
RUTX50 comes with the RutOS, which provides advanced security features and specialized industrial protocols for a wide range of professional application scenarios, and is compatible with our Remote Management System (RMS), for optimized remote management and monitoring capabilities of large fleets of devices.
Technical data:
- Cellular: 5G sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G (LTE) - LTE Cat 20 2.0Gbit/s DL, 200Mbit/s UL; 3G - 42Mbit/s DL, 5.76Mbit/s UL.
- CPU: Quad-core ARM Cortex A7, 717 MHz
- Flash storage: 256 MB
- RAM: 256 MB
- Power supply: 4-pin socket, 9-50 VDC
- SIM: 2 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V

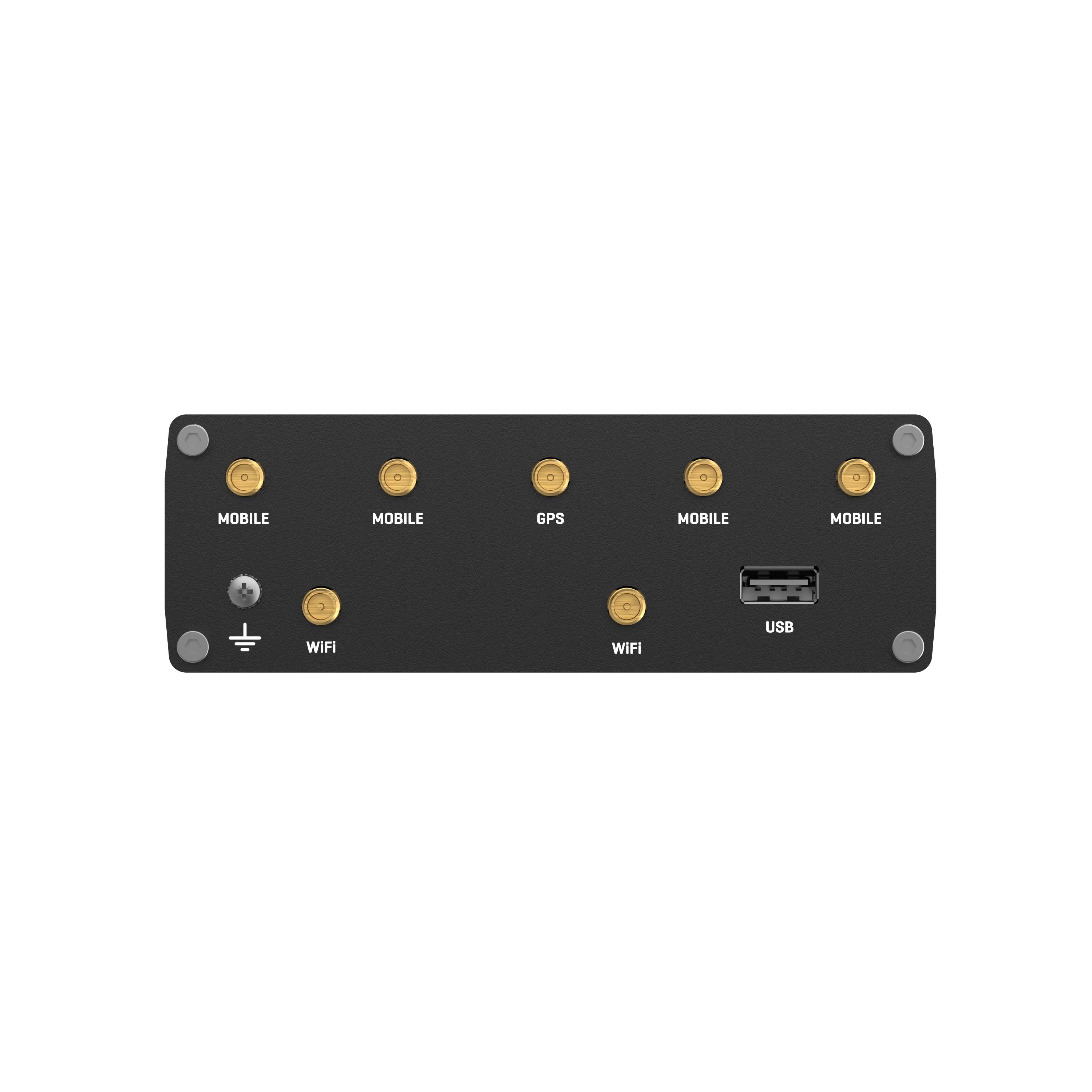

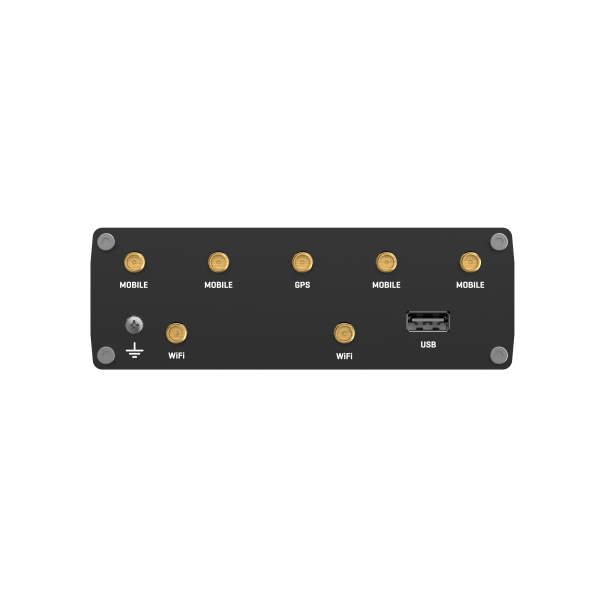

- Antenna connections: 4 x SMA for mobile, 2 x RP-SMA for WiFi, 1 x SMA for GNSS

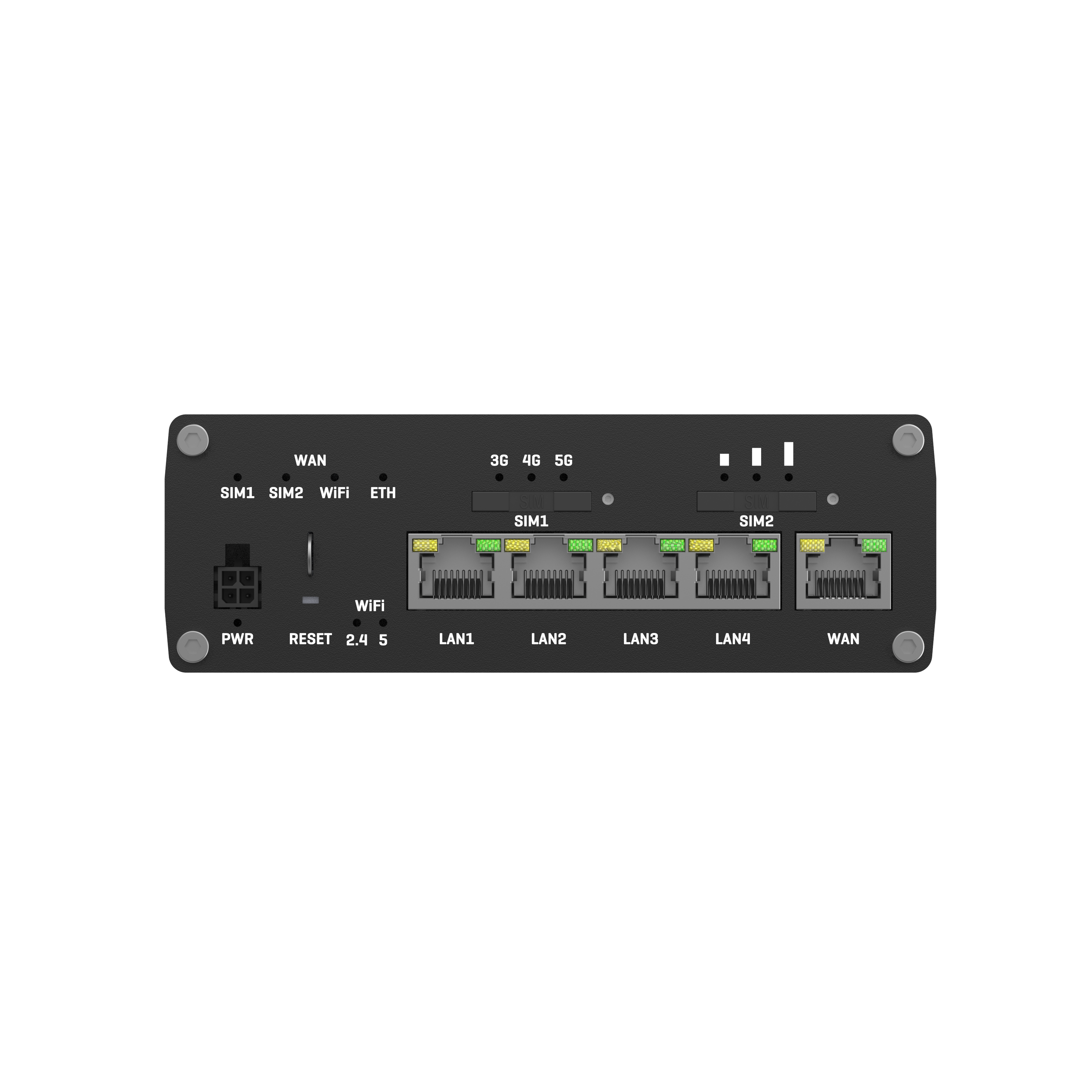

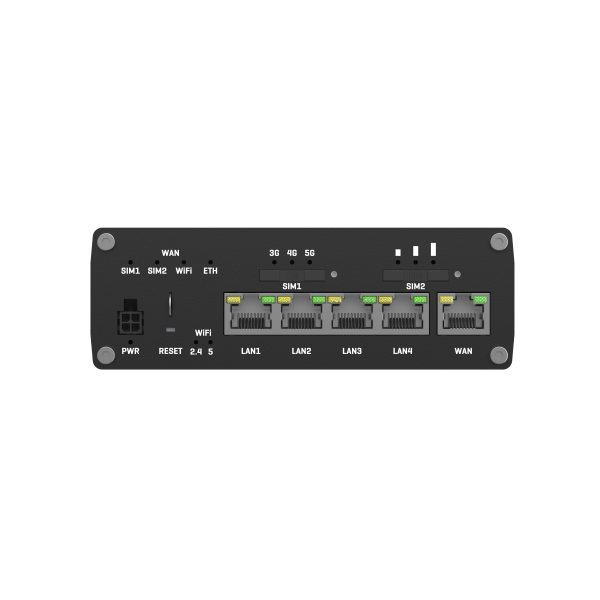

- Ethernet: 5 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 4 x LAN
- WiFi: 802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates of up to 867 Mbps (Dual Band,
MU-MIMO), 802.11r fast transition, access point (AP), station (STA)
- Wireless networking/roaming: Wireless networking (802.11s), fast roaming (802.11r)
- GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
- Inputs/outputs: On 4-pin socket: 1 x digital input, 1 x digital open collector output
- Other: 1 x USB host, 1 x ground screw
- Status LEDs: 3 x link status LEDs, 3 x link strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1x power LED, 2 x 2.4G and 5G WiFi LEDs
- Operating temperature: -40 °C to 75 °C
- Housing: Aluminium housing, DIN rail (can be mounted on both sides), flat installation surface
- Dimensions: (W x H x D) 132 x 44.2 x 95.1 mm
- Weight: 533 g
Software:
- Operating system: RutOS (OpenWrt-based Linux OS)
- Mobile phone functions: Multiple PDN, Auto APN, band lock, SIM change, operator blacklist/whitelist, data/SMS limits.
- Network functions: Routing, failover, firewall, DHCP, DDNS, load balancing, VoIP passthrough, connection monitoring
- Monitoring and management: WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
- VPN and tunneling: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier
- Cloud solutions: RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
- Hotspot External/Internal Radius, SMS OTP, MAC Authentication, Walled Garden
- GNSS: NMEA forwarding, AVL, geofencing
Standard package of the router contains:
- RUTX50 Router
- 230 Voltage Power Supply, 18 W PSU
-12 Voltage cable
- Holding kit, Tel-MON2
- 4 x Mobile antennas (swivel, SMA male)
- 2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
- 1 x GNSS antenna (adhesive, SMA male, 3 m cable)
- Ethernet cable (1.5 m)
- SIM Adapter kit
- QSG (Quick Start Guide)
- Packaging box
*************************************************************************************************
