Highest quality and reliability "Made in Germany".
The ATTB 4934.06 station antenna is an antenna developed and manufactured by Antennentechnik Bad Blankenburg for energy and water suppliers, smart metering and smart grids. ATTB specialises in radio-based networking solutions for various industries and applications. With its own research, development and production, ATTB has stood for the highest quality and reliability "Made in Germany" since 1919.
We drive connectivity: networking without compromise

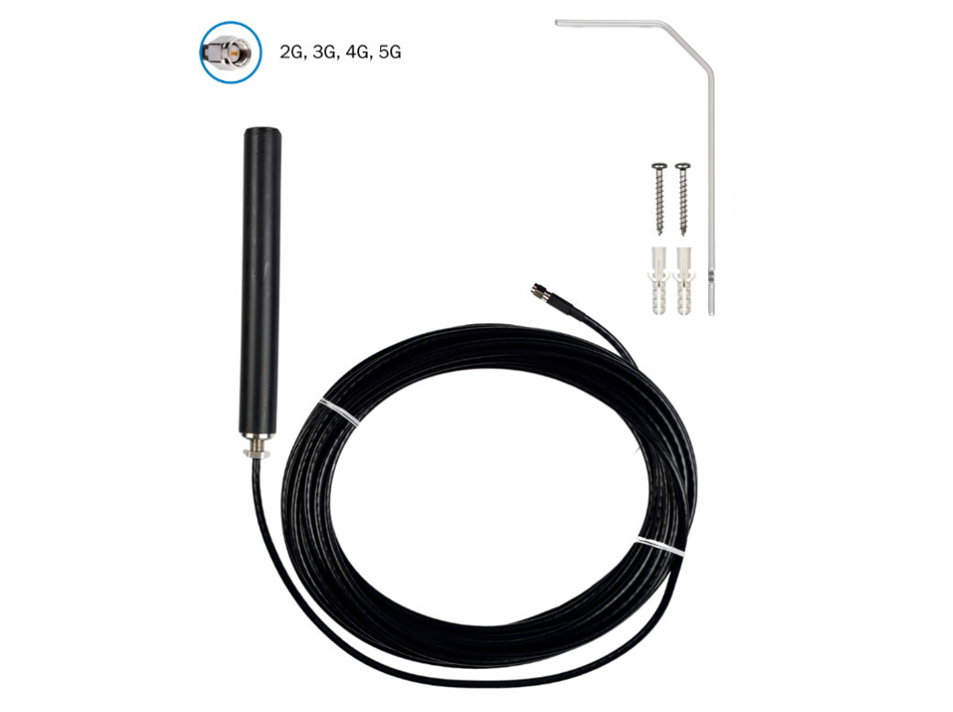

The ATTB multiband station antenna 4934.06 establishes reliable, high-performance radio connections in the areas of mobile radio, LoRa, Bluetooth and WLAN. It undergoes the most stringent testing processes, is manufactured in Germany from high-quality components and offers first-class transmission and reception performance - even under the most difficult conditions.
Frequency bands and communication services
The ATTB 4934.06 multi-band antenna covers several frequency bands and thus communication services. These include GSM (2G), UMTS (3G), LTE (4G), 5G, 868 MHz (LoRa), Bluetooth and WLAN.
- In the mobile radio range, the services 2G/3G/4G/5G are available (735 - 960 MHz; 1544 - 3194 MHz; 3400 - 3800 MHz).
- In the LoRa band, the frequency 868 MHz is used.
- The local wireless network (Bluetooth, WLAN, WiFi) is established in the frequency bands 2400 - 2500 MHz
Special features and properties
- Can be used indoors and outdoors
- Available in various cable lengths
- Vertical mounting by means of mounting bracket
- Bolted mounting bracket for fixed and quick installation
- Minimum mounting distance (10 cm with 15 dB decoupling)
- Metal surfaces near the spotlight should be avoided
- Radiator is protected in a plastic tube
- HF cable is permanently connected to the antenna
- The antenna has an omnidirectional radiation pattern
- 2 antennas are required for MIMO applications
- Cable type: low loss
- Services: UMTS, Bluetooth, 868MHz, 2G, 5G, GSM, 4G, LTE, WLAN, ISM868, 3G
- Cable length: 15 m
- Connectors: SMA(m)

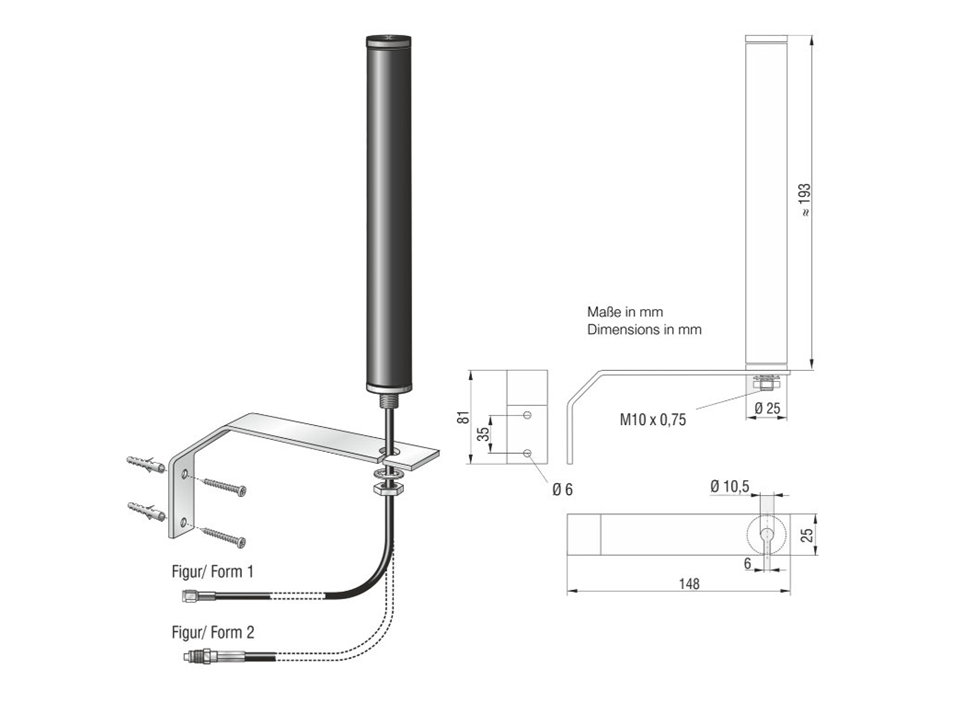

Dimensions:
- Width: 25 mm
- Height: 193 mm
- Length: 25 mm
- Weight: 0.788 kg
For some routers the following additional adapters are required:
- newer models with TS-9 connector: 8671
- older models with CRC-9 connector: 8672
*************************************************************************************************
Product safety information:
Brand: ATTB
Manufacturer: ATTB Antennentechnik Bad Blankenburg GmbH, Gewerbegebiet 2, 07407 Rudolstadt, info@attb.de
*************************************************************************************************
