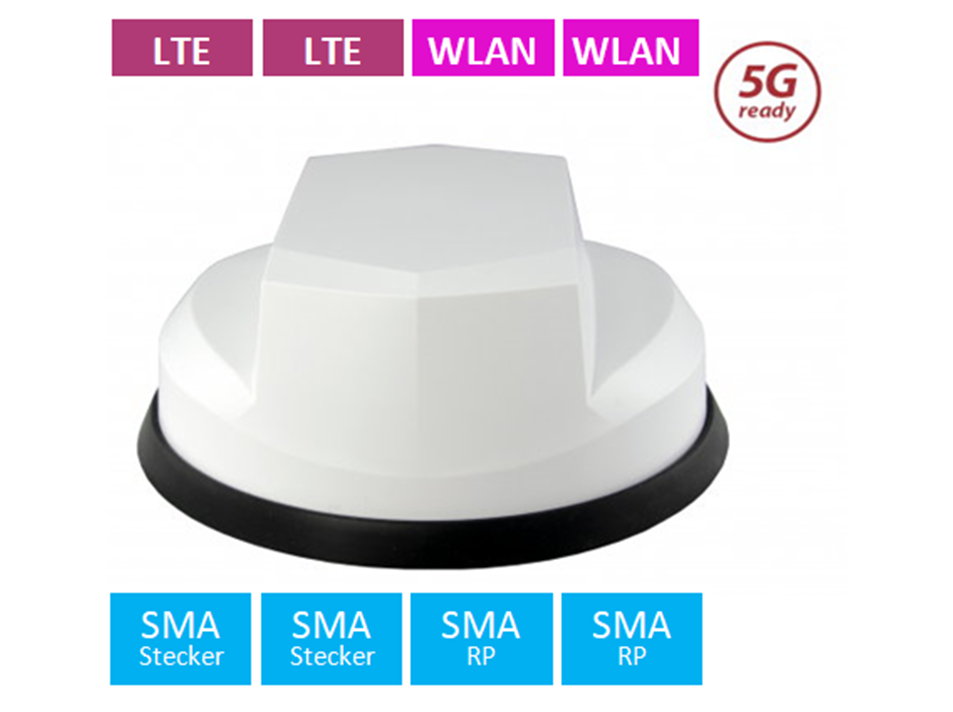

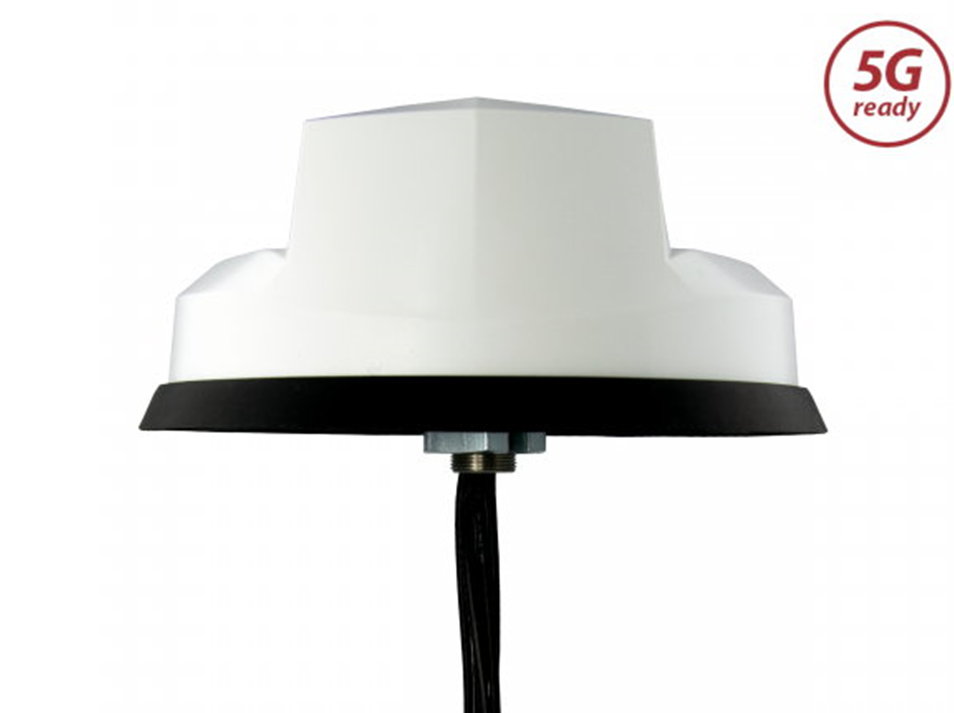

Panorama antenna suitable for all LTE and 5G routers without GPS input.
Especially for Rut951, Rut950, Rut 360, CamperNet and all other 4G and 5G routers.
The antenna features 2 receiving elements for LTE/5G and two receiving elements for WLAN.
Technical data:
Colour: white
Frequency
Element1: 617-960MHz, 1710-6000MHz
Element2: 617-960MHz, 1710-6000MHz
Element3: 2400/4900-6000MHz
Element4: 2400/4900-6000MHz
Gain:
Element 1&2 @617-960MHz 5dBi
Element 1&2 @1710-3800MHz 9dBi
Element 1&2 @4900-6000MHz 10dBi
Element 3-4 @2400MHz 8dBi
Element 3-4 @4900-6000MHz 10dBi
Typical efficiency:
Element 1&2: 70%
Element 3-4: 80%
Isolation: LTE >12dB, WIFI >20dB
Resistance: 50 Ohm
Dimensions: Height 75mm/ Diameter 180mm
Mounting: 1-hole mounting 19 mm
Cable length to antenna: 0.3m
Connector:
SMA male(m) [4G/5G]
SMA socket(f) [WIFI]
Cable set:
The antenna is supplied with a cable set consisting of 4 cables for the above routers, each 1.5 metres in length:
2 x LTE with SMA connector
2 x WLAN with SMA RP connector
This antenna is available in the following versions:
PAN-ANT330B: Black with cable set in 3.0 m
PAN-ANT315B: Black with cable set in 1.5 m
PAN-ANT330: White with cable set in 3.0 m
PAN-ANT315: White with cable set in 1.5 m
*************************************************************************************************
