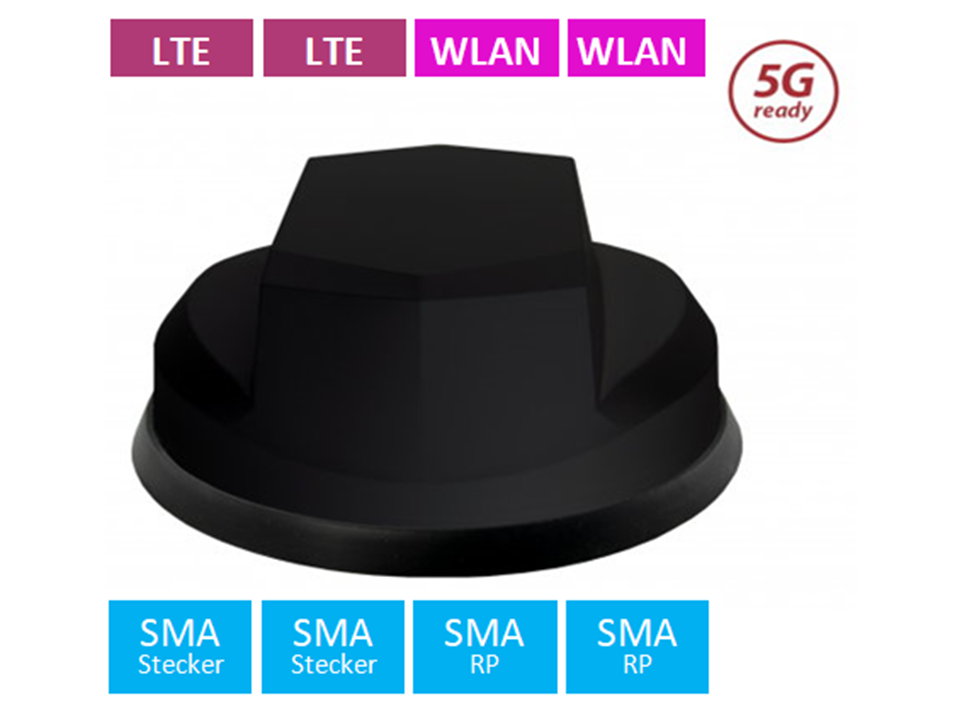

Panorama antenna suitable for all LTE and 5G routers.
Especially for RUTX14, RUTX12, but also downward compatible with RutX11, Rut956, Rut955, Rut951, Rut950, Rut 360, CamperNet and all other 4G and 5G routers.
The antenna features 2 receiving elements for LTE/5G.
Technical data:
Colour: black
Frequency
Element1: 617-960MHz, 1710-6000MHz
Element2: 617-960MHz, 1710-6000MHz
Element3: 2400/4900-6000MHz
Element4: 2400/4900-6000MHz
Element5: 1562-1612MHz (GPS;GNSS)
Gain:
Element 1&2 @617-960MHz 5dBi
Element 1&2 @1710-3800MHz 9dBi
Element 1&2 @4900-6000MHz 10dBi
Element 3-4 @2400MHz 8dBi
Element 3-4 @4900-6000MHz 10dBi
Element 5 @1562-1612MHz (GPS;GNSS) 26dB LNA
Typical efficiency:
Element 1&2: 70%
Element 3-4: 80%
Isolation: LTE >12dB, WIFI >20dB
Resistance: 50 Ohm
Dimensions: Height 75mm/ Diameter 180mm

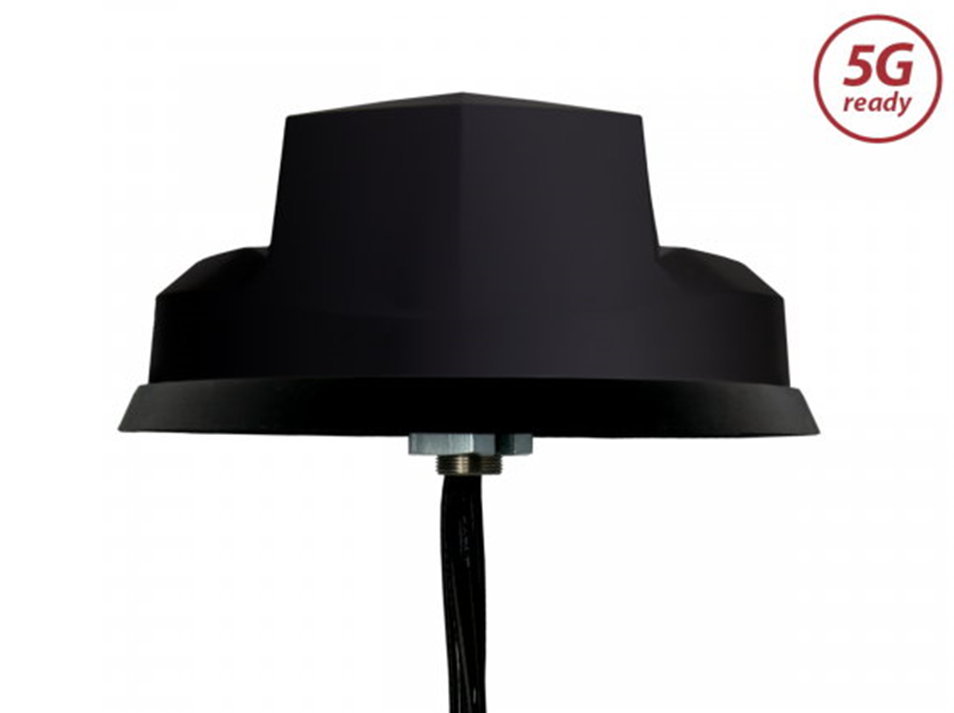

Mounting: 1-hole mounting 19 mm
Cable length to antenna: 0.3m
Connector:
SMA male(m) [4G/5G]
SMA socket(f) [WIFI]
FME female(f) [GPS].
Cable set:
The antenna is supplied with a cable set consisting of 5 cables for the above routers in the length of 3 metres each:
2 x LTE with SMA connector
2 x WLAN with SMA RP connector
1 x GPS with SMA connector
This antenna is available in the following versions:
PAN-ANT430B: Black with cable set in 3.0 m
PAN-ANT415B: Black with cable set in 1.5 m
PAN-ANT430: White with cable set in 3.0 m
PAN-ANT415: White with cable set in 1.5 m
*************************************************************************************************
