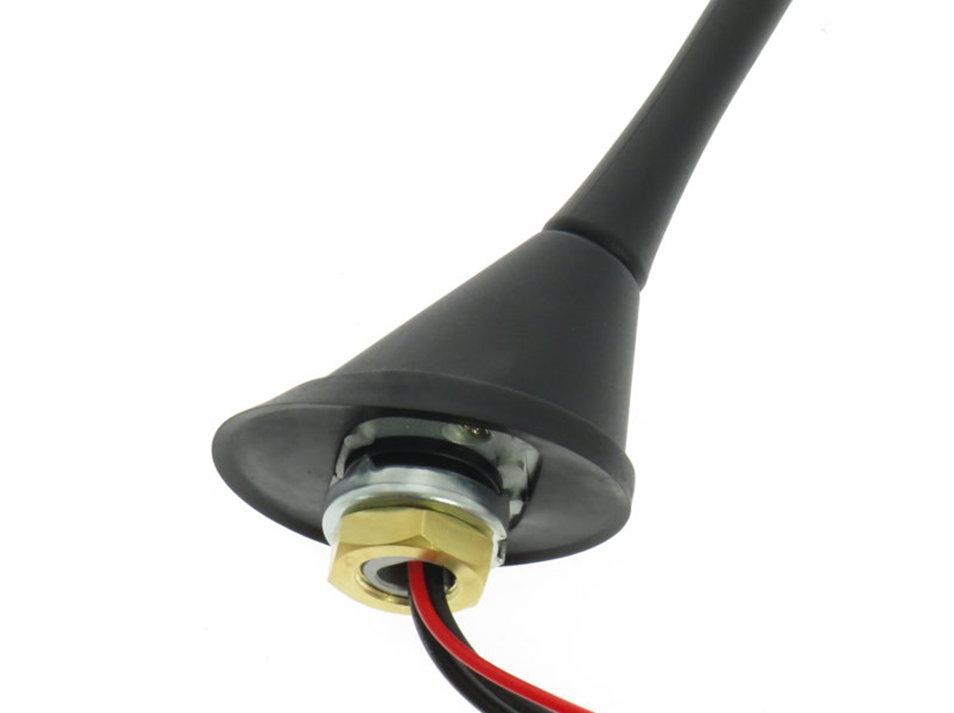

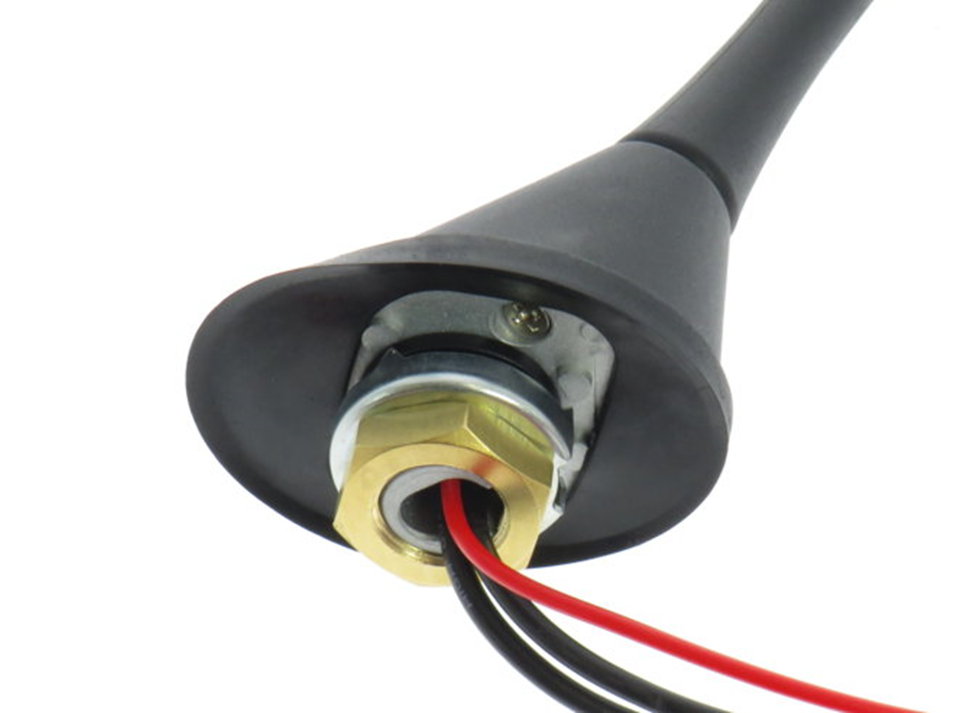

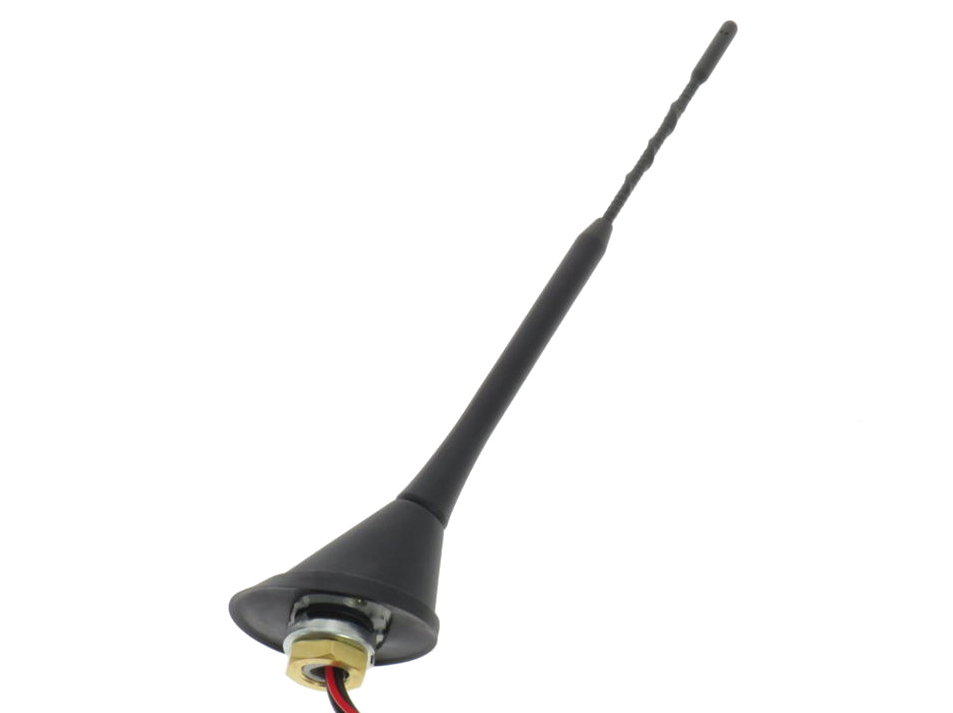

Excellent roof antenna with the following features:
-flat angle of only 70 degrees, also ideal for front mounting if roof is not exactly horizontal.
- Antenna with short rod, length approx. 23 cm, in 16 V design.
- DAB+ reception 174-237 MHz & 1452-1492 MHz
- VHF/FM reception 87-108 MHz
- 12 V external power supply
- Low installation depth approx. 16 mm
- Amplification: FM: 9 dB

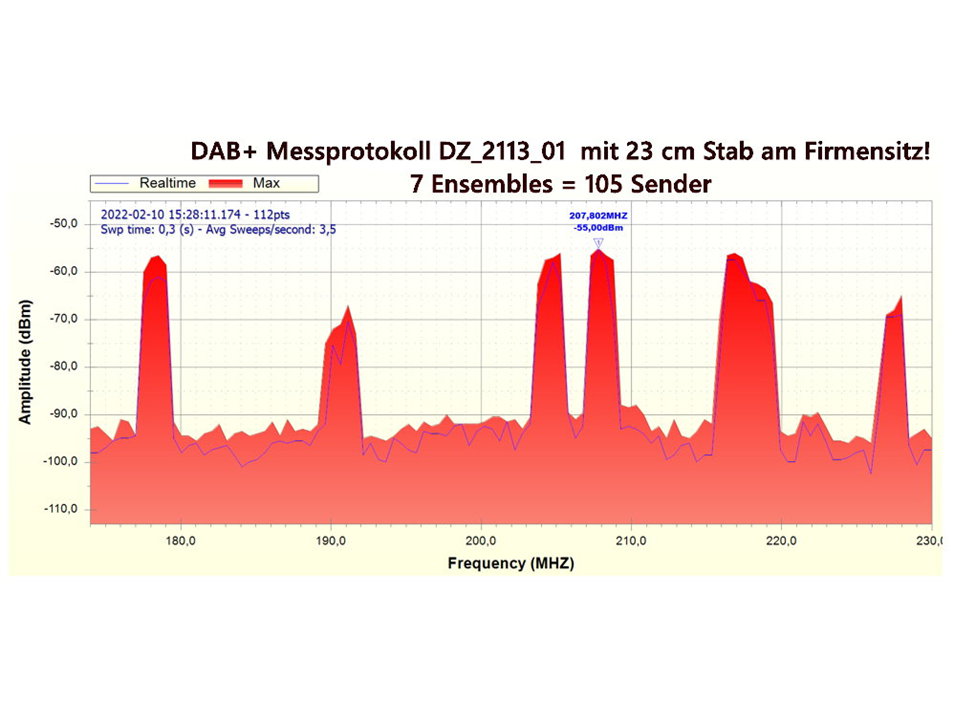

- Gain: DAB+: 14 dB
- Power supply: 12 volts, 100 mA
- Temperature range (-40 degrees to + 85 degrees Celsius)
- Impedance: 50 Ohm (DAB+); 75-150 Ohm (FM)

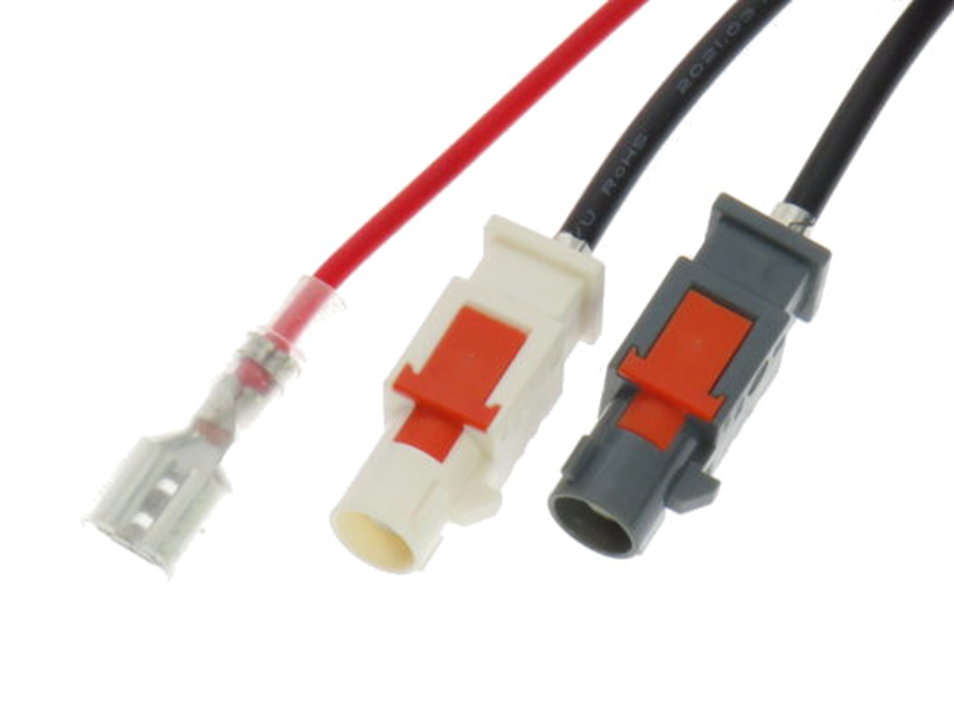

- Cable to antenna:
- Cable: RG 174, FM 300 mm, Fakra plug, white, code B
- Cable: RG 174, DAB+ 300 mm, Fakra plug, grey, code G

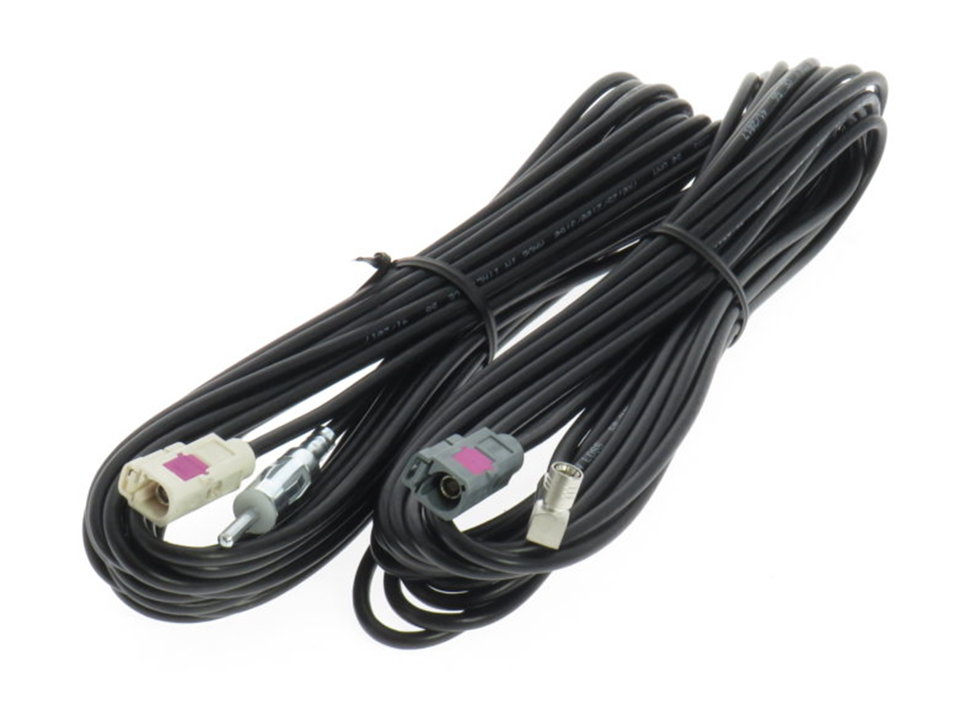

Note: This antenna is supplied with cable set 9572.
9572: 7.5 metre lowloss cable for VHF/FM (with Fakra socket and DIN plug) and 7.5 metre lowloss cable for DAB+ (with Fakra socket and SMB socket.
Further versions:
DZ_2113_52 with 2 extension cables 5.0 m (DIN plug/SMB socket).
DZ_2113_L500 with 2 extension cables 5 m and 2 adapters (DIN plug/ISO plug/Fakra socket/SMB socket)
DZ_2113_L750 with 2 extension cables 7.5 m and 2 adapters (DIN plug/ISO plug/Fakra socket/SMB socket)
DZ_2113_L1000 with 2 extension cables 10 m and 2 adapters (DIN plug/ISO plug/Fakra socket/SMB socket)
*************************************************************************************************
