Technical data:

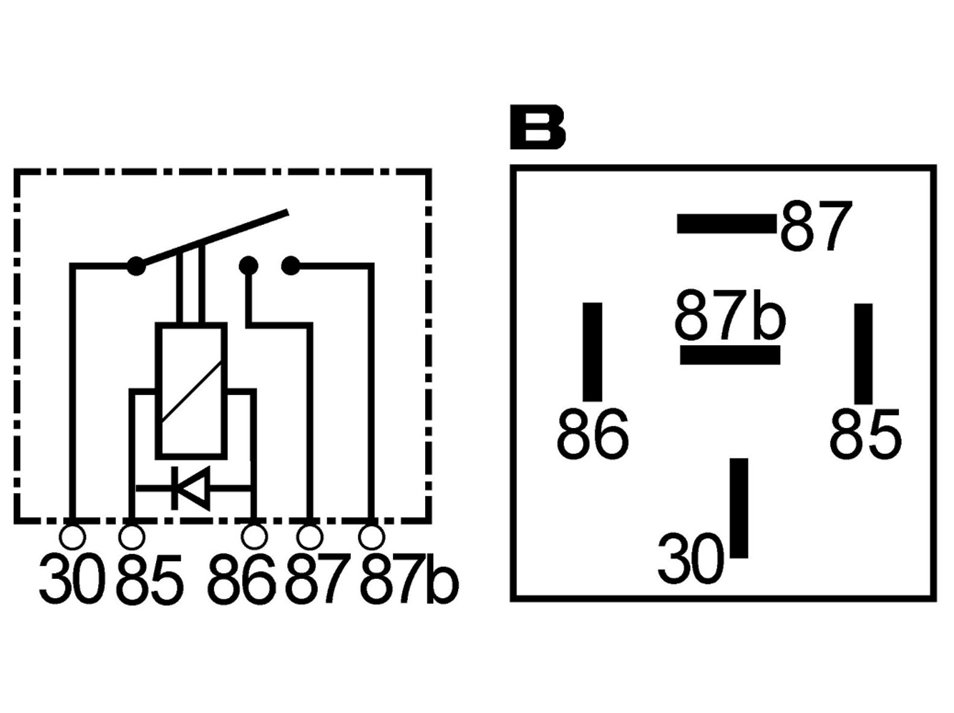

Relay with 2 outputs and free-wheeling diode, 12 volts, max. 2 x 20 A.
Contents:
1 x relay
German instructions for assigning the relay and setting up the switching commands for switching the relay on and off via SMS in the Teltonika firmware.
Note: Most Teltonika routers such as Rut950, Rut955, RutX11, RutX14, RutX50 have a switching output and a measuring input in the 4-pole output, which you can monitor and switch via SMS. The switching output is an open collector output for max. 30 volts and 300 mA. To be able to connect a consumer to it, you absolutely need this relay. Please also observe the corresponding wiring diagram in the instructions to avoid damage to the switching output of the router.
The prerequisite for remote switching of the relay is an independent SIM card that can be reached via SMS. Please note that in the case of multi-SIM cards, i.e. when several cards are administered under one telephone number, usually only one card can be reached via SMS. If you have such a card in your smartphone and router, then you cannot communicate with your router via SMS.
You can find more information on Youtube: Search "Dietz switch output" or
https://www.youtube.com/watch?v=r2VIX7Leq_U&t=26s
*************************************************************************************************
