High-quality DAB+ splitter including two downstream amplifiers from Antenne Bad Blankenburg, Art. No. 4721.01 or 4721_01
All-round carefree package, for all cases in which you don't know in advance which plugs are installed. With this adapter set you can solve 99% of all cases!
Generates an additional DAB/DAB+ signal from an FM/VHF antenna.
Connections to the radio:
FM/UKW: 150 Ohm DIN plug or
FM/UKW: 50 Ohm ISO plug or
Fakra socket
DAB/DAB+: SMB Female (female) or
DAB/DAB+: SMA plug (male)
Connector to antenna: 50 Ohm ISO female or
Plug to antenna: 150 Ohm DIN socket or
Fakra plug, directly on the splitter
Also works with active FM/UKW antennas if the antenna itself does not filter the frequency band. If a phantom antenna is used, a phantom adapter must be inserted between the splitter and the antenna connector, e.g. 8551.
The following adapter cables are included in the delivery:
8524 Fakra socket DIN plug
8514 Fakra socket DIN socket
8525 Fakra socket ISO plug
8555 Fakra socket ISO socket
8529 Fakra socket Fakra socket
8526 Fakra socket SMB socket
8527 Fakra socket SMA plug

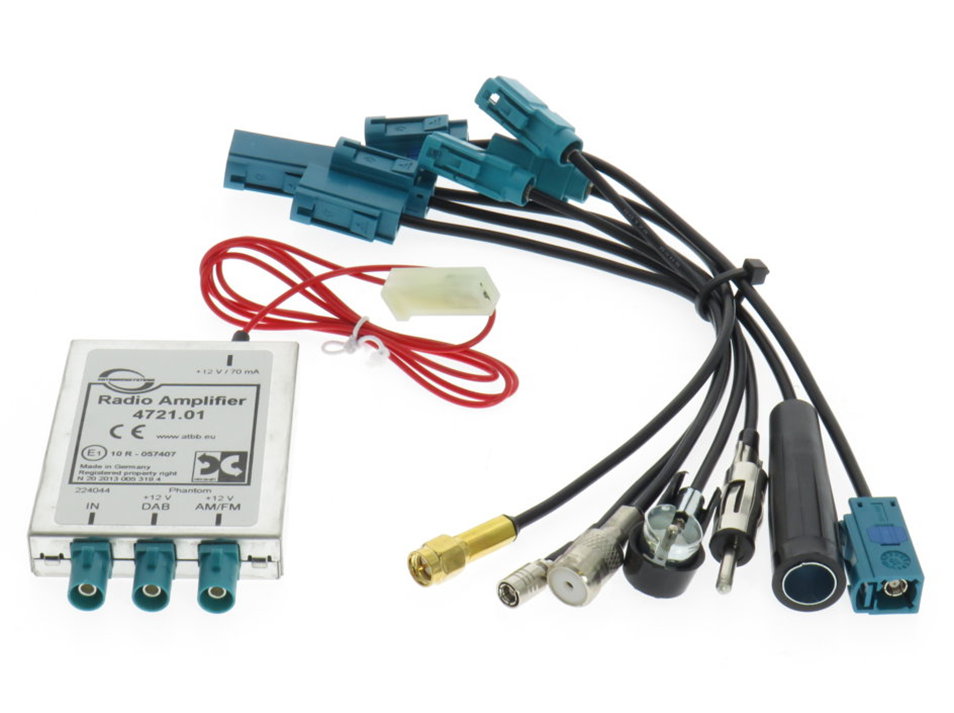

In the picture you will find the following plugs from bottom right to left:
Fakra socket
DIN socket
DIN plug
ISO plug
ISO socket
SMB socket
SMA plug
