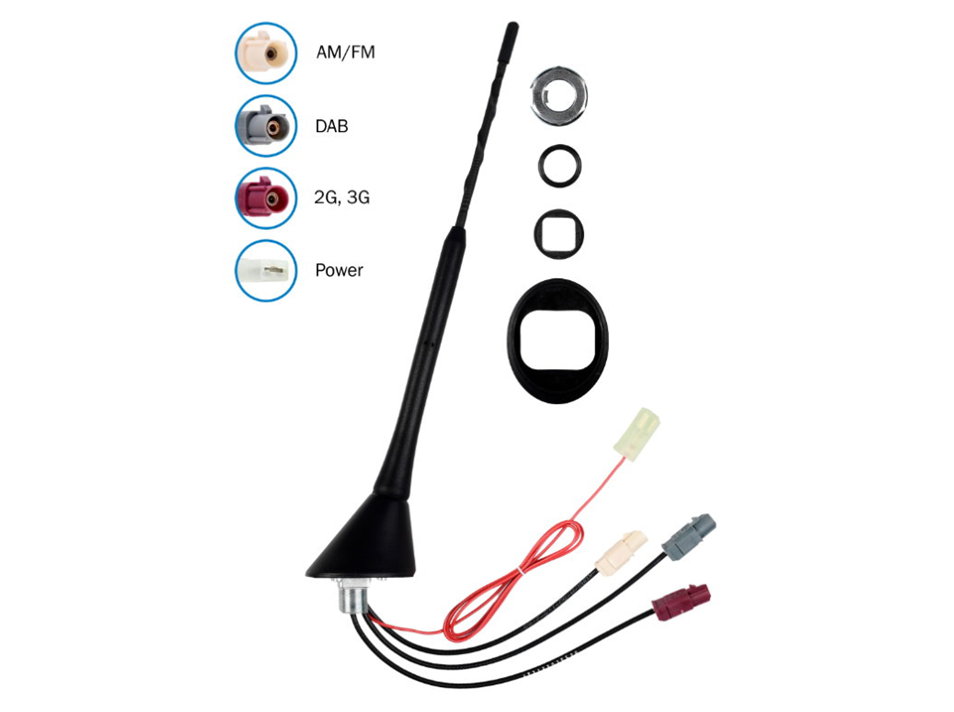

Roof antenna with the following functions and features:
- DAB reception, active and low-noise in the B III range, L-band passive.
- Radio reception, active and low-noise for AM/FM
- Mobile radio reception in the range GSM900/1800, UMTS
- 12 V power supply for the amplifiers either via inner conductor of the cable connections (only one connection recommended) or DIN plug-in sleeve
- Low-noise antenna rod
- Low installation depth (15 mm)
- Low installation effort - only one mounting hole for 3 functions
- Interchangeable with conventional flex antennas
- Cable type: RG 174
- Services: UMTS, AM/FM, 2G, GSM, DAB+, 3G
- Connectors: FAKRA(m) D, FAKRA(m) G, FAKRA(m) B
Especially suitable for:
- Analogue and digital broadcasting
- mobile radio
Spare radiator: 4626.11
Additional information:
- Mounting: Roof mounting
- Additional info: Kombiflex roof antenna
- Category/special feature: active antenna with separate signal routing

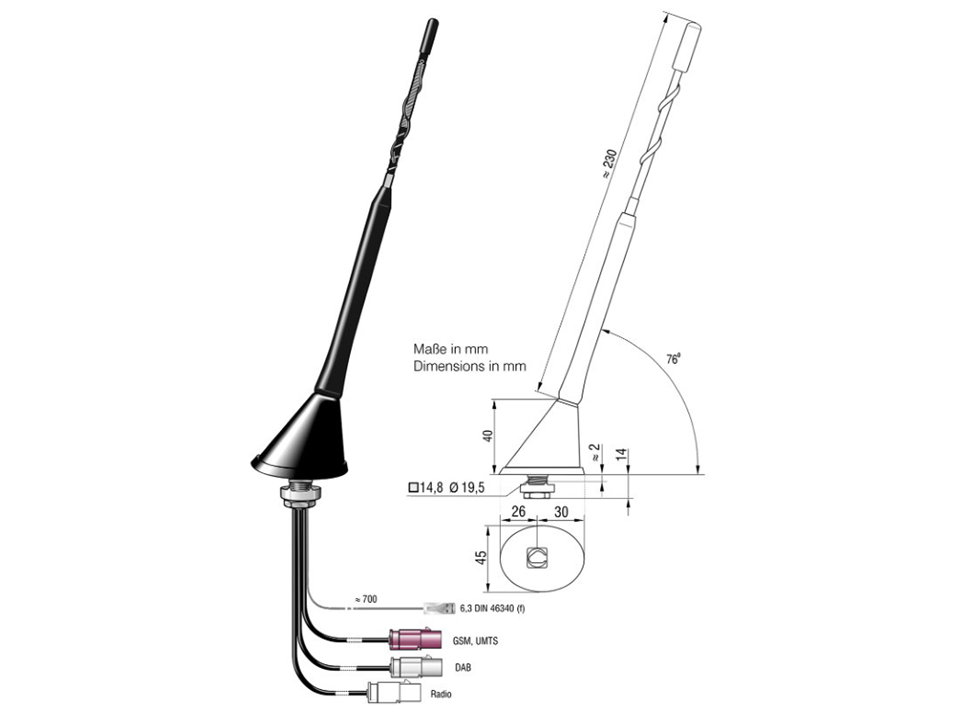

Dimensions:
- Width: 56 mm
- Height: 270 mm
- Length: 45 mm
- Weight: 0.125 kg
*************************************************************************************************
Product safety information:
Brand: ATTB
Manufacturer: ATTB Antennentechnik Bad Blankenburg GmbH, Gewerbegebiet 2, 07407 Rudolstadt, info@attb.de
*************************************************************************************************
